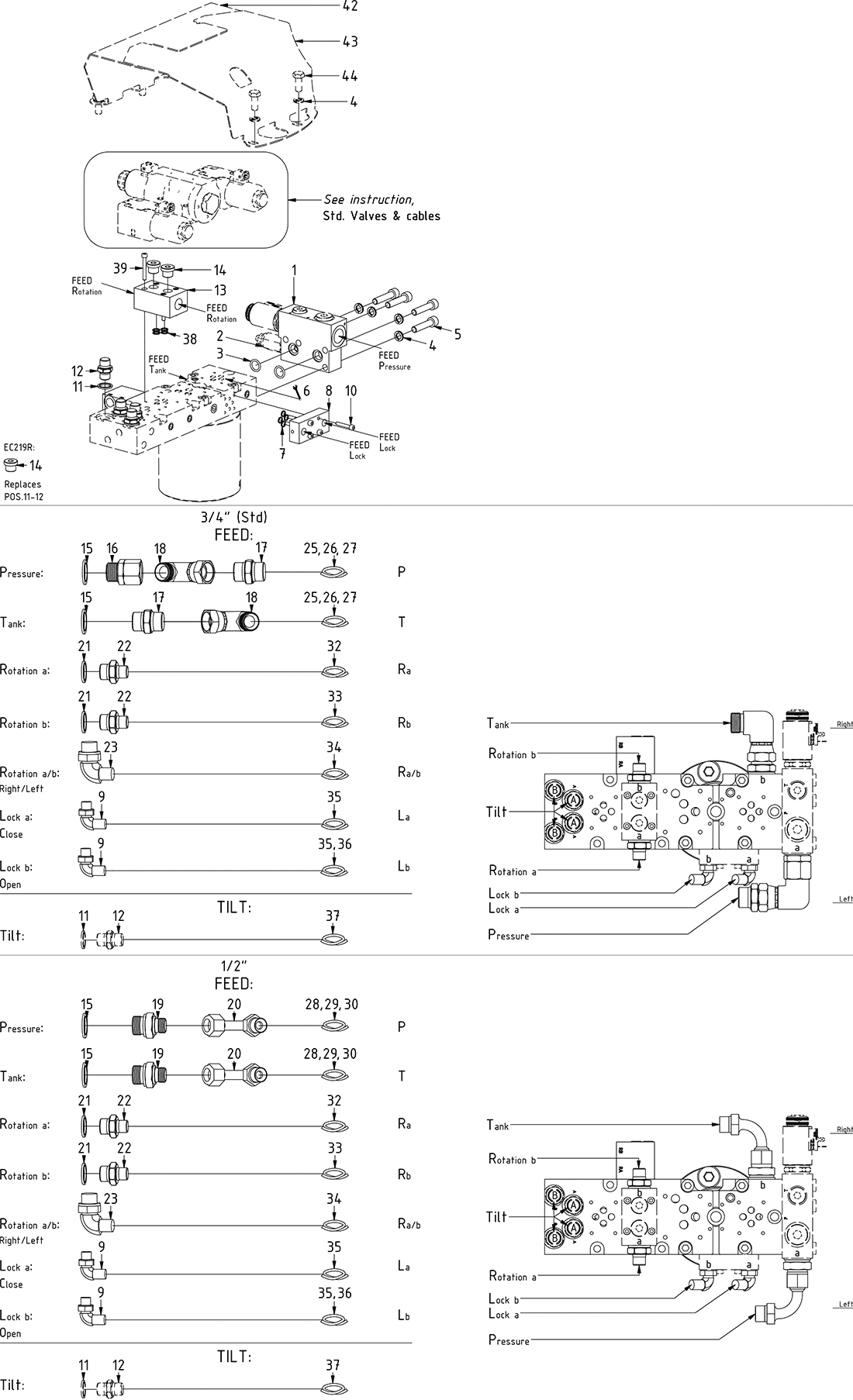

ss9SQ 'ECHF'

Pos

Artikel

Extra Info

Antal i ritning

Pris

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position10

Antal i ritning4

9,00 SEK

exkl. moms

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

9,00 SEK

exkl. moms

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position7

Antal i ritning4

9,00 SEK

exkl. moms

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

9,00 SEK

exkl. moms

Connection block 2x 1/4" NG4

Article no: 1009586

Position8

Antal i ritning1

1 660,00 SEK

exkl. moms

Connection block 2x 1/4" NG4

Article no: 1009586

Mount before adapters and feed hoses

1 660,00 SEK

exkl. moms

Adapter 401-04-04 90°

Article no: 710151

Position9

Antal i ritning2

184,00 SEK

exkl. moms

Adapter 401-04-04 90°

Article no: 710151

184,00 SEK

exkl. moms

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position39

Antal i ritning4

9,00 SEK

exkl. moms

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Torque: 9,7Nm

9,00 SEK

exkl. moms

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

Position44

Antal i ritning4

9,00 SEK

exkl. moms

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

9,00 SEK

exkl. moms

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position38

Antal i ritning4

9,00 SEK

exkl. moms

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

9,00 SEK

exkl. moms

Seal washer GBR12 3/4"

Article no: 710706

Position15

Antal i ritning3

12,00 SEK

exkl. moms

Seal washer GBR12 3/4"

Article no: 710706

12,00 SEK

exkl. moms

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position4

Antal i ritning8

20,00 SEK

exkl. moms

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

QTY: 4 part of make up

20,00 SEK

exkl. moms

Seal washer GBR08 1/2"

Article no: 710704

Position21

Antal i ritning2

10,00 SEK

exkl. moms

Seal washer GBR08 1/2"

Article no: 710704

10,00 SEK

exkl. moms

Plug VSTIR38ED 3/8"

Article no: 711504

Position14

Antal i ritning2

56,00 SEK

exkl. moms

Plug VSTIR38ED 3/8"

Article no: 711504

QTY: 6 for EC219R

56,00 SEK

exkl. moms

Adapter 136-12-12

Article no: 710126

Position17

Antal i ritning2

89,00 SEK

exkl. moms

Adapter 136-12-12

Article no: 710126

89,00 SEK

exkl. moms

Seal washer GBR06 3/8"

Article no: 710703

Position11

Antal i ritning4

9,00 SEK

exkl. moms

Seal washer GBR06 3/8"

Article no: 710703

QTY: 5 for option ST

9,00 SEK

exkl. moms

Adapter 136-06-06

Article no: 710106

Position12

Antal i ritning4

26,00 SEK

exkl. moms

Adapter 136-06-06

Article no: 710106

26,00 SEK

exkl. moms

Adapter 401-06-08 90°

Article no: 710157

Position23

Antal i ritning1

280,00 SEK

exkl. moms

Adapter 401-06-08 90°

Article no: 710157

Replaces POS.21-22 for Right/Left

280,00 SEK

exkl. moms

Valve-Double pressure relief EC206,209&ECHF

Article no: 730287

Position2

Antal i ritning1

4 170,00 SEK

exkl. moms

Valve-Double pressure relief EC206,209&ECHF

Article no: 730287

4 170,00 SEK

exkl. moms

Connection block 2x 1/2" / 2x 3/8" NG6

Article no: 405670

Position13

Antal i ritning1

1 750,00 SEK

exkl. moms

Connection block 2x 1/2" / 2x 3/8" NG6

Article no: 405670

1 750,00 SEK

exkl. moms

Adapter 135-06-08

Article no: 710122

Position22

Antal i ritning2

56,00 SEK

exkl. moms

Adapter 135-06-08

Article no: 710122

56,00 SEK

exkl. moms

Adapter 236-06-06

Article no: 710131

Position40

Antal i ritning1

56,00 SEK

exkl. moms

Adapter 236-06-06

Article no: 710131

For option ST, on Rotation b

56,00 SEK

exkl. moms

O-ring 15,54 x 2,62 NBR 70 shore

Article no: 712423

Position3

Antal i ritning2

9,00 SEK

exkl. moms

O-ring 15,54 x 2,62 NBR 70 shore

Article no: 712423

9,00 SEK

exkl. moms

Adapter 407-12-12 90°

Article no: 7000010

Position18

Antal i ritning2

330,00 SEK

exkl. moms

Adapter 407-12-12 90°

Article no: 7000010

330,00 SEK

exkl. moms

Hose feed - EC219 - valve block all right / left UNI

Article no: 742657

Position29

Antal i ritning1

2 660,00 SEK

exkl. moms

Hose feed - EC219 - valve block all right / left UNI

Article no: 742657

Feed Right: Mount on left side Feed Left: Mount on right side

2 660,00 SEK

exkl. moms

Hose

Article no: 742675

Position32

Antal i ritning1

960,00 SEK

exkl. moms

Hose

Article no: 742675

960,00 SEK

exkl. moms

Hose

Article no: 7000672

Position33

Antal i ritning1

960,00 SEK

exkl. moms

Hose

Article no: 7000672

960,00 SEK

exkl. moms

Hose Tilt Long - EC219 - ECHF/QSM

Article no: 7000027

Position37

Antal i ritning4

800,00 SEK

exkl. moms

Hose Tilt Long - EC219 - ECHF/QSM

Article no: 7000027

800,00 SEK

exkl. moms

Hose feed - EC219 - valve block ECHF

Article no: 7000028

Position25

Antal i ritning2

3 880,00 SEK

exkl. moms

Hose feed - EC219 - valve block ECHF

Article no: 7000028

3 880,00 SEK

exkl. moms

Hose feed - EC226 - valve block ECHF-S1,S2,QS70 Top part

Article no: 7000063

Position26

Antal i ritning2

3 970,00 SEK

exkl. moms

Hose feed - EC226 - valve block ECHF-S1,S2,QS70 Top part

Article no: 7000063

QTY: 1 for Feed Right/Left

3 970,00 SEK

exkl. moms

Hose

Article no: 7000065

Position27

Antal i ritning1

4 880,00 SEK

exkl. moms

Hose

Article no: 7000065

Feed Right: Mount on left side Feed Left: Mount on right side

4 880,00 SEK

exkl. moms

Hose

Article no: 742621

Position30

Antal i ritning2

2 430,00 SEK

exkl. moms

Hose

Article no: 742621

QTY: 1 for Feed Right/Left

2 430,00 SEK

exkl. moms

Hose

Article no: 7000323

Position41

Antal i ritning2

810,00 SEK

exkl. moms

Hose

Article no: 7000323

810,00 SEK

exkl. moms

Protective cover valve block EC219 ECHF/QSM

Article no: 1027795

Position43

Antal i ritning1

830,00 SEK

exkl. moms

Protective cover valve block EC219 ECHF/QSM

Article no: 1027795

830,00 SEK

exkl. moms

Protective cover valve block EC219 ECHF/QSM - lip

Article no: 1027796

Position42

Antal i ritning1

830,00 SEK

exkl. moms

Protective cover valve block EC219 ECHF/QSM - lip

Article no: 1027796

830,00 SEK

exkl. moms

Hose

Article no: 7000062

Position34

Antal i ritning1

600,00 SEK

exkl. moms

Hose

Article no: 7000062

Replaces "a" for Rot. Left Replaces "b" for Rot. Right

600,00 SEK

exkl. moms

Connection block P ss9 ECHF/QSM 24V

Article no: 1027707

Position1

Antal i ritning1

19 200,00 SEK

exkl. moms

Connection block P ss9 ECHF/QSM 24V

Article no: 1027707

(Dump & POS.2 included)

19 200,00 SEK

exkl. moms

Screw MC6S 10x45 12.9 untreated ISO4762

Article no: 610589

Position5

Antal i ritning4

24,00 SEK

exkl. moms

Screw MC6S 10x45 12.9 untreated ISO4762

Article no: 610589

24,00 SEK

exkl. moms

Adapter 135-08-12

Article no: 710109

Position19

Antal i ritning2

127,00 SEK

exkl. moms

Adapter 135-08-12

Article no: 710109

127,00 SEK

exkl. moms

Adapter 488-08-08 90°

Article no: 712209

Position20

Antal i ritning2

250,00 SEK

exkl. moms

Adapter 488-08-08 90°

Article no: 712209

250,00 SEK

exkl. moms

Hose feed - EC219 - valve block UNI top part

Article no: 742620

Position28

Antal i ritning2

2 370,00 SEK

exkl. moms

Hose feed - EC219 - valve block UNI top part

Article no: 742620

QTY: 1 for Feed Right/Left

2 370,00 SEK

exkl. moms

Hose

Article no: 7000033

Position36

Antal i ritning1

720,00 SEK

exkl. moms

Hose

Article no: 7000033

Replaces "b" for Lock Left

720,00 SEK

exkl. moms

Hose

Article no: 7000032

Position35

Antal i ritning2

780,00 SEK

exkl. moms

Hose

Article no: 7000032

(Same for Lock Right)

780,00 SEK

exkl. moms

Adapter 703-12-12

Article no: 710218

Position16

Antal i ritning1

162,00 SEK

exkl. moms

Adapter 703-12-12

Article no: 710218

162,00 SEK

exkl. moms
