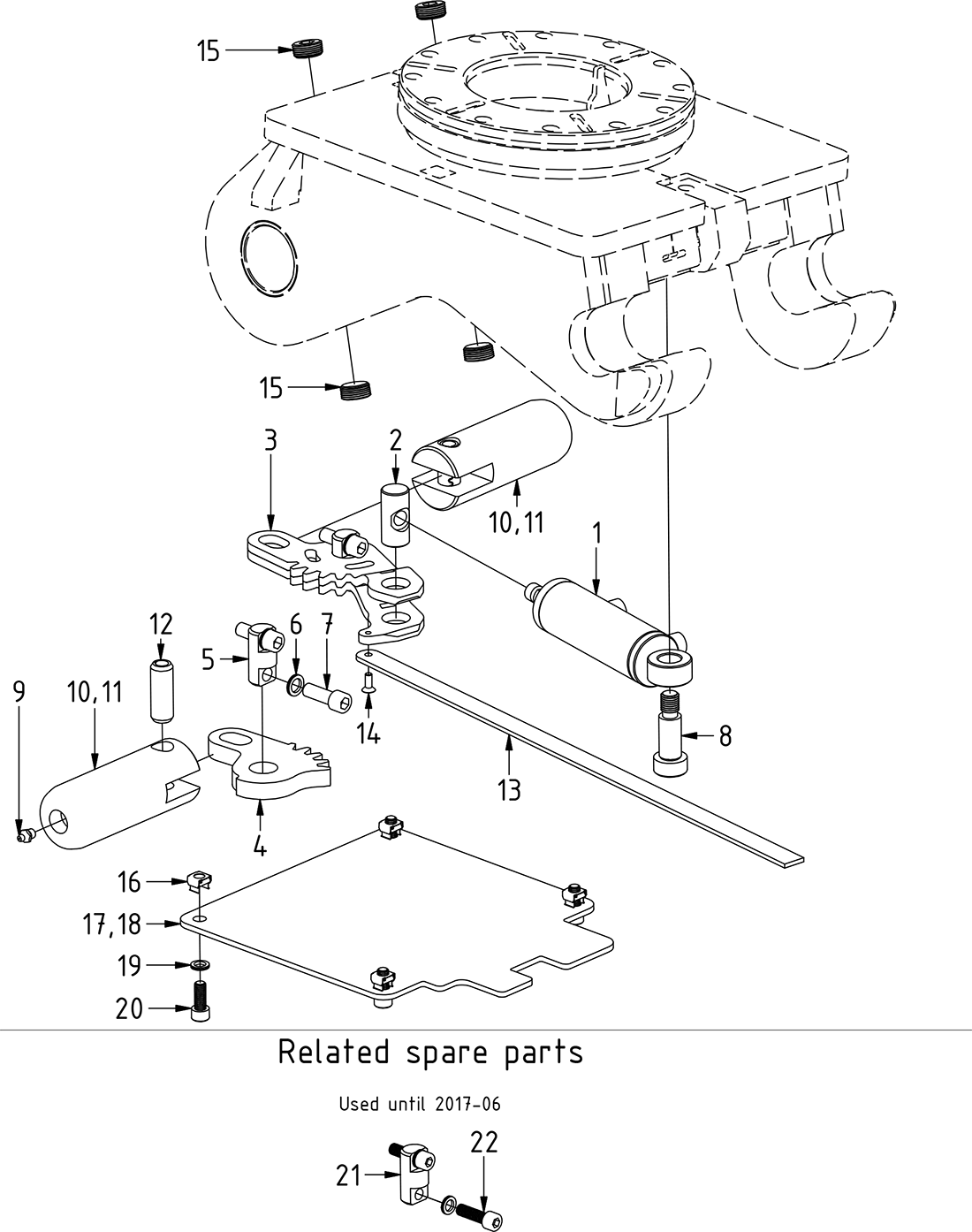

Std komp. SW33EC/SW48EC V2

Pos

Artikel

Extra Info

Antal i ritning

Pris

Locking cylinder S45/S50/S60

Article no: 300732

Position1

Antal i ritning1

4 440,00 SEK

exkl. moms

Locking cylinder S45/S50/S60

Article no: 300732

4 440,00 SEK

exkl. moms

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position6

Antal i ritning4

33,00 SEK

exkl. moms

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

33,00 SEK

exkl. moms

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Position13

Antal i ritning1

180,00 SEK

exkl. moms

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Cut to fit

180,00 SEK

exkl. moms

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Position14

Antal i ritning1

9,00 SEK

exkl. moms

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Loctite 2700

9,00 SEK

exkl. moms

Screw MC6S 10x35 12.9 untreated ISO4762

Article no: 610494

Position22

Antal i ritning1

9,00 SEK

exkl. moms

Screw MC6S 10x35 12.9 untreated ISO4762

Article no: 610494

Replaced by POS.7

9,00 SEK

exkl. moms

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position19

Antal i ritning4

20,00 SEK

exkl. moms

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

20,00 SEK

exkl. moms

Pipe Plug DIN 906 3/4"

Article no: 7000261

Position15

Antal i ritning4

36,00 SEK

exkl. moms

Pipe Plug DIN 906 3/4"

Article no: 7000261

36,00 SEK

exkl. moms

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Position7

Antal i ritning4

14,00 SEK

exkl. moms

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Torque: 136Nm

14,00 SEK

exkl. moms

Screw MC6S 10x25 12.9 ZFSHL ISO4762

Article no: 6000195

Position20

Antal i ritning4

14,00 SEK

exkl. moms

Screw MC6S 10x25 12.9 ZFSHL ISO4762

Article no: 6000195

14,00 SEK

exkl. moms

Locking pin S70/S80 Ø25 L=52

Article no: 402894

Position2

Antal i ritning1

1 030,00 SEK

exkl. moms

Locking pin S70/S80 Ø25 L=52

Article no: 402894

Loctite 2700

1 030,00 SEK

exkl. moms

Lubrication nipple 1/8 straight

Article no: 711403

Position9

Antal i ritning2

10,00 SEK

exkl. moms

Lubrication nipple 1/8 straight

Article no: 711403

10,00 SEK

exkl. moms

Cage nuts M10 C

Article no: 610957

Position16

Antal i ritning4

15,00 SEK

exkl. moms

Cage nuts M10 C

Article no: 610957

15,00 SEK

exkl. moms

Cover plate SW33 V2

Article no: 1027901

Position17

Antal i ritning1

960,00 SEK

exkl. moms

Cover plate SW33 V2

Article no: 1027901

For SW33

960,00 SEK

exkl. moms

Locking axle SW33 V2

Article no: 1040285

Position21

Antal i ritning1

2 940,00 SEK

exkl. moms

Locking axle SW33 V2

Article no: 1040285

Replaced by POS.5

2 940,00 SEK

exkl. moms

Lock arm SW33 V2 cylinder

Article no: 1030893

Position3

Antal i ritning1

5 400,00 SEK

exkl. moms

Lock arm SW33 V2 cylinder

Article no: 1030893

5 400,00 SEK

exkl. moms

Lock arm SW33 V2

Article no: 1028790

Position4

Antal i ritning1

1 620,00 SEK

exkl. moms

Lock arm SW33 V2

Article no: 1028790

1 620,00 SEK

exkl. moms

Screw-Shoulder screw Ø20x40/M16

Article no: 611707

Position8

Antal i ritning1

350,00 SEK

exkl. moms

Screw-Shoulder screw Ø20x40/M16

Article no: 611707

Loctite 2700

350,00 SEK

exkl. moms

Locking axle M12 SW33,SW48 V2

Article no: 1042993

Position5

Antal i ritning2

2 850,00 SEK

exkl. moms

Locking axle M12 SW33,SW48 V2

Article no: 1042993

2 850,00 SEK

exkl. moms

Lock wedge Liebherr SW48 V2

Article no: 1042110

Position11

Antal i ritning2

5 550,00 SEK

exkl. moms

Lock wedge Liebherr SW48 V2

Article no: 1042110

For SW48

5 550,00 SEK

exkl. moms

Spring pin Connex S 20x55

Article no: 6000015

Position12

Antal i ritning2

710,00 SEK

exkl. moms

Spring pin Connex S 20x55

Article no: 6000015

710,00 SEK

exkl. moms

Cover plate SW48 V2

Article no: 1042113

Position18

Antal i ritning1

1 440,00 SEK

exkl. moms

Cover plate SW48 V2

Article no: 1042113

For SW48

1 440,00 SEK

exkl. moms
