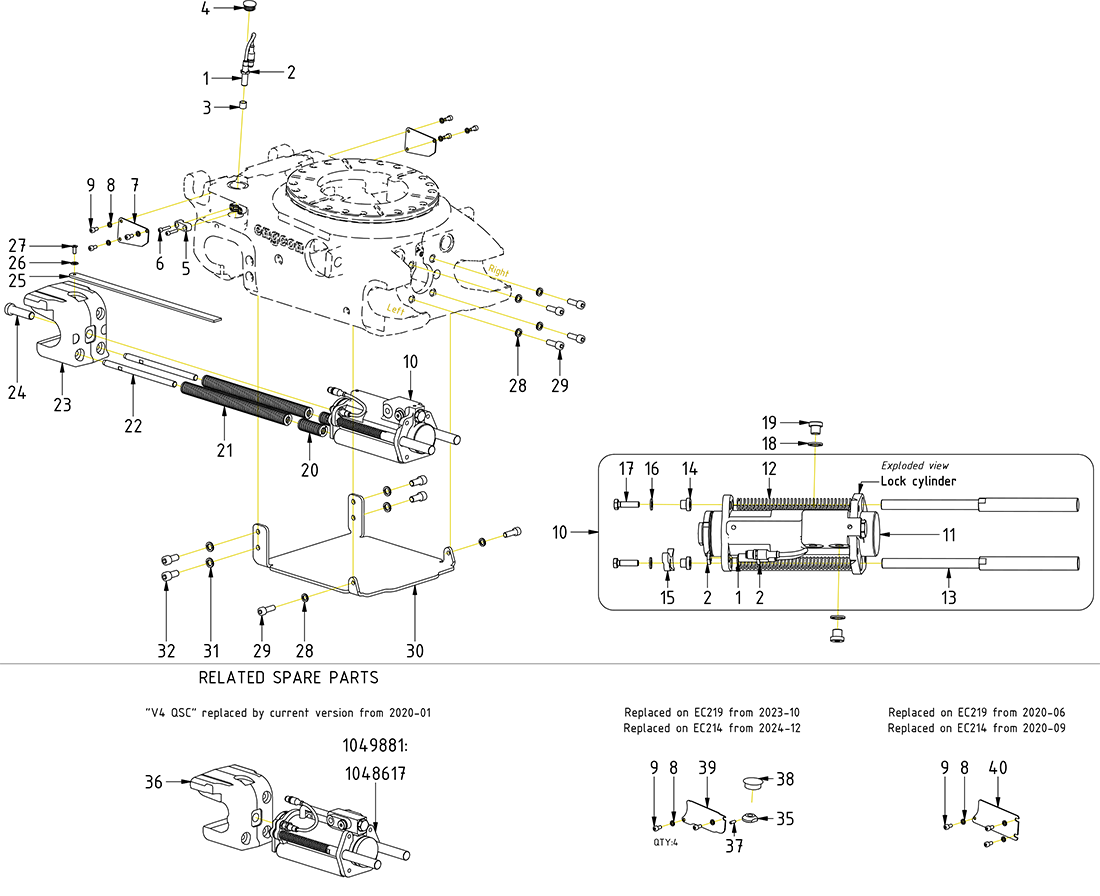

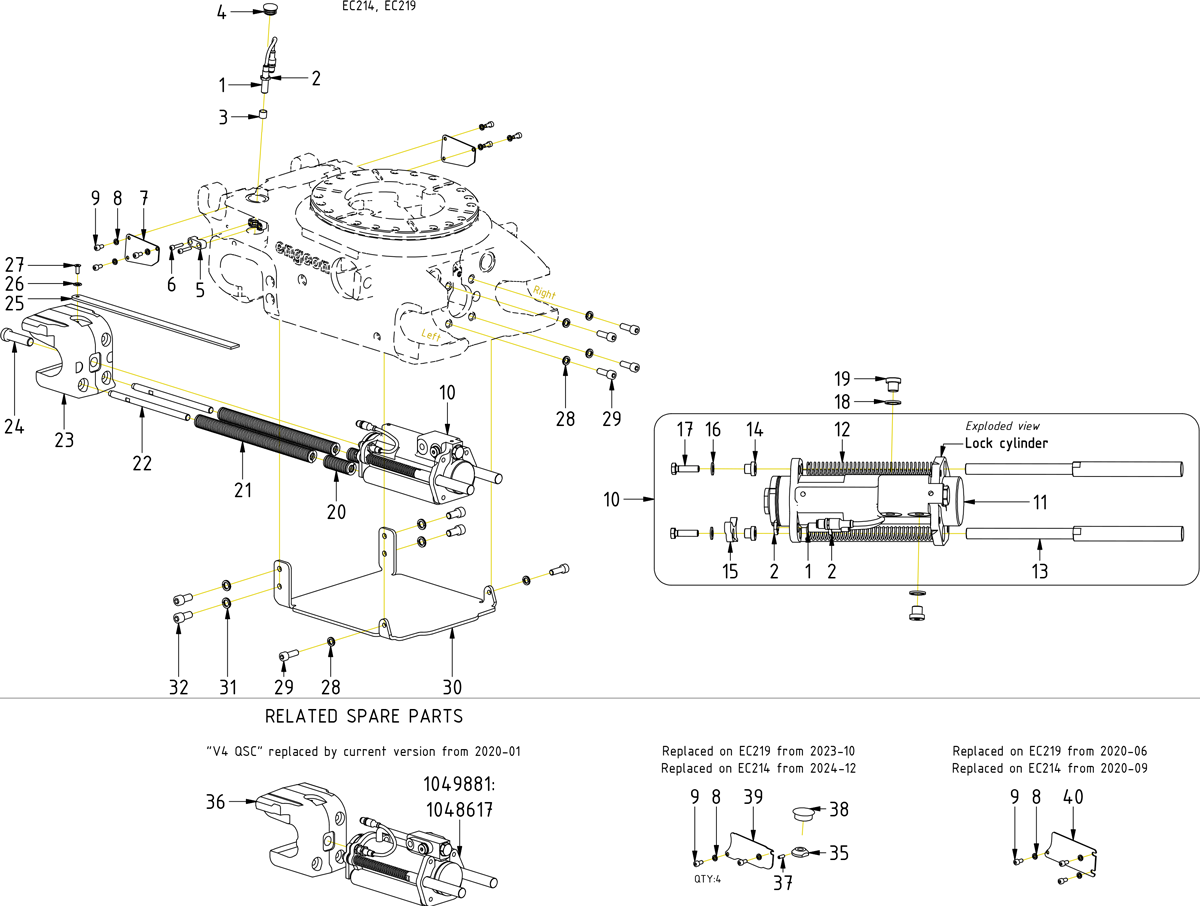

Std comp. QSM60

Pos

Artikel

Extra Info

Antal i ritning

Pris (exkl. moms)

Cover plate Side QSM60 V3 - sensor

Article no: 1069623

Position7

Antal i ritning2

107,00 SEK

exkl. moms

I lager

Cover plate Side QSM60 V3 - sensor

Article no: 1069623

107,00 SEK

I lager

Locking hook S60/QSM60/QS60 V2 cast

Article no: 1046654

Position23

Antal i ritning1

4 610,00 SEK

exkl. moms

I lager

Locking hook S60/QSM60/QS60 V2 cast

Article no: 1046654

4 610,00 SEK

I lager

Cover plate QSM60-without ECO-block V2

Article no: 1074015

Position30

Antal i ritning1

1 250,00 SEK

exkl. moms

I lager

Cover plate QSM60-without ECO-block V2

Article no: 1074015

No cover plate for EC-Oil

1 250,00 SEK

I lager

Rubber Steel Clamp Ø12

Article no: 790155

Position33

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Rubber Steel Clamp Ø12

Article no: 790155

9,00 SEK

I lager

Clamping half sensor QSM40/60/S40/45/60/70/80 Injection mold

Article no: 1063793

Position5

Antal i ritning2

12,00 SEK

exkl. moms

I lager

Clamping half sensor QSM40/60/S40/45/60/70/80 Injection mold

Article no: 1063793

12,00 SEK

I lager

Screw MC6S 5x25 12.9 untreated ISO4762

Article no: 610402

Position6

Antal i ritning2

15,00 SEK

exkl. moms

I lager

Screw MC6S 5x25 12.9 untreated ISO4762

Article no: 610402

15,00 SEK

I lager

Screw MC6S 6x12H 12.9 ZFSHL ISO4762

Article no: 6000352

Position9

Antal i ritning6

9,00 SEK

exkl. moms

I lager

Screw MC6S 6x12H 12.9 ZFSHL ISO4762

Article no: 6000352

9,00 SEK

I lager

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position8

Antal i ritning6

14,00 SEK

exkl. moms

I lager

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

14,00 SEK

I lager

Cover plate Side QSM60 - sensor

Article no: 1044173

Position40

Antal i ritning2

350,00 SEK

exkl. moms

Få i lager (3)

Cover plate Side QSM60 - sensor

Article no: 1044173

Replaced by POS.39

350,00 SEK

Få i lager (3)

Cover plate Side QSM60 V2 - sensor

Article no: 1058912

Position39

Antal i ritning2

240,00 SEK

exkl. moms

I lager

Cover plate Side QSM60 V2 - sensor

Article no: 1058912

Replaced by POS.7

240,00 SEK

I lager

Locking hook QS60 cast

Article no: 1026154

Position36

Antal i ritning1

2 860,00 SEK

exkl. moms

Ej i lager

Locking hook QS60 cast

Article no: 1026154

Replaced by POS.23 from 2020-01

2 860,00 SEK

Ej i lager

Locking cylinder QSM60/S60 V5 Forged QSC pre-assembled

Article no: 1083142

Position10

Antal i ritning1

16 300,00 SEK

exkl. moms

Ej i lager

Locking cylinder QSM60/S60 V5 Forged QSC pre-assembled

Article no: 1083142

(POS.1, 11-17 incl.)

16 300,00 SEK

Ej i lager

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

Position29

Antal i ritning6

20,00 SEK

exkl. moms

I lager

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

QTY: 4 for EC-Oil

20,00 SEK

I lager

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position31

Antal i ritning4

33,00 SEK

exkl. moms

I lager

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

33,00 SEK

I lager

Sensor plate QS60

Article no: 1036413

Position15

Antal i ritning1

189,00 SEK

exkl. moms

I lager

Sensor plate QS60

Article no: 1036413

Assemble with sligth play

189,00 SEK

I lager

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Position34

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Loxeal 55-02

9,00 SEK

I lager

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

Position32

Antal i ritning4

14,00 SEK

exkl. moms

I lager

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

14,00 SEK

I lager

Spring S60/QSM60/QS60 locking hook - short (25x64)

Article no: 1024022

Position20

Antal i ritning2

168,00 SEK

exkl. moms

I lager

Spring S60/QSM60/QS60 locking hook - short (25x64)

Article no: 1024022

168,00 SEK

I lager

Inductive sensor M12-hook quick hitch&Locking cylinder QSM

Article no: 1048262

Position1

Antal i ritning2

1 680,00 SEK

exkl. moms

I lager

Inductive sensor M12-hook quick hitch&Locking cylinder QSM

Article no: 1048262

Connect to slip ring QSM

1 680,00 SEK

I lager

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

Position35

Antal i ritning1

260,00 SEK

exkl. moms

I lager

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

260,00 SEK

I lager

Protection Plug ECO power plug & QS sensor

Article no: 8000068

Position38

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Protection Plug ECO power plug & QS sensor

Article no: 8000068

Replaced by POS.4

9,00 SEK

I lager

Washer BRB FZB 8,4x16x1,6 ISO7089

Article no: 611005

Position16

Antal i ritning2

9,00 SEK

exkl. moms

I lager

Washer BRB FZB 8,4x16x1,6 ISO7089

Article no: 611005

9,00 SEK

I lager

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Position25

Antal i ritning1

180,00 SEK

exkl. moms

I lager

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Cut to fit

180,00 SEK

I lager

Screw MLC6S 16x60 10.9 DIN7984 untreated

Article no: 610721

Position24

Antal i ritning1

81,00 SEK

exkl. moms

I lager

Screw MLC6S 16x60 10.9 DIN7984 untreated

Article no: 610721

Loxeal 83-52. Torque 136Nm

81,00 SEK

I lager

Washer Starlock 6mm

Article no: 6000415

Position26

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Washer Starlock 6mm

Article no: 6000415

9,00 SEK

I lager

Screw MS6SS 8x16 ISO4027

Article no: 610808

Position37

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Screw MS6SS 8x16 ISO4027

Article no: 610808

9,00 SEK

I lager

Spring S45/S60/QS45/50/60 locking hook-long (25x305)

Article no: 1024021

Position21

Antal i ritning2

890,00 SEK

exkl. moms

I lager

Spring S45/S60/QS45/50/60 locking hook-long (25x305)

Article no: 1024021

890,00 SEK

I lager

Screw M6S 8x30 8.8 FZB ISO4017

Article no: 611538

Position17

Antal i ritning2

9,00 SEK

exkl. moms

I lager

Screw M6S 8x30 8.8 FZB ISO4017

Article no: 611538

Loxeal 83-52

9,00 SEK

I lager

Spring QS45/50/60 Ejectors - 16x175

Article no: 1049973

Position12

Antal i ritning2

149,00 SEK

exkl. moms

I lager

Spring QS45/50/60 Ejectors - 16x175

Article no: 1049973

149,00 SEK

I lager

Steering S45/S60/QSM45/50/60/QS45/50/60

Article no: 1025621

Position22

Antal i ritning2

460,00 SEK

exkl. moms

I lager

Steering S45/S60/QSM45/50/60/QS45/50/60

Article no: 1025621

Loxeal 83-52

460,00 SEK

I lager

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position28

Antal i ritning6

20,00 SEK

exkl. moms

I lager

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

QTY: 4 for EC-Oil

20,00 SEK

I lager

Seal washer GBR04 1/4"

Article no: 710702

Position18

Antal i ritning4

9,00 SEK

exkl. moms

I lager

Seal washer GBR04 1/4"

Article no: 710702

9,00 SEK

I lager

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Position27

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Loxeal 83-52

9,00 SEK

I lager

Protection Plug QS sensor GL26

Article no: 1068462

Position4

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Protection Plug QS sensor GL26

Article no: 1068462

9,00 SEK

I lager

Spacer QS45-60 V3

Article no: 1036406

Position14

Antal i ritning2

118,00 SEK

exkl. moms

I lager

Spacer QS45-60 V3

Article no: 1036406

118,00 SEK

I lager

Ejector QS60

Article no: 1036405

Position13

Antal i ritning2

1 000,00 SEK

exkl. moms

I lager

Ejector QS60

Article no: 1036405

1 000,00 SEK

I lager

Plug Din 908 1/4"

Article no: 711505

Position19

Antal i ritning4

25,00 SEK

exkl. moms

I lager

Plug Din 908 1/4"

Article no: 711505

25,00 SEK

I lager

Protective sleeve Inductive sensor M12

Article no: 8000056

Position3

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Protective sleeve Inductive sensor M12

Article no: 8000056

9,00 SEK

I lager
