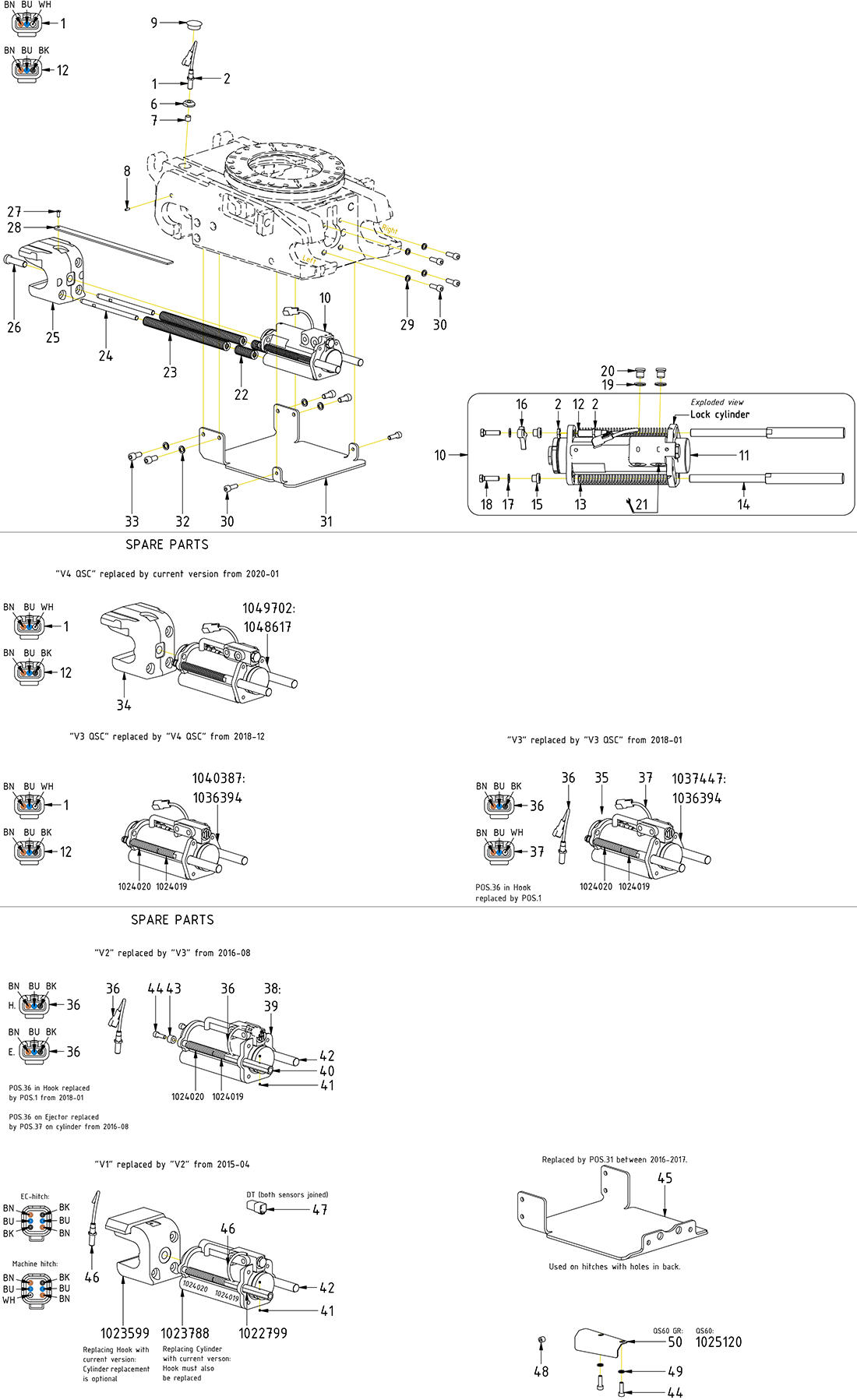

Std comp. QS60 / QSD60

Pos

Artikel

Extra Info

Antal i ritning

Pris (exkl. moms)

Cover plate QS60-without ECO-block

Article no: 1028105

Position46

Antal i ritning1

1 550,00 SEK

exkl. moms

Få i lager (1)

Cover plate QS60-without ECO-block

Article no: 1028105

Replacd by POS.32. Note holes

1 550,00 SEK

Få i lager (1)

Ejector QS60 not for sensor

Article no: 1022930

Position43

Antal i ritning1

3 160,00 SEK

exkl. moms

I lager

Ejector QS60 not for sensor

Article no: 1022930

Replaced by POS.14 from 2016-08

3 160,00 SEK

I lager

Locking cylinder QS60 V5 Forged pre-assembled-NOT QSC

Article no: 1083144

Position36

Antal i ritning1

16 400,00 SEK

exkl. moms

Få i lager (1)

Locking cylinder QS60 V5 Forged pre-assembled-NOT QSC

Article no: 1083144

Spare part use only

16 400,00 SEK

Få i lager (1)

Locking cylinder QS60 pre-assembled

Article no: 1033081

Position39

Antal i ritning1

27 600,00 SEK

exkl. moms

Ej i lager

Locking cylinder QS60 pre-assembled

Article no: 1033081

Replaced by 1037447 from 2016-08 (POS.19-20, 40-41, 43-45 incl.)

27 600,00 SEK

Ej i lager

Ejector QS60 for sensor

Article no: 1022799

Position41

Antal i ritning1

6 660,00 SEK

exkl. moms

I lager

Ejector QS60 for sensor

Article no: 1022799

Replaced by POS.14 from 2016-08 (POS.37, 42 incl.)

6 660,00 SEK

I lager

Locking hook QS60 cast

Article no: 1026154

Position35

Antal i ritning1

2 860,00 SEK

exkl. moms

Ej i lager

Locking hook QS60 cast

Article no: 1026154

Replaced by POS.25 from 2020-01

2 860,00 SEK

Ej i lager

Cover plate QS60-without ECO-block V2

Article no: 1034517

Position32

Antal i ritning1

1 490,00 SEK

exkl. moms

I lager

Cover plate QS60-without ECO-block V2

Article no: 1034517

No cover plate for EC-Oil

1 490,00 SEK

I lager

Locking cylinder QSM60/S60 V5 Forged QSC pre-assembled

Article no: 1083143

Position10

Antal i ritning1

15 800,00 SEK

exkl. moms

I lager

Locking cylinder QSM60/S60 V5 Forged QSC pre-assembled

Article no: 1083143

(POS.11-18 incl.)

15 800,00 SEK

I lager

Locking hook S60/QSM60/QS60 V2 cast

Article no: 1046654

Position25

Antal i ritning1

4 610,00 SEK

exkl. moms

I lager

Locking hook S60/QSM60/QS60 V2 cast

Article no: 1046654

4 610,00 SEK

I lager

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position50

Antal i ritning2

19,00 SEK

exkl. moms

I lager

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Used until 2016-01

19,00 SEK

I lager

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

Position34

Antal i ritning4

14,00 SEK

exkl. moms

I lager

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

14,00 SEK

I lager

Spring S60/QSM60/QS60 locking hook - short (25x64)

Article no: 1024022

Position22

Antal i ritning2

168,00 SEK

exkl. moms

I lager

Spring S60/QSM60/QS60 locking hook - short (25x64)

Article no: 1024022

168,00 SEK

I lager

Protective sleeve Inductive sensor M12

Article no: 8000056

Position7

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Protective sleeve Inductive sensor M12

Article no: 8000056

9,00 SEK

I lager

Ejector QS60

Article no: 1036405

Position14

Antal i ritning2

1 000,00 SEK

exkl. moms

I lager

Ejector QS60

Article no: 1036405

1 000,00 SEK

I lager

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position33

Antal i ritning4

33,00 SEK

exkl. moms

I lager

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

33,00 SEK

I lager

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

Position31

Antal i ritning6

20,00 SEK

exkl. moms

I lager

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

QTY: 4 for EC-Oil

20,00 SEK

I lager

Sensor plate QS60

Article no: 1036413

Position16

Antal i ritning1

189,00 SEK

exkl. moms

I lager

Sensor plate QS60

Article no: 1036413

Assemble with slight play

189,00 SEK

I lager

Seal washer GBR04 1/4"

Article no: 710702

Position19

Antal i ritning2

9,00 SEK

exkl. moms

I lager

Seal washer GBR04 1/4"

Article no: 710702

9,00 SEK

I lager

Plug Din 908 1/4"

Article no: 711505

Position20

Antal i ritning2

25,00 SEK

exkl. moms

I lager

Plug Din 908 1/4"

Article no: 711505

25,00 SEK

I lager

Screw MS6SS 8x16 ISO4027

Article no: 610808

Position8

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Screw MS6SS 8x16 ISO4027

Article no: 610808

9,00 SEK

I lager

Inductive sensor M12 IF6079

Article no: 810463

Position47

Antal i ritning2

1 720,00 SEK

exkl. moms

Få i lager (3)

Inductive sensor M12 IF6079

Article no: 810463

Replaced by POS.37 from 2015-04

1 720,00 SEK

Få i lager (3)

Screw MC6S 8x25 12.9 ZFSHL ISO4762

Article no: 6000143

Position45

Antal i ritning4

9,00 SEK

exkl. moms

I lager

Screw MC6S 8x25 12.9 ZFSHL ISO4762

Article no: 6000143

9,00 SEK

I lager

Spring QS45/50/60 Ejectors - 16x175

Article no: 1049973

Position13

Antal i ritning2

149,00 SEK

exkl. moms

I lager

Spring QS45/50/60 Ejectors - 16x175

Article no: 1049973

149,00 SEK

I lager

Inductive sensor M12 DTM04-3P - Locking cylinder

Article no: 1036833

Position38

Antal i ritning1

2 600,00 SEK

exkl. moms

I lager

Inductive sensor M12 DTM04-3P - Locking cylinder

Article no: 1036833

Replaced by POS.12 from 2018-01

2 600,00 SEK

I lager

Inductive sensor M12 DTM04-3P - Locking cylinder QSC - 645mm

Article no: 1040359

Position12

Antal i ritning1

2 600,00 SEK

exkl. moms

I lager

Inductive sensor M12 DTM04-3P - Locking cylinder QSC - 645mm

Article no: 1040359

Mount 1mm from Sensor plate

2 600,00 SEK

I lager

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

Position6

Antal i ritning1

260,00 SEK

exkl. moms

I lager

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

260,00 SEK

I lager

Protection Plug ECO power plug & QS sensor

Article no: 8000068

Position9

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Protection Plug ECO power plug & QS sensor

Article no: 8000068

9,00 SEK

I lager

Steering S45/S60/QSM45/50/60/QS45/50/60

Article no: 1025621

Position24

Antal i ritning2

460,00 SEK

exkl. moms

I lager

Steering S45/S60/QSM45/50/60/QS45/50/60

Article no: 1025621

Loxeal 83-52

460,00 SEK

I lager

Screw M6S 8x30 8.8 FZB ISO4017

Article no: 611538

Position18

Antal i ritning2

9,00 SEK

exkl. moms

I lager

Screw M6S 8x30 8.8 FZB ISO4017

Article no: 611538

Loxeal 83-52

9,00 SEK

I lager

Screw-Set Screw P6SS 5x4 A2 ISO4026

Article no: 610816

Position42

Antal i ritning2

8,00 SEK

exkl. moms

I lager

Screw-Set Screw P6SS 5x4 A2 ISO4026

Article no: 610816

8,00 SEK

I lager

Inductive sensor M12 DTM04-3P - hook QSC - 645mm

Article no: 1040358

Position1

Antal i ritning1

2 600,00 SEK

exkl. moms

I lager

Inductive sensor M12 DTM04-3P - hook QSC - 645mm

Article no: 1040358

Mount just below surface edge

2 600,00 SEK

I lager

Inductive sensor M12 DTM04-3P - hook quick hitch

Article no: 1029068

Position37

Antal i ritning1

2 600,00 SEK

exkl. moms

I lager

Inductive sensor M12 DTM04-3P - hook quick hitch

Article no: 1029068

Replaced 2018

2 600,00 SEK

I lager

Deutsch DT04-6P connector device

Article no: 820109

Position48

Antal i ritning1

280,00 SEK

exkl. moms

Få i lager (5)

Deutsch DT04-6P connector device

Article no: 820109

Used until 2015-04

280,00 SEK

Få i lager (5)

Washer BRB FZB 8,4x16x1,6 ISO7089

Article no: 611005

Position17

Antal i ritning2

9,00 SEK

exkl. moms

I lager

Washer BRB FZB 8,4x16x1,6 ISO7089

Article no: 611005

9,00 SEK

I lager

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Position27

Antal i ritning1

180,00 SEK

exkl. moms

I lager

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Cut to fit

180,00 SEK

I lager

Washer Starlock 6mm

Article no: 6000415

Position28

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Washer Starlock 6mm

Article no: 6000415

9,00 SEK

I lager

Screw MLC6S 16x60 10.9 DIN7984 untreated

Article no: 610721

Position26

Antal i ritning1

81,00 SEK

exkl. moms

I lager

Screw MLC6S 16x60 10.9 DIN7984 untreated

Article no: 610721

Loxeal 83-52. Torque 136Nm

81,00 SEK

I lager

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position30

Antal i ritning4

20,00 SEK

exkl. moms

I lager

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

20,00 SEK

I lager

Spacer QS45-QS60

Article no: 1025462

Position44

Antal i ritning2

200,00 SEK

exkl. moms

I lager

Spacer QS45-QS60

Article no: 1025462

200,00 SEK

I lager

Spring S45/S60/QS45/50/60 locking hook-long (25x305)

Article no: 1024021

Position23

Antal i ritning2

890,00 SEK

exkl. moms

I lager

Spring S45/S60/QS45/50/60 locking hook-long (25x305)

Article no: 1024021

890,00 SEK

I lager

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Position29

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Loxeal 83-52

9,00 SEK

I lager

Spacer QS45-60 V3

Article no: 1036406

Position15

Antal i ritning2

118,00 SEK

exkl. moms

I lager

Spacer QS45-60 V3

Article no: 1036406

118,00 SEK

I lager
