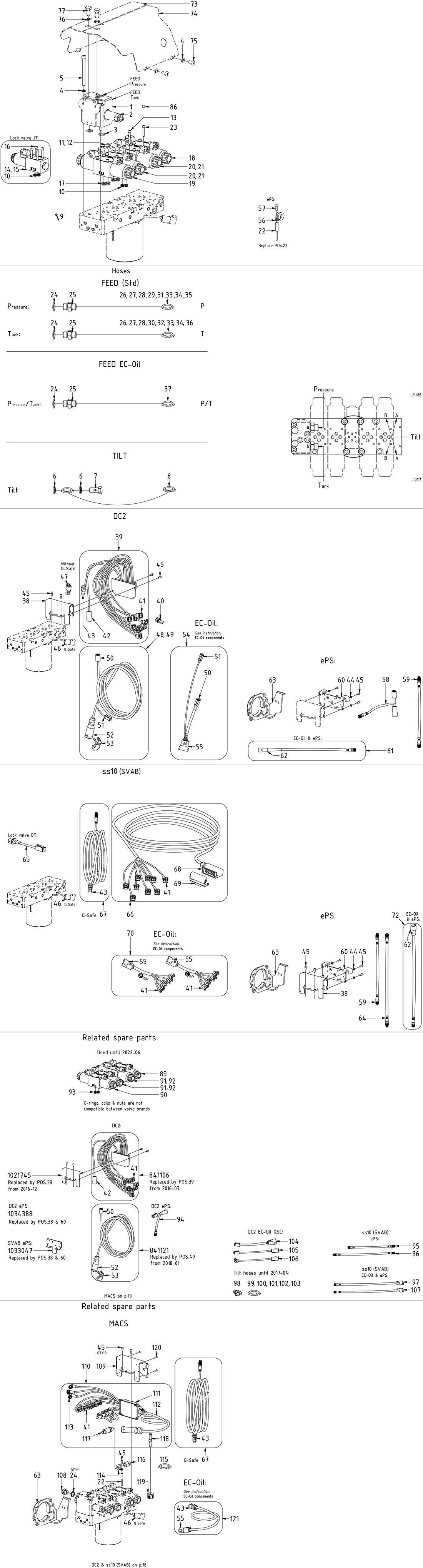

ss10 (DC2/SVAB)

Pos

Artikel

Extra Info

Antal i ritning

Pris

Cable QS - QLM - tiltrotator DTM 4,5m

Article no: 842148

Position67

Antal i ritning1

2 700,00 SEK

exkl. moms

Cable QS - QLM - tiltrotator DTM 4,5m

Article no: 842148

For Q-Safe

2 700,00 SEK

exkl. moms

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

Position44

Antal i ritning4

12,00 SEK

exkl. moms

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

12,00 SEK

exkl. moms

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Position45

Antal i ritning4

9,00 SEK

exkl. moms

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

QTY depends on config (4-8)

9,00 SEK

exkl. moms

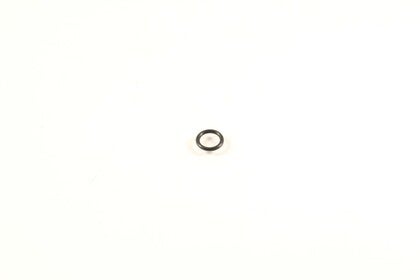

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Position17

Antal i ritning16

15,00 SEK

exkl. moms

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

15,00 SEK

exkl. moms

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position57

Antal i ritning1

9,00 SEK

exkl. moms

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Torque: 8,1Nm

9,00 SEK

exkl. moms

Adapter 236-04-04

Article no: 1013885

Position116

Antal i ritning1

48,00 SEK

exkl. moms

116

Adapter 236-04-04

Article no: 1013885

48,00 SEK

exkl. moms

Rubber Steel Clamp Ø14

Article no: 613009

Position114

Antal i ritning1

12,00 SEK

exkl. moms

114

Rubber Steel Clamp Ø14

Article no: 613009

12,00 SEK

exkl. moms

Rubber Steel Clamp Ø16

Article no: 6000009

Position56

Antal i ritning1

12,00 SEK

exkl. moms

Rubber Steel Clamp Ø16

Article no: 6000009

12,00 SEK

exkl. moms

Screw K6S 8x16H 10.9 FZB ISO7380

Article no: 611810

Position75

Antal i ritning4

25,00 SEK

exkl. moms

Screw K6S 8x16H 10.9 FZB ISO7380

Article no: 611810

25,00 SEK

exkl. moms

Screw MC6S 4x10 8.8 FZB ISO4762

Article no: 610523

Position120

Antal i ritning4

7,00 SEK

exkl. moms

120

Screw MC6S 4x10 8.8 FZB ISO4762

Article no: 610523

7,00 SEK

exkl. moms

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position10

Antal i ritning4

9,00 SEK

exkl. moms

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

9,00 SEK

exkl. moms

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

Position11

Antal i ritning1

10 300,00 SEK

exkl. moms

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

QS, CW, ECPUP, ss SIQ (POS.10 included)

10 300,00 SEK

exkl. moms

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position13

Antal i ritning3

9,00 SEK

exkl. moms

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Torque: 9,7Nm

9,00 SEK

exkl. moms

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position53

Antal i ritning1

360,00 SEK

exkl. moms

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

360,00 SEK

exkl. moms

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Position78

Antal i ritning1

6 740,00 SEK

exkl. moms

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Nut (POS.81) and o-ring with chokenozzle included. Assemble with POS.79/80

6 740,00 SEK

exkl. moms

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

Position82

Antal i ritning1

200,00 SEK

exkl. moms

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

O-ring included

200,00 SEK

exkl. moms

Coil NG4 12V JT

Article no: 730313

Position79

Antal i ritning1

1 180,00 SEK

exkl. moms

Coil NG4 12V JT

Article no: 730313

1 180,00 SEK

exkl. moms

Nut directional valve NG4

Article no: 1006785

Position81

Antal i ritning1

300,00 SEK

exkl. moms

Nut directional valve NG4

Article no: 1006785

300,00 SEK

exkl. moms

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position16

Antal i ritning4

9,00 SEK

exkl. moms

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Torque: 9,7Nm

9,00 SEK

exkl. moms

Unit cable-DC2-QSC EC206-EC233

Article no: 8000175

Position49

Antal i ritning1

3 240,00 SEK

exkl. moms

Unit cable-DC2-QSC EC206-EC233

Article no: 8000175

For Lock valve JT. Replace POS.48

3 240,00 SEK

exkl. moms

Plug JT

Article no: 1045154

Position71

Antal i ritning1

116,00 SEK

exkl. moms

Plug JT

Article no: 1045154

Plug JT connector "1" on Right

116,00 SEK

exkl. moms

Cable tie 4,8x371

Article no: 1021586

Position88

Antal i ritning1

250,00 SEK

exkl. moms

Cable tie 4,8x371

Article no: 1021586

250,00 SEK

exkl. moms

Adapter cable ePS-DC2-sensor--> Tilt Module

Article no: 8000783

Position58

Antal i ritning1

1 430,00 SEK

exkl. moms

Adapter cable ePS-DC2-sensor--> Tilt Module

Article no: 8000783

1 430,00 SEK

exkl. moms

Adapter cable ePS ECO

Article no: 8000825

Position72

Antal i ritning1

1 160,00 SEK

exkl. moms

Adapter cable ePS ECO

Article no: 8000825

For EC-Oil ePS. Replace POS.64

1 160,00 SEK

exkl. moms

Unit cable-ePS

Article no: 8000824

Position64

Antal i ritning1

1 940,00 SEK

exkl. moms

Unit cable-ePS

Article no: 8000824

1 940,00 SEK

exkl. moms

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Position90

Antal i ritning1

10 900,00 SEK

exkl. moms

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Replaced by POS.19 (ATOS)

10 900,00 SEK

exkl. moms

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Position91

Antal i ritning1

4 720,00 SEK

exkl. moms

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Replaced by POS.20 (ATOS)

4 720,00 SEK

exkl. moms

Jumper JT tool lock valve SQ/QSC DC2/ss9-2

Article no: 1018662

Position40

Antal i ritning1

190,00 SEK

exkl. moms

Jumper JT tool lock valve SQ/QSC DC2/ss9-2

Article no: 1018662

Plug JT connector "1"

190,00 SEK

exkl. moms

Cable tie 7,8x360

Article no: 1021587

Position87

Antal i ritning1

9,00 SEK

exkl. moms

Cable tie 7,8x360

Article no: 1021587

9,00 SEK

exkl. moms

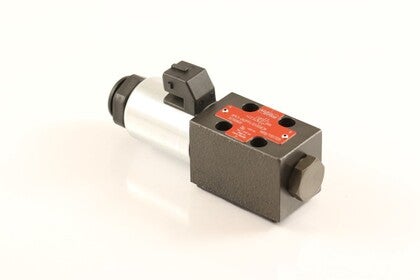

Directional valve NG4 lock 12V JT

Article no: 730312

Position14

Antal i ritning1

2 780,00 SEK

exkl. moms

Directional valve NG4 lock 12V JT

Article no: 730312

(POS.10 included)

2 780,00 SEK

exkl. moms

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

Position20

Antal i ritning2

2 140,00 SEK

exkl. moms

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

(POS.17 included)

2 140,00 SEK

exkl. moms

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

Position19

Antal i ritning1

6 290,00 SEK

exkl. moms

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

(POS.17 included)

6 290,00 SEK

exkl. moms

Adapter cable Deutsch DT (2S) - AMP JT (2P)

Article no: 1017478

Position65

Antal i ritning1

640,00 SEK

exkl. moms

Adapter cable Deutsch DT (2S) - AMP JT (2P)

Article no: 1017478

(Previously also for DC2)

640,00 SEK

exkl. moms

Deutsch DT04-4P connector device

Article no: 820108

Position42

Antal i ritning1

230,00 SEK

exkl. moms

Deutsch DT04-4P connector device

Article no: 820108

230,00 SEK

exkl. moms

AMP Junior Timer (JT) 2S connector device

Article no: 810218

Position41

Antal i ritning9

144,00 SEK

exkl. moms

AMP Junior Timer (JT) 2S connector device

Article no: 810218

144,00 SEK

exkl. moms

Deutsch DTM06-6S connector device

Article no: 8000053

Position43

Antal i ritning1

390,00 SEK

exkl. moms

Deutsch DTM06-6S connector device

Article no: 8000053

390,00 SEK

exkl. moms

Protection plug for DTM06-6S

Article no: 8000090

Position47

Antal i ritning1

290,00 SEK

exkl. moms

Protection plug for DTM06-6S

Article no: 8000090

290,00 SEK

exkl. moms

Unit cable-DC2-QSC DT EC206-EC233

Article no: 8001201

Position48

Antal i ritning1

3 030,00 SEK

exkl. moms

Unit cable-DC2-QSC DT EC206-EC233

Article no: 8001201

3 030,00 SEK

exkl. moms

Deutsch DT06-4S connector device

Article no: 820218

Position50

Antal i ritning1

260,00 SEK

exkl. moms

Deutsch DT06-4S connector device

Article no: 820218

260,00 SEK

exkl. moms

Deutsch DT06-2S connector device

Article no: 820219

Position51

Antal i ritning1

184,00 SEK

exkl. moms

Deutsch DT06-2S connector device

Article no: 820219

184,00 SEK

exkl. moms

ILME 21.21 12P MKA V20 connector device

Article no: 841192

Position52

Antal i ritning4

1 440,00 SEK

exkl. moms

ILME 21.21 12P MKA V20 connector device

Article no: 841192

1 440,00 SEK

exkl. moms

Deutsch DTM04-12PA connector device

Article no: 8000177

Position55

Antal i ritning1

420,00 SEK

exkl. moms

Deutsch DTM04-12PA connector device

Article no: 8000177

420,00 SEK

exkl. moms

Adapter cable ECO W-DC2-QSC-DTM

Article no: 1048529

Position54

Antal i ritning1

1 840,00 SEK

exkl. moms

Adapter cable ECO W-DC2-QSC-DTM

Article no: 1048529

For EC-Oil. Replace POS.48

1 840,00 SEK

exkl. moms

Unit cable-ss5-SVAB ILME 16P w/o Unit box-3,5m

Article no: 303465

Position66

Antal i ritning1

5 510,00 SEK

exkl. moms

Unit cable-ss5-SVAB ILME 16P w/o Unit box-3,5m

Article no: 303465

5 510,00 SEK

exkl. moms

ILME 66.16 16P MZO 25 L20 connector device

Article no: 810203

Position68

Antal i ritning1

1 030,00 SEK

exkl. moms

ILME 66.16 16P MZO 25 L20 connector device

Article no: 810203

1 030,00 SEK

exkl. moms

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

Position69

Antal i ritning1

550,00 SEK

exkl. moms

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

550,00 SEK

exkl. moms

Adapter cable ECO-ss5/ss9/ss10-DTM-->JT/DT

Article no: 1029599

Position70

Antal i ritning2

2 240,00 SEK

exkl. moms

Adapter cable ECO-ss5/ss9/ss10-DTM-->JT/DT

Article no: 1029599

For EC-Oil. Replace POS.66-67

2 240,00 SEK

exkl. moms

Plug plastic - valve screw hole

Article no: 790156

Position86

Antal i ritning16

9,00 SEK

exkl. moms

Plug plastic - valve screw hole

Article no: 790156

9,00 SEK

exkl. moms

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Position22

Antal i ritning1

162,00 SEK

exkl. moms

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Torque: 9,7Nm

162,00 SEK

exkl. moms

Electronics Module TM2-EC206B-233/EC10-30 DC2 QS-DTM

Article no: 842137

Position39

Antal i ritning1

12 700,00 SEK

exkl. moms

Electronics Module TM2-EC206B-233/EC10-30 DC2 QS-DTM

Article no: 842137

12 700,00 SEK

exkl. moms
