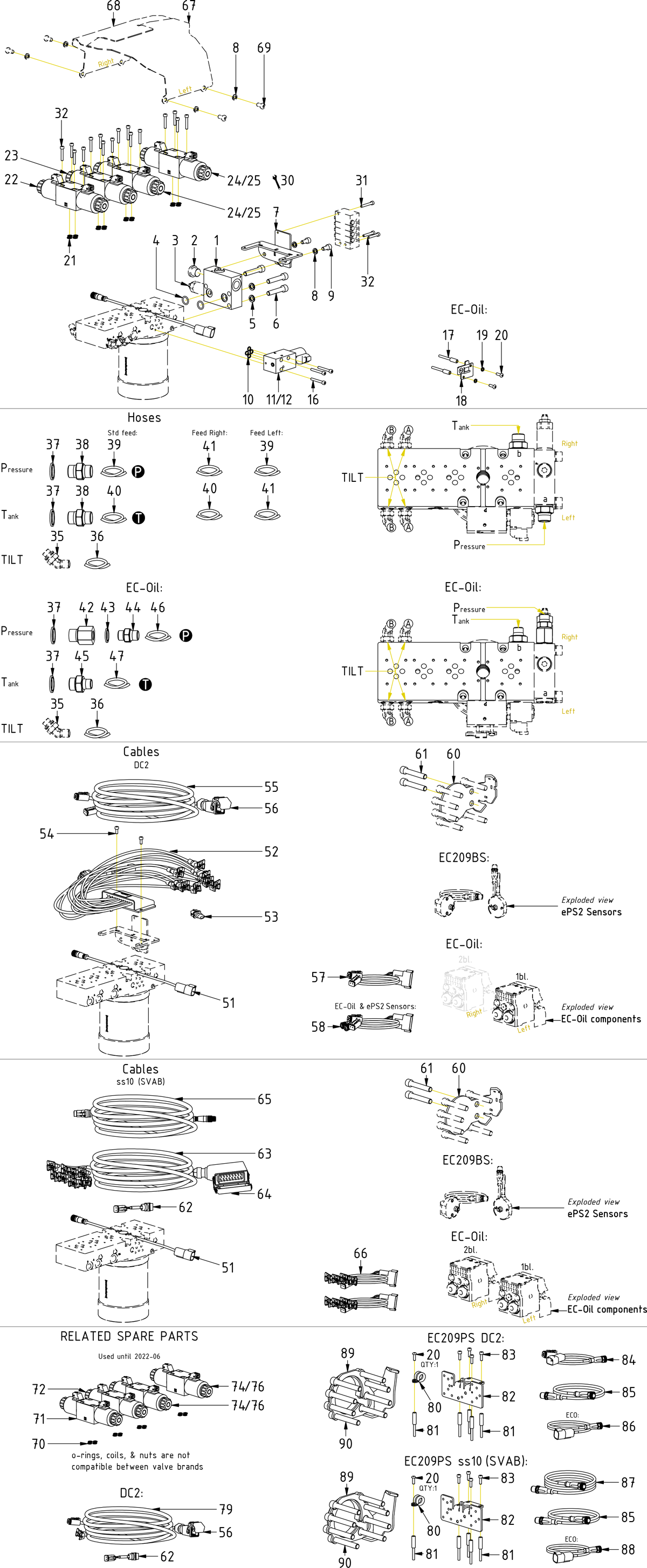

ss10 (DC2/SVAB)

Pos

Artikel

Extra Info

Antal i ritning

Pris (exkl. moms)

Hose

Article no: 7001267

Position46

Antal i ritning1

580,00 SEK

exkl. moms

Ej i lager

Hose

Article no: 7001267

580,00 SEK

Ej i lager

Connection block P with pressure reducer QSM45/50

Article no: 1055945

Position1

Antal i ritning1

7 400,00 SEK

exkl. moms

Få i lager (3)

Connection block P with pressure reducer QSM45/50

Article no: 1055945

(POS.2-3 incl.)

7 400,00 SEK

Få i lager (3)

Adapter cable DTM 6P-M12 5S

Article no: 8002459

Position86

Antal i ritning1

800,00 SEK

exkl. moms

I lager

Adapter cable DTM 6P-M12 5S

Article no: 8002459

For EC-Oil w. ePS NB! Only compatible with 8002477

800,00 SEK

I lager

Valve-Pressure reducer-SP4A-B3 EC209

Article no: 730288

Position3

Antal i ritning1

2 220,00 SEK

exkl. moms

Få i lager (4)

Valve-Pressure reducer-SP4A-B3 EC209

Article no: 730288

2 220,00 SEK

Få i lager (4)

Mounting plate-1x Deutsch NG4

Article no: 1058235

Position18

Antal i ritning1

390,00 SEK

exkl. moms

Ej i lager

Mounting plate-1x Deutsch NG4

Article no: 1058235

390,00 SEK

Ej i lager

Adapter 235-08-06

Article no: 7000705

Position42

Antal i ritning1

78,00 SEK

exkl. moms

I lager

Adapter 235-08-06

Article no: 7000705

78,00 SEK

I lager

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

Position24

Antal i ritning2

2 140,00 SEK

exkl. moms

I lager

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

(POS.21, 27, 29 incl.)

2 140,00 SEK

I lager

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

Position19

Antal i ritning2

12,00 SEK

exkl. moms

I lager

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

12,00 SEK

I lager

Branch cable CAN DTM-DT/M12-ECO W ePS EC209B-EC233

Article no: 8001847

Position58

Antal i ritning1

2 140,00 SEK

exkl. moms

I lager

Branch cable CAN DTM-DT/M12-ECO W ePS EC209B-EC233

Article no: 8001847

For EC-Oil & ePS2 Sensors Instead of agg.cable

2 140,00 SEK

I lager

Coil 12V NG6 JT on/off

Article no: 730117

Position75

Antal i ritning4

1 340,00 SEK

exkl. moms

I lager

Coil 12V NG6 JT on/off

Article no: 730117

Used with POS.74

1 340,00 SEK

I lager

Screw Valve Distance 5x39

Article no: 1047243

Position17

Antal i ritning2

89,00 SEK

exkl. moms

I lager

Screw Valve Distance 5x39

Article no: 1047243

Torque: 9,7Nm

89,00 SEK

I lager

Nut directional valve ATOS

Article no: 7001887

Position29

Antal i ritning8

32,00 SEK

exkl. moms

I lager

Nut directional valve ATOS

Article no: 7001887

32,00 SEK

I lager

Nut directional valve Argo Hytos

Article no: 730135

Position78

Antal i ritning8

192,00 SEK

exkl. moms

I lager

Nut directional valve Argo Hytos

Article no: 730135

192,00 SEK

I lager

Coil 12V NG6 prop JT ATOS

Article no: 7001734

Position26

Antal i ritning4

700,00 SEK

exkl. moms

I lager

Coil 12V NG6 prop JT ATOS

Article no: 7001734

700,00 SEK

I lager

Coil 24V NG6 JT on/off ATOS

Article no: 7001736

Position28

Antal i ritning4

1 550,00 SEK

exkl. moms

I lager

Coil 24V NG6 JT on/off ATOS

Article no: 7001736

1 550,00 SEK

I lager

Directional valve NG6 prop 12V engcon JT open to tank ATOS

Article no: 7001615

Position22

Antal i ritning1

6 290,00 SEK

exkl. moms

I lager

Directional valve NG6 prop 12V engcon JT open to tank ATOS

Article no: 7001615

(POS.21, 26, 29 incl.)

6 290,00 SEK

I lager

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

Position23

Antal i ritning1

6 290,00 SEK

exkl. moms

I lager

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

(POS.21, 26, 29 incl.)

6 290,00 SEK

I lager

Coil NG4 IQS lock 12V DT

Article no: 1042065

Position13

Antal i ritning1

1 430,00 SEK

exkl. moms

Få i lager (5)

Coil NG4 IQS lock 12V DT

Article no: 1042065

1 430,00 SEK

Få i lager (5)

Coil 12V NG6 JT on/off ATOS

Article no: 7001735

Position27

Antal i ritning4

580,00 SEK

exkl. moms

Ej i lager

Coil 12V NG6 JT on/off ATOS

Article no: 7001735

580,00 SEK

Ej i lager

Directional valve NG6 24V JT ATOS

Article no: 7001616

Position25

Antal i ritning2

2 140,00 SEK

exkl. moms

I lager

Directional valve NG6 24V JT ATOS

Article no: 7001616

(POS.21, 28, 29 incl.)

2 140,00 SEK

I lager

Jumper JT 2P POS:1-2

Article no: 1018662

Position53

Antal i ritning1

190,00 SEK

exkl. moms

I lager

Jumper JT 2P POS:1-2

Article no: 1018662

Plug JT connector "1"

190,00 SEK

I lager

Breakout cable CAN DT-DC2 EC 0,32/0,25m

Article no: 8000783

Position84

Antal i ritning1

1 430,00 SEK

exkl. moms

I lager

Breakout cable CAN DT-DC2 EC 0,32/0,25m

Article no: 8000783

1 430,00 SEK

I lager

Directional valve NG4 IQS lock 24V DT ss10 Coil A

Article no: 1042190

Position12

Antal i ritning1

10 300,00 SEK

exkl. moms

I lager

Directional valve NG4 IQS lock 24V DT ss10 Coil A

Article no: 1042190

(POS.10, 14, 15 incl.)

10 300,00 SEK

I lager

Directional valve NG6 24V

Article no: 730103

Position76

Antal i ritning2

5 350,00 SEK

exkl. moms

I lager

Directional valve NG6 24V

Article no: 730103

Replaced by POS.25 (ATOS)

5 350,00 SEK

I lager

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Position74

Antal i ritning2

4 720,00 SEK

exkl. moms

I lager

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Replaced by POS.24 (ATOS)

4 720,00 SEK

I lager

Adapter cable DTM 12P-DT 4S/2S

Article no: 1048529

Position57

Antal i ritning1

1 840,00 SEK

exkl. moms

Få i lager (3)

Adapter cable DTM 12P-DT 4S/2S

Article no: 1048529

For EC-Oil. Instead of agg.cable

1 840,00 SEK

Få i lager (3)

Unit cable DC2 DT EC206-EC233-3,9m

Article no: 8001201

Position55

Antal i ritning1

3 030,00 SEK

exkl. moms

I lager

Unit cable DC2 DT EC206-EC233-3,9m

Article no: 8001201

3 030,00 SEK

I lager

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

Position64

Antal i ritning1

550,00 SEK

exkl. moms

I lager

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

(Incl. with agg.cable)

550,00 SEK

I lager

Directional valve NG6 prop 12V engcon JT open to tank

Article no: 7000092

Position71

Antal i ritning1

10 700,00 SEK

exkl. moms

I lager

Directional valve NG6 prop 12V engcon JT open to tank

Article no: 7000092

Replaced by POS.22 (ATOS)

10 700,00 SEK

I lager

Protection plug for DTM06-6S

Article no: 8000090

Position59

Antal i ritning1

290,00 SEK

exkl. moms

I lager

Protection plug for DTM06-6S

Article no: 8000090

290,00 SEK

I lager

Resistor cable 120ohm M12 5S-DTM 6P-0,4m

Article no: 8000825

Position88

Antal i ritning1

1 160,00 SEK

exkl. moms

Ej i lager

Resistor cable 120ohm M12 5S-DTM 6P-0,4m

Article no: 8000825

For ECO w. ePS. Instead of POS.87

1 160,00 SEK

Ej i lager

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

Position11

Antal i ritning1

10 300,00 SEK

exkl. moms

I lager

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

(POS.10, 13, 15 incl.)

10 300,00 SEK

I lager

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Position54

Antal i ritning2

9,00 SEK

exkl. moms

I lager

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

9,00 SEK

I lager

Coil 12V NG6 prop JT

Article no: 730192

Position73

Antal i ritning4

1 810,00 SEK

exkl. moms

Ej i lager

Coil 12V NG6 prop JT

Article no: 730192

Used with POS.71-72

1 810,00 SEK

Ej i lager

Nut bulkhead adapter 1270-04

Article no: 710250

Position15

Antal i ritning1

25,00 SEK

exkl. moms

I lager

Nut bulkhead adapter 1270-04

Article no: 710250

25,00 SEK

I lager

Adapter 136-06-06

Article no: 710106

Position44

Antal i ritning1

26,00 SEK

exkl. moms

I lager

Adapter 136-06-06

Article no: 710106

26,00 SEK

I lager

Unit cable ss10 JT EC206(B)-EC209(B)-3,4m

Article no: 303465

Position63

Antal i ritning1

5 510,00 SEK

exkl. moms

I lager

Unit cable ss10 JT EC206(B)-EC209(B)-3,4m

Article no: 303465

5 510,00 SEK

I lager

Rubber Steel Clamp Ø16

Article no: 6000009

Position80

Antal i ritning1

12,00 SEK

exkl. moms

I lager

Rubber Steel Clamp Ø16

Article no: 6000009

12,00 SEK

I lager

Screw K6S 8x16H 10.9 FZB ISO7380

Article no: 611810

Position69

Antal i ritning4

25,00 SEK

exkl. moms

I lager

Screw K6S 8x16H 10.9 FZB ISO7380

Article no: 611810

Part of make up

25,00 SEK

I lager

Hose

Article no: 7001268

Position47

Antal i ritning1

560,00 SEK

exkl. moms

Få i lager (1)

Hose

Article no: 7001268

560,00 SEK

Få i lager (1)

Protective cover valve block EC209/209B QSM

Article no: 1056632

Position67

Antal i ritning1

710,00 SEK

exkl. moms

Ej i lager

Protective cover valve block EC209/209B QSM

Article no: 1056632

Part of make up

710,00 SEK

Ej i lager

Seal washer GBR06 3/8"

Article no: 710703

Position43

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Seal washer GBR06 3/8"

Article no: 710703

9,00 SEK

I lager

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position16

Antal i ritning3

9,00 SEK

exkl. moms

I lager

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Torque: 9,7Nm. QTY: 1 when EC-Oil

9,00 SEK

I lager

Adapter 402-04-04 45°

Article no: 7000104

Position35

Antal i ritning4

198,00 SEK

exkl. moms

I lager

Adapter 402-04-04 45°

Article no: 7000104

Part of quick hitch assy.

198,00 SEK

I lager

Mounting plate-ePS-Tilt sensor-EC209 QSM45

Article no: 1057538

Position82

Antal i ritning1

1 080,00 SEK

exkl. moms

Få i lager (2)

Mounting plate-ePS-Tilt sensor-EC209 QSM45

Article no: 1057538

1 080,00 SEK

Få i lager (2)

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Position90

Antal i ritning8

21,00 SEK

exkl. moms

I lager

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Torque: 136Nm

21,00 SEK

I lager

Adapter cable JT 2P-DT 2S

Article no: 1017478

Position62

Antal i ritning1

640,00 SEK

exkl. moms

I lager

Adapter cable JT 2P-DT 2S

Article no: 1017478

(Previously also for DC2)

640,00 SEK

I lager

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Position81

Antal i ritning5

162,00 SEK

exkl. moms

I lager

Screw Valve Distance NG6 5x30.5

Article no: 1034402

162,00 SEK

I lager

Coil NG4 IQS lock 24V DT

Article no: 1042066

Position14

Antal i ritning1

1 430,00 SEK

exkl. moms

I lager

Coil NG4 IQS lock 24V DT

Article no: 1042066

1 430,00 SEK

I lager

Plug VSTIR12ED 1/2"

Article no: 711500

Position2

Antal i ritning1

80,00 SEK

exkl. moms

I lager

Plug VSTIR12ED 1/2"

Article no: 711500

Opposite side for EC-Oil

80,00 SEK

I lager

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

Position66

Antal i ritning2

2 240,00 SEK

exkl. moms

Få i lager (1)

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

For ECO45. Instead of POS.62-65

2 240,00 SEK

Få i lager (1)

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

Position87

Antal i ritning1

1 940,00 SEK

exkl. moms

I lager

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

1 940,00 SEK

I lager

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position56

Antal i ritning1

360,00 SEK

exkl. moms

I lager

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

(Incl. with agg.cable)

360,00 SEK

I lager

Hose

Article no: 7001265

Position39

Antal i ritning1

2 490,00 SEK

exkl. moms

Ej i lager

Hose

Article no: 7001265

2 490,00 SEK

Ej i lager

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position6

Antal i ritning3

36,00 SEK

exkl. moms

I lager

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Torque: 79Nm

36,00 SEK

I lager

Attachment central lubrication & DC2-QSM45/50

Article no: 1055574

Position7

Antal i ritning1

830,00 SEK

exkl. moms

Få i lager (2)

Attachment central lubrication & DC2-QSM45/50

Article no: 1055574

830,00 SEK

Få i lager (2)

Hose

Article no: 7001586

Position41

Antal i ritning1

1 090,00 SEK

exkl. moms

Ej i lager

Hose

Article no: 7001586

Feed Right: Use this for "P" Feed Left: Use this for "T"

1 090,00 SEK

Ej i lager

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Position60

Antal i ritning1

480,00 SEK

exkl. moms

I lager

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

480,00 SEK

I lager

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position32

Antal i ritning18

9,00 SEK

exkl. moms

I lager

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

9,00 SEK

I lager

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Position83

Antal i ritning4

9,00 SEK

exkl. moms

I lager

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

9,00 SEK

I lager

Adapter cable M12 8P-DTM 6S

Article no: 842148

Position65

Antal i ritning1

2 700,00 SEK

exkl. moms

I lager

Adapter cable M12 8P-DTM 6S

Article no: 842148

2 700,00 SEK

I lager

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position20

Antal i ritning2

9,00 SEK

exkl. moms

I lager

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Torque: 8,1Nm

9,00 SEK

I lager

Hose

Article no: 7001266

Position40

Antal i ritning1

2 800,00 SEK

exkl. moms

Ej i lager

Hose

Article no: 7001266

2 800,00 SEK

Ej i lager

Adapter 136-08-08

Article no: 710108

Position38

Antal i ritning2

56,00 SEK

exkl. moms

I lager

Adapter 136-08-08

Article no: 710108

56,00 SEK

I lager

Adapter 135-06-08

Article no: 710122

Position45

Antal i ritning1

56,00 SEK

exkl. moms

I lager

Adapter 135-06-08

Article no: 710122

56,00 SEK

I lager

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position31

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

9,00 SEK

I lager

Electronics Module TM2-EC206B-233/EC10-30 DC2 QS-DTM

Article no: 842137

Position52

Antal i ritning1

12 700,00 SEK

exkl. moms

I lager

Electronics Module TM2-EC206B-233/EC10-30 DC2 QS-DTM

Article no: 842137

12 700,00 SEK

I lager

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Position61

Antal i ritning8

39,00 SEK

exkl. moms

I lager

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Torque: 136Nm

39,00 SEK

I lager

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

Position85

Antal i ritning1

1 220,00 SEK

exkl. moms

I lager

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

1 220,00 SEK

I lager

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Position89

Antal i ritning1

2 800,00 SEK

exkl. moms

Ej i lager

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

2 800,00 SEK

Ej i lager

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Position21

Antal i ritning16

15,00 SEK

exkl. moms

I lager

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

15,00 SEK

I lager

Screw MC6S 8x16H 12.9 untreated ISO4762

Article no: 610431

Position9

Antal i ritning2

9,00 SEK

exkl. moms

I lager

Screw MC6S 8x16H 12.9 untreated ISO4762

Article no: 610431

9,00 SEK

I lager

Protective cover valve block EC209/209B QSM - Lip

Article no: 1056633

Position68

Antal i ritning1

700,00 SEK

exkl. moms

Ej i lager

Protective cover valve block EC209/209B QSM - Lip

Article no: 1056633

Part of make up

700,00 SEK

Ej i lager

Hose Tilt Long

Article no: 7001308

Position36

Antal i ritning4

670,00 SEK

exkl. moms

I lager

Hose Tilt Long

Article no: 7001308

670,00 SEK

I lager

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position10

Antal i ritning4

9,00 SEK

exkl. moms

I lager

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

9,00 SEK

I lager

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position8

Antal i ritning6

19,00 SEK

exkl. moms

I lager

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

QTY: 4 part of make up

19,00 SEK

I lager

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

Position79

Antal i ritning1

3 240,00 SEK

exkl. moms

I lager

Unit cable DC2 JT EC206-EC233-3,9m

Article no: 8000175

Replaced by POS.55 from 2020-12

3 240,00 SEK

I lager

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Position72

Antal i ritning1

10 900,00 SEK

exkl. moms

I lager

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Replaced by POS.23 (ATOS)

10 900,00 SEK

I lager

Coil 24V NG6 JT on/off

Article no: 730118

Position77

Antal i ritning4

1 340,00 SEK

exkl. moms

I lager

Coil 24V NG6 JT on/off

Article no: 730118

Used with POS.76

1 340,00 SEK

I lager

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position5

Antal i ritning3

20,00 SEK

exkl. moms

I lager

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

20,00 SEK

I lager

O-ring 15,54 x 2,62 NBR 70 shore

Article no: 712423

Position4

Antal i ritning2

9,00 SEK

exkl. moms

I lager

O-ring 15,54 x 2,62 NBR 70 shore

Article no: 712423

9,00 SEK

I lager

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position70

Antal i ritning16

9,00 SEK

exkl. moms

I lager

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Used until 2022-06

9,00 SEK

I lager

Seal washer GBR08 1/2"

Article no: 710704

Position37

Antal i ritning3

10,00 SEK

exkl. moms

I lager

Seal washer GBR08 1/2"

Article no: 710704

10,00 SEK

I lager
