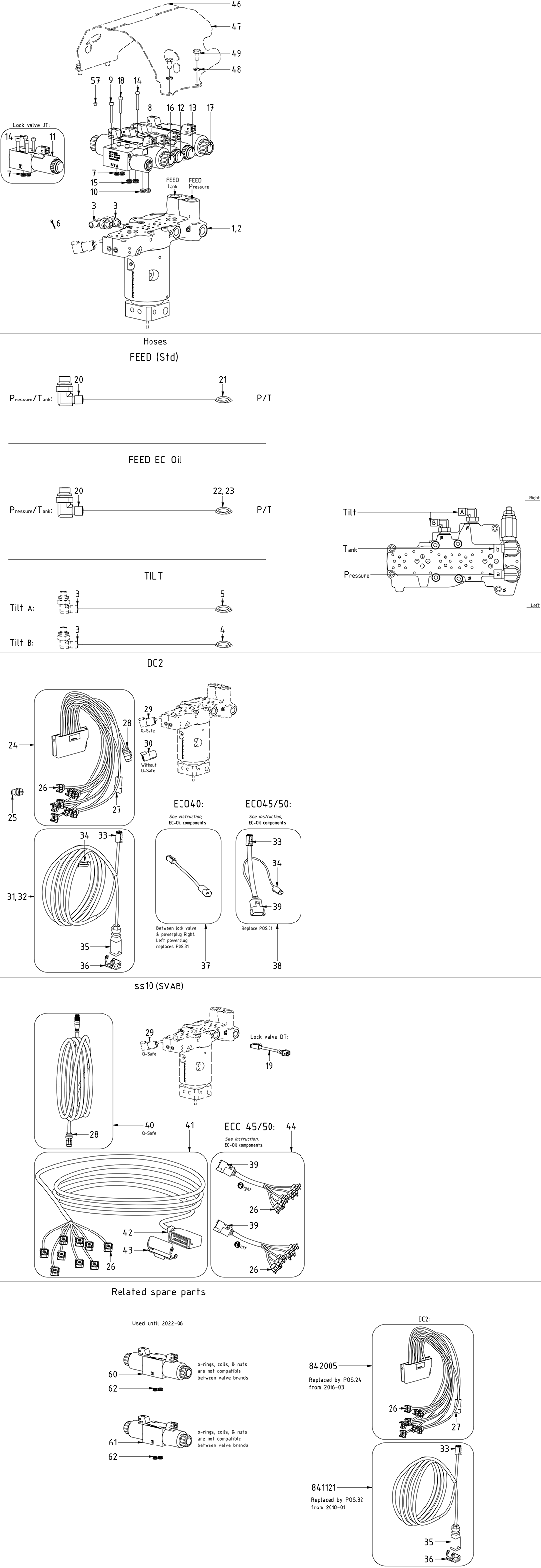

ss10 (DC2/SVAB)

Pos

Artikel

Extra Info

Antal i ritning

Pris

Cable QS - QLM - tiltrotator DTM 4,5m

Article no: 842148

Position40

Antal i ritning1

2 700,00 SEK

exkl. moms

Cable QS - QLM - tiltrotator DTM 4,5m

Article no: 842148

For Q-Safe

2 700,00 SEK

exkl. moms

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Position15

Antal i ritning8

15,00 SEK

exkl. moms

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

15,00 SEK

exkl. moms

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position7

Antal i ritning4

9,00 SEK

exkl. moms

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

9,00 SEK

exkl. moms

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

Position8

Antal i ritning1

10 300,00 SEK

exkl. moms

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

QS, CW, ECPUP, ss SIQ (POS.7 included)

10 300,00 SEK

exkl. moms

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position9

Antal i ritning3

9,00 SEK

exkl. moms

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Torque: 9,7Nm

9,00 SEK

exkl. moms

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position36

Antal i ritning2

360,00 SEK

exkl. moms

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

360,00 SEK

exkl. moms

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Position50

Antal i ritning1

6 740,00 SEK

exkl. moms

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Nut (POS.53) and o-ring with chokevalve included. Assemble with POS.52

6 740,00 SEK

exkl. moms

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

Position51

Antal i ritning1

200,00 SEK

exkl. moms

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

O-ring included

200,00 SEK

exkl. moms

Coil NG4 12V JT

Article no: 730313

Position52

Antal i ritning2

1 180,00 SEK

exkl. moms

Coil NG4 12V JT

Article no: 730313

1 180,00 SEK

exkl. moms

Nut directional valve NG4

Article no: 1006785

Position53

Antal i ritning4

300,00 SEK

exkl. moms

Nut directional valve NG4

Article no: 1006785

300,00 SEK

exkl. moms

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position14

Antal i ritning8

9,00 SEK

exkl. moms

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Torque: 9,7Nm. QTY: 12 for Lock JT

9,00 SEK

exkl. moms

Unit cable-DC2-QSC EC206-EC233

Article no: 8000175

Position32

Antal i ritning1

3 240,00 SEK

exkl. moms

Unit cable-DC2-QSC EC206-EC233

Article no: 8000175

For Lock valve JT. Replace POS.31

3 240,00 SEK

exkl. moms

Plug JT

Article no: 1045154

Position45

Antal i ritning1

116,00 SEK

exkl. moms

Plug JT

Article no: 1045154

Plug JT connector "1" on Right

116,00 SEK

exkl. moms

Cable ECO40 W-adapter-DC2-QSC-DTM-->DT

Article no: 1057843

Position37

Antal i ritning1

870,00 SEK

exkl. moms

Cable ECO40 W-adapter-DC2-QSC-DTM-->DT

Article no: 1057843

For ECO40

870,00 SEK

exkl. moms

Cable tie 4,8x371

Article no: 1021586

Position59

Antal i ritning1

250,00 SEK

exkl. moms

Cable tie 4,8x371

Article no: 1021586

250,00 SEK

exkl. moms

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Position61

Antal i ritning1

10 900,00 SEK

exkl. moms

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Replaced by POS.17 (ATOS)

10 900,00 SEK

exkl. moms

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Position60

Antal i ritning1

4 720,00 SEK

exkl. moms

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Replaced by POS.16 (ATOS)

4 720,00 SEK

exkl. moms

Jumper JT tool lock valve SQ/QSC DC2/ss9-2

Article no: 1018662

Position25

Antal i ritning1

190,00 SEK

exkl. moms

Jumper JT tool lock valve SQ/QSC DC2/ss9-2

Article no: 1018662

Plug JT connector "1"

190,00 SEK

exkl. moms

O-ring 7,66x1,68 square NBR 70 shore NG4

Article no: 7000579

Position10

Antal i ritning8

64,00 SEK

exkl. moms

O-ring 7,66x1,68 square NBR 70 shore NG4

Article no: 7000579

64,00 SEK

exkl. moms

Hose Tilt Long - EC206

Article no: 742912

Position5

Antal i ritning1

720,00 SEK

exkl. moms

Hose Tilt Long - EC206

Article no: 742912

720,00 SEK

exkl. moms

Hose Tilt Short - EC206

Article no: 742911

Position4

Antal i ritning1

700,00 SEK

exkl. moms

Hose Tilt Short - EC206

Article no: 742911

700,00 SEK

exkl. moms

Cable tie 7,8x360

Article no: 1021587

Position58

Antal i ritning1

9,00 SEK

exkl. moms

Cable tie 7,8x360

Article no: 1021587

9,00 SEK

exkl. moms

Directional valve NG4 lock 12V JT

Article no: 730312

Position11

Antal i ritning1

2 780,00 SEK

exkl. moms

Directional valve NG4 lock 12V JT

Article no: 730312

(POS.7 included)

2 780,00 SEK

exkl. moms

Directional valve NG4 12V JT

Article no: 730328

Position13

Antal i ritning1

3 380,00 SEK

exkl. moms

Directional valve NG4 12V JT

Article no: 730328

(POS.10 included)

3 380,00 SEK

exkl. moms

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

Position16

Antal i ritning1

2 140,00 SEK

exkl. moms

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

(POS.15 included)

2 140,00 SEK

exkl. moms

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

Position17

Antal i ritning1

6 290,00 SEK

exkl. moms

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

(POS.15 included)

6 290,00 SEK

exkl. moms

Adapter cable Deutsch DT (2S) - AMP JT (2P)

Article no: 1017478

Position19

Antal i ritning1

640,00 SEK

exkl. moms

Adapter cable Deutsch DT (2S) - AMP JT (2P)

Article no: 1017478

QS, CW, ECPUP, ss SIQ (Previously also for DC2)

640,00 SEK

exkl. moms

Adapter 401-06-08 90°

Article no: 710157

Position20

Antal i ritning2

280,00 SEK

exkl. moms

Adapter 401-06-08 90°

Article no: 710157

280,00 SEK

exkl. moms

Hose feed - EC206 valve block

Article no: 742913

Position21

Antal i ritning2

1 690,00 SEK

exkl. moms

Hose feed - EC206 valve block

Article no: 742913

1 690,00 SEK

exkl. moms

Hose

Article no: 7001628

Position22

Antal i ritning2

2 370,00 SEK

exkl. moms

Hose

Article no: 7001628

2 370,00 SEK

exkl. moms

Hose

Article no: 7000701

Position23

Antal i ritning2

2 160,00 SEK

exkl. moms

Hose

Article no: 7000701

2 160,00 SEK

exkl. moms

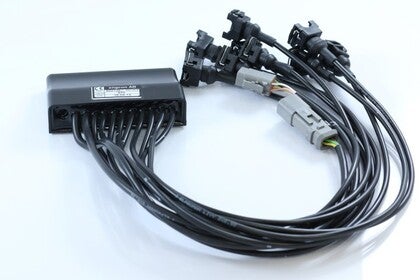

Electronics Module TM2-EC206 DC2 QS - DTM

Article no: 842139

Position24

Antal i ritning1

12 500,00 SEK

exkl. moms

Electronics Module TM2-EC206 DC2 QS - DTM

Article no: 842139

12 500,00 SEK

exkl. moms

Deutsch DT04-4P connector device

Article no: 820108

Position27

Antal i ritning2

230,00 SEK

exkl. moms

Deutsch DT04-4P connector device

Article no: 820108

230,00 SEK

exkl. moms

AMP Junior Timer (JT) 2S connector device

Article no: 810218

Position26

Antal i ritning9

144,00 SEK

exkl. moms

AMP Junior Timer (JT) 2S connector device

Article no: 810218

144,00 SEK

exkl. moms

Deutsch DTM06-6S connector device

Article no: 8000053

Position28

Antal i ritning1

390,00 SEK

exkl. moms

Deutsch DTM06-6S connector device

Article no: 8000053

390,00 SEK

exkl. moms

Protection plug for DTM06-6S

Article no: 8000090

Position30

Antal i ritning1

290,00 SEK

exkl. moms

Protection plug for DTM06-6S

Article no: 8000090

290,00 SEK

exkl. moms

Unit cable-DC2-QSC DT EC206-EC233

Article no: 8001201

Position31

Antal i ritning1

3 030,00 SEK

exkl. moms

Unit cable-DC2-QSC DT EC206-EC233

Article no: 8001201

3 030,00 SEK

exkl. moms

Deutsch DT06-4S connector device

Article no: 820218

Position33

Antal i ritning1

260,00 SEK

exkl. moms

Deutsch DT06-4S connector device

Article no: 820218

260,00 SEK

exkl. moms

Deutsch DT06-2S connector device

Article no: 820219

Position34

Antal i ritning1

184,00 SEK

exkl. moms

Deutsch DT06-2S connector device

Article no: 820219

184,00 SEK

exkl. moms

ILME 21.21 12P MKA V20 connector device

Article no: 841192

Position35

Antal i ritning2

1 440,00 SEK

exkl. moms

ILME 21.21 12P MKA V20 connector device

Article no: 841192

1 440,00 SEK

exkl. moms

Deutsch DTM04-12PA connector device

Article no: 8000177

Position39

Antal i ritning1

420,00 SEK

exkl. moms

Deutsch DTM04-12PA connector device

Article no: 8000177

420,00 SEK

exkl. moms

Adapter cable ECO W-DC2-QSC-DTM

Article no: 1048529

Position38

Antal i ritning1

1 840,00 SEK

exkl. moms

Adapter cable ECO W-DC2-QSC-DTM

Article no: 1048529

For ECO45/50

1 840,00 SEK

exkl. moms

Unit cable-ss5-SVAB ILME 16P w/o Unit box-3,5m

Article no: 303465

Position41

Antal i ritning1

5 510,00 SEK

exkl. moms

Unit cable-ss5-SVAB ILME 16P w/o Unit box-3,5m

Article no: 303465

5 510,00 SEK

exkl. moms

ILME 66.16 16P MZO 25 L20 connector device

Article no: 810203

Position42

Antal i ritning1

1 030,00 SEK

exkl. moms

ILME 66.16 16P MZO 25 L20 connector device

Article no: 810203

1 030,00 SEK

exkl. moms

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

Position43

Antal i ritning1

550,00 SEK

exkl. moms

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

550,00 SEK

exkl. moms

Adapter cable ECO-ss5/ss9/ss10-DTM-->JT/DT

Article no: 1029599

Position44

Antal i ritning1

2 240,00 SEK

exkl. moms

Adapter cable ECO-ss5/ss9/ss10-DTM-->JT/DT

Article no: 1029599

For ECO45/50. Replace POS.40-41

2 240,00 SEK

exkl. moms

Protective cover valve block EC206 right

Article no: 1016524

Position46

Antal i ritning1

780,00 SEK

exkl. moms

Protective cover valve block EC206 right

Article no: 1016524

780,00 SEK

exkl. moms

Protective cover valve block EC206 left

Article no: 1016523

Position47

Antal i ritning1

780,00 SEK

exkl. moms

Protective cover valve block EC206 left

Article no: 1016523

780,00 SEK

exkl. moms

Hose

Article no: 7000321

Position55

Antal i ritning1

480,00 SEK

exkl. moms

Hose

Article no: 7000321

480,00 SEK

exkl. moms

Valve block-swivel 5v & 6-ch for Slip ring-EC206

Article no: 1026703

Position1

Antal i ritning1

36 200,00 SEK

exkl. moms

Valve block-swivel 5v & 6-ch for Slip ring-EC206

Article no: 1026703

36 200,00 SEK

exkl. moms
