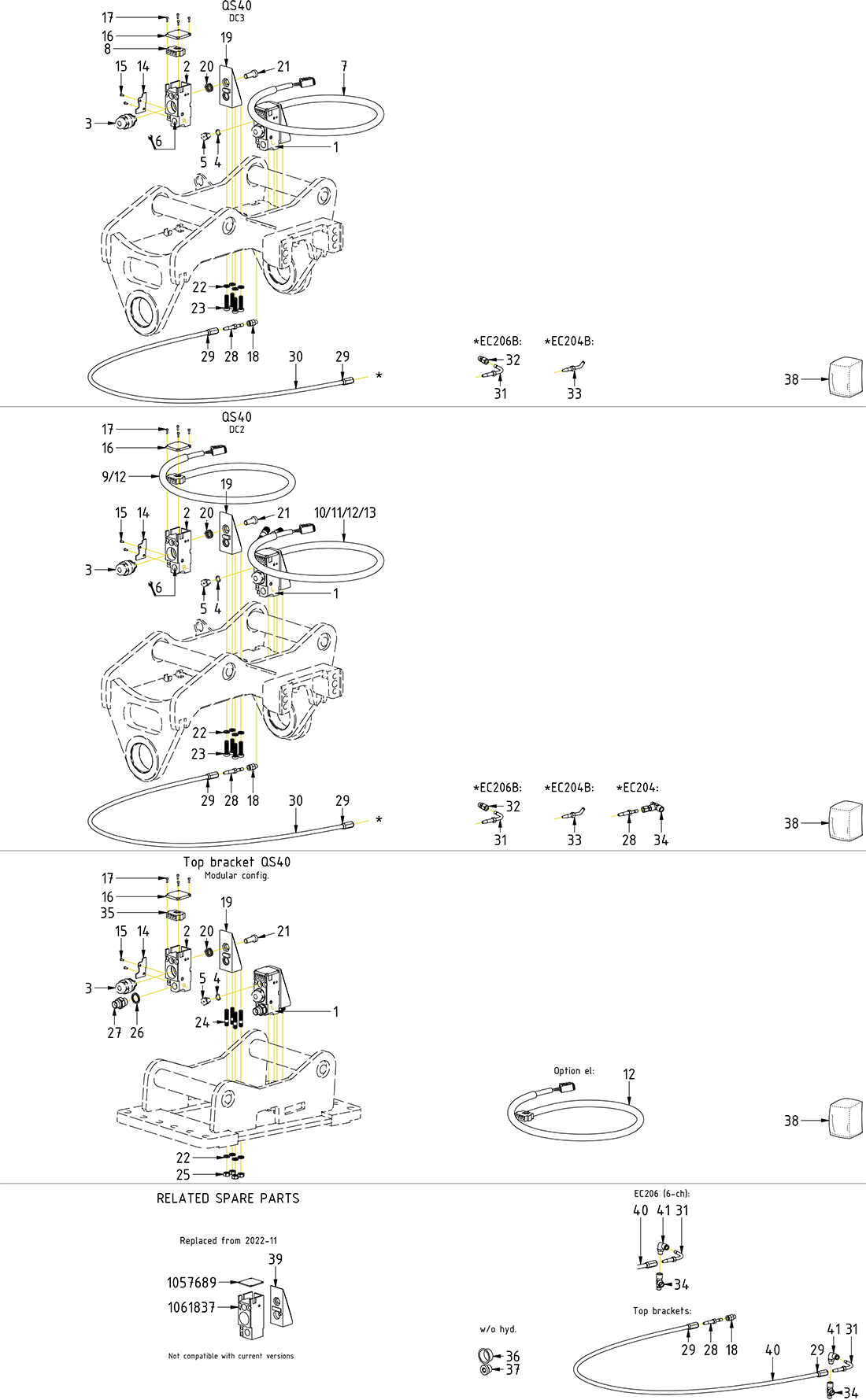

Top ECO40 W

Pos

Artikel

Extra Info

Antal i ritning

Pris (exkl. moms)

Adapter L 1/8" 1x ext / 2x int lubrication

Article no: 7001309

Position34

Antal i ritning1

210,00 SEK

exkl. moms

Ej i lager

Adapter L 1/8" 1x ext / 2x int lubrication

Article no: 7001309

210,00 SEK

Ej i lager

Side plate ECO40W-top bracket

Article no: 1079427

Position14

Antal i ritning2

44,00 SEK

exkl. moms

Få i lager (3)

Side plate ECO40W-top bracket

Article no: 1079427

44,00 SEK

Få i lager (3)

Power plug ECO40W-Plug top bracket

Article no: 1063916

Position8

Antal i ritning1

1 090,00 SEK

exkl. moms

I lager

Power plug ECO40W-Plug top bracket

Article no: 1063916

1 090,00 SEK

I lager

Transport Protection ECO40 TECO

Article no: 1062517

Position38

Antal i ritning1

350,00 SEK

exkl. moms

I lager

Transport Protection ECO40 TECO

Article no: 1062517

Part of make up

350,00 SEK

I lager

Power plug ECO40 W Top QS40-ePS-TS Left

Article no: 8002454

Position11

Antal i ritning1

2 530,00 SEK

exkl. moms

Få i lager (1)

Power plug ECO40 W Top QS40-ePS-TS Left

Article no: 8002454

For EC204B ePS2 (L.)

2 530,00 SEK

Få i lager (1)

Attachment block ECO40 W-top bracket-with pin

Article no: 1061832

Position39

Antal i ritning1

3 110,00 SEK

exkl. moms

Ej i lager

Attachment block ECO40 W-top bracket-with pin

Article no: 1061832

Replaced by POS.19 from 2022-11

3 110,00 SEK

Ej i lager

Attachment block ECO40 W-top bracket-with pin V2

Article no: 1069400

Position19

Antal i ritning2

2 720,00 SEK

exkl. moms

I lager

Attachment block ECO40 W-top bracket-with pin V2

Article no: 1069400

2 720,00 SEK

I lager

Power plug 12P ECO40 W - Top - DC3

Article no: 8002540

Position7

Antal i ritning1

1 790,00 SEK

exkl. moms

Ej i lager

Power plug 12P ECO40 W - Top - DC3

Article no: 8002540

1 790,00 SEK

Ej i lager

Adapter coupling straight R1/8"

Article no: 7001721

Position32

Antal i ritning1

59,00 SEK

exkl. moms

Ej i lager

Adapter coupling straight R1/8"

Article no: 7001721

(Replaces the plug on motor block)

59,00 SEK

Ej i lager

Pressure spring Dy=18 Dt=2 L0=15 Lst max=8,5

Article no: 6000324

Position20

Antal i ritning2

97,00 SEK

exkl. moms

I lager

Pressure spring Dy=18 Dt=2 L0=15 Lst max=8,5

Article no: 6000324

97,00 SEK

I lager

Power plug ECO40 W Top QS40 Right

Article no: 8002288

Position9

Antal i ritning1

1 420,00 SEK

exkl. moms

Ej i lager

Power plug ECO40 W Top QS40 Right

Article no: 8002288

(R.)

1 420,00 SEK

Ej i lager

Power plug ECO40 W Top QS40 Left

Article no: 8002699

Position10

Antal i ritning1

1 420,00 SEK

exkl. moms

Få i lager (5)

Power plug ECO40 W Top QS40 Left

Article no: 8002699

(L.)

1 420,00 SEK

Få i lager (5)

Screw MF6S 3x8 A4

Article no: 6000445

Position15

Antal i ritning4

9,00 SEK

exkl. moms

I lager

Screw MF6S 3x8 A4

Article no: 6000445

9,00 SEK

I lager

Tube sleeve 45° Push-In 15mm

Article no: 7001980

Position33

Antal i ritning1

132,00 SEK

exkl. moms

Ej i lager

Tube sleeve 45° Push-In 15mm

Article no: 7001980

132,00 SEK

Ej i lager

Tube sleeve straight Push-In - 20mm

Article no: 7001521

Position28

Antal i ritning2

85,00 SEK

exkl. moms

Ej i lager

Tube sleeve straight Push-In - 20mm

Article no: 7001521

85,00 SEK

Ej i lager

Screw MLC6S 10x25 8.8 FZB

Article no: 6000323

Position21

Antal i ritning2

15,00 SEK

exkl. moms

I lager

Screw MLC6S 10x25 8.8 FZB

Article no: 6000323

Loxeal 83-52

15,00 SEK

I lager

Cover plate Power plug-ECO40W-top bracket V2

Article no: 1069398

Position16

Antal i ritning2

250,00 SEK

exkl. moms

I lager

Cover plate Power plug-ECO40W-top bracket V2

Article no: 1069398

250,00 SEK

I lager

Screw MC6S 2.5x8 8.8 FZB ISO4762

Article no: 6000325

Position17

Antal i ritning8

9,00 SEK

exkl. moms

I lager

Screw MC6S 2.5x8 8.8 FZB ISO4762

Article no: 6000325

9,00 SEK

I lager

Power plug ECO40 W Top QS40-ePS-TS

Article no: 8001885

Position13

Antal i ritning1

2 480,00 SEK

exkl. moms

Ej i lager

Power plug ECO40 W Top QS40-ePS-TS

Article no: 8001885

For EC206B ePS2 (L.)

2 480,00 SEK

Ej i lager

Protection Plug TECO 45/50 hydraulic

Article no: 7000152

Position36

Antal i ritning2

9,00 SEK

exkl. moms

I lager

Protection Plug TECO 45/50 hydraulic

Article no: 7000152

9,00 SEK

I lager

Stud bolt M8x30 10.9 DIN939

Article no: 611185

Position24

Antal i ritning8

56,00 SEK

exkl. moms

I lager

Stud bolt M8x30 10.9 DIN939

Article no: 611185

Loxeal 83-52

56,00 SEK

I lager

Nut steel M8 10. untreated DIN 934

Article no: 611187

Position25

Antal i ritning8

9,00 SEK

exkl. moms

I lager

Nut steel M8 10. untreated DIN 934

Article no: 611187

9,00 SEK

I lager

Power plug ECO40 W Top QS40

Article no: 1057841

Position12

Antal i ritning2

1 130,00 SEK

exkl. moms

I lager

Power plug ECO40 W Top QS40

Article no: 1057841

QTY: 1 for EC206B ePS2 (R.)

1 130,00 SEK

I lager

Block ECO40 W-top bracket 1hy V3

Article no: 1081402

Position2

Antal i ritning1

8 910,00 SEK

exkl. moms

Få i lager (2)

Block ECO40 W-top bracket 1hy V3

Article no: 1081402

(POS.3 incl.)

8 910,00 SEK

Få i lager (2)

Block ECO40 W-top bracket 1hy 1cl V3

Article no: 1081403

Position1

Antal i ritning1

9 320,00 SEK

exkl. moms

Få i lager (3)

Block ECO40 W-top bracket 1hy 1cl V3

Article no: 1081403

(POS.3-5 incl.)

9 320,00 SEK

Få i lager (3)

Screw sleeve HT-hose Ø8,6mm

Article no: 7000585

Position29

Antal i ritning2

89,00 SEK

exkl. moms

I lager

Screw sleeve HT-hose Ø8,6mm

Article no: 7000585

89,00 SEK

I lager

Washer copper 14x10x0,9

Article no: 6000065

Position4

Antal i ritning1

14,00 SEK

exkl. moms

I lager

Washer copper 14x10x0,9

Article no: 6000065

14,00 SEK

I lager

Push-In coupling straight Ø6mm M8x1

Article no: 790185

Position18

Antal i ritning1

181,00 SEK

exkl. moms

I lager

Push-In coupling straight Ø6mm M8x1

Article no: 790185

Loxeal 83-52

181,00 SEK

I lager

Hose Bulk - HT 8,3x4

Article no: 7001303

Position30

Antal i ritning1

91,00 SEK

exkl. moms

Ej i lager

Hose Bulk - HT 8,3x4

Article no: 7001303

EC206B: 1030mm. EC204B: 420mm. EC204: 380mm

91,00 SEK

Ej i lager

Tractor lubrication nipple 1/8" stainless

Article no: 810505

Position5

Antal i ritning1

350,00 SEK

exkl. moms

I lager

Tractor lubrication nipple 1/8" stainless

Article no: 810505

Loxeal 58-12. Torque: 30Nm

350,00 SEK

I lager

Tube sleeve 90° Push-In

Article no: 7000318

Position31

Antal i ritning1

162,00 SEK

exkl. moms

Få i lager (3)

Tube sleeve 90° Push-In

Article no: 7000318

162,00 SEK

Få i lager (3)

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position22

Antal i ritning8

19,00 SEK

exkl. moms

I lager

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

19,00 SEK

I lager

Coupling ECO45/50 3/8" male - top bracket V2

Article no: 1028873

Position3

Antal i ritning2

2 100,00 SEK

exkl. moms

I lager

Coupling ECO45/50 3/8" male - top bracket V2

Article no: 1028873

Torque: 60Nm

2 100,00 SEK

I lager

Adapter 136-06-06

Article no: 710106

Position27

Antal i ritning2

26,00 SEK

exkl. moms

I lager

Adapter 136-06-06

Article no: 710106

26,00 SEK

I lager

Screw TX45 8x30 10.9 FZB ISO7380

Article no: 612201

Position23

Antal i ritning8

14,00 SEK

exkl. moms

I lager

Screw TX45 8x30 10.9 FZB ISO7380

Article no: 612201

Torque: 34Nm

14,00 SEK

I lager

Seal washer GBR06 3/8"

Article no: 710703

Position26

Antal i ritning2

9,00 SEK

exkl. moms

I lager

Seal washer GBR06 3/8"

Article no: 710703

9,00 SEK

I lager

Plug VSTIR38ED 3/8"

Article no: 711504

Position37

Antal i ritning2

56,00 SEK

exkl. moms

I lager

Plug VSTIR38ED 3/8"

Article no: 711504

56,00 SEK

I lager

Push-in Coupling 90° R1/8" SPWE06KR lubrication kit

Article no: 790184

Position41

Antal i ritning1

290,00 SEK

exkl. moms

I lager

Push-in Coupling 90° R1/8" SPWE06KR lubrication kit

Article no: 790184

290,00 SEK

I lager
