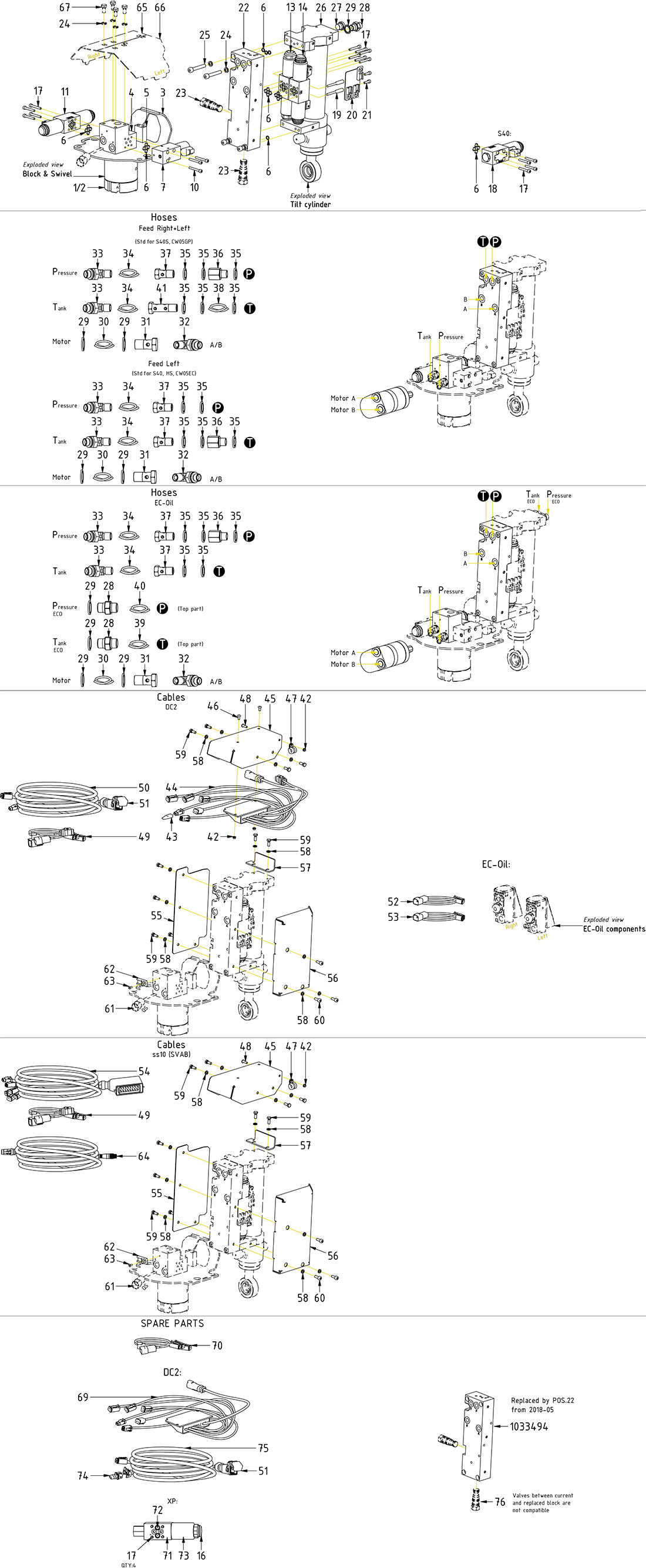

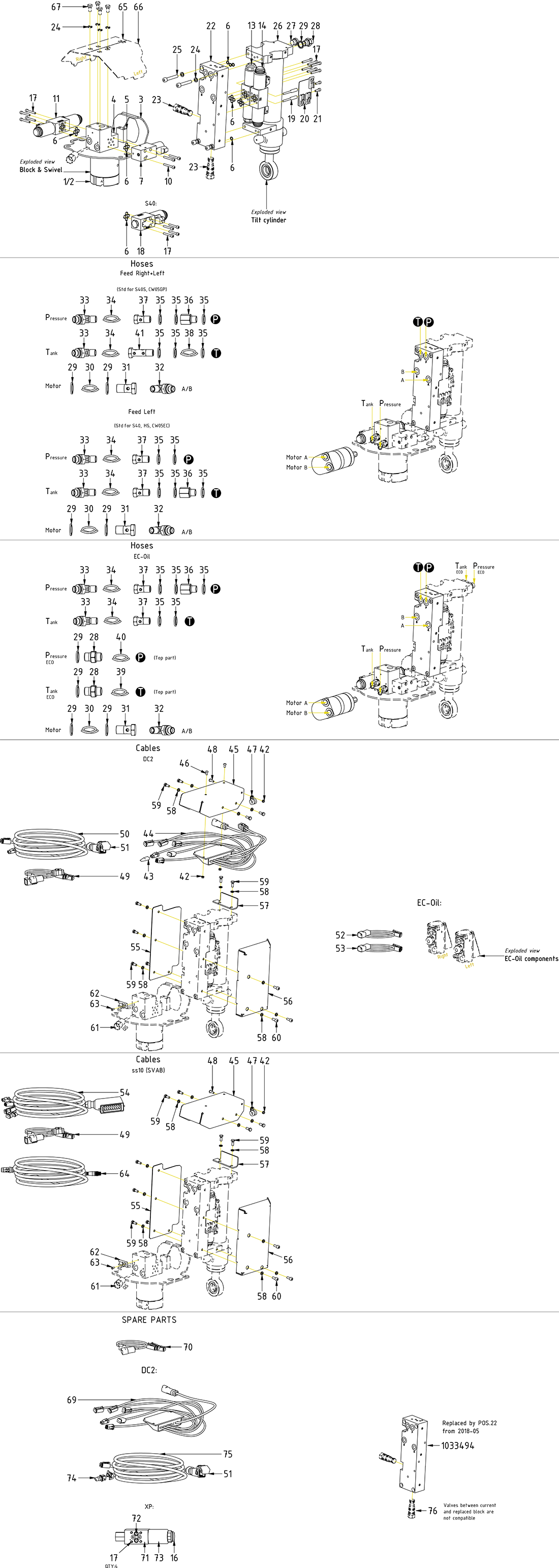

ss10 (DC2/SVAB)

Pos

Artikel

Extra Info

Antal i ritning

Pris

Adapter 402-04-04 45°

Article no: 7000104

Position33

Antal i ritning2

198,00 SEK

exkl. moms

Adapter 402-04-04 45°

Article no: 7000104

198,00 SEK

exkl. moms

Nut M6M M5 lock 6. FZB DIN985

Article no: 610920

Position42

Antal i ritning3

9,00 SEK

exkl. moms

Nut M6M M5 lock 6. FZB DIN985

Article no: 610920

9,00 SEK

exkl. moms

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position48

Antal i ritning1

9,00 SEK

exkl. moms

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

9,00 SEK

exkl. moms

Screw K6S 5x10 10.9 FZB ISO7380

Article no: 6000408

Position46

Antal i ritning2

11,00 SEK

exkl. moms

Screw K6S 5x10 10.9 FZB ISO7380

Article no: 6000408

11,00 SEK

exkl. moms

Rubber Steel Clamp Ø10

Article no: 6000003

Position47

Antal i ritning1

10,00 SEK

exkl. moms

Rubber Steel Clamp Ø10

Article no: 6000003

Use with agg.cable

10,00 SEK

exkl. moms

Adapter 236-04-04

Article no: 1013885

Position36

Antal i ritning1

48,00 SEK

exkl. moms

Adapter 236-04-04

Article no: 1013885

48,00 SEK

exkl. moms

Cable QS - QLM - tiltrotator DTM 4,5m

Article no: 842148

Position64

Antal i ritning1

2 700,00 SEK

exkl. moms

Cable QS - QLM - tiltrotator DTM 4,5m

Article no: 842148

For QS

2 700,00 SEK

exkl. moms

Holder Deutsch DT/DTM connector

Article no: 810662

Position62

Antal i ritning1

55,00 SEK

exkl. moms

Holder Deutsch DT/DTM connector

Article no: 810662

55,00 SEK

exkl. moms

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Position60

Antal i ritning3

9,00 SEK

exkl. moms

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

9,00 SEK

exkl. moms

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Position21

Antal i ritning2

9,00 SEK

exkl. moms

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

9,00 SEK

exkl. moms

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position58

Antal i ritning13

14,00 SEK

exkl. moms

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

14,00 SEK

exkl. moms

Valve block EC02B/EC204 tilt cylinder

Article no: 7000635

Position22

Antal i ritning1

18 600,00 SEK

exkl. moms

Valve block EC02B/EC204 tilt cylinder

Article no: 7000635

(POS.23 incl.)

18 600,00 SEK

exkl. moms

Cover plate Tilt cylinder-right-EC02B/EC204

Article no: 1029781

Position55

Antal i ritning1

390,00 SEK

exkl. moms

Cover plate Tilt cylinder-right-EC02B/EC204

Article no: 1029781

390,00 SEK

exkl. moms

Cover plate Tilt cylinder-left-EC02B/EC204

Article no: 1068975

Position56

Antal i ritning1

450,00 SEK

exkl. moms

Cover plate Tilt cylinder-left-EC02B/EC204

Article no: 1068975

450,00 SEK

exkl. moms

Cover plate EC02B/EC204-tilt cylinder-DC2/ss10/ss5

Article no: 1029826

Position57

Antal i ritning1

500,00 SEK

exkl. moms

Cover plate EC02B/EC204-tilt cylinder-DC2/ss10/ss5

Article no: 1029826

500,00 SEK

exkl. moms

Protective cover tilt cylinder EC02B/EC204

Article no: 1029902

Position45

Antal i ritning1

830,00 SEK

exkl. moms

Protective cover tilt cylinder EC02B/EC204

Article no: 1029902

830,00 SEK

exkl. moms

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position6

Antal i ritning20

9,00 SEK

exkl. moms

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

9,00 SEK

exkl. moms

Overcenter adjustable (overcenter) EC02/EC204/EC204B

Article no: 7000647

Position23

Antal i ritning2

2 580,00 SEK

exkl. moms

Overcenter adjustable (overcenter) EC02/EC204/EC204B

Article no: 7000647

(Only compatible with current block)

2 580,00 SEK

exkl. moms

Unit cable joint-EC02B/EC204 QS

Article no: 8001373

Position49

Antal i ritning1

1 890,00 SEK

exkl. moms

Unit cable joint-EC02B/EC204 QS

Article no: 8001373

1 890,00 SEK

exkl. moms

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position51

Antal i ritning1

360,00 SEK

exkl. moms

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

(Incl. with agg.cable)

360,00 SEK

exkl. moms

Protective cover valve block EC204 QS40 right

Article no: 1062212

Position65

Antal i ritning1

350,00 SEK

exkl. moms

Protective cover valve block EC204 QS40 right

Article no: 1062212

Part of make up

350,00 SEK

exkl. moms

Protective cover valve block EC204 QS40 left

Article no: 1062218

Position66

Antal i ritning1

360,00 SEK

exkl. moms

Protective cover valve block EC204 QS40 left

Article no: 1062218

Part of make up

360,00 SEK

exkl. moms

Hose

Article no: 7001172

Position68

Antal i ritning1

640,00 SEK

exkl. moms

Hose

Article no: 7001172

640,00 SEK

exkl. moms

Overcenter RJV cylinder block EC02 / EC204

Article no: 790142

Position76

Antal i ritning2

2 430,00 SEK

exkl. moms

Overcenter RJV cylinder block EC02 / EC204

Article no: 790142

Used until 2018-05

2 430,00 SEK

exkl. moms

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Position71

Antal i ritning1

6 740,00 SEK

exkl. moms

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Nut (POS.16) and o-ring with choke- valve incl.

6 740,00 SEK

exkl. moms

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

Position72

Antal i ritning1

200,00 SEK

exkl. moms

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

O-ring incl.

200,00 SEK

exkl. moms

Coil NG4 12V JT

Article no: 730313

Position73

Antal i ritning2

1 180,00 SEK

exkl. moms

Coil NG4 12V JT

Article no: 730313

1 180,00 SEK

exkl. moms

Coil NG4 IQS lock 12V DT

Article no: 1042065

Position8

Antal i ritning1

1 430,00 SEK

exkl. moms

Coil NG4 IQS lock 12V DT

Article no: 1042065

1 430,00 SEK

exkl. moms

Coil 12V NG4 On/Off DT

Article no: 7000897

Position12

Antal i ritning2

920,00 SEK

exkl. moms

Coil 12V NG4 On/Off DT

Article no: 7000897

920,00 SEK

exkl. moms

Nut directional valve NG4

Article no: 1006785

Position16

Antal i ritning6

300,00 SEK

exkl. moms

Nut directional valve NG4

Article no: 1006785

300,00 SEK

exkl. moms

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position17

Antal i ritning10

9,00 SEK

exkl. moms

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Torque: 9,7Nm. QTY: 14 for S40

9,00 SEK

exkl. moms

Directional valve NG4 lock 12V DT

Article no: 7000102

Position18

Antal i ritning1

2 820,00 SEK

exkl. moms

Directional valve NG4 lock 12V DT

Article no: 7000102

For S40. (POS.6, 12, 16 incl.)

2 820,00 SEK

exkl. moms

Tilt cylinder EC204

Article no: 1029849

Position26

Antal i ritning1

16 800,00 SEK

exkl. moms

Tilt cylinder EC204

Article no: 1029849

Part of top part

16 800,00 SEK

exkl. moms

Mounting plate-3x Deutsch NG4

Article no: 1069580

Position20

Antal i ritning1

490,00 SEK

exkl. moms

Mounting plate-3x Deutsch NG4

Article no: 1069580

490,00 SEK

exkl. moms

Directional valve NG4 12V DT

Article no: 7000099

Position11

Antal i ritning1

3 550,00 SEK

exkl. moms

Directional valve NG4 12V DT

Article no: 7000099

(POS.6, 12, 16 incl.)

3 550,00 SEK

exkl. moms

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

Position7

Antal i ritning1

10 300,00 SEK

exkl. moms

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

For CW, ss SIQ, EC204 with sensors (POS.6, 8-9 incl.)

10 300,00 SEK

exkl. moms

Directional valve NG4 Prop tilt 12V DT

Article no: 7000100

Position13

Antal i ritning1

7 300,00 SEK

exkl. moms

Directional valve NG4 Prop tilt 12V DT

Article no: 7000100

(POS.6, 15-16 incl.)

7 300,00 SEK

exkl. moms

Directional valve NG4 Prop rotation 12V DT

Article no: 7000103

Position14

Antal i ritning1

7 300,00 SEK

exkl. moms

Directional valve NG4 Prop rotation 12V DT

Article no: 7000103

(POS.6, 15-16 incl.)

7 300,00 SEK

exkl. moms

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position10

Antal i ritning3

9,00 SEK

exkl. moms

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Torque: 9,7Nm

9,00 SEK

exkl. moms

Swivel EC204-QS40 complete with slip ring

Article no: 1062975

Position1

Antal i ritning1

18 200,00 SEK

exkl. moms

Swivel EC204-QS40 complete with slip ring

Article no: 1062975

For EC204 with sensors

18 200,00 SEK

exkl. moms

Valve plate -EC204 V2

Article no: 1031620

Position3

Antal i ritning1

1 330,00 SEK

exkl. moms

Valve plate -EC204 V2

Article no: 1031620

1 330,00 SEK

exkl. moms

Swivel EC204 with connection block complete

Article no: 1028504

Position2

Antal i ritning1

12 700,00 SEK

exkl. moms

Swivel EC204 with connection block complete

Article no: 1028504

12 700,00 SEK

exkl. moms

Valve block EC204

Article no: 1027945

Position4

Antal i ritning1

4 500,00 SEK

exkl. moms

Valve block EC204

Article no: 1027945

4 500,00 SEK

exkl. moms

Attachment greasedistributor BEKA EC204

Article no: 1031608

Position5

Antal i ritning1

890,00 SEK

exkl. moms

Attachment greasedistributor BEKA EC204

Article no: 1031608

890,00 SEK

exkl. moms

Hose Hydraulic motor

Article no: 7000107

Position30

Antal i ritning2

780,00 SEK

exkl. moms

Hose Hydraulic motor

Article no: 7000107

780,00 SEK

exkl. moms

Hose feed (Block) - EC204

Article no: 7000108

Position34

Antal i ritning2

670,00 SEK

exkl. moms

Hose feed (Block) - EC204

Article no: 7000108

670,00 SEK

exkl. moms

Hose feed T

Article no: 7000584

Position38

Antal i ritning1

720,00 SEK

exkl. moms

Hose feed T

Article no: 7000584

720,00 SEK

exkl. moms

Banjo bolt 4450-04-00 extended

Article no: 712214

Position41

Antal i ritning1

63,00 SEK

exkl. moms

Banjo bolt 4450-04-00 extended

Article no: 712214

63,00 SEK

exkl. moms

Jumper DTM tool lock valve SQ/QSC DC2 EC02B/EC204

Article no: 8001229

Position43

Antal i ritning1

240,00 SEK

exkl. moms

Jumper DTM tool lock valve SQ/QSC DC2 EC02B/EC204

Article no: 8001229

Plug DTM connector "1"

240,00 SEK

exkl. moms

Electronics Module TM2-EC02B/EC204 DC2 QS

Article no: 8001385

Position44

Antal i ritning1

12 500,00 SEK

exkl. moms

Electronics Module TM2-EC02B/EC204 DC2 QS

Article no: 8001385

12 500,00 SEK

exkl. moms
