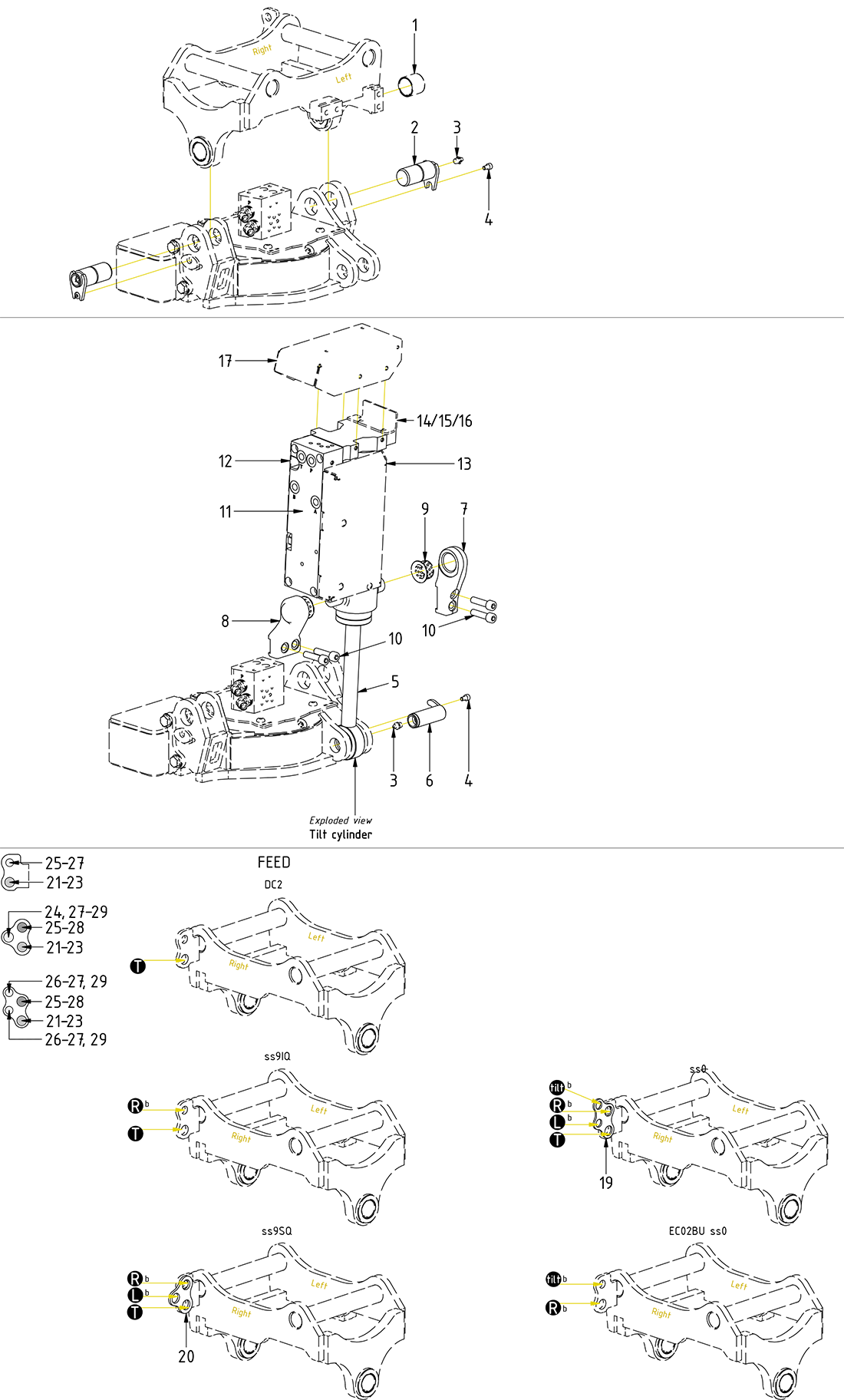

Standard komponenter

Pos

Artikel

Extra Info

Antal i ritning

Pris

Lubrication nipple 1/8 straight

Article no: 711403

Position3

Antal i ritning3

10,00 SEK

exkl. moms

Lubrication nipple 1/8 straight

Article no: 711403

10,00 SEK

exkl. moms

Bushing tilt EC02 WB802 30/34x30

Article no: 630003

Position1

Antal i ritning2

103,00 SEK

exkl. moms

Bushing tilt EC02 WB802 30/34x30

Article no: 630003

(Incl. in Top part)

103,00 SEK

exkl. moms

Tilt cylinder EC02B

Article no: 1053601

Position5

Antal i ritning1

14 400,00 SEK

exkl. moms

Tilt cylinder EC02B

Article no: 1053601

14 400,00 SEK

exkl. moms

Bushing BWG-F 25/31/38/1,5x20

Article no: 6000001

Position9

Antal i ritning2

560,00 SEK

exkl. moms

Bushing BWG-F 25/31/38/1,5x20

Article no: 6000001

560,00 SEK

exkl. moms

Valve block EC02B/EC204 tilt cylinder

Article no: 7000635

Position11

Antal i ritning1

18 600,00 SEK

exkl. moms

Valve block EC02B/EC204 tilt cylinder

Article no: 7000635

Part of control system

18 600,00 SEK

exkl. moms

Cover plate Tilt cylinder-right-EC02B/EC204

Article no: 1029781

Position12

Antal i ritning1

390,00 SEK

exkl. moms

Cover plate Tilt cylinder-right-EC02B/EC204

Article no: 1029781

Part of control system

390,00 SEK

exkl. moms

Cover plate Tilt cylinder-left-EC02B/EC204

Article no: 1068975

Position13

Antal i ritning1

450,00 SEK

exkl. moms

Cover plate Tilt cylinder-left-EC02B/EC204

Article no: 1068975

Part of control system

450,00 SEK

exkl. moms

Cover plate EC02B/EC204-tilt cylinder-DC2/ss10/ss5

Article no: 1029826

Position14

Antal i ritning1

500,00 SEK

exkl. moms

Cover plate EC02B/EC204-tilt cylinder-DC2/ss10/ss5

Article no: 1029826

Part of control system

500,00 SEK

exkl. moms

Hose bracket EC02B,EC204,EC204B-tilt cylinder-ss9/ss0

Article no: 1033484

Position15

Antal i ritning1

290,00 SEK

exkl. moms

Hose bracket EC02B,EC204,EC204B-tilt cylinder-ss9/ss0

Article no: 1033484

Part of control system

290,00 SEK

exkl. moms

Hose bracket EC204-tilt cylinder-ss9/ss0 R/L

Article no: 1043991

Position16

Antal i ritning1

270,00 SEK

exkl. moms

Hose bracket EC204-tilt cylinder-ss9/ss0 R/L

Article no: 1043991

Part of control system

270,00 SEK

exkl. moms

Protective cover tilt cylinder EC02B/EC204

Article no: 1029902

Position17

Antal i ritning1

830,00 SEK

exkl. moms

Protective cover tilt cylinder EC02B/EC204

Article no: 1029902

Part of control system

830,00 SEK

exkl. moms

Hose bracket EC206-sheet metal for 2 locking hose-fixed

Article no: 1026096

Position19

Antal i ritning1

230,00 SEK

exkl. moms

Hose bracket EC206-sheet metal for 2 locking hose-fixed

Article no: 1026096

For ss0

230,00 SEK

exkl. moms

Hose bracket expansion (3x3/8")

Article no: 1011565

Position20

Antal i ritning1

250,00 SEK

exkl. moms

Hose bracket expansion (3x3/8")

Article no: 1011565

For ss9SQ

250,00 SEK

exkl. moms

Adapter bulkhead 1260-06-32

Article no: 710242

Position22

Antal i ritning1

111,00 SEK

exkl. moms

Adapter bulkhead 1260-06-32

Article no: 710242

111,00 SEK

exkl. moms

Nut bulkhead adapter 1270-06

Article no: 710252

Position23

Antal i ritning1

25,00 SEK

exkl. moms

Nut bulkhead adapter 1270-06

Article no: 710252

25,00 SEK

exkl. moms

Washer NL1/2"sp 13,5x25,4x3,4

Article no: 1072202

Position24

Antal i ritning1

48,00 SEK

exkl. moms

Washer NL1/2"sp 13,5x25,4x3,4

Article no: 1072202

48,00 SEK

exkl. moms

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

Position28

Antal i ritning-

9,00 SEK

exkl. moms

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

9,00 SEK

exkl. moms

Cylinder axle EC02

Article no: 405187

Position6

Antal i ritning1

1 020,00 SEK

exkl. moms

Cylinder axle EC02

Article no: 405187

1 020,00 SEK

exkl. moms

Tilt axle EC02

Article no: 405186

Position2

Antal i ritning2

1 020,00 SEK

exkl. moms

Tilt axle EC02

Article no: 405186

(POS.3 incl.)

1 020,00 SEK

exkl. moms

Yoke Bracket EC02 forward complete grease-free

Article no: 1041966

Position8

Antal i ritning1

2 860,00 SEK

exkl. moms

Yoke Bracket EC02 forward complete grease-free

Article no: 1041966

(POS.9 incl.)

2 860,00 SEK

exkl. moms

Yoke Bracket EC02 rear cast lubrication free

Article no: 1036701

Position7

Antal i ritning1

2 860,00 SEK

exkl. moms

Yoke Bracket EC02 rear cast lubrication free

Article no: 1036701

(POS.9 incl.)

2 860,00 SEK

exkl. moms

Screw MC6S 6x10 12.9 ZFSHL ISO4762

Article no: 611512

Position4

Antal i ritning3

9,00 SEK

exkl. moms

Screw MC6S 6x10 12.9 ZFSHL ISO4762

Article no: 611512

9,00 SEK

exkl. moms

Adapter bulkhead extended 1260-04-40

Article no: 710261

Position25

Antal i ritning1

144,00 SEK

exkl. moms

Adapter bulkhead extended 1260-04-40

Article no: 710261

144,00 SEK

exkl. moms

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Position26

Antal i ritning1

36,00 SEK

exkl. moms

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

36,00 SEK

exkl. moms

Nut bulkhead adapter 1270-04

Article no: 710250

Position27

Antal i ritning-

25,00 SEK

exkl. moms

Nut bulkhead adapter 1270-04

Article no: 710250

25,00 SEK

exkl. moms

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position21

Antal i ritning1

52,00 SEK

exkl. moms

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

52,00 SEK

exkl. moms

Screw MC6S 10x40 12.9 ZFSHL ISO4762

Article no: 612020

Position10

Antal i ritning4

20,00 SEK

exkl. moms

Screw MC6S 10x40 12.9 ZFSHL ISO4762

Article no: 612020

20,00 SEK

exkl. moms

Adapter bulkhead 1260-04-04

Article no: 710240

Position29

Antal i ritning-

80,00 SEK

exkl. moms

Adapter bulkhead 1260-04-04

Article no: 710240

80,00 SEK

exkl. moms
