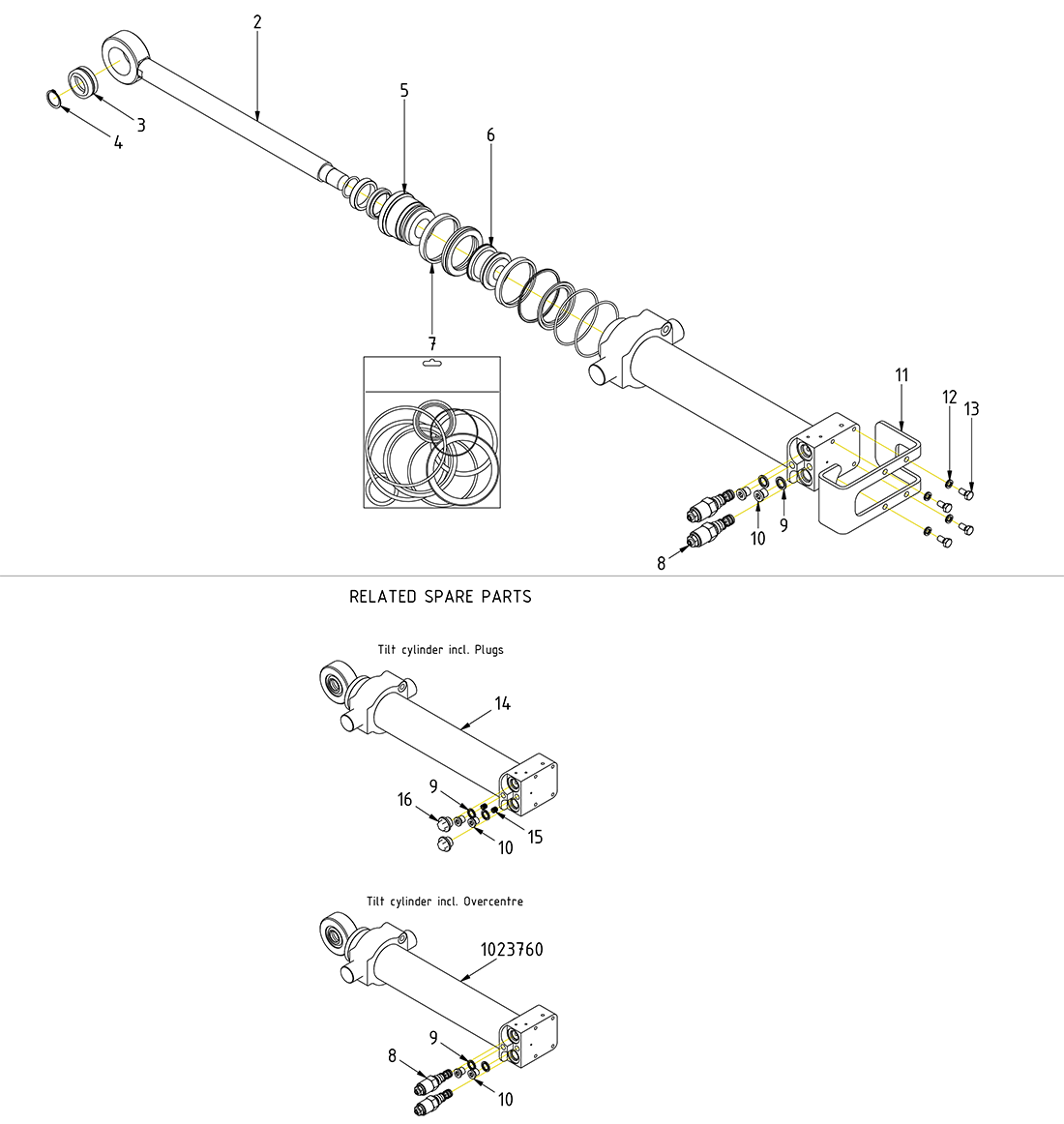

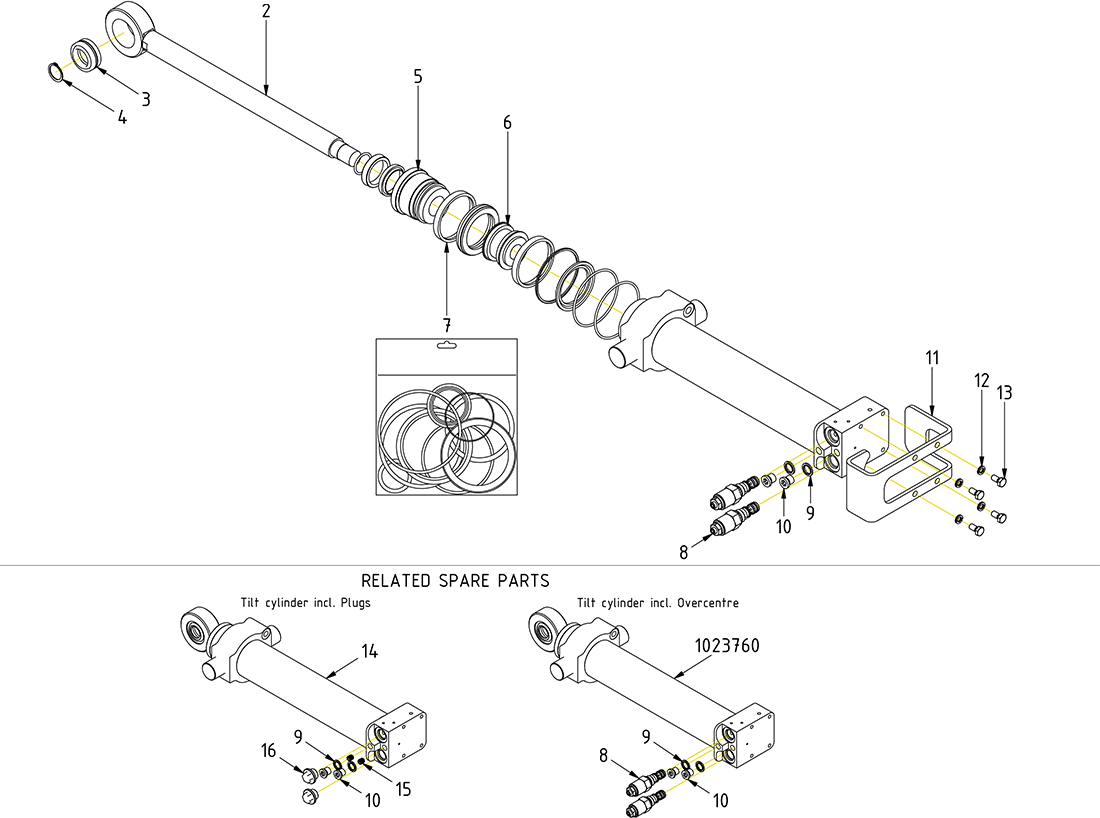

EC209 - 1019630/1023761/1023760 (until 2017-01)

Pos

Artikel

Extra Info

Antal i ritning

Pris (exkl. moms)

Tilt cylinder EC209 1019630 incl. Plug ss5,ss10

Article no: 1023761

Position14

Antal i ritning1

21 700,00 SEK

exkl. moms

Ej i lager

Tilt cylinder EC209 1019630 incl. Plug ss5,ss10

Article no: 1023761

Used until 2017-01 (POS.2-7, 9-10, 15-16 incl.)

21 700,00 SEK

Ej i lager

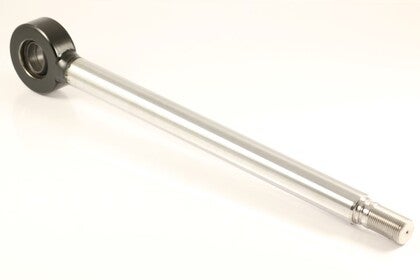

Piston rod-tilt cylinder-EC209-63/32

Article no: 1019652

Position2

Antal i ritning1

5 400,00 SEK

exkl. moms

I lager

Piston rod-tilt cylinder-EC209-63/32

Article no: 1019652

5 400,00 SEK

I lager

Top nut 63/32-SK05-EC05B/EC10/EC15-cast yoke

Article no: 750307

Position5

Antal i ritning1

2 890,00 SEK

exkl. moms

I lager

Top nut 63/32-SK05-EC05B/EC10/EC15-cast yoke

Article no: 750307

Loctite 648

2 890,00 SEK

I lager

Piston tilt cylinder-EC206/EC209/EC214

Article no: 750421

Position6

Antal i ritning1

2 060,00 SEK

exkl. moms

I lager

Piston tilt cylinder-EC206/EC209/EC214

Article no: 750421

Loctite 648

2 060,00 SEK

I lager

Plug M20x1,5 tilt cylinder EC206, EC209 (overcenter 730269)

Article no: 1022297

Position16

Antal i ritning2

250,00 SEK

exkl. moms

I lager

Plug M20x1,5 tilt cylinder EC206, EC209 (overcenter 730269)

Article no: 1022297

250,00 SEK

I lager

Plug 1/8" BSPT

Article no: 711523

Position15

Antal i ritning2

80,00 SEK

exkl. moms

I lager

Plug 1/8" BSPT

Article no: 711523

80,00 SEK

I lager

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Position11

Antal i ritning1

310,00 SEK

exkl. moms

I lager

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

310,00 SEK

I lager

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position13

Antal i ritning4

9,00 SEK

exkl. moms

I lager

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

9,00 SEK

I lager

Tilt cylinder EC209

Article no: 1019630

Position1

Antal i ritning1

19 100,00 SEK

exkl. moms

Få i lager (1)

Tilt cylinder EC209

Article no: 1019630

(POS.2-7 incl.)

19 100,00 SEK

Få i lager (1)

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Position8

Antal i ritning2

3 240,00 SEK

exkl. moms

I lager

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Torque: 45Nm

3 240,00 SEK

I lager

Seal washer GBR04 1/4"

Article no: 710702

Position9

Antal i ritning2

9,00 SEK

exkl. moms

I lager

Seal washer GBR04 1/4"

Article no: 710702

9,00 SEK

I lager

Plug Din 908 1/4"

Article no: 711505

Position10

Antal i ritning2

25,00 SEK

exkl. moms

I lager

Plug Din 908 1/4"

Article no: 711505

25,00 SEK

I lager

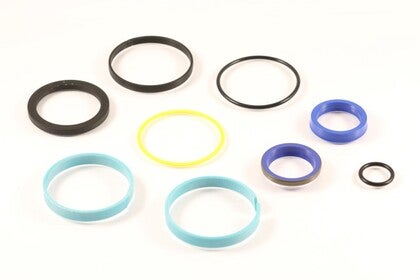

Seal kit-63/32-tilt cylinder EC206/209/214

Article no: 750273

Position7

Antal i ritning1

2 240,00 SEK

exkl. moms

I lager

Seal kit-63/32-tilt cylinder EC206/209/214

Article no: 750273

2 240,00 SEK

I lager

Spherical bearing GE 30 ES/2RS LS sealed

Article no: 620104

Position3

Antal i ritning1

195,00 SEK

exkl. moms

I lager

Spherical bearing GE 30 ES/2RS LS sealed

Article no: 620104

195,00 SEK

I lager

Circlip SgH 48

Article no: 640204

Position4

Antal i ritning1

30,00 SEK

exkl. moms

I lager

Circlip SgH 48

Article no: 640204

30,00 SEK

I lager

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position12

Antal i ritning4

19,00 SEK

exkl. moms

I lager

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

19,00 SEK

I lager
