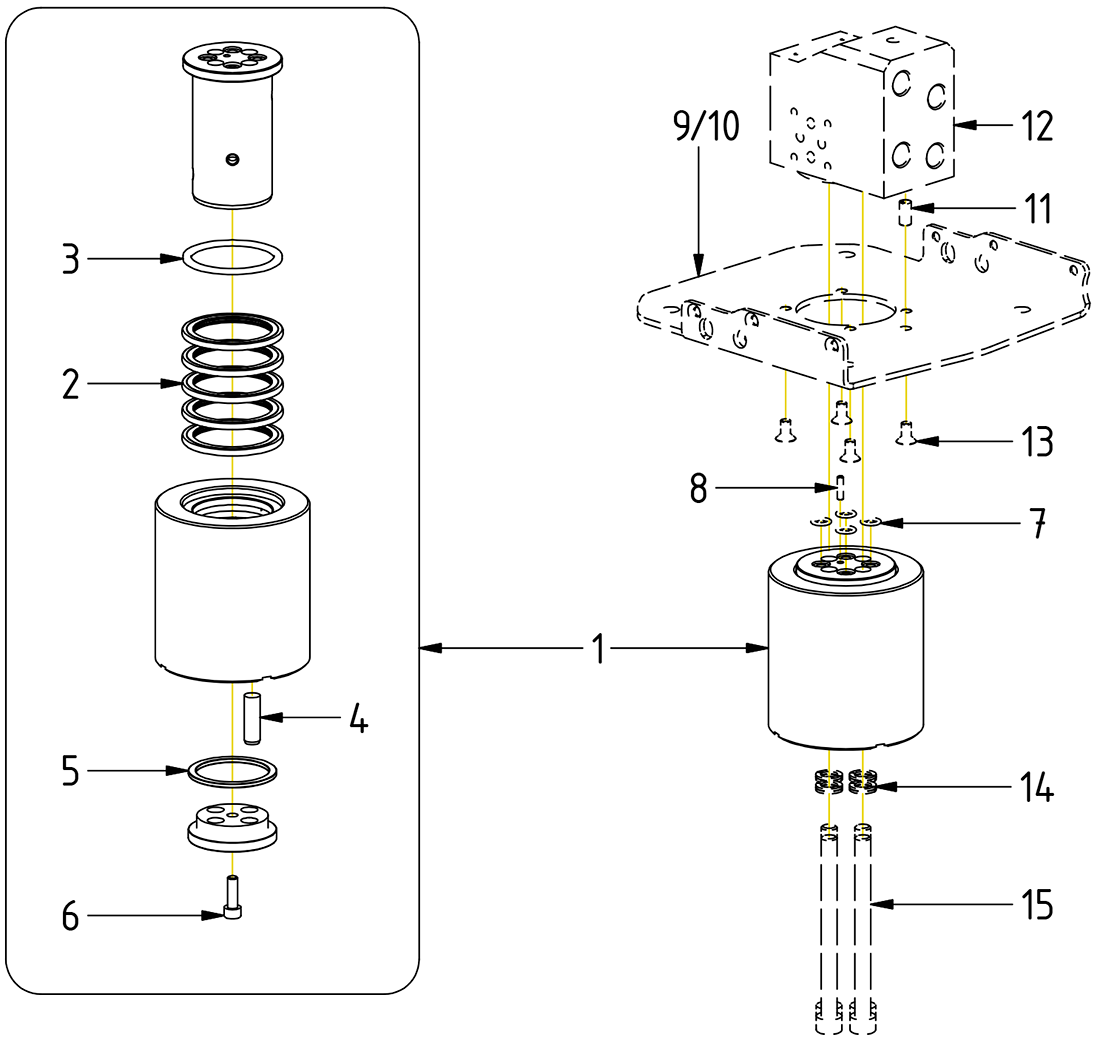

Ventilblock & Svivel EC02

Pos

Artikel

Extra Info

Antal i ritning

Pris

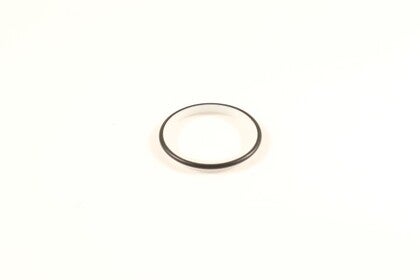

Seal swivel - EC02 - 40/47,5x3,2

Article no: 710918

Position2

Antal i ritning5

210,00 SEK

exkl. moms

Seal swivel - EC02 - 40/47,5x3,2

Article no: 710918

210,00 SEK

exkl. moms

Cylindrical pin 8,0 M6x25 EC02 swivel

Article no: 650204

Position4

Antal i ritning1

9,00 SEK

exkl. moms

Cylindrical pin 8,0 M6x25 EC02 swivel

Article no: 650204

9,00 SEK

exkl. moms

Washer-swivel guide -EC02-swivel 303430-Ø50/42x2

Article no: 405396

Position3

Antal i ritning1

330,00 SEK

exkl. moms

Washer-swivel guide -EC02-swivel 303430-Ø50/42x2

Article no: 405396

330,00 SEK

exkl. moms

Washer-swivel guide -EC02-swivel 303430-Ø44,5/37x2

Article no: 405395

Position5

Antal i ritning1

330,00 SEK

exkl. moms

Washer-swivel guide -EC02-swivel 303430-Ø44,5/37x2

Article no: 405395

330,00 SEK

exkl. moms

Spring rod FRP 6x12 ISO8752

Article no: 640410

Position11

Antal i ritning1

9,00 SEK

exkl. moms

Spring rod FRP 6x12 ISO8752

Article no: 640410

Part of rotator frame assy.

9,00 SEK

exkl. moms

O-ring 6,1x1,6 EC02/EC05 valve block

Article no: 710954

Position7

Antal i ritning4

9,00 SEK

exkl. moms

O-ring 6,1x1,6 EC02/EC05 valve block

Article no: 710954

Part of rotator frame assy.

9,00 SEK

exkl. moms

Spring rod FRP 3x12 ISO8752

Article no: 640411

Position8

Antal i ritning1

9,00 SEK

exkl. moms

Spring rod FRP 3x12 ISO8752

Article no: 640411

Part of rotator frame assy.

9,00 SEK

exkl. moms

Valve block EC02 NG4

Article no: 303557

Position12

Antal i ritning1

7 700,00 SEK

exkl. moms

Valve block EC02 NG4

Article no: 303557

Part of rotator frame assy.

7 700,00 SEK

exkl. moms

Cover plate Center-EC02-swivel & cover

Article no: 1001212

Position9

Antal i ritning1

1 340,00 SEK

exkl. moms

Cover plate Center-EC02-swivel & cover

Article no: 1001212

Part of rotator frame assy.

1 340,00 SEK

exkl. moms

Screw MC6S 8x95 12.9 untreated ISO4762

Article no: 610446

Position15

Antal i ritning4

80,00 SEK

exkl. moms

Screw MC6S 8x95 12.9 untreated ISO4762

Article no: 610446

Part of rotator frame assy.

80,00 SEK

exkl. moms

Swivel EC02 complete

Article no: 303430

Position1

Antal i ritning1

9 560,00 SEK

exkl. moms

Swivel EC02 complete

Article no: 303430

(POS.2-6 incl.)

9 560,00 SEK

exkl. moms

Screw MF6S 5x10H 10.9 FZB ISO10642

Article no: 610602

Position13

Antal i ritning4

9,00 SEK

exkl. moms

Screw MF6S 5x10H 10.9 FZB ISO10642

Article no: 610602

Part of rotator frame assy.

9,00 SEK

exkl. moms

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Position6

Antal i ritning1

9,00 SEK

exkl. moms

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

9,00 SEK

exkl. moms

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position14

Antal i ritning4

19,00 SEK

exkl. moms

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Part of rotator frame assy.

19,00 SEK

exkl. moms
