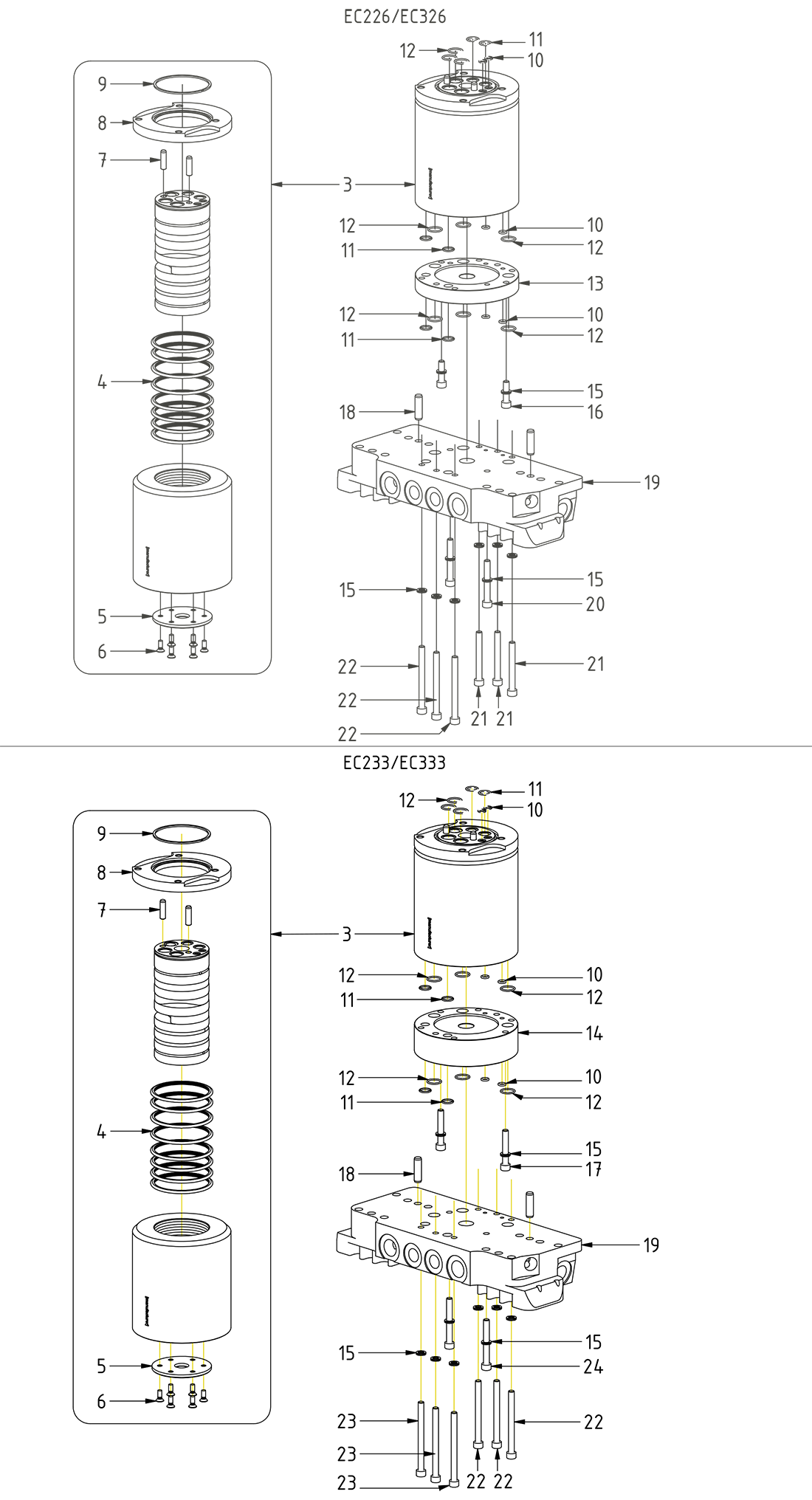

Anslutningsbl. & Svivel QSM70

Pos

Artikel

Extra Info

Antal i ritning

Pris

Cylindrical pin CPK Ø8x30 m6

Article no: 6000175

Position7

Antal i ritning2

19,00 SEK

exkl. moms

Cylindrical pin CPK Ø8x30 m6

Article no: 6000175

19,00 SEK

exkl. moms

Swivel extension-QSM-EC233 Steel

Article no: 1050762

Position14

Antal i ritning1

3 230,00 SEK

exkl. moms

Swivel extension-QSM-EC233 Steel

Article no: 1050762

3 230,00 SEK

exkl. moms

Screw MC6S 8x100 12.9 untreated ISO4762

Article no: 610447

Position23

Antal i ritning3

39,00 SEK

exkl. moms

Screw MC6S 8x100 12.9 untreated ISO4762

Article no: 610447

Torque: 40Nm

39,00 SEK

exkl. moms

Connection block under QSM70-steel

Article no: 1049313

Position19

Antal i ritning2

17 900,00 SEK

exkl. moms

Connection block under QSM70-steel

Article no: 1049313

17 900,00 SEK

exkl. moms

Cylindrical pin CPK Ø10x35 m6

Article no: 1015672

Position18

Antal i ritning2

23,00 SEK

exkl. moms

Cylindrical pin CPK Ø10x35 m6

Article no: 1015672

23,00 SEK

exkl. moms

Washer-swivel guide -QSM

Article no: 1046697

Position5

Antal i ritning1

1 580,00 SEK

exkl. moms

Washer-swivel guide -QSM

Article no: 1046697

1 580,00 SEK

exkl. moms

Seal kit-Swivel/ valve block QSM EC214--> EC233

Article no: 7001495

Position25

Antal i ritning1

2 270,00 SEK

exkl. moms

Seal kit-Swivel/ valve block QSM EC214--> EC233

Article no: 7001495

(Contains seals and o-rings)

2 270,00 SEK

exkl. moms

Swivel 7-channel QSM complete-Iron

Article no: 1049276

Position3

Antal i ritning1

27 300,00 SEK

exkl. moms

Swivel 7-channel QSM complete-Iron

Article no: 1049276

(POS.4-9 incl.)

27 300,00 SEK

exkl. moms

Seal swivel 80/91x4,2 PU

Article no: 1039544

Position4

Antal i ritning8

290,00 SEK

exkl. moms

Seal swivel 80/91x4,2 PU

Article no: 1039544

290,00 SEK

exkl. moms

Fastening plate QSM swivel

Article no: 1044052

Position8

Antal i ritning1

3 530,00 SEK

exkl. moms

Fastening plate QSM swivel

Article no: 1044052

3 530,00 SEK

exkl. moms

Locking ring QSM Ø80/77,4 t2

Article no: 1039555

Position9

Antal i ritning1

230,00 SEK

exkl. moms

Locking ring QSM Ø80/77,4 t2

Article no: 1039555

230,00 SEK

exkl. moms

Swivel extension-QSM-EC226 steel

Article no: 1052685

Position13

Antal i ritning1

4 160,00 SEK

exkl. moms

Swivel extension-QSM-EC226 steel

Article no: 1052685

4 160,00 SEK

exkl. moms

Swivel 7-channel QSM with connection block QSM70 EC233 iron

Article no: 1050703

Position2

Antal i ritning1

49 700,00 SEK

exkl. moms

Swivel 7-channel QSM with connection block QSM70 EC233 iron

Article no: 1050703

(POS.3, 10-12,14-15,17-19,22-24 incl.)

49 700,00 SEK

exkl. moms

Swivel 7-channel QSM with connection block QSM70 EC226 iron

Article no: 1052682

Position1

Antal i ritning1

45 200,00 SEK

exkl. moms

Swivel 7-channel QSM with connection block QSM70 EC226 iron

Article no: 1052682

(POS.3, 10-13, 15-16, 18-22 incl.)

45 200,00 SEK

exkl. moms

O-ring 14x1,78 NBR 70 shore

Article no: 710975

Position11

Antal i ritning6

9,00 SEK

exkl. moms

O-ring 14x1,78 NBR 70 shore

Article no: 710975

QTY: 2 part of quick hitch assy.

9,00 SEK

exkl. moms

O-ring 7,66x1,68 square NBR 70 shore NG4

Article no: 7000579

Position10

Antal i ritning6

64,00 SEK

exkl. moms

O-ring 7,66x1,68 square NBR 70 shore NG4

Article no: 7000579

QTY: 2 part of quick hitch assy.

64,00 SEK

exkl. moms

O-ring 17,17x1,78 NBR 70 shore

Article no: 710977

Position12

Antal i ritning9

9,00 SEK

exkl. moms

O-ring 17,17x1,78 NBR 70 shore

Article no: 710977

QTY: 3 part of quick hitch assy.

9,00 SEK

exkl. moms

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Position17

Antal i ritning2

15,00 SEK

exkl. moms

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Torque: 40Nm

15,00 SEK

exkl. moms

Screw MFT 6x16TX30 8.8 FZB ISO14581

Article no: 6000406

Position6

Antal i ritning12

9,00 SEK

exkl. moms

Screw MFT 6x16TX30 8.8 FZB ISO14581

Article no: 6000406

Torque: 9,8Nm

9,00 SEK

exkl. moms

Screw MC6S 8x60 12.9 untreated ISO4762

Article no: 610441

Position20

Antal i ritning2

25,00 SEK

exkl. moms

Screw MC6S 8x60 12.9 untreated ISO4762

Article no: 610441

Torque: 40Nm

25,00 SEK

exkl. moms

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position15

Antal i ritning10

19,00 SEK

exkl. moms

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

19,00 SEK

exkl. moms
