Std komp. QS70

Pos

Artikel

Extra Info

Antal i ritning

Pris

Cover plate QS70/QSM70-without ECO-block V2

Article no: 1034902

Position31

Antal i ritning1

2 100,00 SEK

exkl. moms

Cover plate QS70/QSM70-without ECO-block V2

Article no: 1034902

No cover plate for EC-Oil

2 100,00 SEK

exkl. moms

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position30

Antal i ritning10

33,00 SEK

exkl. moms

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

QTY: 4 for EC-Oil

33,00 SEK

exkl. moms

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

Position6

Antal i ritning1

260,00 SEK

exkl. moms

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

260,00 SEK

exkl. moms

Protection Plug ECO power plug & QS sensor

Article no: 8000068

Position9

Antal i ritning1

9,00 SEK

exkl. moms

Protection Plug ECO power plug & QS sensor

Article no: 8000068

9,00 SEK

exkl. moms

Plug Din 908 1/4"

Article no: 711505

Position20

Antal i ritning2

25,00 SEK

exkl. moms

Plug Din 908 1/4"

Article no: 711505

25,00 SEK

exkl. moms

Protective sleeve Inductive sensor M12

Article no: 8000056

Position7

Antal i ritning1

9,00 SEK

exkl. moms

Protective sleeve Inductive sensor M12

Article no: 8000056

9,00 SEK

exkl. moms

Inductive sensor M12 IF6079

Article no: 810463

Position49

Antal i ritning2

1 720,00 SEK

exkl. moms

Inductive sensor M12 IF6079

Article no: 810463

Replaced by POS.35 from 2015-04

1 720,00 SEK

exkl. moms

Inductive sensor M12 DTM04-3P - Locking cylinder

Article no: 1036833

Position36

Antal i ritning1

2 600,00 SEK

exkl. moms

Inductive sensor M12 DTM04-3P - Locking cylinder

Article no: 1036833

Replaced by POS.12 from 2018-01

2 600,00 SEK

exkl. moms

Inductive sensor M12 DTM04-3P - Locking cylinder QSC - 645mm

Article no: 1040359

Position12

Antal i ritning1

2 600,00 SEK

exkl. moms

Inductive sensor M12 DTM04-3P - Locking cylinder QSC - 645mm

Article no: 1040359

Mount 1mm from Sensor plate

2 600,00 SEK

exkl. moms

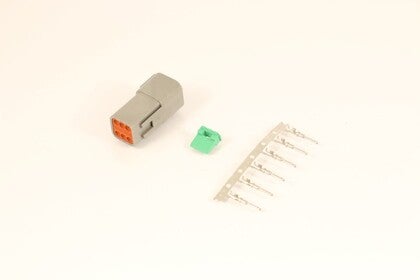

Deutsch DT04-6P connector device

Article no: 820109

Position51

Antal i ritning1

280,00 SEK

exkl. moms

Deutsch DT04-6P connector device

Article no: 820109

Used until 2015-04

280,00 SEK

exkl. moms

Inductive sensor M12 DTM04-3P - hook quick hitch

Article no: 1029068

Position35

Antal i ritning1

2 600,00 SEK

exkl. moms

Inductive sensor M12 DTM04-3P - hook quick hitch

Article no: 1029068

Replaced 2018

2 600,00 SEK

exkl. moms

Inductive sensor M12 DTM04-3P - hook QSC - 645mm

Article no: 1040358

Position1

Antal i ritning1

2 600,00 SEK

exkl. moms

Inductive sensor M12 DTM04-3P - hook QSC - 645mm

Article no: 1040358

Mount just below surface edge

2 600,00 SEK

exkl. moms

Screw-Set Screw P6SS 5x4 A2 ISO4026

Article no: 610816

Position39

Antal i ritning2

8,00 SEK

exkl. moms

Screw-Set Screw P6SS 5x4 A2 ISO4026

Article no: 610816

8,00 SEK

exkl. moms

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Position28

Antal i ritning1

180,00 SEK

exkl. moms

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Cut to fit

180,00 SEK

exkl. moms

Screw MS6SS 8x16 ISO4027

Article no: 610808

Position8

Antal i ritning1

9,00 SEK

exkl. moms

Screw MS6SS 8x16 ISO4027

Article no: 610808

9,00 SEK

exkl. moms

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Position27

Antal i ritning1

9,00 SEK

exkl. moms

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Loxeal 83-52

9,00 SEK

exkl. moms

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position47

Antal i ritning2

20,00 SEK

exkl. moms

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

20,00 SEK

exkl. moms

Seal washer GBR04 1/4"

Article no: 710702

Position19

Antal i ritning2

9,00 SEK

exkl. moms

Seal washer GBR04 1/4"

Article no: 710702

9,00 SEK

exkl. moms

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position54

Antal i ritning2

19,00 SEK

exkl. moms

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Used until 2016-10

19,00 SEK

exkl. moms

Ejector QS70 with sensor - DTM

Article no: 1029067

Position38

Antal i ritning1

4 540,00 SEK

exkl. moms

Ejector QS70 with sensor - DTM

Article no: 1029067

Replaced by POS.14 from 2016-09 (POS.35, 39 incl.)

4 540,00 SEK

exkl. moms

Washer TBRB 13x24x4 ISO4759

Article no: 611099

Position43

Antal i ritning2

9,00 SEK

exkl. moms

Washer TBRB 13x24x4 ISO4759

Article no: 611099

9,00 SEK

exkl. moms

Locking hook QSM70/QS70/S70 V2 cast

Article no: 1037431

Position25

Antal i ritning1

3 880,00 SEK

exkl. moms

Locking hook QSM70/QS70/S70 V2 cast

Article no: 1037431

3 880,00 SEK

exkl. moms

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

Position48

Antal i ritning2

20,00 SEK

exkl. moms

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

20,00 SEK

exkl. moms

Locking cylinder QS70 V4 Forged

Article no: 1058122

Position11

Antal i ritning1

19 700,00 SEK

exkl. moms

Locking cylinder QS70 V4 Forged

Article no: 1058122

19 700,00 SEK

exkl. moms

Spring QSM70/QS70/S70 locking hook - long (32x305)

Article no: 1025179

Position23

Antal i ritning2

1 020,00 SEK

exkl. moms

Spring QSM70/QS70/S70 locking hook - long (32x305)

Article no: 1025179

1 020,00 SEK

exkl. moms

Spring QS70 Ejectors - long (20x120)

Article no: 1025177

Position41

Antal i ritning2

179,00 SEK

exkl. moms

Spring QS70 Ejectors - long (20x120)

Article no: 1025177

179,00 SEK

exkl. moms

Screw MF6S 12x40 10.9 FZB ISO10642

Article no: 610670

Position18

Antal i ritning2

26,00 SEK

exkl. moms

Screw MF6S 12x40 10.9 FZB ISO10642

Article no: 610670

Loxeal 83-52

26,00 SEK

exkl. moms

Spring QSM70/QS70/S70 locking hook - short (32x152)

Article no: 1025178

Position22

Antal i ritning2

480,00 SEK

exkl. moms

Spring QSM70/QS70/S70 locking hook - short (32x152)

Article no: 1025178

480,00 SEK

exkl. moms

Spacer QS70

Article no: 1035752

Position15

Antal i ritning2

250,00 SEK

exkl. moms

Spacer QS70

Article no: 1035752

250,00 SEK

exkl. moms

Locking cylinder QS70 V4 Forged QSC pre-assembled

Article no: 1058123

Position10

Antal i ritning1

26 900,00 SEK

exkl. moms

Locking cylinder QS70 V4 Forged QSC pre-assembled

Article no: 1058123

(POS.11-18 incl.)

26 900,00 SEK

exkl. moms

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

Position32

Antal i ritning6

14,00 SEK

exkl. moms

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

14,00 SEK

exkl. moms

Locking cylinder QS70 V2 pre-assembled 2017-05-22

Article no: 1028940

Position37

Antal i ritning1

20 500,00 SEK

exkl. moms

Locking cylinder QS70 V2 pre-assembled 2017-05-22

Article no: 1028940

Replaced by 1035613 from 2016-09

20 500,00 SEK

exkl. moms

Spring QS70/80 Ejectors - 21,8x210

Article no: 1049974

Position13

Antal i ritning2

92,00 SEK

exkl. moms

Spring QS70/80 Ejectors - 21,8x210

Article no: 1049974

92,00 SEK

exkl. moms

Spacer M12 L15 countersunk

Article no: 1008243

Position17

Antal i ritning2

230,00 SEK

exkl. moms

Spacer M12 L15 countersunk

Article no: 1008243

230,00 SEK

exkl. moms

Ejector QS70 for sensor

Article no: 1024696

Position50

Antal i ritning1

3 170,00 SEK

exkl. moms

Ejector QS70 for sensor

Article no: 1024696

Replaced by POS.38 from 2015-04

3 170,00 SEK

exkl. moms

Spring QS70 Ejectors short - (20x85)

Article no: 1025857

Position42

Antal i ritning2

200,00 SEK

exkl. moms

Spring QS70 Ejectors short - (20x85)

Article no: 1025857

200,00 SEK

exkl. moms

Steering S70/QS70-80

Article no: 1024695

Position24

Antal i ritning2

1 400,00 SEK

exkl. moms

Steering S70/QS70-80

Article no: 1024695

Loxeal 53-11

1 400,00 SEK

exkl. moms

Screw M6S 12x20 8.8 FZB ISO4017

Article no: 610163

Position44

Antal i ritning2

9,00 SEK

exkl. moms

Screw M6S 12x20 8.8 FZB ISO4017

Article no: 610163

9,00 SEK

exkl. moms

Sensor plate QS70

Article no: 1035751

Position16

Antal i ritning1

260,00 SEK

exkl. moms

Sensor plate QS70

Article no: 1035751

Assemble with slight play

260,00 SEK

exkl. moms

Ejector QS70 NOT for sensor

Article no: 1024697

Position40

Antal i ritning1

6 690,00 SEK

exkl. moms

Ejector QS70 NOT for sensor

Article no: 1024697

Replaced by POS.14 from 2016-09

6 690,00 SEK

exkl. moms

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Position55

Antal i ritning2

14,00 SEK

exkl. moms

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Used until 2016-10

14,00 SEK

exkl. moms

Ejector QS70-QS80

Article no: 1034935

Position14

Antal i ritning2

1 690,00 SEK

exkl. moms

Ejector QS70-QS80

Article no: 1034935

1 690,00 SEK

exkl. moms

Screw MC6S 12x40H 12.9 ZFSHL ISO4762

Article no: 6000141

Position29

Antal i ritning4

15,00 SEK

exkl. moms

Screw MC6S 12x40H 12.9 ZFSHL ISO4762

Article no: 6000141

15,00 SEK

exkl. moms

Screw MLC6S 16x70 10.9 DIN7984 untreated

Article no: 610720

Position26

Antal i ritning1

160,00 SEK

exkl. moms

Screw MLC6S 16x70 10.9 DIN7984 untreated

Article no: 610720

Loxeal 83-52

160,00 SEK

exkl. moms

Locking cylinder QS70 V4 pre-assembled-NOT QSC

Article no: 1050636

Position34

Antal i ritning1

27 100,00 SEK

exkl. moms

Locking cylinder QS70 V4 pre-assembled-NOT QSC

Article no: 1050636

Spare part use only

27 100,00 SEK

exkl. moms

Locking hook QS70

Article no: 1024200

Position45

Antal i ritning1

14 900,00 SEK

exkl. moms

Locking hook QS70

Article no: 1024200

Replaced by 1035734 from 2016-09

14 900,00 SEK

exkl. moms
