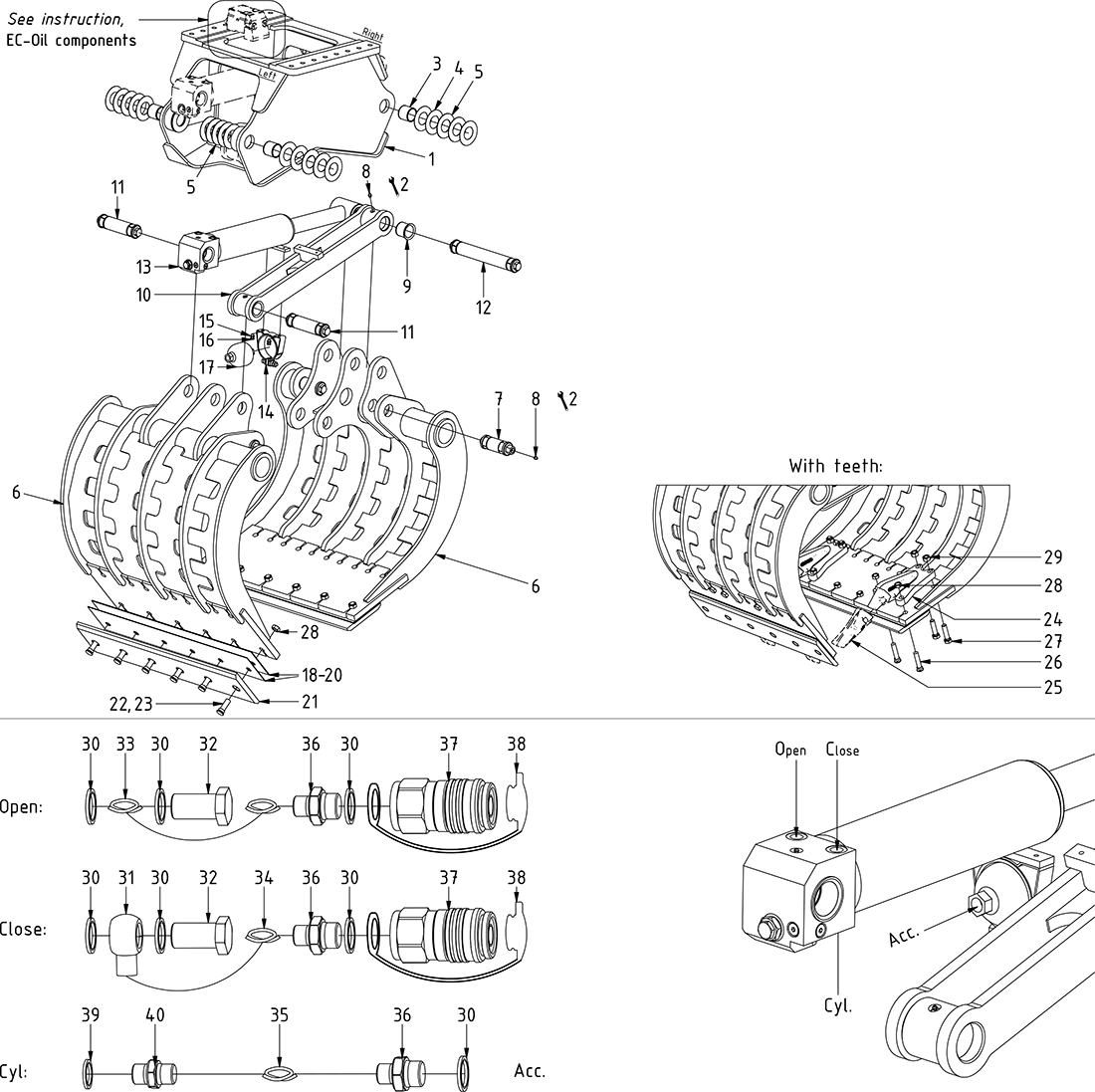

Without sleeves 2014-03-01 -- >

Pos

Artikel

Extra Info

Antal i ritning

Pris (exkl. moms)

Expander pin Ø50 L165 SK20/SG26

Article no: 402764

Position11

Antal i ritning2

3 080,00 SEK

exkl. moms

Ej i lager

Expander pin Ø50 L165 SK20/SG26

Article no: 402764

Torque: 350Nm

3 080,00 SEK

Ej i lager

Cutting steel bolt UNC 3/4"x64 12.9 untreated

Article no: 660404

Position22

Antal i ritning12

122,00 SEK

exkl. moms

I lager

Cutting steel bolt UNC 3/4"x64 12.9 untreated

Article no: 660404

QTY: 4 for grab with teeth

122,00 SEK

I lager

Shim SK20/SG26 1mm

Article no: 1024934

Position4

Antal i ritning24

162,00 SEK

exkl. moms

Ej i lager

Shim SK20/SG26 1mm

Article no: 1024934

162,00 SEK

Ej i lager

Banjo bolt 4451-08

Article no: 710274

Position32

Antal i ritning2

109,00 SEK

exkl. moms

I lager

Banjo bolt 4451-08

Article no: 710274

109,00 SEK

I lager

Quick coupling 1/2" female 5010

Article no: 790114

Position37

Antal i ritning2

680,00 SEK

exkl. moms

I lager

Quick coupling 1/2" female 5010

Article no: 790114

680,00 SEK

I lager

Screw M6S 20x80 12.9

Article no: 6000273

Position27

Antal i ritning8

112,00 SEK

exkl. moms

Ej i lager

Screw M6S 20x80 12.9

Article no: 6000273

112,00 SEK

Ej i lager

Hose SK15, 20 Supply Hose short

Article no: 740902

Position33

Antal i ritning1

800,00 SEK

exkl. moms

Ej i lager

Hose SK15, 20 Supply Hose short

Article no: 740902

800,00 SEK

Ej i lager

Nut M6M M20 8. FZV

Article no: 610931

Position29

Antal i ritning8

5,00 SEK

exkl. moms

Ej i lager

Nut M6M M20 8. FZV

Article no: 610931

5,00 SEK

Ej i lager

Bushing WB802 50/55/65x50 WF

Article no: 630406

Position9

Antal i ritning4

710,00 SEK

exkl. moms

I lager

Bushing WB802 50/55/65x50 WF

Article no: 630406

710,00 SEK

I lager

Hose

Article no: 740909

Position35

Antal i ritning1

680,00 SEK

exkl. moms

Ej i lager

Hose

Article no: 740909

680,00 SEK

Ej i lager

Link SK20/SG26 replaces 200992

Article no: 1001012

Position10

Antal i ritning1

18 900,00 SEK

exkl. moms

Ej i lager

Link SK20/SG26 replaces 200992

Article no: 1001012

18 900,00 SEK

Ej i lager

Shim SK15/SG19,SK20/SG26 Cutting edge 2mm

Article no: 1024933

Position20

Antal i ritning2

330,00 SEK

exkl. moms

Ej i lager

Shim SK15/SG19,SK20/SG26 Cutting edge 2mm

Article no: 1024933

Use if required

330,00 SEK

Ej i lager

Hose SK15, 20 Supply Hose long

Article no: 740903

Position34

Antal i ritning1

890,00 SEK

exkl. moms

Ej i lager

Hose SK15, 20 Supply Hose long

Article no: 740903

890,00 SEK

Ej i lager

Shim SK15. SK20 3mm

Article no: 1051505

Position18

Antal i ritning2

350,00 SEK

exkl. moms

Ej i lager

Shim SK15. SK20 3mm

Article no: 1051505

Use if required

350,00 SEK

Ej i lager

Shim SK20/SG26 2mm

Article no: 1024935

Position5

Antal i ritning16

162,00 SEK

exkl. moms

Ej i lager

Shim SK20/SG26 2mm

Article no: 1024935

162,00 SEK

Ej i lager

Clamp bracket - Accumulator

Article no: 790101

Position14

Antal i ritning1

870,00 SEK

exkl. moms

Ej i lager

Clamp bracket - Accumulator

Article no: 790101

870,00 SEK

Ej i lager

Shim SK15/SG19, SK20/SG26 Cutting edge 1mm

Article no: 1024932

Position19

Antal i ritning2

310,00 SEK

exkl. moms

Ej i lager

Shim SK15/SG19, SK20/SG26 Cutting edge 1mm

Article no: 1024932

Use if required

310,00 SEK

Ej i lager

Accumulator SK/SG 0,32l-145bar

Article no: 790102

Position17

Antal i ritning1

4 760,00 SEK

exkl. moms

I lager

Accumulator SK/SG 0,32l-145bar

Article no: 790102

4 760,00 SEK

I lager

Adapter 830-08-06

Article no: 710193

Position31

Antal i ritning1

111,00 SEK

exkl. moms

Ej i lager

Adapter 830-08-06

Article no: 710193

111,00 SEK

Ej i lager

Bushing tilt EC10 WB802 50/55x50

Article no: 630308

Position3

Antal i ritning4

360,00 SEK

exkl. moms

I lager

Bushing tilt EC10 WB802 50/55x50

Article no: 630308

360,00 SEK

I lager

Nut UNC 3/4"

Article no: 660403

Position28

Antal i ritning20

26,00 SEK

exkl. moms

I lager

Nut UNC 3/4"

Article no: 660403

26,00 SEK

I lager

Expander pin Ø50 L105 SK20/SG26

Article no: 402765

Position7

Antal i ritning4

3 290,00 SEK

exkl. moms

Ej i lager

Expander pin Ø50 L105 SK20/SG26

Article no: 402765

Torque: 350Nm

3 290,00 SEK

Ej i lager

Lubrication nipple M10x1 straight Lubrication kit

Article no: 790166

Position8

Antal i ritning8

20,00 SEK

exkl. moms

I lager

Lubrication nipple M10x1 straight Lubrication kit

Article no: 790166

20,00 SEK

I lager

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position16

Antal i ritning2

9,00 SEK

exkl. moms

I lager

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

9,00 SEK

I lager

Expander pin Ø50 L310 SK20/SG26

Article no: 402763

Position12

Antal i ritning1

3 740,00 SEK

exkl. moms

Ej i lager

Expander pin Ø50 L310 SK20/SG26

Article no: 402763

Torque: 350Nm

3 740,00 SEK

Ej i lager

Tooth tip ESCO ultralock U25S

Article no: 1018510

Position25

Antal i ritning4

2 720,00 SEK

exkl. moms

Ej i lager

Tooth tip ESCO ultralock U25S

Article no: 1018510

2 720,00 SEK

Ej i lager

Dust protection 1/2" Coupling-female 5016

Article no: 790118

Position38

Antal i ritning2

56,00 SEK

exkl. moms

I lager

Dust protection 1/2" Coupling-female 5016

Article no: 790118

56,00 SEK

I lager

Cutting edge SK15/SG19 & SK20/SG26 painted

Article no: 201000

Position21

Antal i ritning2

4 300,00 SEK

exkl. moms

Ej i lager

Cutting edge SK15/SG19 & SK20/SG26 painted

Article no: 201000

4 300,00 SEK

Ej i lager

Cutting steel bolt UNC 3/4"x69 12.9 untreated

Article no: 660401

Position23

Antal i ritning12

93,00 SEK

exkl. moms

Ej i lager

Cutting steel bolt UNC 3/4"x69 12.9 untreated

Article no: 660401

Replaces POS.22 if required (Depends on shims)

93,00 SEK

Ej i lager

Grab cylinder SK20/SG26-SC5H-R3/l

Article no: 1012704

Position13

Antal i ritning1

27 000,00 SEK

exkl. moms

Få i lager (3)

Grab cylinder SK20/SG26-SC5H-R3/l

Article no: 1012704

See "Grab cylinders"

27 000,00 SEK

Få i lager (3)

Adapter 136-06-06

Article no: 710106

Position40

Antal i ritning1

26,00 SEK

exkl. moms

I lager

Adapter 136-06-06

Article no: 710106

26,00 SEK

I lager

Seal washer GBR06 3/8"

Article no: 710703

Position39

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Seal washer GBR06 3/8"

Article no: 710703

9,00 SEK

I lager

Adapter 135-06-08

Article no: 710122

Position36

Antal i ritning3

56,00 SEK

exkl. moms

I lager

Adapter 135-06-08

Article no: 710122

56,00 SEK

I lager

Washer BRB FZB 8,4x16x1,6 ISO7089

Article no: 611005

Position15

Antal i ritning2

9,00 SEK

exkl. moms

I lager

Washer BRB FZB 8,4x16x1,6 ISO7089

Article no: 611005

9,00 SEK

I lager

Seal washer GBR08 1/2"

Article no: 710704

Position30

Antal i ritning7

10,00 SEK

exkl. moms

I lager

Seal washer GBR08 1/2"

Article no: 710704

10,00 SEK

I lager
