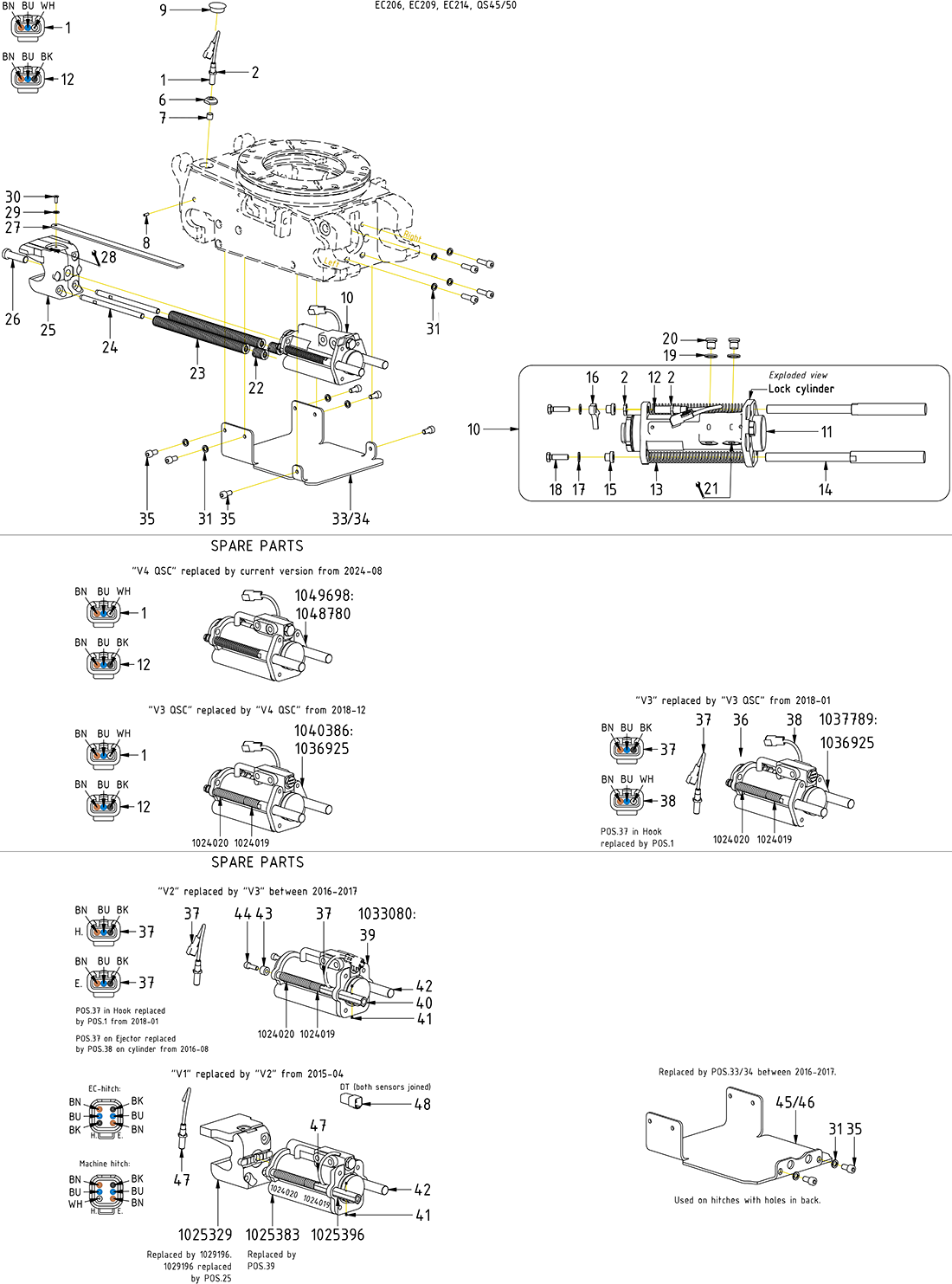

Std comp. QS45/QS50

Pos

Artikel

Extra Info

Antal i ritning

Pris (exkl. moms)

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

Position6

Antal i ritning1

260,00 SEK

exkl. moms

I lager

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

260,00 SEK

I lager

Protection Plug ECO power plug & QS sensor

Article no: 8000068

Position9

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Protection Plug ECO power plug & QS sensor

Article no: 8000068

9,00 SEK

I lager

Locking hook S45/QSM/QS45/50 V2 cast

Article no: 1047545

Position25

Antal i ritning1

3 900,00 SEK

exkl. moms

Få i lager (3)

Locking hook S45/QSM/QS45/50 V2 cast

Article no: 1047545

3 900,00 SEK

Få i lager (3)

Washer BRB FZB 8,4x16x1,6 ISO7089

Article no: 611005

Position17

Antal i ritning2

9,00 SEK

exkl. moms

I lager

Washer BRB FZB 8,4x16x1,6 ISO7089

Article no: 611005

9,00 SEK

I lager

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Position27

Antal i ritning1

180,00 SEK

exkl. moms

I lager

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Cut to fit

180,00 SEK

I lager

Screw MLC6S 16x60 10.9 DIN7984 untreated

Article no: 610721

Position26

Antal i ritning1

81,00 SEK

exkl. moms

I lager

Screw MLC6S 16x60 10.9 DIN7984 untreated

Article no: 610721

Loxeal 83-52. Torque 136Nm

81,00 SEK

I lager

Locking cylinder QS45/50 V4 Forged QSC pre-assembled

Article no: 1072391

Position10

Antal i ritning1

22 100,00 SEK

exkl. moms

Ej i lager

Locking cylinder QS45/50 V4 Forged QSC pre-assembled

Article no: 1072391

(POS.11-18 incl.)

22 100,00 SEK

Ej i lager

Washer Starlock 6mm

Article no: 6000415

Position29

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Washer Starlock 6mm

Article no: 6000415

9,00 SEK

I lager

Sensor plate QS45-QS50

Article no: 1036988

Position16

Antal i ritning1

200,00 SEK

exkl. moms

I lager

Sensor plate QS45-QS50

Article no: 1036988

Assemble with slight play

200,00 SEK

I lager

Cover plate QS45-without ECO-block

Article no: 1028214

Position45

Antal i ritning1

1 130,00 SEK

exkl. moms

I lager

Cover plate QS45-without ECO-block

Article no: 1028214

Replacd by POS.33. Note holes

1 130,00 SEK

I lager

Cover plate QS45-without ECO-block V2

Article no: 1037473

Position33

Antal i ritning1

1 180,00 SEK

exkl. moms

Få i lager (5)

Cover plate QS45-without ECO-block V2

Article no: 1037473

No cover plate for EC-Oil

1 180,00 SEK

Få i lager (5)

Screw MS6SS 8x16 ISO4027

Article no: 610808

Position8

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Screw MS6SS 8x16 ISO4027

Article no: 610808

9,00 SEK

I lager

Locking cylinder QS45/QS50 V4 pre-assembled-Not QSC

Article no: 1050634

Position36

Antal i ritning1

22 800,00 SEK

exkl. moms

Ej i lager

Locking cylinder QS45/QS50 V4 pre-assembled-Not QSC

Article no: 1050634

Spare part use only

22 800,00 SEK

Ej i lager

Inductive sensor M12 IF6079

Article no: 810463

Position47

Antal i ritning2

1 720,00 SEK

exkl. moms

Få i lager (3)

Inductive sensor M12 IF6079

Article no: 810463

Replaced by POS.38 from 2015-04

1 720,00 SEK

Få i lager (3)

Inductive sensor M12 DTM04-3P - Locking cylinder

Article no: 1036833

Position38

Antal i ritning1

2 600,00 SEK

exkl. moms

I lager

Inductive sensor M12 DTM04-3P - Locking cylinder

Article no: 1036833

Replaced by POS.12 from 2018-01

2 600,00 SEK

I lager

Inductive sensor M12 DTM04-3P - Locking cylinder QSC - 645mm

Article no: 1040359

Position12

Antal i ritning1

2 600,00 SEK

exkl. moms

I lager

Inductive sensor M12 DTM04-3P - Locking cylinder QSC - 645mm

Article no: 1040359

Mount 1mm from Sensor plate

2 600,00 SEK

I lager

Deutsch DT04-6P connector device

Article no: 820109

Position48

Antal i ritning1

280,00 SEK

exkl. moms

Få i lager (5)

Deutsch DT04-6P connector device

Article no: 820109

Used until 2015-04

280,00 SEK

Få i lager (5)

Screw MC6S 10x20 12.9 ZFSHL ISO4762

Article no: 6000409

Position35

Antal i ritning8

11,00 SEK

exkl. moms

I lager

Screw MC6S 10x20 12.9 ZFSHL ISO4762

Article no: 6000409

11,00 SEK

I lager

Cover plate QS50-without ECO-block V2

Article no: 1039655

Position34

Antal i ritning1

1 240,00 SEK

exkl. moms

Ej i lager

Cover plate QS50-without ECO-block V2

Article no: 1039655

No cover plate for EC-Oil

1 240,00 SEK

Ej i lager

Ejector QS45/50 with sensor-DTM

Article no: 1029065

Position40

Antal i ritning1

6 560,00 SEK

exkl. moms

Få i lager (3)

Ejector QS45/50 with sensor-DTM

Article no: 1029065

Replaced by POS.14 from 2017 (POS.37, 41 incl.)

6 560,00 SEK

Få i lager (3)

Spacer QS45-QS60

Article no: 1025462

Position43

Antal i ritning2

200,00 SEK

exkl. moms

I lager

Spacer QS45-QS60

Article no: 1025462

200,00 SEK

I lager

Spring S45/S60/QS45/50/60 locking hook-long (25x305)

Article no: 1024021

Position23

Antal i ritning2

890,00 SEK

exkl. moms

I lager

Spring S45/S60/QS45/50/60 locking hook-long (25x305)

Article no: 1024021

890,00 SEK

I lager

Screw M6S 8x30 8.8 FZB ISO4017

Article no: 611538

Position18

Antal i ritning2

9,00 SEK

exkl. moms

I lager

Screw M6S 8x30 8.8 FZB ISO4017

Article no: 611538

Loxeal 83-52

9,00 SEK

I lager

Screw MC6S 10x35 12.9 untreated ISO4762

Article no: 610494

Position32

Antal i ritning4

9,00 SEK

exkl. moms

I lager

Screw MC6S 10x35 12.9 untreated ISO4762

Article no: 610494

9,00 SEK

I lager

Screw MC6S 8x25 12.9 ZFSHL ISO4762

Article no: 6000143

Position44

Antal i ritning2

9,00 SEK

exkl. moms

I lager

Screw MC6S 8x25 12.9 ZFSHL ISO4762

Article no: 6000143

9,00 SEK

I lager

Spring QS45/50/60 Ejectors - 16x175

Article no: 1049973

Position13

Antal i ritning2

149,00 SEK

exkl. moms

I lager

Spring QS45/50/60 Ejectors - 16x175

Article no: 1049973

149,00 SEK

I lager

Spring S40S/S40/S45/QS40/45/50 locking hook - short (25x32)

Article no: 1025483

Position22

Antal i ritning2

111,00 SEK

exkl. moms

I lager

Spring S40S/S40/S45/QS40/45/50 locking hook - short (25x32)

Article no: 1025483

111,00 SEK

I lager

Screw-Set Screw P6SS 5x4 A2 ISO4026

Article no: 610816

Position41

Antal i ritning2

8,00 SEK

exkl. moms

I lager

Screw-Set Screw P6SS 5x4 A2 ISO4026

Article no: 610816

8,00 SEK

I lager

Locking cylinder QS45/QS50 V4 Forged

Article no: 1067285

Position11

Antal i ritning1

11 900,00 SEK

exkl. moms

Få i lager (3)

Locking cylinder QS45/QS50 V4 Forged

Article no: 1067285

11 900,00 SEK

Få i lager (3)

Inductive sensor M12 DTM04-3P - hook quick hitch

Article no: 1029068

Position37

Antal i ritning1

2 600,00 SEK

exkl. moms

I lager

Inductive sensor M12 DTM04-3P - hook quick hitch

Article no: 1029068

Replaced 2018

2 600,00 SEK

I lager

Steering S45/S60/QSM45/50/60/QS45/50/60

Article no: 1025621

Position24

Antal i ritning2

460,00 SEK

exkl. moms

I lager

Steering S45/S60/QSM45/50/60/QS45/50/60

Article no: 1025621

Loxeal 83-52

460,00 SEK

I lager

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position31

Antal i ritning10

20,00 SEK

exkl. moms

I lager

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

20,00 SEK

I lager

Seal washer GBR04 1/4"

Article no: 710702

Position19

Antal i ritning2

9,00 SEK

exkl. moms

I lager

Seal washer GBR04 1/4"

Article no: 710702

9,00 SEK

I lager

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Position30

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Loxeal 83-52

9,00 SEK

I lager

Spacer QS45-60 V3

Article no: 1036406

Position15

Antal i ritning2

118,00 SEK

exkl. moms

I lager

Spacer QS45-60 V3

Article no: 1036406

118,00 SEK

I lager

Inductive sensor M12 DTM04-3P - hook QSC - 645mm

Article no: 1040358

Position1

Antal i ritning1

2 600,00 SEK

exkl. moms

I lager

Inductive sensor M12 DTM04-3P - hook QSC - 645mm

Article no: 1040358

Mount just below surface edge

2 600,00 SEK

I lager

Plug Din 908 1/4"

Article no: 711505

Position20

Antal i ritning2

25,00 SEK

exkl. moms

I lager

Plug Din 908 1/4"

Article no: 711505

25,00 SEK

I lager

Ejector QS45-QS50

Article no: 1036953

Position14

Antal i ritning2

1 270,00 SEK

exkl. moms

I lager

Ejector QS45-QS50

Article no: 1036953

1 270,00 SEK

I lager

Locking cylinder QS45/QS50 V2

Article no: 1027573

Position39

Antal i ritning1

23 400,00 SEK

exkl. moms

Få i lager (3)

Locking cylinder QS45/QS50 V2

Article no: 1027573

23 400,00 SEK

Få i lager (3)

Protective sleeve Inductive sensor M12

Article no: 8000056

Position7

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Protective sleeve Inductive sensor M12

Article no: 8000056

9,00 SEK

I lager

Ejector QS45 NOT for sensor

Article no: 1025412

Position42

Antal i ritning1

810,00 SEK

exkl. moms

I lager

Ejector QS45 NOT for sensor

Article no: 1025412

Replaced by POS.14 from 2017

810,00 SEK

I lager
