QS40

Pos

Artikel

Extra Info

Antal i ritning

Pris (exkl. moms)

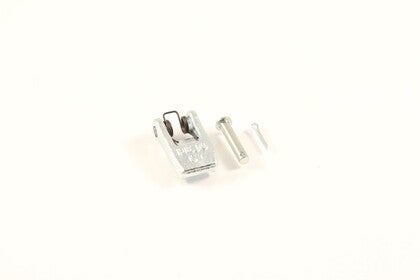

Locktab kit Pejo 201

Article no: 404249

Position41

Antal i ritning1

680,00 SEK

exkl. moms

I lager

Locktab kit Pejo 201

Article no: 404249

Lifting hook spare part

680,00 SEK

I lager

Adapter 136-02-02

Article no: 710102

Position9

Antal i ritning2

31,00 SEK

exkl. moms

I lager

Adapter 136-02-02

Article no: 710102

31,00 SEK

I lager

Block ECO40 W-QH-with dowel pins V2

Article no: 1077485

Position16

Antal i ritning2

3 800,00 SEK

exkl. moms

Få i lager (5)

Block ECO40 W-QH-with dowel pins V2

Article no: 1077485

3 800,00 SEK

Få i lager (5)

Block ECO40 W QH-1hy

Article no: 1077488

Position15

Antal i ritning1

9 580,00 SEK

exkl. moms

I lager

Block ECO40 W QH-1hy

Article no: 1077488

(POS.16-17, 19 incl.)

9 580,00 SEK

I lager

Cover plate Power plug-ECO40W-quick hitch

Article no: 1057688

Position29

Antal i ritning2

183,00 SEK

exkl. moms

Ej i lager

Cover plate Power plug-ECO40W-quick hitch

Article no: 1057688

183,00 SEK

Ej i lager

Cover QS40

Article no: 1058260

Position37

Antal i ritning1

290,00 SEK

exkl. moms

I lager

Cover QS40

Article no: 1058260

290,00 SEK

I lager

Screw MLC6S 10x16 10.9 FZB

Article no: 6000326

Position36

Antal i ritning4

9,00 SEK

exkl. moms

I lager

Screw MLC6S 10x16 10.9 FZB

Article no: 6000326

Torque: 65Nm

9,00 SEK

I lager

Blind rivet 4,0x12,3 DIN7337 alu/steel

Article no: 6000294

Position4

Antal i ritning4

9,00 SEK

exkl. moms

I lager

Blind rivet 4,0x12,3 DIN7337 alu/steel

Article no: 6000294

9,00 SEK

I lager

O-ring 9,25 x 1,78 NBR 70 shore

Article no: 712429

Position26

Antal i ritning1

9,00 SEK

exkl. moms

I lager

O-ring 9,25 x 1,78 NBR 70 shore

Article no: 712429

Located inside POS.27

9,00 SEK

I lager

Piston sealing KPOR130 12x7,1x2,2

Article no: 1024112

Position22

Antal i ritning2

103,00 SEK

exkl. moms

I lager

Piston sealing KPOR130 12x7,1x2,2

Article no: 1024112

(O-ring included with seal ring)

103,00 SEK

I lager

Block ECO40 W-QH-1hy 1cl V2

Article no: 1077487

Position14

Antal i ritning1

11 100,00 SEK

exkl. moms

I lager

Block ECO40 W-QH-1hy 1cl V2

Article no: 1077487

(POS.16-17, 19-20 incl.)

11 100,00 SEK

I lager

Protection-ECO40 W-Quick hitch

Article no: 1062401

Position40

Antal i ritning2

520,00 SEK

exkl. moms

I lager

Protection-ECO40 W-Quick hitch

Article no: 1062401

Part of make up

520,00 SEK

I lager

Screw MC6S 2.5x8 8.8 FZB ISO4762

Article no: 6000325

Position30

Antal i ritning6

9,00 SEK

exkl. moms

I lager

Screw MC6S 2.5x8 8.8 FZB ISO4762

Article no: 6000325

9,00 SEK

I lager

Seal washer GBR02 1/8"

Article no: 710701

Position8

Antal i ritning2

9,00 SEK

exkl. moms

I lager

Seal washer GBR02 1/8"

Article no: 710701

9,00 SEK

I lager

Grease piston for ECO block

Article no: 1024111

Position23

Antal i ritning1

1 420,00 SEK

exkl. moms

Ej i lager

Grease piston for ECO block

Article no: 1024111

1 420,00 SEK

Ej i lager

Nut greasepiston V2

Article no: 1047688

Position25

Antal i ritning1

640,00 SEK

exkl. moms

Ej i lager

Nut greasepiston V2

Article no: 1047688

Wrap with thread sealing tape

640,00 SEK

Ej i lager

Holder Deutsch DT/DTM connector

Article no: 810662

Position5

Antal i ritning2

55,00 SEK

exkl. moms

I lager

Holder Deutsch DT/DTM connector

Article no: 810662

55,00 SEK

I lager

Tube sleeve straight Push-In - 20mm

Article no: 7001521

Position34

Antal i ritning2

85,00 SEK

exkl. moms

Ej i lager

Tube sleeve straight Push-In - 20mm

Article no: 7001521

Depends on the specific hitch model

85,00 SEK

Ej i lager

O-ring 14x2 70 shore

Article no: 7000767

Position27

Antal i ritning1

9,00 SEK

exkl. moms

I lager

O-ring 14x2 70 shore

Article no: 7000767

9,00 SEK

I lager

Spring 6058

Article no: 1024113

Position21

Antal i ritning1

330,00 SEK

exkl. moms

I lager

Spring 6058

Article no: 1024113

330,00 SEK

I lager

Adapter cable M12 8P-DTM 3S-QLM 3,4m

Article no: 8000863

Position2

Antal i ritning1

1 680,00 SEK

exkl. moms

Ej i lager

Adapter cable M12 8P-DTM 3S-QLM 3,4m

Article no: 8000863

Attach to QS sensors

1 680,00 SEK

Ej i lager

O-ring 3,69x1,78 NBR 90 shore

Article no: 1024115

Position24

Antal i ritning1

9,00 SEK

exkl. moms

I lager

O-ring 3,69x1,78 NBR 90 shore

Article no: 1024115

9,00 SEK

I lager

Unit cable DC2 ECO W QS40-2,5m

Article no: 1057842

Position13

Antal i ritning1

2 080,00 SEK

exkl. moms

I lager

Unit cable DC2 ECO W QS40-2,5m

Article no: 1057842

Attach to both 4P

2 080,00 SEK

I lager

Power plug ECO40 W-quick hitch -DT

Article no: 1057840

Position28

Antal i ritning2

1 370,00 SEK

exkl. moms

I lager

Power plug ECO40 W-quick hitch -DT

Article no: 1057840

Cable gland torque: 6Nm

1 370,00 SEK

I lager

Screw M6SF 8x12H 8.8 FZB(A2K) DIN6921 Ribbed flange

Article no: 6000120

Position38

Antal i ritning3

9,00 SEK

exkl. moms

Ej i lager

Screw M6SF 8x12H 8.8 FZB(A2K) DIN6921 Ribbed flange

Article no: 6000120

9,00 SEK

Ej i lager

Rubber Steel Clamp Ø6

Article no: 6000027

Position7

Antal i ritning1

43,00 SEK

exkl. moms

I lager

Rubber Steel Clamp Ø6

Article no: 6000027

43,00 SEK

I lager

Hose kit - Machine hitch - Lubrication ECO40 W

Article no: 7001531

Position32

Antal i ritning1

1 650,00 SEK

exkl. moms

Ej i lager

Hose kit - Machine hitch - Lubrication ECO40 W

Article no: 7001531

(POS.33-35 incl.)

1 650,00 SEK

Ej i lager

Adapter 489-06-06

Article no: 710164

Position12

Antal i ritning2

290,00 SEK

exkl. moms

I lager

Adapter 489-06-06

Article no: 710164

290,00 SEK

I lager

Strain relief plate ZL60 4x

Article no: 8000703

Position3

Antal i ritning1

290,00 SEK

exkl. moms

I lager

Strain relief plate ZL60 4x

Article no: 8000703

290,00 SEK

I lager

Central lubrication kit ECO W V2

Article no: 1050794

Position20

Antal i ritning1

2 940,00 SEK

exkl. moms

Få i lager (4)

Central lubrication kit ECO W V2

Article no: 1050794

(POS.21-27 incl.)

2 940,00 SEK

Få i lager (4)

Push-In coupling straight Ø6mm M8x1

Article no: 790185

Position31

Antal i ritning2

181,00 SEK

exkl. moms

I lager

Push-In coupling straight Ø6mm M8x1

Article no: 790185

181,00 SEK

I lager

Dirt protection block/coupling ECO 3/8"

Article no: 1028274

Position19

Antal i ritning2

144,00 SEK

exkl. moms

I lager

Dirt protection block/coupling ECO 3/8"

Article no: 1028274

144,00 SEK

I lager

Screw K6S 5x8H 10.9 FZB ISO7380

Article no: 611801

Position6

Antal i ritning1

9,00 SEK

exkl. moms

I lager

Screw K6S 5x8H 10.9 FZB ISO7380

Article no: 611801

9,00 SEK

I lager

Coupling ECO 3/8" female V3

Article no: 1053029

Position17

Antal i ritning2

2 990,00 SEK

exkl. moms

I lager

Coupling ECO 3/8" female V3

Article no: 1053029

Torque: 60Nm. (POS.18 incl.)

2 990,00 SEK

I lager

Adapter 136-06-06

Article no: 710106

Position11

Antal i ritning2

26,00 SEK

exkl. moms

I lager

Adapter 136-06-06

Article no: 710106

26,00 SEK

I lager

Flat seal for ECO 3/8" V3

Article no: 1052976

Position18

Antal i ritning2

30,00 SEK

exkl. moms

I lager

Flat seal for ECO 3/8" V3

Article no: 1052976

30,00 SEK

I lager

Seal washer GBR06 3/8"

Article no: 710703

Position10

Antal i ritning2

9,00 SEK

exkl. moms

I lager

Seal washer GBR06 3/8"

Article no: 710703

9,00 SEK

I lager
