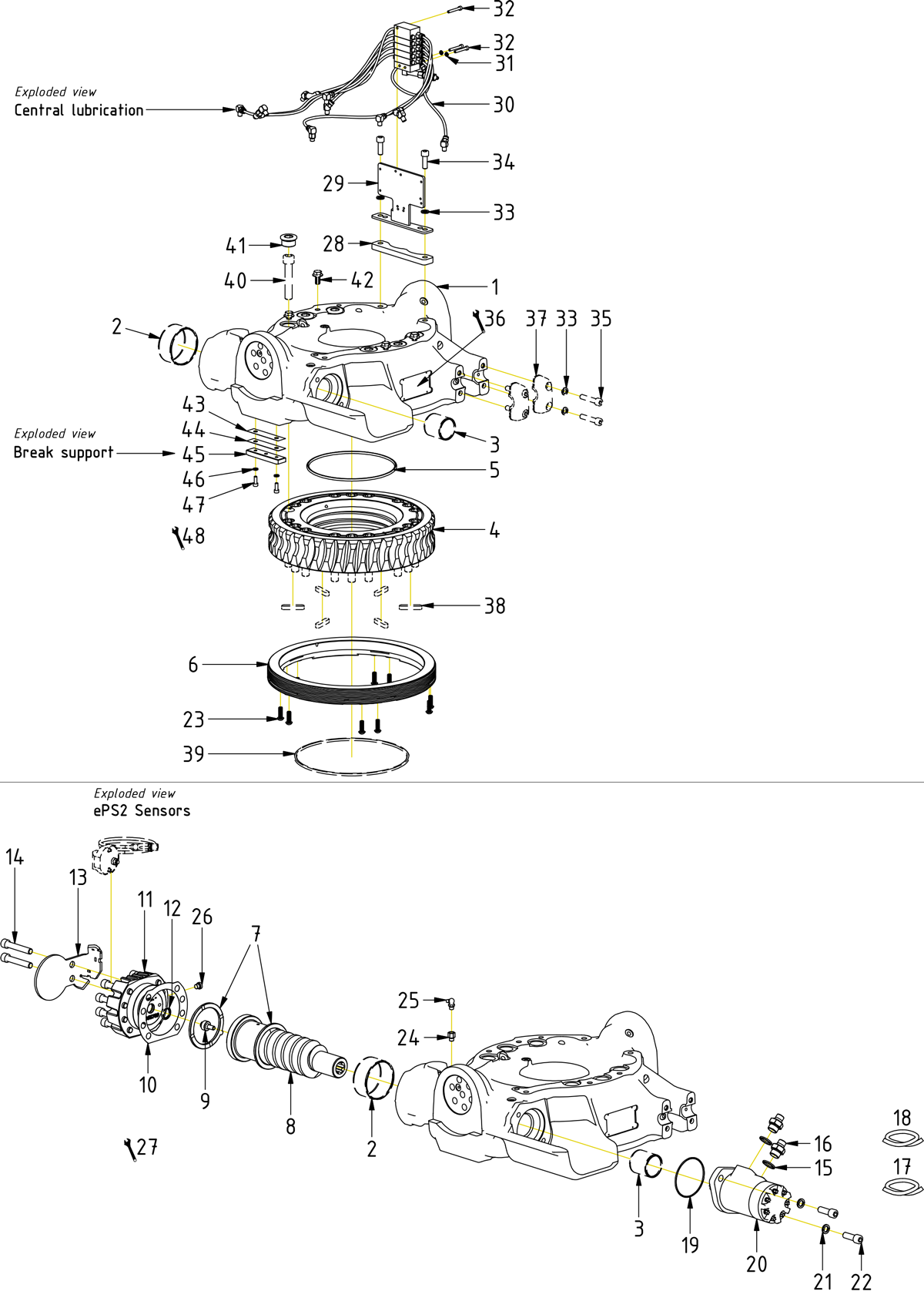

Main components

Pos

Artikel

Extra Info

Antal i ritning

Pris (exkl. moms)

Attachment central lubrication & TM3 EC319-QSM

Article no: 1065076

Position29

Antal i ritning1

€96,50

exkl. moms

Ej i lager

Attachment central lubrication & TM3 EC319-QSM

Article no: 1065076

€96,50

Ej i lager

Screw M6SF 10x20H 8.8 FZB DIN6921 Ribbed flange

Article no: 6000131

Position42

Antal i ritning4

€1,00

exkl. moms

Ej i lager

Screw M6SF 10x20H 8.8 FZB DIN6921 Ribbed flange

Article no: 6000131

Part of control system

€1,00

Ej i lager

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

Position31

Antal i ritning2

€1,40

exkl. moms

Ej i lager

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

€1,40

Ej i lager

End lock EC209S/EC214S/EC219S Cast

Article no: 1065789

Position11

Antal i ritning1

€372,10

exkl. moms

Ej i lager

End lock EC209S/EC214S/EC219S Cast

Article no: 1065789

(POS.12 incl.)

€372,10

Ej i lager

Rotator frame 214 V3 EngconYellow complete

Article no: 1062446

Position1

Antal i ritning1

€4 070,00

exkl. moms

Ej i lager

Rotator frame 214 V3 EngconYellow complete

Article no: 1062446

(POS.2-3 incl.)

€4 070,00

Ej i lager

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Position47

Antal i ritning2

€1,00

exkl. moms

I lager

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

€1,00

I lager

O-ring 195x5 NBR 90 shore EC214 worm wheel

Article no: 7001661

Position5

Antal i ritning1

€10,40

exkl. moms

Få i lager (1)

O-ring 195x5 NBR 90 shore EC214 worm wheel

Article no: 7001661

€10,40

Få i lager (1)

Bearing ring EC214 V2

Article no: 1077008

Position6

Antal i ritning1

€1 133,00

exkl. moms

Ej i lager

Bearing ring EC214 V2

Article no: 1077008

€1 133,00

Ej i lager

Pipe Plug RP M30x1,5 DIN908 FZB

Article no: 650410

Position41

Antal i ritning6

€6,40

exkl. moms

Ej i lager

Pipe Plug RP M30x1,5 DIN908 FZB

Article no: 650410

€6,40

Ej i lager

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Position14

Antal i ritning8

€4,50

exkl. moms

I lager

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Torque: 136Nm

€4,50

I lager

Bushing WB802 80/85x40

Article no: 630103

Position2

Antal i ritning1

€45,40

exkl. moms

Få i lager (3)

Bushing WB802 80/85x40

Article no: 630103

€45,40

Få i lager (3)

Screw TX45 8x25 10,9 FZB

Article no: 1078840

Position23

Antal i ritning10

€1,00

exkl. moms

I lager

Screw TX45 8x25 10,9 FZB

Article no: 1078840

Torque: 34Nm Tighten in cross pattern

€1,00

I lager

O-ring 249,3x5,7 NBR 70 shore Quick hitch EC214

Article no: 712424

Position39

Antal i ritning1

€11,90

exkl. moms

Få i lager (3)

O-ring 249,3x5,7 NBR 70 shore Quick hitch EC214

Article no: 712424

Part of quick hitch

€11,90

Få i lager (3)

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

Position37

Antal i ritning4

€154,70

exkl. moms

Få i lager (4)

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

Part of top part

€154,70

Få i lager (4)

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position35

Antal i ritning8

€4,20

exkl. moms

I lager

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Part of top part. Torque: 79Nm

€4,20

I lager

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position32

Antal i ritning3

€1,00

exkl. moms

I lager

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

€1,00

I lager

Bushing WB802 45/50x50

Article no: 630102

Position3

Antal i ritning1

€29,10

exkl. moms

Få i lager (4)

Bushing WB802 45/50x50

Article no: 630102

€29,10

Få i lager (4)

Plug VSTIR18ED 1/8"

Article no: 711503

Position26

Antal i ritning1

€6,50

exkl. moms

I lager

Plug VSTIR18ED 1/8"

Article no: 711503

€6,50

I lager

Shim break support - EC209, EC214, EC219 - 0,3mm

Article no: 1055260

Position44

Antal i ritning1

€7,30

exkl. moms

Ej i lager

Shim break support - EC209, EC214, EC219 - 0,3mm

Article no: 1055260

€7,30

Ej i lager

Magnet Spacer Worm Screw

Article no: 1062693

Position9

Antal i ritning1

€15,40

exkl. moms

Få i lager (1)

Magnet Spacer Worm Screw

Article no: 1062693

Loxeal 83-52. Torque: 20Nm

€15,40

Få i lager (1)

Shim break support - EC209, EC214, EC219 - 0,1mm

Article no: 1055262

Position43

Antal i ritning1

€5,50

exkl. moms

Ej i lager

Shim break support - EC209, EC214, EC219 - 0,1mm

Article no: 1055262

€5,50

Ej i lager

Extender 18mm R1/8" lubrication kit

Article no: 712216

Position24

Antal i ritning1

€13,70

exkl. moms

Få i lager (4)

Extender 18mm R1/8" lubrication kit

Article no: 712216

€13,70

Få i lager (4)

Lubrication kit EC214

Article no: 1026699

Position30

Antal i ritning1

€1 674,00

exkl. moms

Ej i lager

Lubrication kit EC214

Article no: 1026699

€1 674,00

Ej i lager

Worm wheel EC214 18 bolt

Article no: 1046396

Position4

Antal i ritning1

€6 337,00

exkl. moms

Ej i lager

Worm wheel EC214 18 bolt

Article no: 1046396

€6 337,00

Ej i lager

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Position13

Antal i ritning1

€55,80

exkl. moms

Ej i lager

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

€55,80

Ej i lager

Worm screw EC214 , EC219

Article no: 1016408

Position8

Antal i ritning1

€2 442,00

exkl. moms

Få i lager (3)

Worm screw EC214 , EC219

Article no: 1016408

€2 442,00

Få i lager (3)

Seal R09-F 20x27.5x3.2

Article no: 1063616

Position12

Antal i ritning1

€22,10

exkl. moms

Ej i lager

Seal R09-F 20x27.5x3.2

Article no: 1063616

€22,10

Ej i lager

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

Position34

Antal i ritning2

€2,30

exkl. moms

I lager

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

Torque: 79Nm

€2,30

I lager

Lubrication nipple 1/8" 90°

Article no: 711409

Position25

Antal i ritning1

€6,50

exkl. moms

Ej i lager

Lubrication nipple 1/8" 90°

Article no: 711409

€6,50

Ej i lager

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Position38

Antal i ritning6

€3,00

exkl. moms

I lager

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Part of quick hitch

€3,00

I lager

Axial washer with ear EC209/214/219

Article no: 1079941

Position7

Antal i ritning2

€83,70

exkl. moms

I lager

Axial washer with ear EC209/214/219

Article no: 1079941

Face grooves toward worm screw

€83,70

I lager

Shim kit End lock - EC209/EC214/EC219

Article no: 1034434

Position10

Antal i ritning1

€195,30

exkl. moms

Få i lager (5)

Shim kit End lock - EC209/EC214/EC219

Article no: 1034434

€195,30

Få i lager (5)

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position46

Antal i ritning2

€1,60

exkl. moms

I lager

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

€1,60

I lager

Plate break support - EC209/214/219

Article no: 1055258

Position45

Antal i ritning1

€79,10

exkl. moms

Få i lager (2)

Plate break support - EC209/214/219

Article no: 1055258

€79,10

Få i lager (2)

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Position40

Antal i ritning18

€10,60

exkl. moms

I lager

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Part of quick hitch. Torque: 333Nm

€10,60

I lager

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Position22

Antal i ritning2

€1,60

exkl. moms

I lager

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Torque: 136Nm

€1,60

I lager

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position21

Antal i ritning2

€3,80

exkl. moms

I lager

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

€3,80

I lager

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position33

Antal i ritning10

€2,30

exkl. moms

I lager

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

QTY: 8 part of top part

€2,30

I lager

Seal washer GBR08 1/2"

Article no: 710704

Position15

Antal i ritning2

€1,20

exkl. moms

I lager

Seal washer GBR08 1/2"

Article no: 710704

€1,20

I lager

Adapter 135-06-08

Article no: 710122

Position16

Antal i ritning2

€6,50

exkl. moms

I lager

Adapter 135-06-08

Article no: 710122

€6,50

I lager

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

Position19

Antal i ritning1

€2,90

exkl. moms

I lager

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

€2,90

I lager

Hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15

Article no: 720112

Position20

Antal i ritning1

€1 085,00

exkl. moms

Få i lager (5)

Hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15

Article no: 720112

€1 085,00

Få i lager (5)
