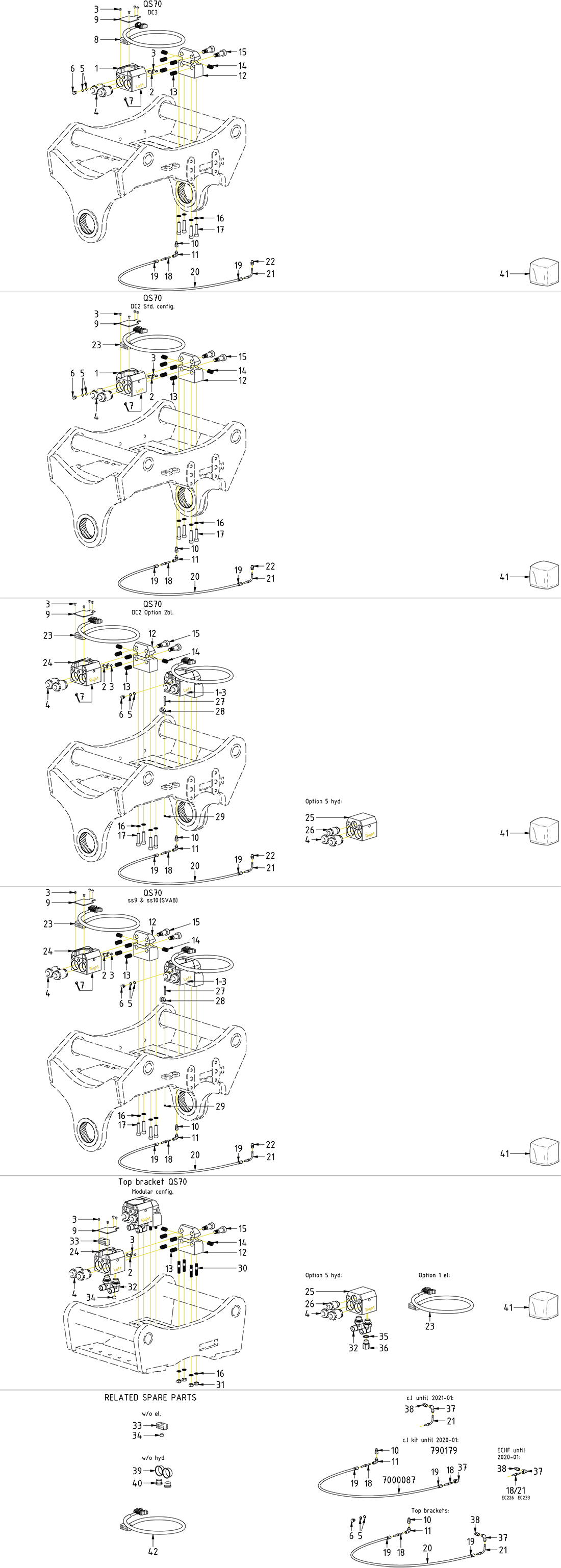

Top ECO70 W

Pos

Artikel

Extra Info

Antal i ritning

Pris (exkl. moms)

Pipe Plug DIN 906 M16x1,5

Article no: 711529

Position34

Antal i ritning1

€3,00

exkl. moms

Få i lager (2)

Pipe Plug DIN 906 M16x1,5

Article no: 711529

€3,00

Få i lager (2)

Power plug ECO W - Plug top bracket

Article no: 1042918

Position33

Antal i ritning1

€41,90

exkl. moms

Få i lager (1)

Power plug ECO W - Plug top bracket

Article no: 1042918

€41,90

Få i lager (1)

Nut M6M M5 lock 6. FZB DIN985

Article no: 610920

Position29

Antal i ritning1

€1,00

exkl. moms

Ej i lager

Nut M6M M5 lock 6. FZB DIN985

Article no: 610920

€1,00

Ej i lager

Block ECO70 W top bracket -2hy- V2

Article no: 1076519

Position24

Antal i ritning1

€1 593,00

exkl. moms

Ej i lager

Block ECO70 W top bracket -2hy- V2

Article no: 1076519

(POS.4 incl.)

€1 593,00

Ej i lager

Nut M12 10. Untreated DIN934

Article no: 611103

Position31

Antal i ritning4

€2,90

exkl. moms

I lager

Nut M12 10. Untreated DIN934

Article no: 611103

Torque: 115Nm

€2,90

I lager

Protection Plug TECO70 hydraulic

Article no: 7000157

Position39

Antal i ritning2

€1,60

exkl. moms

Ej i lager

Protection Plug TECO70 hydraulic

Article no: 7000157

€1,60

Ej i lager

Block ECO70 W-top bracket-3hy

Article no: 1052828

Position25

Antal i ritning1

€3 395,00

exkl. moms

Få i lager (1)

Block ECO70 W-top bracket-3hy

Article no: 1052828

(POS.4, 26 incl.)

€3 395,00

Få i lager (1)

Rubber Steel Clamp Ø16

Article no: 6000009

Position28

Antal i ritning1

€1,40

exkl. moms

Få i lager (2)

Rubber Steel Clamp Ø16

Article no: 6000009

€1,40

Få i lager (2)

Power plug EC226/233 ECO70 W Top QS70 DC3

Article no: 8002111

Position8

Antal i ritning1

€309,30

exkl. moms

Få i lager (1)

Power plug EC226/233 ECO70 W Top QS70 DC3

Article no: 8002111

€309,30

Få i lager (1)

Adapter 235-08-06

Article no: 7000705

Position36

Antal i ritning1

€9,10

exkl. moms

Ej i lager

Adapter 235-08-06

Article no: 7000705

€9,10

Ej i lager

Stud bolt M12x45 10.9 DIN939

Article no: 611186

Position30

Antal i ritning8

€9,40

exkl. moms

I lager

Stud bolt M12x45 10.9 DIN939

Article no: 611186

€9,40

I lager

Extender 25/17mm KR1/8" - R1/8"

Article no: 7000578

Position38

Antal i ritning1

€10,70

exkl. moms

Ej i lager

Extender 25/17mm KR1/8" - R1/8"

Article no: 7000578

Loxeal 58-12

€10,70

Ej i lager

Cover plate Power plug-ECO70/80 W-Top

Article no: 1042239

Position9

Antal i ritning1

€22,70

exkl. moms

Få i lager (1)

Cover plate Power plug-ECO70/80 W-Top

Article no: 1042239

€22,70

Få i lager (1)

Block ECO70 W top bracket -2hy 1cl- V2

Article no: 1074026

Position1

Antal i ritning1

€1 826,00

exkl. moms

Ej i lager

Block ECO70 W top bracket -2hy 1cl- V2

Article no: 1074026

(POS.4-6 incl.)

€1 826,00

Ej i lager

Plug VSTIR34ED 3/4"

Article no: 711532

Position40

Antal i ritning2

€9,70

exkl. moms

Få i lager (4)

Plug VSTIR34ED 3/4"

Article no: 711532

€9,70

Få i lager (4)

Push-in Coupling 90° R1/8" SPWE06KR lubrication kit

Article no: 790184

Position37

Antal i ritning1

€33,70

exkl. moms

Få i lager (2)

Push-in Coupling 90° R1/8" SPWE06KR lubrication kit

Article no: 790184

Loxeal 58-12

€33,70

Få i lager (2)

Attachment block ECO70 W-top bracket

Article no: 1042233

Position12

Antal i ritning1

€859,30

exkl. moms

Ej i lager

Attachment block ECO70 W-top bracket

Article no: 1042233

€859,30

Ej i lager

Screw-Shoulder screw Ø20x30/M16 12.9 ISO7379

Article no: 611710

Position15

Antal i ritning2

€64,00

exkl. moms

I lager

Screw-Shoulder screw Ø20x30/M16 12.9 ISO7379

Article no: 611710

Loxeal 83-52

€64,00

I lager

Power plug ECO70 W Top QS70 QSM ECHF

Article no: 8000781

Position23

Antal i ritning1

€337,20

exkl. moms

Få i lager (1)

Power plug ECO70 W Top QS70 QSM ECHF

Article no: 8000781

Cable gland torque: 6Nm

€337,20

Få i lager (1)

Screw K6S 5x8H 10.9 FZB ISO7380

Article no: 611801

Position3

Antal i ritning6

€1,00

exkl. moms

I lager

Screw K6S 5x8H 10.9 FZB ISO7380

Article no: 611801

€1,00

I lager

Tractor lubrication nipple 1/8" stainless

Article no: 810505

Position6

Antal i ritning1

€40,70

exkl. moms

Få i lager (1)

Tractor lubrication nipple 1/8" stainless

Article no: 810505

Loxeal 58-12. Torque: 30Nm

€40,70

Få i lager (1)

Screw sleeve HT-hose Ø8,6mm

Article no: 7000585

Position19

Antal i ritning1

€10,40

exkl. moms

Ej i lager

Screw sleeve HT-hose Ø8,6mm

Article no: 7000585

€10,40

Ej i lager

Washer copper 14x10x0,9

Article no: 6000065

Position5

Antal i ritning2

€1,60

exkl. moms

Få i lager (5)

Washer copper 14x10x0,9

Article no: 6000065

€1,60

Få i lager (5)

Tube sleeve straight Push-In-30mm

Article no: 790175

Position18

Antal i ritning1

€8,80

exkl. moms

Få i lager (1)

Tube sleeve straight Push-In-30mm

Article no: 790175

€8,80

Få i lager (1)

Spring - 18x35 - Top ECO45-80

Article no: 1024794

Position13

Antal i ritning4

€8,40

exkl. moms

I lager

Spring - 18x35 - Top ECO45-80

Article no: 1024794

€8,40

I lager

Extender 18mm M8x1

Article no: 7000688

Position10

Antal i ritning1

€16,30

exkl. moms

Ej i lager

Extender 18mm M8x1

Article no: 7000688

Loxeal 58-12

€16,30

Ej i lager

Power plug ECO60 W Top QS60 QSM ECHF

Article no: 1042240

Position42

Antal i ritning1

€196,50

exkl. moms

Få i lager (2)

Power plug ECO60 W Top QS60 QSM ECHF

Article no: 1042240

Replaced by POS.23 from 2019-05

€196,50

Få i lager (2)

Tube sleeve 90° Push-In

Article no: 7000318

Position21

Antal i ritning1

€18,80

exkl. moms

Ej i lager

Tube sleeve 90° Push-In

Article no: 7000318

€18,80

Ej i lager

Push-in swivel 90° M8x1 hose kit Quick hitch lubrication ECO

Article no: 790173

Position11

Antal i ritning1

€33,70

exkl. moms

Få i lager (2)

Push-in swivel 90° M8x1 hose kit Quick hitch lubrication ECO

Article no: 790173

Loxeal 58-12

€33,70

Få i lager (2)

Hose Bulk - HT 8,3x4

Article no: 7001303

Position20

Antal i ritning1

€10,60

exkl. moms

Ej i lager

Hose Bulk - HT 8,3x4

Article no: 7001303

EC226: 1075mm. Top bracket: 2000mm

€10,60

Ej i lager

Cable clamp ECO45/60/70/80 W-top bracket

Article no: 1074897

Position2

Antal i ritning1

€14,50

exkl. moms

Ej i lager

Cable clamp ECO45/60/70/80 W-top bracket

Article no: 1074897

€14,50

Ej i lager

Push-in Coupling R1/8" PGE06KR lubrication kit

Article no: 790172

Position22

Antal i ritning1

€12,70

exkl. moms

I lager

Push-in Coupling R1/8" PGE06KR lubrication kit

Article no: 790172

Loxeal 58-12

€12,70

I lager

Spring - Top ECO70-80

Article no: 6000125

Position14

Antal i ritning2

€23,30

exkl. moms

Ej i lager

Spring - Top ECO70-80

Article no: 6000125

€23,30

Ej i lager

Transport Protection ECO70 TECO

Article no: 1035200

Position41

Antal i ritning1

€41,90

exkl. moms

Få i lager (1)

Transport Protection ECO70 TECO

Article no: 1035200

Part of make up

€41,90

Få i lager (1)

Adapter 401-12-12 90°

Article no: 712201

Position32

Antal i ritning2

€41,90

exkl. moms

Få i lager (2)

Adapter 401-12-12 90°

Article no: 712201

€41,90

Få i lager (2)

Coupling ECO70 3/4" male - top bracket V2

Article no: 1029142

Position4

Antal i ritning2

€525,60

exkl. moms

Ej i lager

Coupling ECO70 3/4" male - top bracket V2

Article no: 1029142

Torque: 60Nm

€525,60

Ej i lager

Coupling ECO60 1/2" male - top bracket V2

Article no: 1027633

Position26

Antal i ritning1

€262,80

exkl. moms

Få i lager (2)

Coupling ECO60 1/2" male - top bracket V2

Article no: 1027633

Torque: 60Nm

€262,80

Få i lager (2)

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position27

Antal i ritning1

€1,00

exkl. moms

I lager

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

€1,00

I lager

Seal washer GBR08 1/2"

Article no: 710704

Position35

Antal i ritning1

€1,20

exkl. moms

I lager

Seal washer GBR08 1/2"

Article no: 710704

€1,20

I lager

Screw MC6S 12x50 12.9 ZFSHL

Article no: 6000443

Position17

Antal i ritning4

€1,70

exkl. moms

I lager

Screw MC6S 12x50 12.9 ZFSHL

Article no: 6000443

Torque: 136Nm

€1,70

I lager

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position16

Antal i ritning4

€3,80

exkl. moms

I lager

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

€3,80

I lager
