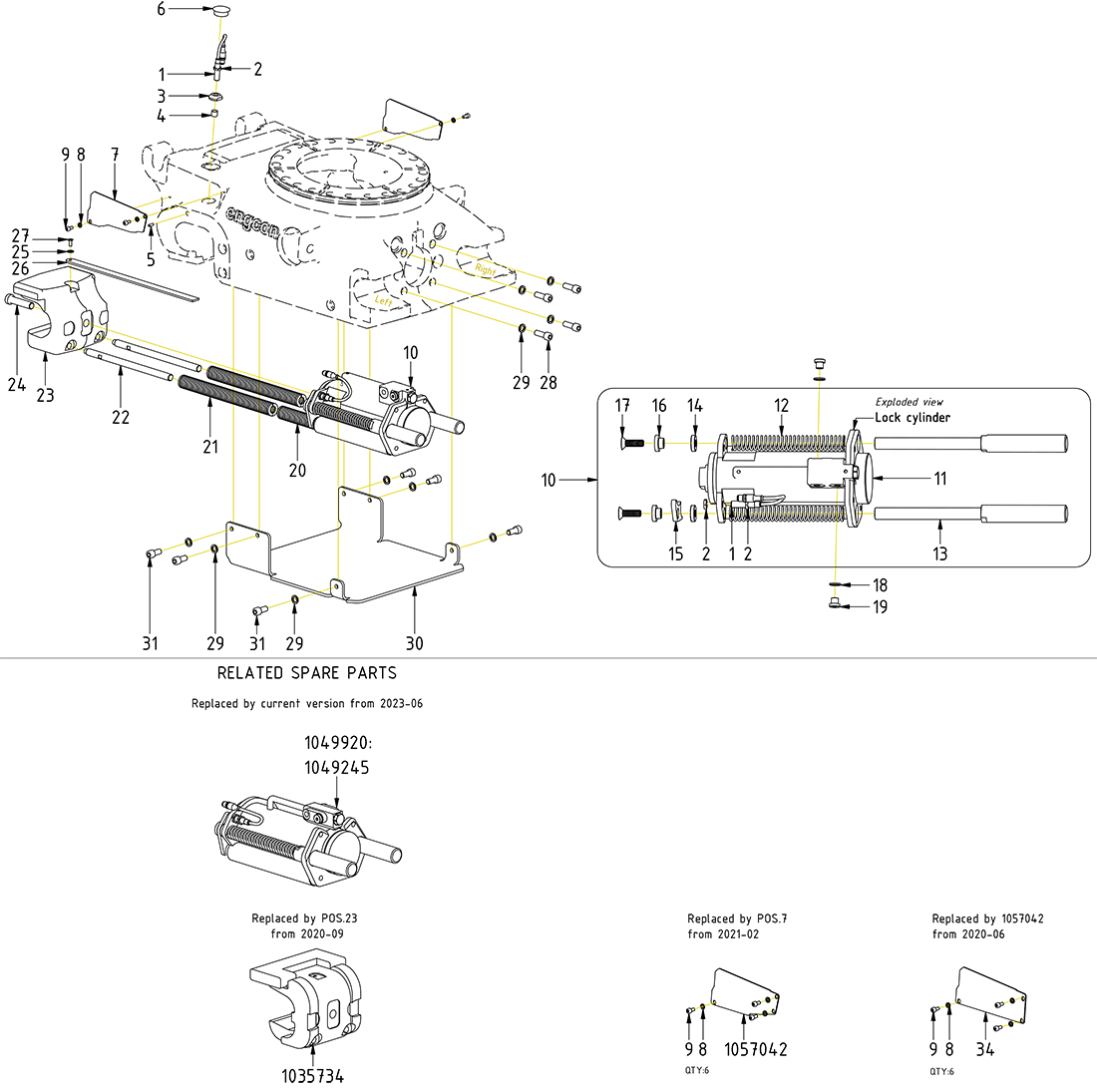

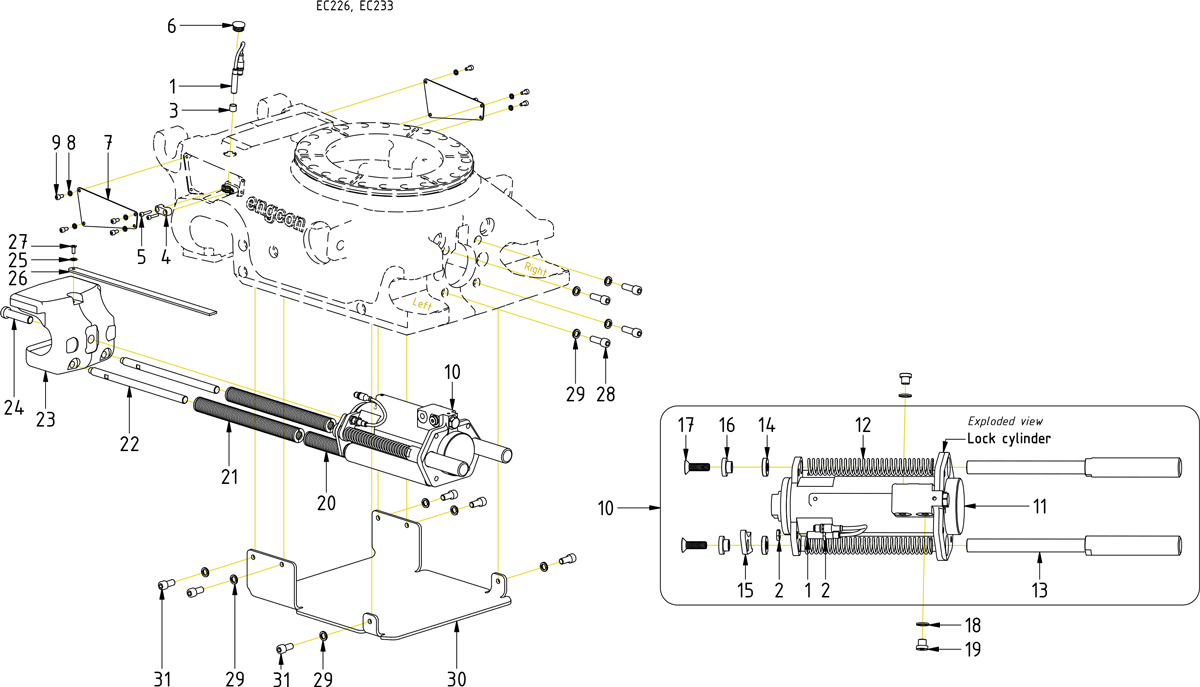

Std comp. QSM70

Pos

Artikel

Extra Info

Antal i ritning

Pris (exkl. moms)

Cover plate Side QSM70 - sensor

Article no: 1048078

Position34

Antal i ritning1

€23,30

exkl. moms

Ej i lager

Cover plate Side QSM70 - sensor

Article no: 1048078

€23,30

Ej i lager

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position8

Antal i ritning4

€1,60

exkl. moms

I lager

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

€1,60

I lager

Rubber Steel Clamp Ø12

Article no: 790155

Position32

Antal i ritning1

€1,00

exkl. moms

Ej i lager

Rubber Steel Clamp Ø12

Article no: 790155

€1,00

Ej i lager

Screw MC6S 6x12H 12.9 ZFSHL ISO4762

Article no: 6000352

Position9

Antal i ritning4

€1,00

exkl. moms

I lager

Screw MC6S 6x12H 12.9 ZFSHL ISO4762

Article no: 6000352

€1,00

I lager

Inductive sensor M12-hook quick hitch&Locking cylinder QSM

Article no: 1048262

Position1

Antal i ritning2

€195,30

exkl. moms

I lager

Inductive sensor M12-hook quick hitch&Locking cylinder QSM

Article no: 1048262

Connect to slip ring QSM

€195,30

I lager

Cover plate Side QSM70 V3 - sensor

Article no: 1061519

Position7

Antal i ritning2

€17,40

exkl. moms

Få i lager (2)

Cover plate Side QSM70 V3 - sensor

Article no: 1061519

Replaced by POS.7

€17,40

Få i lager (2)

Locking cylinder QSM70/S70 V4 Forged QSC pre-assembled

Article no: 1058124

Position10

Antal i ritning1

€3 035,00

exkl. moms

Ej i lager

Locking cylinder QSM70/S70 V4 Forged QSC pre-assembled

Article no: 1058124

(POS.1, 11-17 incl.)

€3 035,00

Ej i lager

Cover plate QS70/QSM70-without ECO-block V2

Article no: 1034902

Position30

Antal i ritning1

€244,20

exkl. moms

Få i lager (1)

Cover plate QS70/QSM70-without ECO-block V2

Article no: 1034902

No cover plate for EC-Oil

€244,20

Få i lager (1)

Washer Starlock 6mm

Article no: 6000415

Position25

Antal i ritning1

€1,00

exkl. moms

Ej i lager

Washer Starlock 6mm

Article no: 6000415

€1,00

Ej i lager

Screw MLC6S 16x70 10.9 DIN7984 untreated

Article no: 610720

Position24

Antal i ritning1

€18,60

exkl. moms

I lager

Screw MLC6S 16x70 10.9 DIN7984 untreated

Article no: 610720

Loxeal 83-52. Torque 136Nm

€18,60

I lager

Locking hook QSM70/QS70/S70 V2 cast

Article no: 1037431

Position23

Antal i ritning1

€451,20

exkl. moms

Få i lager (3)

Locking hook QSM70/QS70/S70 V2 cast

Article no: 1037431

€451,20

Få i lager (3)

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Position27

Antal i ritning1

€1,00

exkl. moms

I lager

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Loxeal 83-52

€1,00

I lager

Locking cylinder QS70 V4 Forged

Article no: 1058122

Position11

Antal i ritning1

€2 291,00

exkl. moms

Ej i lager

Locking cylinder QS70 V4 Forged

Article no: 1058122

€2 291,00

Ej i lager

Spacer QS70

Article no: 1035752

Position14

Antal i ritning2

€29,10

exkl. moms

I lager

Spacer QS70

Article no: 1035752

€29,10

I lager

Protective sleeve Inductive sensor M12

Article no: 8000056

Position4

Antal i ritning1

€1,00

exkl. moms

I lager

Protective sleeve Inductive sensor M12

Article no: 8000056

€1,00

I lager

Screw MS6SS 8x16 ISO4027

Article no: 610808

Position5

Antal i ritning1

€1,00

exkl. moms

I lager

Screw MS6SS 8x16 ISO4027

Article no: 610808

€1,00

I lager

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

Position3

Antal i ritning1

€30,20

exkl. moms

Få i lager (1)

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

€30,20

Få i lager (1)

Protection Plug ECO power plug & QS sensor

Article no: 8000068

Position6

Antal i ritning1

€1,00

exkl. moms

Få i lager (1)

Protection Plug ECO power plug & QS sensor

Article no: 8000068

Replaced by POS.6

€1,00

Få i lager (1)

Sensor plate QS70

Article no: 1035751

Position15

Antal i ritning1

€30,20

exkl. moms

Få i lager (5)

Sensor plate QS70

Article no: 1035751

Assemble with sligth play

€30,20

Få i lager (5)

Spring QSM70/QS70/S70 locking hook - long (32x305)

Article no: 1025179

Position21

Antal i ritning2

€118,60

exkl. moms

I lager

Spring QSM70/QS70/S70 locking hook - long (32x305)

Article no: 1025179

€118,60

I lager

Screw MF6S 12x40 10.9 FZB ISO10642

Article no: 610670

Position17

Antal i ritning2

€3,00

exkl. moms

I lager

Screw MF6S 12x40 10.9 FZB ISO10642

Article no: 610670

Loxeal 83-52

€3,00

I lager

Steering S70/QS70-80

Article no: 1024695

Position22

Antal i ritning2

€162,80

exkl. moms

I lager

Steering S70/QS70-80

Article no: 1024695

Loxeal 83-52

€162,80

I lager

Spring QSM70/QS70/S70 locking hook - short (32x152)

Article no: 1025178

Position20

Antal i ritning2

€55,80

exkl. moms

I lager

Spring QSM70/QS70/S70 locking hook - short (32x152)

Article no: 1025178

€55,80

I lager

Spring QS70/80 Ejectors - 21,8x210

Article no: 1049974

Position12

Antal i ritning2

€10,70

exkl. moms

Få i lager (3)

Spring QS70/80 Ejectors - 21,8x210

Article no: 1049974

€10,70

Få i lager (3)

Spacer M12 L15 countersunk

Article no: 1008243

Position16

Antal i ritning2

€26,70

exkl. moms

I lager

Spacer M12 L15 countersunk

Article no: 1008243

€26,70

I lager

Plug Din 908 1/4"

Article no: 711505

Position19

Antal i ritning2

€2,90

exkl. moms

I lager

Plug Din 908 1/4"

Article no: 711505

€2,90

I lager

Ejector QS70-QS80

Article no: 1034935

Position13

Antal i ritning2

€196,50

exkl. moms

I lager

Ejector QS70-QS80

Article no: 1034935

€196,50

I lager

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position29

Antal i ritning10

€3,80

exkl. moms

I lager

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

QTY: 4 for EC-Oil

€3,80

I lager

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Position28

Antal i ritning4

€1,60

exkl. moms

I lager

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

€1,60

I lager

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

Position31

Antal i ritning6

€1,60

exkl. moms

I lager

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

€1,60

I lager

Seal washer GBR04 1/4"

Article no: 710702

Position18

Antal i ritning2

€1,00

exkl. moms

I lager

Seal washer GBR04 1/4"

Article no: 710702

€1,00

I lager

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Position33

Antal i ritning1

€1,00

exkl. moms

I lager

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Loxeal 55-02

€1,00

I lager

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Position26

Antal i ritning1

€20,90

exkl. moms

Få i lager (1)

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Cut to fit

€20,90

Få i lager (1)
