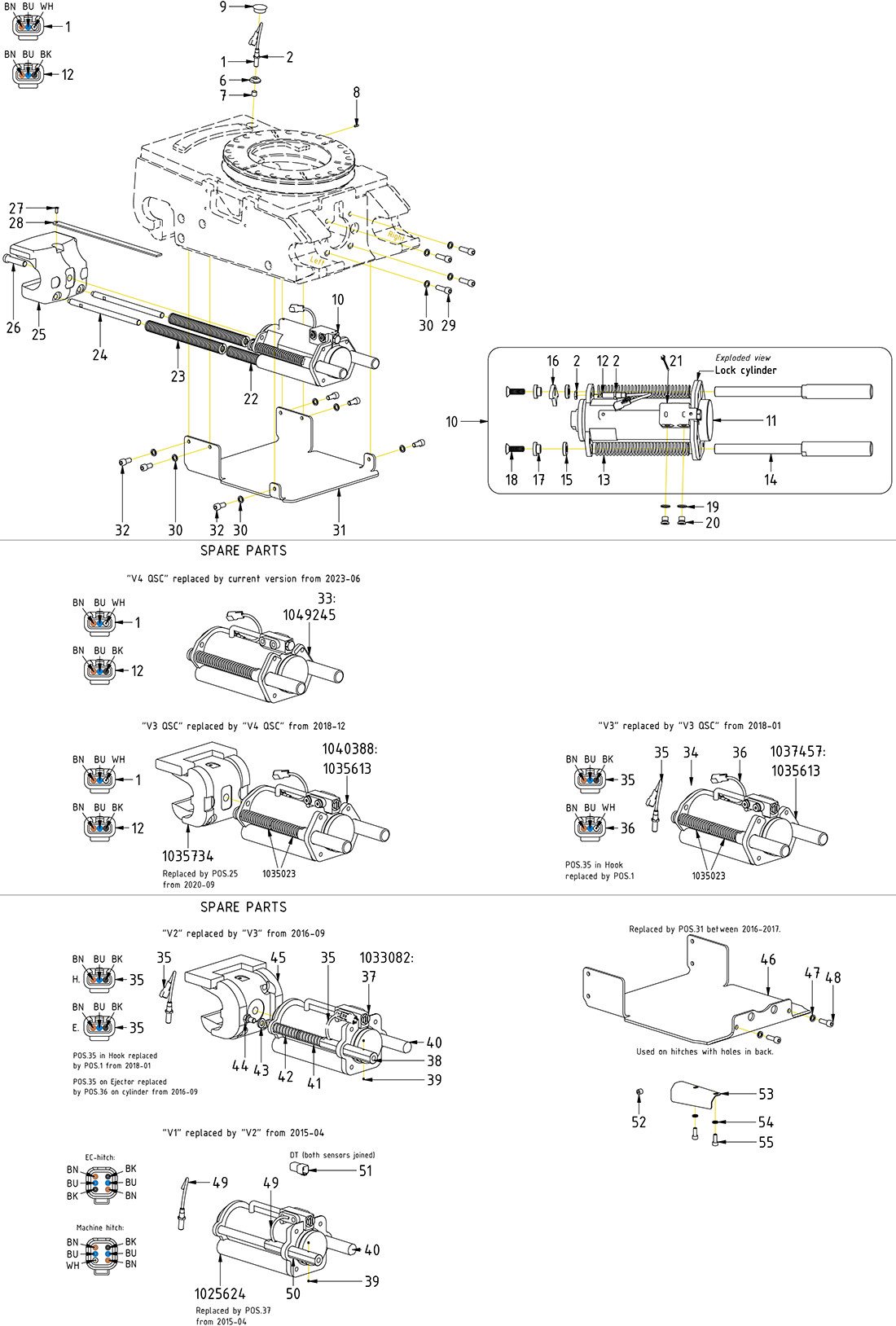

Std comp. QS70

Pos

Artikel

Extra Info

Antal i ritning

Pris (exkl. moms)

Cover plate QS70/QSM70-without ECO-block V2

Article no: 1034902

Position32

Antal i ritning1

€244,20

exkl. moms

Få i lager (1)

Cover plate QS70/QSM70-without ECO-block V2

Article no: 1034902

No cover plate for EC-Oil

€244,20

Få i lager (1)

Locking hook QS70

Article no: 1024200

Position46

Antal i ritning1

€1 733,00

exkl. moms

Ej i lager

Locking hook QS70

Article no: 1024200

Replaced by 1035734 from 2016-09

€1 733,00

Ej i lager

Washer Starlock 6mm

Article no: 6000415

Position28

Antal i ritning1

€1,00

exkl. moms

Ej i lager

Washer Starlock 6mm

Article no: 6000415

€1,00

Ej i lager

Screw-Set Screw P6SS 5x4 A2 ISO4026

Article no: 610816

Position40

Antal i ritning2

€0,90

exkl. moms

Ej i lager

Screw-Set Screw P6SS 5x4 A2 ISO4026

Article no: 610816

€0,90

Ej i lager

Locking cylinder QS70 V4 pre-assembled-NOT QSC

Article no: 1050636

Position35

Antal i ritning1

€3 151,00

exkl. moms

Ej i lager

Locking cylinder QS70 V4 pre-assembled-NOT QSC

Article no: 1050636

Spare part use only

€3 151,00

Ej i lager

Screw MC6S 12x40H 12.9 ZFSHL ISO4762

Article no: 6000141

Position30

Antal i ritning4

€1,70

exkl. moms

I lager

Screw MC6S 12x40H 12.9 ZFSHL ISO4762

Article no: 6000141

€1,70

I lager

Inductive sensor M12 DTM04-3P - hook QSC - 645mm

Article no: 1040358

Position1

Antal i ritning1

€302,30

exkl. moms

Få i lager (1)

Inductive sensor M12 DTM04-3P - hook QSC - 645mm

Article no: 1040358

Mount just below surface edge

€302,30

Få i lager (1)

Inductive sensor M12 DTM04-3P - hook quick hitch

Article no: 1029068

Position36

Antal i ritning1

€302,30

exkl. moms

Få i lager (1)

Inductive sensor M12 DTM04-3P - hook quick hitch

Article no: 1029068

Replaced 2018

€302,30

Få i lager (1)

Screw MLC6S 16x70 10.9 DIN7984 untreated

Article no: 610720

Position26

Antal i ritning1

€18,60

exkl. moms

I lager

Screw MLC6S 16x70 10.9 DIN7984 untreated

Article no: 610720

Loxeal 83-52. Torque 136Nm

€18,60

I lager

Ejector QS70 NOT for sensor

Article no: 1024697

Position41

Antal i ritning1

€777,90

exkl. moms

Ej i lager

Ejector QS70 NOT for sensor

Article no: 1024697

Replaced by POS.14 from 2016-09

€777,90

Ej i lager

Inductive sensor M12 DTM04-3P - Locking cylinder QSC - 645mm

Article no: 1040359

Position12

Antal i ritning1

€302,30

exkl. moms

Få i lager (2)

Inductive sensor M12 DTM04-3P - Locking cylinder QSC - 645mm

Article no: 1040359

Mount 1mm from Sensor plate

€302,30

Få i lager (2)

Ejector QS70 with sensor - DTM

Article no: 1029067

Position39

Antal i ritning1

€527,90

exkl. moms

Ej i lager

Ejector QS70 with sensor - DTM

Article no: 1029067

Replaced by POS.14 from 2016-09 (POS.36, 40 incl.)

€527,90

Ej i lager

Washer TBRB 13x24x4 ISO4759

Article no: 611099

Position44

Antal i ritning2

€1,00

exkl. moms

Ej i lager

Washer TBRB 13x24x4 ISO4759

Article no: 611099

€1,00

Ej i lager

Deutsch DT04-6P connector device

Article no: 820109

Position52

Antal i ritning1

€32,60

exkl. moms

Ej i lager

Deutsch DT04-6P connector device

Article no: 820109

Used until 2015-04

€32,60

Ej i lager

Spring QS70 Ejectors - long (20x120)

Article no: 1025177

Position42

Antal i ritning2

€20,80

exkl. moms

Ej i lager

Spring QS70 Ejectors - long (20x120)

Article no: 1025177

€20,80

Ej i lager

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

Position49

Antal i ritning2

€2,30

exkl. moms

I lager

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

€2,30

I lager

Locking hook QSM70/QS70/S70 V2 cast

Article no: 1037431

Position25

Antal i ritning1

€451,20

exkl. moms

Få i lager (3)

Locking hook QSM70/QS70/S70 V2 cast

Article no: 1037431

€451,20

Få i lager (3)

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Position29

Antal i ritning1

€1,00

exkl. moms

I lager

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Loxeal 83-52

€1,00

I lager

Inductive sensor M12 IF6079

Article no: 810463

Position50

Antal i ritning2

€200,00

exkl. moms

Ej i lager

Inductive sensor M12 IF6079

Article no: 810463

Replaced by POS.36 from 2015-04

€200,00

Ej i lager

Inductive sensor M12 DTM04-3P - Locking cylinder

Article no: 1036833

Position37

Antal i ritning1

€302,30

exkl. moms

Ej i lager

Inductive sensor M12 DTM04-3P - Locking cylinder

Article no: 1036833

Replaced by POS.12 from 2018-01

€302,30

Ej i lager

Locking cylinder QS70 V4 Forged

Article no: 1058122

Position11

Antal i ritning1

€2 291,00

exkl. moms

Ej i lager

Locking cylinder QS70 V4 Forged

Article no: 1058122

€2 291,00

Ej i lager

Spacer QS70

Article no: 1035752

Position15

Antal i ritning2

€29,10

exkl. moms

I lager

Spacer QS70

Article no: 1035752

€29,10

I lager

Locking cylinder QS70 V4 Forged QSC pre-assembled

Article no: 1058123

Position10

Antal i ritning1

€3 128,00

exkl. moms

Få i lager (2)

Locking cylinder QS70 V4 Forged QSC pre-assembled

Article no: 1058123

(POS.11-18 incl.)

€3 128,00

Få i lager (2)

Protective sleeve Inductive sensor M12

Article no: 8000056

Position7

Antal i ritning1

€1,00

exkl. moms

I lager

Protective sleeve Inductive sensor M12

Article no: 8000056

€1,00

I lager

Screw MS6SS 8x16 ISO4027

Article no: 610808

Position8

Antal i ritning1

€1,00

exkl. moms

I lager

Screw MS6SS 8x16 ISO4027

Article no: 610808

€1,00

I lager

Locking cylinder QS70 V2 pre-assembled 2017-05-22

Article no: 1028940

Position38

Antal i ritning1

€2 384,00

exkl. moms

Ej i lager

Locking cylinder QS70 V2 pre-assembled 2017-05-22

Article no: 1028940

Replaced by 1035613 from 2016-09

€2 384,00

Ej i lager

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

Position6

Antal i ritning1

€30,20

exkl. moms

Få i lager (1)

Positioning nut-Inductive sensor QS/HYDS/S60/QSM45/50/60/70

Article no: 1029432

€30,20

Få i lager (1)

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Position56

Antal i ritning2

€1,60

exkl. moms

I lager

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Used until 2016-10

€1,60

I lager

Ejector QS70 for sensor

Article no: 1024696

Position51

Antal i ritning1

€368,60

exkl. moms

Ej i lager

Ejector QS70 for sensor

Article no: 1024696

Replaced by POS.39 from 2015-04

€368,60

Ej i lager

Spring QS70 Ejectors short - (20x85)

Article no: 1025857

Position43

Antal i ritning2

€23,30

exkl. moms

Ej i lager

Spring QS70 Ejectors short - (20x85)

Article no: 1025857

€23,30

Ej i lager

Protection Plug ECO power plug & QS sensor

Article no: 8000068

Position9

Antal i ritning1

€1,00

exkl. moms

Få i lager (1)

Protection Plug ECO power plug & QS sensor

Article no: 8000068

€1,00

Få i lager (1)

Screw M6S 12x20 8.8 FZB ISO4017

Article no: 610163

Position45

Antal i ritning2

€1,00

exkl. moms

I lager

Screw M6S 12x20 8.8 FZB ISO4017

Article no: 610163

€1,00

I lager

Sensor plate QS70

Article no: 1035751

Position16

Antal i ritning1

€30,20

exkl. moms

Få i lager (5)

Sensor plate QS70

Article no: 1035751

Assemble with slight play

€30,20

Få i lager (5)

Spring QSM70/QS70/S70 locking hook - long (32x305)

Article no: 1025179

Position23

Antal i ritning2

€118,60

exkl. moms

I lager

Spring QSM70/QS70/S70 locking hook - long (32x305)

Article no: 1025179

€118,60

I lager

Screw MF6S 12x40 10.9 FZB ISO10642

Article no: 610670

Position18

Antal i ritning2

€3,00

exkl. moms

I lager

Screw MF6S 12x40 10.9 FZB ISO10642

Article no: 610670

Loxeal 83-52

€3,00

I lager

Steering S70/QS70-80

Article no: 1024695

Position24

Antal i ritning2

€162,80

exkl. moms

I lager

Steering S70/QS70-80

Article no: 1024695

Loxeal 83-52

€162,80

I lager

Spring QSM70/QS70/S70 locking hook - short (32x152)

Article no: 1025178

Position22

Antal i ritning2

€55,80

exkl. moms

I lager

Spring QSM70/QS70/S70 locking hook - short (32x152)

Article no: 1025178

€55,80

I lager

Spring QS70/80 Ejectors - 21,8x210

Article no: 1049974

Position13

Antal i ritning2

€10,70

exkl. moms

Få i lager (3)

Spring QS70/80 Ejectors - 21,8x210

Article no: 1049974

€10,70

Få i lager (3)

Spacer M12 L15 countersunk

Article no: 1008243

Position17

Antal i ritning2

€26,70

exkl. moms

I lager

Spacer M12 L15 countersunk

Article no: 1008243

€26,70

I lager

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position55

Antal i ritning2

€2,20

exkl. moms

I lager

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Used until 2016-10

€2,20

I lager

Plug Din 908 1/4"

Article no: 711505

Position20

Antal i ritning2

€2,90

exkl. moms

I lager

Plug Din 908 1/4"

Article no: 711505

€2,90

I lager

Ejector QS70-QS80

Article no: 1034935

Position14

Antal i ritning2

€196,50

exkl. moms

I lager

Ejector QS70-QS80

Article no: 1034935

€196,50

I lager

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position31

Antal i ritning10

€3,80

exkl. moms

I lager

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

QTY: 4 for EC-Oil

€3,80

I lager

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

Position33

Antal i ritning6

€1,60

exkl. moms

I lager

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

€1,60

I lager

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position48

Antal i ritning2

€2,30

exkl. moms

I lager

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

€2,30

I lager

Seal washer GBR04 1/4"

Article no: 710702

Position19

Antal i ritning2

€1,00

exkl. moms

I lager

Seal washer GBR04 1/4"

Article no: 710702

€1,00

I lager

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Position27

Antal i ritning1

€20,90

exkl. moms

Få i lager (1)

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Cut to fit

€20,90

Få i lager (1)
