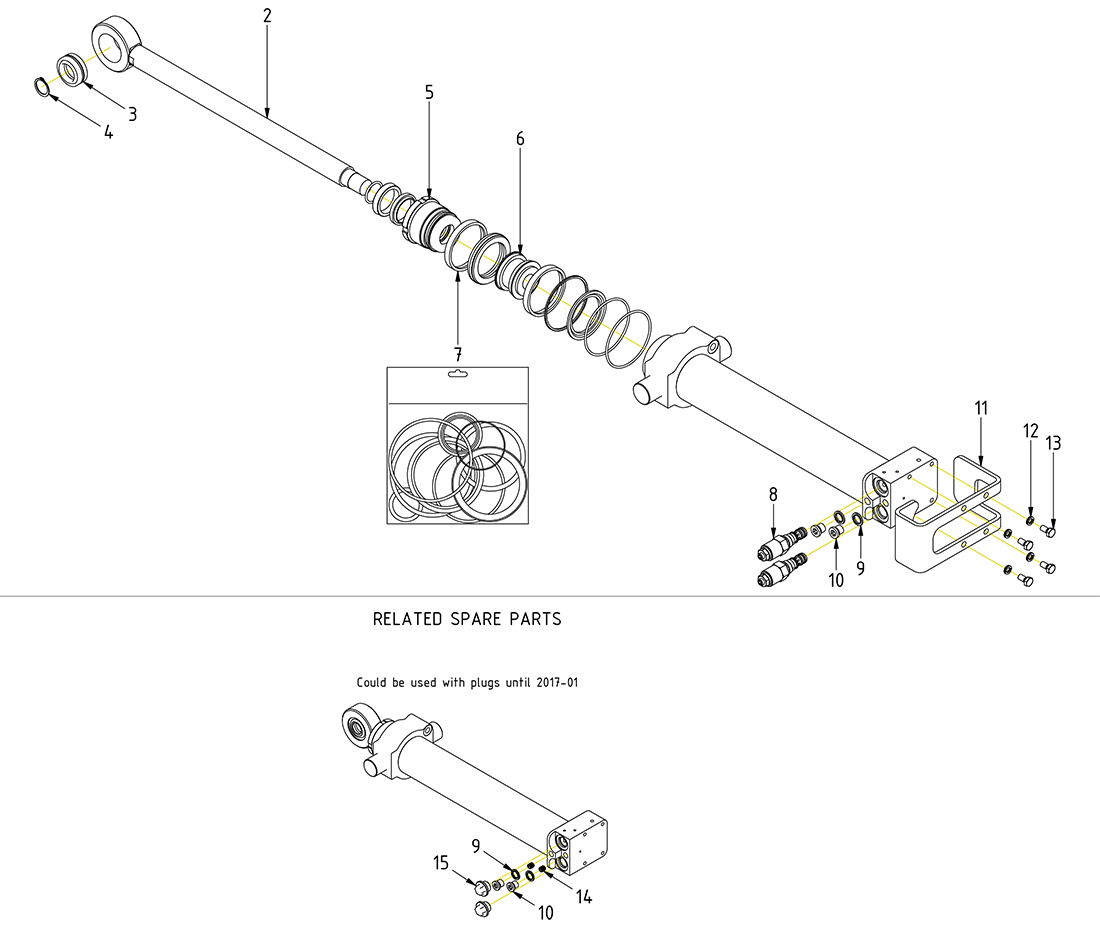

EC214 - 1024186 (until 2017-05)

Pos

Artikel

Extra Info

Antal i ritning

Pris (exkl. moms)

Top nut 63/32-SK05-EC05B/EC10/EC15-cast yoke

Article no: 750307

Position5

Antal i ritning1

€336,00

exkl. moms

Få i lager (1)

Top nut 63/32-SK05-EC05B/EC10/EC15-cast yoke

Article no: 750307

Loctite 648

€336,00

Få i lager (1)

Piston tilt cylinder-EC206/EC209/EC214

Article no: 750421

Position6

Antal i ritning1

€239,50

exkl. moms

Få i lager (3)

Piston tilt cylinder-EC206/EC209/EC214

Article no: 750421

Loctite 648

€239,50

Få i lager (3)

Piston rod-tilt cylinder-EC214-63/32

Article no: 1024189

Position2

Antal i ritning1

€632,60

exkl. moms

Få i lager (2)

Piston rod-tilt cylinder-EC214-63/32

Article no: 1024189

€632,60

Få i lager (2)

Plug M20x1,5 tilt cylinder EC206, EC209 (overcenter 730269)

Article no: 1022297

Position15

Antal i ritning2

€29,10

exkl. moms

Få i lager (2)

Plug M20x1,5 tilt cylinder EC206, EC209 (overcenter 730269)

Article no: 1022297

€29,10

Få i lager (2)

Plug 1/8" BSPT

Article no: 711523

Position14

Antal i ritning2

€9,30

exkl. moms

Få i lager (5)

Plug 1/8" BSPT

Article no: 711523

€9,30

Få i lager (5)

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position13

Antal i ritning4

€1,00

exkl. moms

I lager

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

€1,00

I lager

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Position11

Antal i ritning1

€36,10

exkl. moms

I lager

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

€36,10

I lager

Circlip SgH 48

Article no: 640204

Position4

Antal i ritning1

€3,50

exkl. moms

I lager

Circlip SgH 48

Article no: 640204

€3,50

I lager

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Position8

Antal i ritning2

€376,70

exkl. moms

I lager

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Torque: 45Nm

€376,70

I lager

Seal kit-63/32-tilt cylinder EC206/209/214

Article no: 750273

Position7

Antal i ritning1

€260,50

exkl. moms

I lager

Seal kit-63/32-tilt cylinder EC206/209/214

Article no: 750273

€260,50

I lager

Tilt cylinder EC214

Article no: 1024186

Position1

Antal i ritning1

€2 279,00

exkl. moms

Få i lager (1)

Tilt cylinder EC214

Article no: 1024186

(POS.2-7 incl.)

€2 279,00

Få i lager (1)

Plug Din 908 1/4"

Article no: 711505

Position10

Antal i ritning2

€2,90

exkl. moms

I lager

Plug Din 908 1/4"

Article no: 711505

€2,90

I lager

Seal washer GBR04 1/4"

Article no: 710702

Position9

Antal i ritning2

€1,00

exkl. moms

I lager

Seal washer GBR04 1/4"

Article no: 710702

€1,00

I lager

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position12

Antal i ritning4

€2,20

exkl. moms

I lager

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

€2,20

I lager

Spherical bearing GE 30 ES/2RS LS sealed

Article no: 620104

Position3

Antal i ritning1

€22,70

exkl. moms

I lager

Spherical bearing GE 30 ES/2RS LS sealed

Article no: 620104

€22,70

I lager
