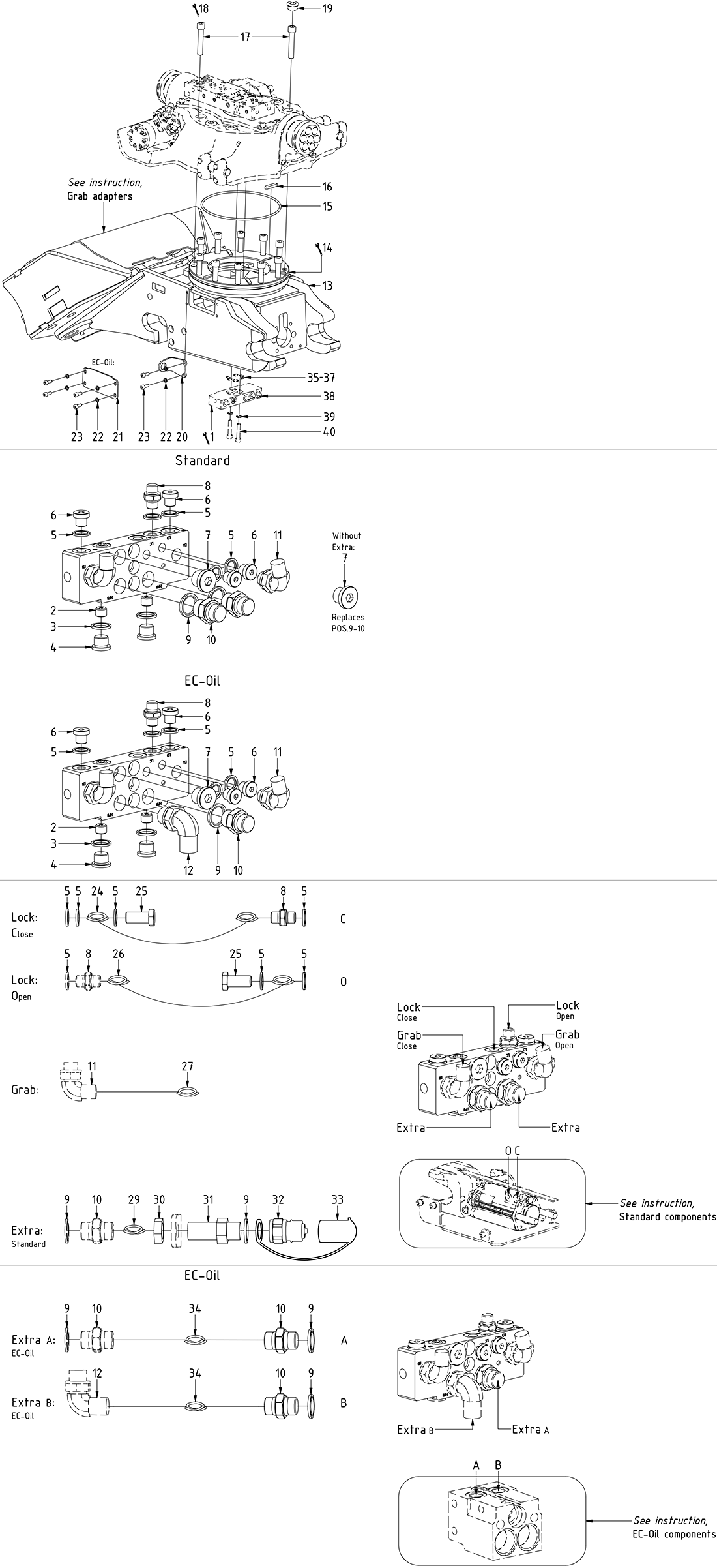

QS60 GR20RR/GR20R2

Pos

Artikel

Extra Info

Antal i ritning

Pris (exkl. moms)

Quick hitch QS60 GR20R2 V3 EC214

Article no: 1043015

Position13

Antal i ritning1

€13 640,00

exkl. moms

Ej i lager

Quick hitch QS60 GR20R2 V3 EC214

Article no: 1043015

Replaces 1030799 from 2017-05

€13 640,00

Ej i lager

Hose protection Black 32mm 1,0m

Article no: 540194

Position28

Antal i ritning1

€13,80

exkl. moms

Ej i lager

Hose protection Black 32mm 1,0m

Article no: 540194

Cut to length: approx. 100mm

€13,80

Ej i lager

Cover plate Side-QS45-QS60

Article no: 1025118

Position21

Antal i ritning2

€41,90

exkl. moms

Ej i lager

Cover plate Side-QS45-QS60

Article no: 1025118

For EC-Oil

€41,90

Ej i lager

Hose extra - EC214 - QS60

Article no: 743008

Position29

Antal i ritning2

€66,30

exkl. moms

Ej i lager

Hose extra - EC214 - QS60

Article no: 743008

€66,30

Ej i lager

Hose

Article no: 742681

Position27

Antal i ritning2

€53,50

exkl. moms

Ej i lager

Hose

Article no: 742681

€53,50

Ej i lager

Holder extra QS60

Article no: 1025119

Position20

Antal i ritning2

€36,10

exkl. moms

Ej i lager

Holder extra QS60

Article no: 1025119

€36,10

Ej i lager

Hose

Article no: 742802

Position26

Antal i ritning1

€67,40

exkl. moms

Ej i lager

Hose

Article no: 742802

€67,40

Ej i lager

Hose extra - EC226 - QS70 HECO7 short

Article no: 742350

Position34

Antal i ritning2

€88,40

exkl. moms

Ej i lager

Hose extra - EC226 - QS70 HECO7 short

Article no: 742350

€88,40

Ej i lager

Pipe Plug DIN 906 1/4" 180152

Article no: 711508

Position2

Antal i ritning2

€2,90

exkl. moms

Få i lager (4)

Pipe Plug DIN 906 1/4" 180152

Article no: 711508

Loctite 5400

€2,90

Få i lager (4)

Plug Din 908 3/8"

Article no: 7001657

Position4

Antal i ritning2

€4,10

exkl. moms

Ej i lager

Plug Din 908 3/8"

Article no: 7001657

€4,10

Ej i lager

Adapter 401-06-06 90°

Article no: 710152

Position11

Antal i ritning2

€24,40

exkl. moms

I lager

Adapter 401-06-06 90°

Article no: 710152

€24,40

I lager

Hose

Article no: 742801

Position24

Antal i ritning1

€66,30

exkl. moms

Ej i lager

Hose

Article no: 742801

€66,30

Ej i lager

Connection block under ECHF V3

Article no: 1028391

Position38

Antal i ritning1

€591,90

exkl. moms

Få i lager (1)

Connection block under ECHF V3

Article no: 1028391

Part of rotator frame assembly

€591,90

Få i lager (1)

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position40

Antal i ritning2

€4,20

exkl. moms

I lager

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Part of rotator frame assembly

€4,20

I lager

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Position17

Antal i ritning12

€10,60

exkl. moms

I lager

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Torque: 333Nm

€10,60

I lager

Nut bulkhead adapter 1270-08

Article no: 710254

Position30

Antal i ritning2

€2,90

exkl. moms

I lager

Nut bulkhead adapter 1270-08

Article no: 710254

€2,90

I lager

Adapter bulkhead 1260-08-08

Article no: 710244

Position31

Antal i ritning2

€14,80

exkl. moms

Få i lager (4)

Adapter bulkhead 1260-08-08

Article no: 710244

€14,80

Få i lager (4)

Plug VSTIR12ED 1/2"

Article no: 711500

Position7

Antal i ritning1

€9,30

exkl. moms

Få i lager (5)

Plug VSTIR12ED 1/2"

Article no: 711500

QTY: 3 for EC214 Without Extra

€9,30

Få i lager (5)

Adapter 401-08-08 90°

Article no: 710156

Position12

Antal i ritning1

€30,20

exkl. moms

Ej i lager

Adapter 401-08-08 90°

Article no: 710156

€30,20

Ej i lager

Pipe Plug RP M30x1,5 DIN908 FZB

Article no: 650410

Position19

Antal i ritning6

€6,40

exkl. moms

Ej i lager

Pipe Plug RP M30x1,5 DIN908 FZB

Article no: 650410

Part of rotator frame assembly

€6,40

Ej i lager

Quick coupling 1/2" male 5020

Article no: 790115

Position32

Antal i ritning2

€32,60

exkl. moms

Få i lager (4)

Quick coupling 1/2" male 5020

Article no: 790115

€32,60

Få i lager (4)

Dust protection 1/2" male 5026

Article no: 790121

Position33

Antal i ritning2

€6,50

exkl. moms

Få i lager (5)

Dust protection 1/2" male 5026

Article no: 790121

€6,50

Få i lager (5)

Adapter 136-08-08

Article no: 710108

Position10

Antal i ritning2

€6,50

exkl. moms

Få i lager (4)

Adapter 136-08-08

Article no: 710108

QTY: 3 for EC-Oil

€6,50

Få i lager (4)

O-ring 249,3x5,7 NBR 70 shore Quick hitch EC214

Article no: 712424

Position15

Antal i ritning1

€11,90

exkl. moms

Få i lager (3)

O-ring 249,3x5,7 NBR 70 shore Quick hitch EC214

Article no: 712424

€11,90

Få i lager (3)

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Position23

Antal i ritning4

€1,60

exkl. moms

I lager

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

QTY: 8 for EC-Oil

€1,60

I lager

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Position16

Antal i ritning6

€3,00

exkl. moms

I lager

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

€3,00

I lager

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position22

Antal i ritning4

€2,20

exkl. moms

I lager

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

QTY: 8 for EC-Oil

€2,20

I lager

Seal washer GBR06 3/8"

Article no: 710703

Position3

Antal i ritning2

€1,00

exkl. moms

I lager

Seal washer GBR06 3/8"

Article no: 710703

QTY: 4 for EC-Oil

€1,00

I lager

Seal washer GBR08 1/2"

Article no: 710704

Position9

Antal i ritning4

€1,20

exkl. moms

I lager

Seal washer GBR08 1/2"

Article no: 710704

QTY: 3 for EC-Oil

€1,20

I lager

Plug Din 908 1/4"

Article no: 711505

Position6

Antal i ritning4

€2,90

exkl. moms

I lager

Plug Din 908 1/4"

Article no: 711505

€2,90

I lager

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position39

Antal i ritning2

€2,30

exkl. moms

I lager

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Part of rotator frame assembly

€2,30

I lager

Seal washer GBR04 1/4"

Article no: 710702

Position5

Antal i ritning11

€1,00

exkl. moms

I lager

Seal washer GBR04 1/4"

Article no: 710702

€1,00

I lager

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

Position36

Antal i ritning4

€1,00

exkl. moms

I lager

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

Part of rotator frame assembly

€1,00

I lager

Banjo bolt 4451-04

Article no: 710271

Position25

Antal i ritning2

€3,80

exkl. moms

Få i lager (2)

Banjo bolt 4451-04

Article no: 710271

€3,80

Få i lager (2)

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position8

Antal i ritning2

€3,00

exkl. moms

Få i lager (5)

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

€3,00

Få i lager (5)

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

Position35

Antal i ritning2

€1,00

exkl. moms

I lager

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

Part of rotator frame assembly

€1,00

I lager

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

Position37

Antal i ritning1

€1,70

exkl. moms

I lager

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

Part of rotator frame assembly

€1,70

I lager
