Main components 'From 2009-01'

Pos

Artikel

Extra Info

Antal i ritning

Pris (exkl. moms)

Rotator frame 20HD Yellow

Article no: 101277

Position4

Antal i ritning1

€5 895,00

exkl. moms

Ej i lager

Rotator frame 20HD Yellow

Article no: 101277

€5 895,00

Ej i lager

Shim centre ring - EC20 - 1,1mm

Article no: 201407

Position46

Antal i ritning1

€36,10

exkl. moms

Få i lager (5)

Shim centre ring - EC20 - 1,1mm

Article no: 201407

1,1 mm

€36,10

Få i lager (5)

Support ring 80/100x3,5 Din 988

Article no: 650301

Position16

Antal i ritning1

€88,40

exkl. moms

Få i lager (3)

Support ring 80/100x3,5 Din 988

Article no: 650301

€88,40

Få i lager (3)

Shim centre ring - EC20 - 0,4mm

Article no: 202055

Position49

Antal i ritning1

€36,10

exkl. moms

Få i lager (2)

Shim centre ring - EC20 - 0,4mm

Article no: 202055

0,4 mm

€36,10

Få i lager (2)

Worm screw EC20

Article no: 300030

Position14

Antal i ritning1

€2 826,00

exkl. moms

Få i lager (1)

Worm screw EC20

Article no: 300030

€2 826,00

Få i lager (1)

Shim centre ring - EC20 - 0,8mm

Article no: 201405

Position44

Antal i ritning1

€36,10

exkl. moms

Få i lager (3)

Shim centre ring - EC20 - 0,8mm

Article no: 201405

0,8 mm

€36,10

Få i lager (3)

Shim tilt axle - EC20 - spring steel 61x95x0,5

Article no: 650501

Position38

Antal i ritning1

€10,60

exkl. moms

I lager

Shim tilt axle - EC20 - spring steel 61x95x0,5

Article no: 650501

0,5 mm

€10,60

I lager

Screw MC6S 12x16H 12.9 ZFSHL ISO4762

Article no: 610470

Position34

Antal i ritning2

€10,40

exkl. moms

I lager

Screw MC6S 12x16H 12.9 ZFSHL ISO4762

Article no: 610470

12.9 Untreated ISO 4762 - Changed from 05-10-03

€10,40

I lager

Worm wheel EC20 M20

Article no: 300863

Position9

Antal i ritning1

€8 686,00

exkl. moms

Ej i lager

Worm wheel EC20 M20

Article no: 300863

€8 686,00

Ej i lager

Shim tilt axle - EC20 - spring steel 61x95x1

Article no: 650502

Position39

Antal i ritning1

€12,40

exkl. moms

I lager

Shim tilt axle - EC20 - spring steel 61x95x1

Article no: 650502

1 mm

€12,40

I lager

Centre ring - EC20 - should have shim, as of 05-01-01

Article no: 302807

Position7

Antal i ritning1

€3 267,00

exkl. moms

Ej i lager

Centre ring - EC20 - should have shim, as of 05-01-01

Article no: 302807

Replacing 300332 from 05-01-01 - mounted with shims

€3 267,00

Ej i lager

Shim centre ring - EC20 - 1,0mm

Article no: 201365

Position43

Antal i ritning1

€48,80

exkl. moms

I lager

Shim centre ring - EC20 - 1,0mm

Article no: 201365

1,0 mm

€48,80

I lager

Shim centre ring - EC20 - 0,7mm

Article no: 201793

Position47

Antal i ritning1

€36,10

exkl. moms

Få i lager (2)

Shim centre ring - EC20 - 0,7mm

Article no: 201793

0,6 mm

€36,10

Få i lager (2)

Shim centre ring - EC20 - 0,5mm

Article no: 202056

Position50

Antal i ritning1

€36,10

exkl. moms

Få i lager (3)

Shim centre ring - EC20 - 0,5mm

Article no: 202056

0,5 mm

€36,10

Få i lager (3)

Protective cover valve block EC20

Article no: 300118

Position5

Antal i ritning1

€94,20

exkl. moms

Få i lager (1)

Protective cover valve block EC20

Article no: 300118

€94,20

Få i lager (1)

Shim worm screw - EC10, EC15, EC20 - 80/100x0,3

Article no: 650515

Position28

Antal i ritning1

€5,10

exkl. moms

I lager

Shim worm screw - EC10, EC15, EC20 - 80/100x0,3

Article no: 650515

0,3 mm

€5,10

I lager

O-ring 10,77x2,62 NBR 70 shore

Article no: 710910

Position19

Antal i ritning1

€1,00

exkl. moms

I lager

O-ring 10,77x2,62 NBR 70 shore

Article no: 710910

€1,00

I lager

Axial washer EC10, EC20

Article no: 300031

Position13

Antal i ritning2

€81,40

exkl. moms

I lager

Axial washer EC10, EC20

Article no: 300031

€81,40

I lager

Shim worm screw - EC10, EC15, EC20 - 80/100x0,1

Article no: 650513

Position26

Antal i ritning1

€1,40

exkl. moms

I lager

Shim worm screw - EC10, EC15, EC20 - 80/100x0,1

Article no: 650513

0,1 mm

€1,40

I lager

Tilt axle EC20 hardened

Article no: 302830

Position2

Antal i ritning2

€230,20

exkl. moms

I lager

Tilt axle EC20 hardened

Article no: 302830

Replacing 300036 from 05-10-03

€230,20

I lager

Cylindrical pin CPK Ø3x12 m6

Article no: 650201

Position17

Antal i ritning2

€1,20

exkl. moms

I lager

Cylindrical pin CPK Ø3x12 m6

Article no: 650201

€1,20

I lager

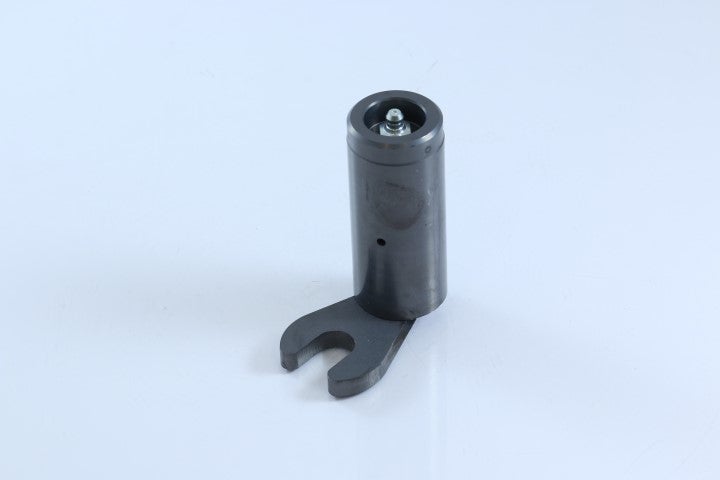

Cylinder axle EC20 hardened

Article no: 302853

Position36

Antal i ritning2

€105,80

exkl. moms

Få i lager (3)

Cylinder axle EC20 hardened

Article no: 302853

Replacing 300033 from 05-10-03

€105,80

Få i lager (3)

Shim worm screw - EC10, EC15, EC20 - 80/100x0,2

Article no: 650514

Position27

Antal i ritning1

€1,60

exkl. moms

I lager

Shim worm screw - EC10, EC15, EC20 - 80/100x0,2

Article no: 650514

0,2 mm

€1,60

I lager

O-ring 419,3x5,7 Quick hitch EC20

Article no: 710909

Position24

Antal i ritning1

€73,30

exkl. moms

Få i lager (4)

O-ring 419,3x5,7 Quick hitch EC20

Article no: 710909

€73,30

Få i lager (4)

Motor cover EC20(&old EC30)

Article no: 100010

Position1

Antal i ritning1

€290,70

exkl. moms

Ej i lager

Motor cover EC20(&old EC30)

Article no: 100010

€290,70

Ej i lager

Bushing WB802 80/85x40

Article no: 630103

Position15

Antal i ritning1

€45,40

exkl. moms

Få i lager (3)

Bushing WB802 80/85x40

Article no: 630103

€45,40

Få i lager (3)

Bushing WB802 45/50x50

Article no: 630102

Position25

Antal i ritning1

€29,10

exkl. moms

Få i lager (4)

Bushing WB802 45/50x50

Article no: 630102

€29,10

Få i lager (4)

Wear washer EC20

Article no: 400310

Position18

Antal i ritning1

€436,00

exkl. moms

Få i lager (1)

Wear washer EC20

Article no: 400310

€436,00

Få i lager (1)

Lubrication nipple 1/8 straight

Article no: 711403

Position11

Antal i ritning14

€1,20

exkl. moms

I lager

Lubrication nipple 1/8 straight

Article no: 711403

R1/8" Straight

€1,20

I lager

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Position21

Antal i ritning4

€3,00

exkl. moms

I lager

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

€3,00

I lager

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Position32

Antal i ritning4

€1,00

exkl. moms

I lager

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

€1,00

I lager

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

Position33

Antal i ritning8

€1,00

exkl. moms

Få i lager (4)

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

€1,00

Få i lager (4)

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

Position35

Antal i ritning2

€1,20

exkl. moms

I lager

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

12.9 Untreated ISO 4762 - Changed from 05-10-03

€1,20

I lager

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

Position6

Antal i ritning4

€1,00

exkl. moms

I lager

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

€1,00

I lager

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

Position20

Antal i ritning8

€0,60

exkl. moms

I lager

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

€0,60

I lager

Screw MC6S 16x80 12.9 untreated ISO4762

Article no: 610528

Position31

Antal i ritning10

€9,30

exkl. moms

I lager

Screw MC6S 16x80 12.9 untreated ISO4762

Article no: 610528

€9,30

I lager

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Position8

Antal i ritning1

€55,80

exkl. moms

Ej i lager

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

€55,80

Ej i lager

Bushing tilt EC20 WB802 60/65x60

Article no: 630301

Position10

Antal i ritning2

€48,80

exkl. moms

I lager

Bushing tilt EC20 WB802 60/65x60

Article no: 630301

€48,80

I lager
