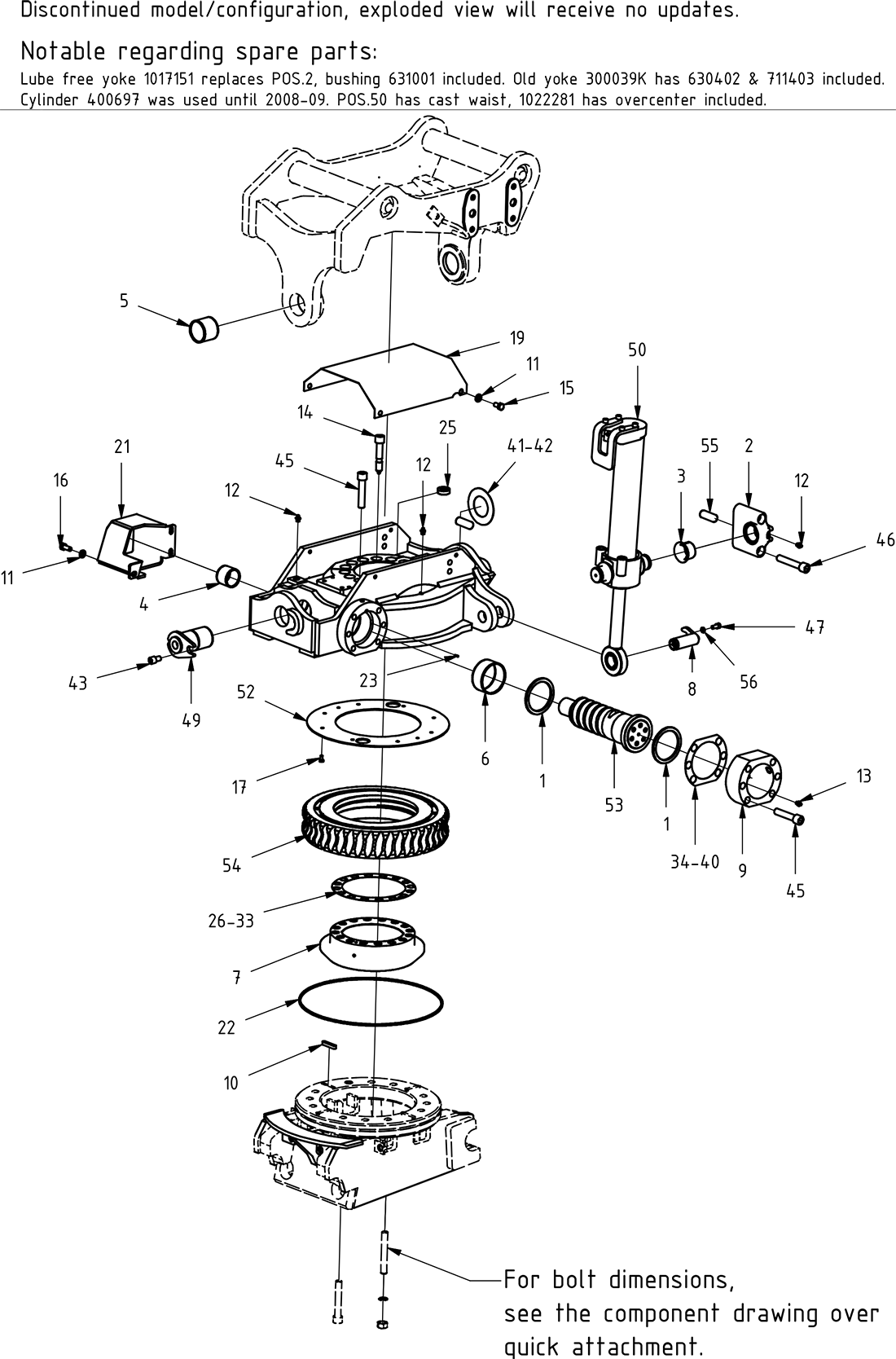

Main components 'Until 2008-12'

Pos

Artikel

Extra Info

Antal i ritning

Pris (exkl. moms)

Stud bolt M16x116

Article no: 611181

Position24

Antal i ritning4

€24,40

exkl. moms

I lager

Stud bolt M16x116

Article no: 611181

€24,40

I lager

Plug 1" pipe thread conical DIN 906

Article no: 650406

Position25

Antal i ritning2

€9,30

exkl. moms

Ej i lager

Plug 1" pipe thread conical DIN 906

Article no: 650406

€9,30

Ej i lager

Lubrication screw EC15

Article no: 400701

Position14

Antal i ritning1

€58,10

exkl. moms

Få i lager (1)

Lubrication screw EC15

Article no: 400701

€58,10

Få i lager (1)

Bushing WB802 45/50x40

Article no: 630101

Position4

Antal i ritning1

€27,90

exkl. moms

Få i lager (2)

Bushing WB802 45/50x40

Article no: 630101

€27,90

Få i lager (2)

Worm screw EC15

Article no: 200203

Position53

Antal i ritning1

€2 651,00

exkl. moms

Få i lager (2)

Worm screw EC15

Article no: 200203

€2 651,00

Få i lager (2)

Centre ring - EC15 - should have shim, as of 05-01-01

Article no: 201827

Position7

Antal i ritning1

€1 837,00

exkl. moms

Få i lager (1)

Centre ring - EC15 - should have shim, as of 05-01-01

Article no: 201827

€1 837,00

Få i lager (1)

Wear washer EC15

Article no: 300775

Position52

Antal i ritning1

€326,70

exkl. moms

Få i lager (1)

Wear washer EC15

Article no: 300775

€326,70

Få i lager (1)

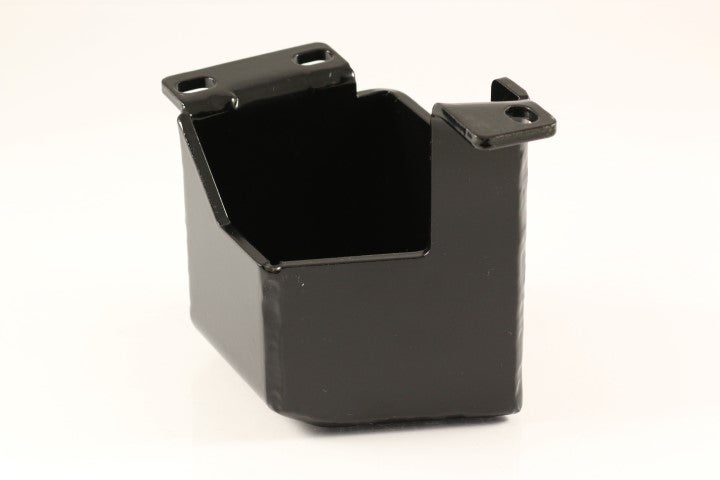

Motor cover EC15

Article no: 300917

Position21

Antal i ritning1

€303,50

exkl. moms

Ej i lager

Motor cover EC15

Article no: 300917

€303,50

Ej i lager

Nut M16 HEX DIN934 12. WS22

Article no: 611102

Position18

Antal i ritning4

€6,40

exkl. moms

I lager

Nut M16 HEX DIN934 12. WS22

Article no: 611102

€6,40

I lager

Washer steel 17x24x1,5 DIN988

Article no: 611032

Position48

Antal i ritning4

€1,70

exkl. moms

Få i lager (4)

Washer steel 17x24x1,5 DIN988

Article no: 611032

€1,70

Få i lager (4)

Top part S60 EC15

Article no: 1001604

Position51

Antal i ritning1

€5 651,00

exkl. moms

Ej i lager

Top part S60 EC15

Article no: 1001604

€5 651,00

Ej i lager

Worm wheel EC15

Article no: 100342

Position54

Antal i ritning1

€7 756,00

exkl. moms

Få i lager (2)

Worm wheel EC15

Article no: 100342

€7 756,00

Få i lager (2)

Cylinder axle EC05, EC10, EC15 hardened

Article no: 404276

Position8

Antal i ritning2

€96,50

exkl. moms

I lager

Cylinder axle EC05, EC10, EC15 hardened

Article no: 404276

€96,50

I lager

Shim centre ring - EC15 - 0,5mm

Article no: 202053

Position27

Antal i ritning1

€32,60

exkl. moms

Få i lager (4)

Shim centre ring - EC15 - 0,5mm

Article no: 202053

€32,60

Få i lager (4)

Screw MC6S 12x20 12.9 untreated ISO4762

Article no: 610472

Position43

Antal i ritning2

€2,90

exkl. moms

Ej i lager

Screw MC6S 12x20 12.9 untreated ISO4762

Article no: 610472

€2,90

Ej i lager

Tilt cylinder EC15 cast yoke

Article no: 1000312

Position50

Antal i ritning2

€1 547,00

exkl. moms

Ej i lager

Tilt cylinder EC15 cast yoke

Article no: 1000312

€1 547,00

Ej i lager

Shim centre ring - EC15 - 0,7mm

Article no: 201399

Position29

Antal i ritning1

€32,60

exkl. moms

Få i lager (2)

Shim centre ring - EC15 - 0,7mm

Article no: 201399

€32,60

Få i lager (2)

Shim centre ring - EC15 - 0,6mm

Article no: 202626

Position28

Antal i ritning1

€32,60

exkl. moms

Få i lager (1)

Shim centre ring - EC15 - 0,6mm

Article no: 202626

€32,60

Få i lager (1)

Axial washer EC15

Article no: 400597

Position1

Antal i ritning2

€83,70

exkl. moms

Få i lager (2)

Axial washer EC15

Article no: 400597

€83,70

Få i lager (2)

O-ring NBR 70 shore Quick hitch 15

Article no: 710940

Position22

Antal i ritning1

€65,10

exkl. moms

Få i lager (3)

O-ring NBR 70 shore Quick hitch 15

Article no: 710940

For Quick Coupler

€65,10

Få i lager (3)

Shim centre ring - EC15 - 1,0mm

Article no: 201364

Position32

Antal i ritning1

€32,60

exkl. moms

Få i lager (5)

Shim centre ring - EC15 - 1,0mm

Article no: 201364

€32,60

Få i lager (5)

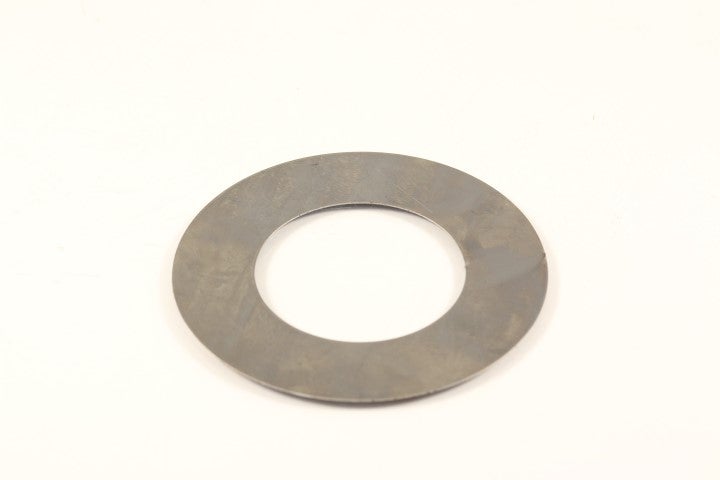

Shim tilt axle - EC15 - spring steel 56x100x0.5

Article no: 650505

Position41

Antal i ritning2

€13,10

exkl. moms

I lager

Shim tilt axle - EC15 - spring steel 56x100x0.5

Article no: 650505

€13,10

I lager

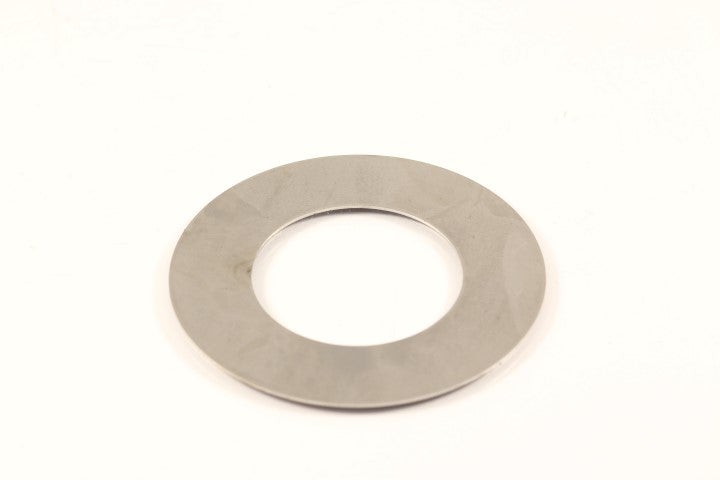

Shim tilt axle - EC15 - spring steel 56x100x1

Article no: 650506

Position42

Antal i ritning2

€12,40

exkl. moms

I lager

Shim tilt axle - EC15 - spring steel 56x100x1

Article no: 650506

€12,40

I lager

Shim End lock EC10/EC15/EC20 0,3mm

Article no: 1001639

Position34

Antal i ritning1

€17,80

exkl. moms

Få i lager (3)

Shim End lock EC10/EC15/EC20 0,3mm

Article no: 1001639

€17,80

Få i lager (3)

Shim centre ring - EC15 - 1,1mm

Article no: 201403

Position33

Antal i ritning1

€32,60

exkl. moms

Få i lager (1)

Shim centre ring - EC15 - 1,1mm

Article no: 201403

€32,60

Få i lager (1)

Protective cover valve block EC15

Article no: 300914

Position19

Antal i ritning1

€94,20

exkl. moms

Få i lager (2)

Protective cover valve block EC15

Article no: 300914

€94,20

Få i lager (2)

Shim End lock EC10/EC15/EC20 0,5mm

Article no: 405127

Position36

Antal i ritning1

€24,40

exkl. moms

Få i lager (3)

Shim End lock EC10/EC15/EC20 0,5mm

Article no: 405127

€24,40

Få i lager (3)

Shim End lock EC10/EC15/EC20 0,4mm

Article no: 405126

Position35

Antal i ritning1

€21,40

exkl. moms

I lager

Shim End lock EC10/EC15/EC20 0,4mm

Article no: 405126

€21,40

I lager

Shim centre ring - EC15 - 0,4mm

Article no: 202052

Position26

Antal i ritning1

€61,60

exkl. moms

Få i lager (4)

Shim centre ring - EC15 - 0,4mm

Article no: 202052

€61,60

Få i lager (4)

Cylindrical pin CPK Ø3x12 m6

Article no: 650201

Position23

Antal i ritning1

€1,20

exkl. moms

I lager

Cylindrical pin CPK Ø3x12 m6

Article no: 650201

€1,20

I lager

Bushing WB802 40/44/55x30WF

Article no: 630408

Position3

Antal i ritning4

€40,70

exkl. moms

I lager

Bushing WB802 40/44/55x30WF

Article no: 630408

€40,70

I lager

Bushing WB802 80/85x40

Article no: 630103

Position6

Antal i ritning1

€45,40

exkl. moms

Få i lager (3)

Bushing WB802 80/85x40

Article no: 630103

€45,40

Få i lager (3)

Cylindrical pin CPK Ø20x50 m6

Article no: 650211

Position55

Antal i ritning4

€36,10

exkl. moms

I lager

Cylindrical pin CPK Ø20x50 m6

Article no: 650211

€36,10

I lager

Lubrication nipple 1/8 straight

Article no: 711403

Position12

Antal i ritning7

€1,20

exkl. moms

I lager

Lubrication nipple 1/8 straight

Article no: 711403

€1,20

I lager

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Position10

Antal i ritning4

€3,00

exkl. moms

I lager

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

€3,00

I lager

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Position15

Antal i ritning4

€1,00

exkl. moms

I lager

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

€1,00

I lager

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

Position11

Antal i ritning7

€1,00

exkl. moms

Få i lager (4)

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

€1,00

Få i lager (4)

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

Position47

Antal i ritning2

€1,20

exkl. moms

I lager

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

€1,20

I lager

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

Position16

Antal i ritning3

€1,00

exkl. moms

I lager

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

€1,00

I lager

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

Position17

Antal i ritning8

€0,60

exkl. moms

I lager

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

€0,60

I lager

Screw MC6S 16x80 12.9 untreated ISO4762

Article no: 610528

Position45

Antal i ritning21

€9,30

exkl. moms

I lager

Screw MC6S 16x80 12.9 untreated ISO4762

Article no: 610528

€9,30

I lager

Tilt axle EC15 hardened

Article no: 302828

Position49

Antal i ritning2

€198,80

exkl. moms

I lager

Tilt axle EC15 hardened

Article no: 302828

€198,80

I lager

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position56

Antal i ritning2

€2,20

exkl. moms

I lager

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

€2,20

I lager

Bushing tilt EC15 WB802 55/60x50

Article no: 630309

Position5

Antal i ritning2

€74,40

exkl. moms

I lager

Bushing tilt EC15 WB802 55/60x50

Article no: 630309

€74,40

I lager
