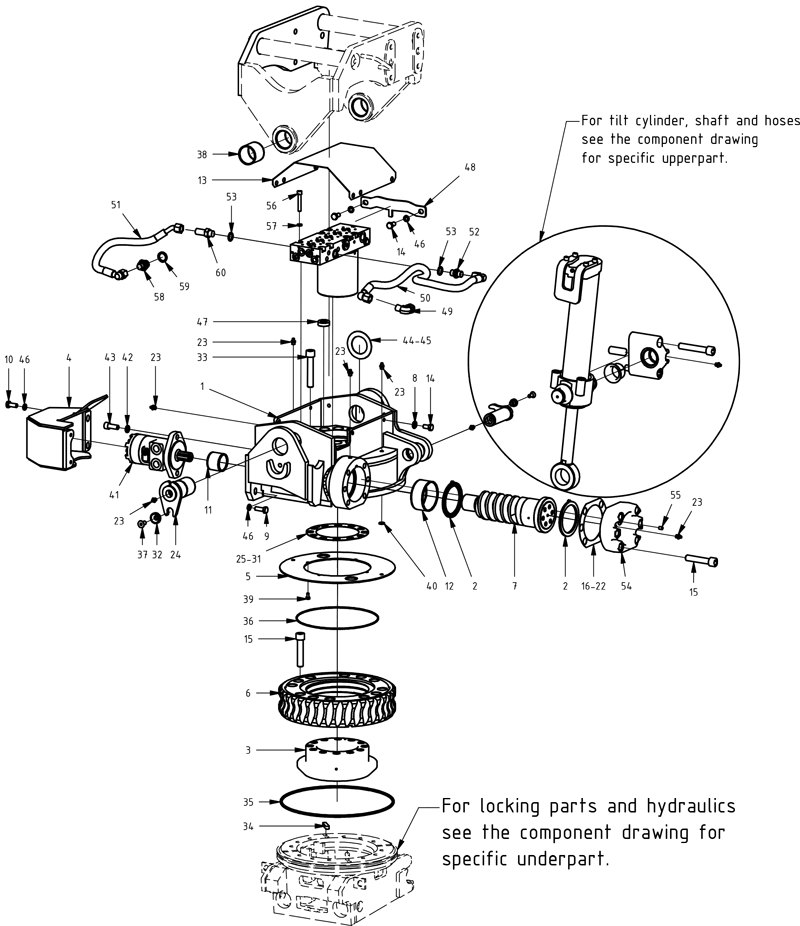

Main components 'Reversed'

Pos

Artikel

Extra Info

Antal i ritning

Pris (exkl. moms)

End lock EC10/EC15/EC20 outer shim cast

Article no: 1014716

Position54

Antal i ritning1

€405,80

exkl. moms

Ej i lager

End lock EC10/EC15/EC20 outer shim cast

Article no: 1014716

Replaces 303270 From 1306

€405,80

Ej i lager

Worm screw EC10

Article no: 300080

Position7

Antal i ritning1

€2 116,00

exkl. moms

Få i lager (1)

Worm screw EC10

Article no: 300080

€2 116,00

Få i lager (1)

Shim centre ring - EC10 - 1,1mm

Article no: 201398

Position31

Antal i ritning1

€24,40

exkl. moms

I lager

Shim centre ring - EC10 - 1,1mm

Article no: 201398

€24,40

I lager

Plug Din 906 (M8x1) electrogalvanized

Article no: 711527

Position55

Antal i ritning1

€2,90

exkl. moms

Ej i lager

Plug Din 906 (M8x1) electrogalvanized

Article no: 711527

€2,90

Ej i lager

Plug 1" pipe thread conical DIN 906

Article no: 650406

Position47

Antal i ritning2

€9,30

exkl. moms

Ej i lager

Plug 1" pipe thread conical DIN 906

Article no: 650406

€9,30

Ej i lager

Wear washer EC10

Article no: 400325

Position5

Antal i ritning1

€273,30

exkl. moms

Få i lager (1)

Wear washer EC10

Article no: 400325

€273,30

Få i lager (1)

Worm wheel EC10 reversed

Article no: 200238

Position6

Antal i ritning1

€5 465,00

exkl. moms

Ej i lager

Worm wheel EC10 reversed

Article no: 200238

Reversed

€5 465,00

Ej i lager

Rotator frame 10B Yellow

Article no: 1011925

Position1

Antal i ritning1

€7 233,00

exkl. moms

Ej i lager

Rotator frame 10B Yellow

Article no: 1011925

€7 233,00

Ej i lager

Shim centre ring - EC10 - 0,9mm

Article no: 201397

Position29

Antal i ritning1

€24,40

exkl. moms

Få i lager (1)

Shim centre ring - EC10 - 0,9mm

Article no: 201397

€24,40

Få i lager (1)

Centre ring - EC10 - should have shim, as of 05-01

Article no: 302840

Position3

Antal i ritning1

€1 593,00

exkl. moms

Ej i lager

Centre ring - EC10 - should have shim, as of 05-01

Article no: 302840

€1 593,00

Ej i lager

Protective cover valve block EC10 (height 85mm)

Article no: 302434

Position13

Antal i ritning1

€90,70

exkl. moms

Få i lager (1)

Protective cover valve block EC10 (height 85mm)

Article no: 302434

€90,70

Få i lager (1)

Bushing WB802 45/50x40

Article no: 630101

Position11

Antal i ritning1

€27,90

exkl. moms

Få i lager (2)

Bushing WB802 45/50x40

Article no: 630101

€27,90

Få i lager (2)

Shim centre ring - EC10 - 0,7mm

Article no: 201395

Position27

Antal i ritning1

€24,40

exkl. moms

Få i lager (4)

Shim centre ring - EC10 - 0,7mm

Article no: 201395

€24,40

Få i lager (4)

Valve block bracket EC10 6-channel

Article no: 405452

Position48

Antal i ritning1

€55,80

exkl. moms

Ej i lager

Valve block bracket EC10 6-channel

Article no: 405452

€55,80

Ej i lager

Shim centre ring - EC10 - 0,4mm

Article no: 202049

Position25

Antal i ritning1

€24,40

exkl. moms

Få i lager (4)

Shim centre ring - EC10 - 0,4mm

Article no: 202049

€24,40

Få i lager (4)

Shim End lock EC10/EC15/EC20 0,4mm

Article no: 405126

Position17

Antal i ritning1

€21,40

exkl. moms

I lager

Shim End lock EC10/EC15/EC20 0,4mm

Article no: 405126

€21,40

I lager

O-ring 10,77x2,62 NBR 70 shore

Article no: 710910

Position40

Antal i ritning1

€1,00

exkl. moms

I lager

O-ring 10,77x2,62 NBR 70 shore

Article no: 710910

€1,00

I lager

Screw MF6S 12x30 10.9 FZB ISO10642

Article no: 610668

Position37

Antal i ritning2

€3,50

exkl. moms

I lager

Screw MF6S 12x30 10.9 FZB ISO10642

Article no: 610668

€3,50

I lager

Shim tilt axle - EC10 - spring steel 51x80x1

Article no: 650508

Position45

Antal i ritning1

€9,70

exkl. moms

I lager

Shim tilt axle - EC10 - spring steel 51x80x1

Article no: 650508

1 mm

€9,70

I lager

Shim centre ring - EC10 - 0,5mm

Article no: 202050

Position26

Antal i ritning1

€24,40

exkl. moms

I lager

Shim centre ring - EC10 - 0,5mm

Article no: 202050

€24,40

I lager

Shim tilt axle - EC10 - spring steel 51x80x0.5

Article no: 650507

Position44

Antal i ritning1

€10,10

exkl. moms

I lager

Shim tilt axle - EC10 - spring steel 51x80x0.5

Article no: 650507

0,5 mm

€10,10

I lager

Shim centre ring - EC10 - 1,0mm

Article no: 201363

Position30

Antal i ritning1

€24,40

exkl. moms

I lager

Shim centre ring - EC10 - 1,0mm

Article no: 201363

€24,40

I lager

Axial washer with ear EC10,15,20

Article no: 1010758

Position2

Antal i ritning2

€119,80

exkl. moms

Få i lager (2)

Axial washer with ear EC10,15,20

Article no: 1010758

€119,80

Få i lager (2)

Screw M6S 10x30 8.8 FZB ISO4017

Article no: 610143

Position9

Antal i ritning2

€1,00

exkl. moms

I lager

Screw M6S 10x30 8.8 FZB ISO4017

Article no: 610143

€1,00

I lager

Shim End lock EC10/EC15/EC20 0,5mm

Article no: 405127

Position18

Antal i ritning1

€24,40

exkl. moms

Få i lager (3)

Shim End lock EC10/EC15/EC20 0,5mm

Article no: 405127

€24,40

Få i lager (3)

Feather key 10x8x45 C45 EC10, EC02, EC209 550475

Article no: 650101

Position34

Antal i ritning4

€3,00

exkl. moms

I lager

Feather key 10x8x45 C45 EC10, EC02, EC209 550475

Article no: 650101

€3,00

I lager

Shim End lock EC10/EC15/EC20 0,3mm

Article no: 1001639

Position16

Antal i ritning1

€17,80

exkl. moms

Få i lager (3)

Shim End lock EC10/EC15/EC20 0,3mm

Article no: 1001639

€17,80

Få i lager (3)

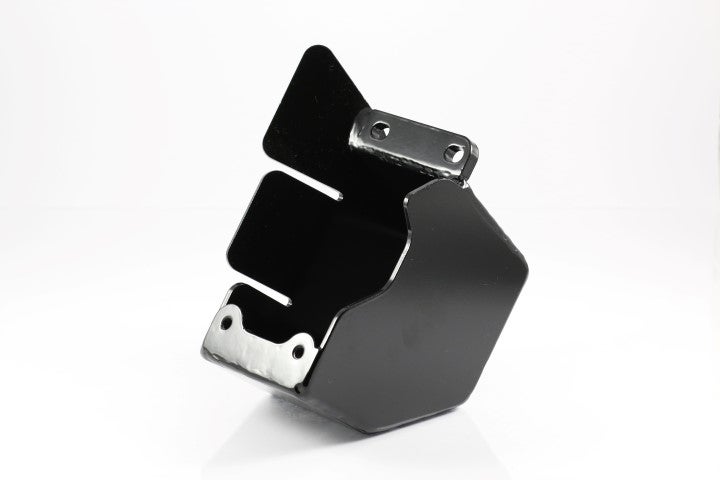

Motor cover EC10

Article no: 100021

Position4

Antal i ritning1

€327,90

exkl. moms

Få i lager (1)

Motor cover EC10

Article no: 100021

€327,90

Få i lager (1)

O-ring centre ring EC10

Article no: 710906

Position36

Antal i ritning1

€32,60

exkl. moms

Få i lager (3)

O-ring centre ring EC10

Article no: 710906

€32,60

Få i lager (3)

Tilt axle EC10 hardened

Article no: 302826

Position24

Antal i ritning2

€177,90

exkl. moms

I lager

Tilt axle EC10 hardened

Article no: 302826

€177,90

I lager

Bushing tilt EC10 WB802 50/55x50

Article no: 630308

Position38

Antal i ritning2

€41,90

exkl. moms

I lager

Bushing tilt EC10 WB802 50/55x50

Article no: 630308

€41,90

I lager

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Position56

Antal i ritning3

€1,70

exkl. moms

I lager

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

€1,70

I lager

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

Position10

Antal i ritning2

€1,00

exkl. moms

I lager

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

€1,00

I lager

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

Position39

Antal i ritning4

€0,60

exkl. moms

I lager

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

€0,60

I lager

Bushing WB802 80/85x40

Article no: 630103

Position12

Antal i ritning1

€45,40

exkl. moms

Få i lager (3)

Bushing WB802 80/85x40

Article no: 630103

€45,40

Få i lager (3)

Screw MC6S 16x80 12.9 untreated ISO4762

Article no: 610528

Position15

Antal i ritning18

€9,30

exkl. moms

I lager

Screw MC6S 16x80 12.9 untreated ISO4762

Article no: 610528

12.9

€9,30

I lager

Adapter bulkhead 1260-06-32

Article no: 710242

Position60

Antal i ritning1

€12,90

exkl. moms

Få i lager (3)

Adapter bulkhead 1260-06-32

Article no: 710242

€12,90

Få i lager (3)

Adapter 401-06-08 90°

Article no: 710157

Position49

Antal i ritning1

€32,60

exkl. moms

Få i lager (5)

Adapter 401-06-08 90°

Article no: 710157

401-06-08

€32,60

Få i lager (5)

Lubrication nipple 1/8 straight

Article no: 711403

Position23

Antal i ritning15

€1,20

exkl. moms

I lager

Lubrication nipple 1/8 straight

Article no: 711403

€1,20

I lager

Spacer M12 L15 countersunk

Article no: 1008243

Position32

Antal i ritning2

€26,70

exkl. moms

I lager

Spacer M12 L15 countersunk

Article no: 1008243

€26,70

I lager

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

Position8

Antal i ritning4

€1,00

exkl. moms

Få i lager (4)

Washer BRB FZB 10,5x22x2 ISO7089

Article no: 611006

€1,00

Få i lager (4)

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position57

Antal i ritning3

€2,20

exkl. moms

I lager

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

€2,20

I lager

Seal washer GBR06 3/8"

Article no: 710703

Position53

Antal i ritning2

€1,00

exkl. moms

I lager

Seal washer GBR06 3/8"

Article no: 710703

€1,00

I lager

Seal washer GBR08 1/2"

Article no: 710704

Position59

Antal i ritning1

€1,20

exkl. moms

I lager

Seal washer GBR08 1/2"

Article no: 710704

€1,20

I lager

Adapter 136-06-06

Article no: 710106

Position52

Antal i ritning1

€3,00

exkl. moms

Få i lager (4)

Adapter 136-06-06

Article no: 710106

€3,00

Få i lager (4)

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position42

Antal i ritning2

€3,80

exkl. moms

I lager

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

€3,80

I lager

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position46

Antal i ritning6

€2,30

exkl. moms

I lager

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

€2,30

I lager

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Position14

Antal i ritning6

€1,00

exkl. moms

I lager

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

€1,00

I lager

Adapter 135-06-08

Article no: 710122

Position58

Antal i ritning1

€6,50

exkl. moms

I lager

Adapter 135-06-08

Article no: 710122

€6,50

I lager

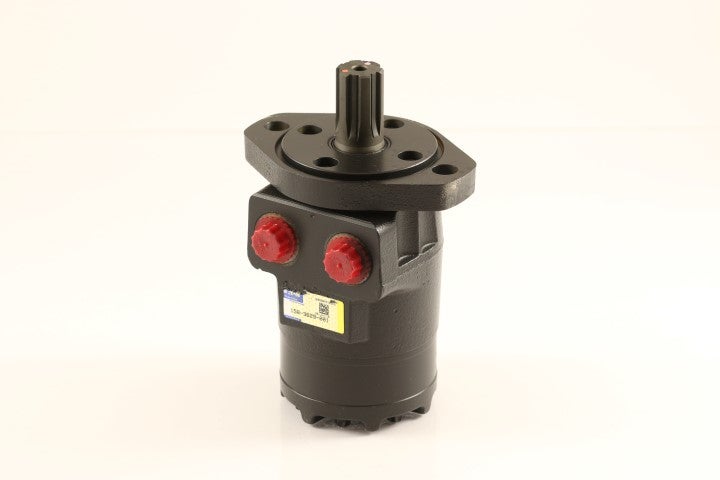

Hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15

Article no: 720112

Position41

Antal i ritning1

€1 085,00

exkl. moms

Få i lager (5)

Hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15

Article no: 720112

€1 085,00

Få i lager (5)

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Position35

Antal i ritning1

€55,80

exkl. moms

Ej i lager

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

€55,80

Ej i lager
