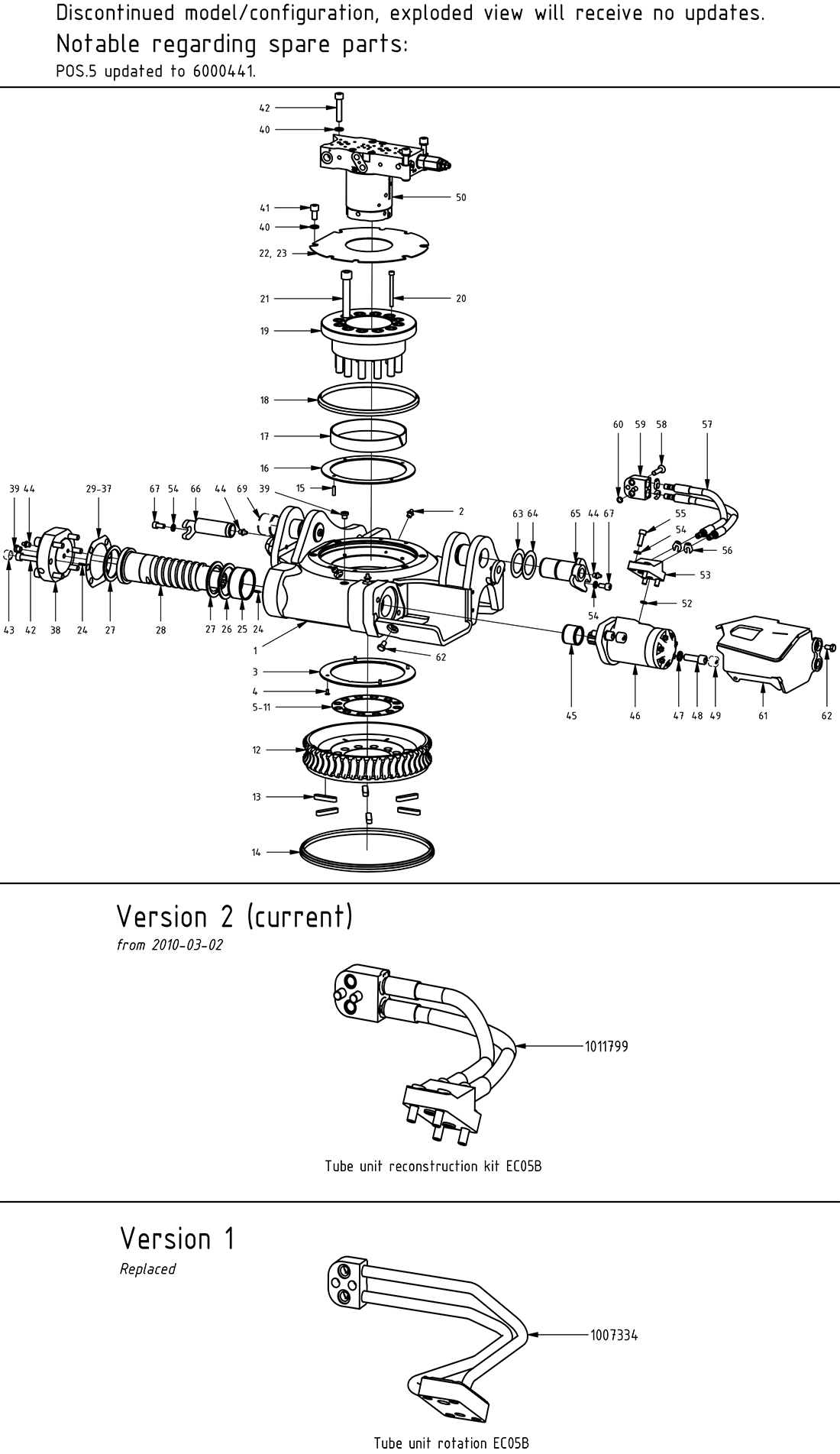

Main components

Pos

Artikel

Extra Info

Antal i ritning

Pris (exkl. moms)

Shim End lock EC05,EC05B,EC206 0,9mm

Article no: 1002987

Position35

Antal i ritning1

€17,00

exkl. moms

Få i lager (3)

Shim End lock EC05,EC05B,EC206 0,9mm

Article no: 1002987

€17,00

Få i lager (3)

Valve block-swivel 4v & 4-ch-EC05B

Article no: 1008197

Position50

Antal i ritning1

€3 872,00

exkl. moms

Få i lager (3)

Valve block-swivel 4v & 4-ch-EC05B

Article no: 1008197

See subheading Swivels & valveblocks for exploded view

€3 872,00

Få i lager (3)

End lock EC05/EC05B/EC206 outer shim

Article no: 303269

Position38

Antal i ritning1

€245,30

exkl. moms

Få i lager (1)

End lock EC05/EC05B/EC206 outer shim

Article no: 303269

€245,30

Få i lager (1)

Worm screw EC05B, EC206, EC206B

Article no: 1007329

Position28

Antal i ritning1

€1 233,00

exkl. moms

Ej i lager

Worm screw EC05B, EC206, EC206B

Article no: 1007329

€1 233,00

Ej i lager

Tube unit reconstruction kit EC05B

Article no: 1011799

Position51

Antal i ritning1

€809,30

exkl. moms

Få i lager (2)

Tube unit reconstruction kit EC05B

Article no: 1011799

(POS. 52, 53, 54, 55, 56, 57, 58, 59 & 60 included)

€809,30

Få i lager (2)

Screw MC6S 14x90 12.9 untreated ISO4762

Article no: 610510

Position21

Antal i ritning12

€8,10

exkl. moms

Få i lager (2)

Screw MC6S 14x90 12.9 untreated ISO4762

Article no: 610510

12.9 Untreated ISO 4762

€8,10

Få i lager (2)

Centre ring - EC05B, EC206

Article no: 1000773

Position19

Antal i ritning1

€1 092,00

exkl. moms

Ej i lager

Centre ring - EC05B, EC206

Article no: 1000773

€1 092,00

Ej i lager

Lubrication nipple M8x1 straight

Article no: 711408

Position2

Antal i ritning3

€1,00

exkl. moms

Ej i lager

Lubrication nipple M8x1 straight

Article no: 711408

€1,00

Ej i lager

Shim End lock EC05,EC05B,EC206 1,0mm

Article no: 1008540

Position36

Antal i ritning1

€26,70

exkl. moms

I lager

Shim End lock EC05,EC05B,EC206 1,0mm

Article no: 1008540

€26,70

I lager

Shim End lock EC05,EC05B,EC206 0,6mm

Article no: 405677

Position32

Antal i ritning1

€7,40

exkl. moms

Få i lager (1)

Shim End lock EC05,EC05B,EC206 0,6mm

Article no: 405677

€7,40

Få i lager (1)

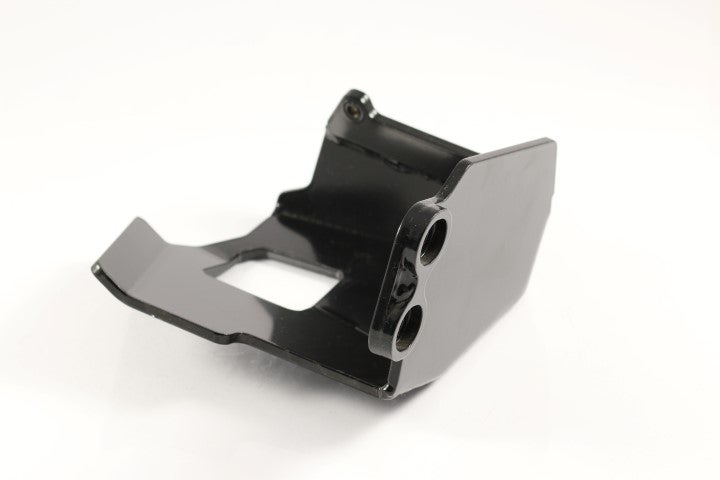

Motor cover EC05B

Article no: 1008792

Position61

Antal i ritning1

€372,10

exkl. moms

Få i lager (1)

Motor cover EC05B

Article no: 1008792

€372,10

Få i lager (1)

Screw MC6S 10x20 12.9 untreated ISO4762

Article no: 610451

Position41

Antal i ritning1

€1,00

exkl. moms

Ej i lager

Screw MC6S 10x20 12.9 untreated ISO4762

Article no: 610451

€1,00

Ej i lager

Hydraulic block(motor) - rotation EC05B

Article no: 1010409

Position53

Antal i ritning1

€410,50

exkl. moms

Ej i lager

Hydraulic block(motor) - rotation EC05B

Article no: 1010409

€410,50

Ej i lager

Hydraulic block(valve block) - rotation EC05B

Article no: 1010405

Position59

Antal i ritning1

€218,60

exkl. moms

Få i lager (1)

Hydraulic block(valve block) - rotation EC05B

Article no: 1010405

€218,60

Få i lager (1)

Assembly stop WEO Coupling 0357490400

Article no: 712103

Position56

Antal i ritning4

€3,60

exkl. moms

Få i lager (5)

Assembly stop WEO Coupling 0357490400

Article no: 712103

€3,60

Få i lager (5)

Shim centre ring - EC05B/EC206 - 0,9mm

Article no: 1009603

Position10

Antal i ritning1

€22,00

exkl. moms

Ej i lager

Shim centre ring - EC05B/EC206 - 0,9mm

Article no: 1009603

€22,00

Ej i lager

Screw MF6S 8x35 10.9 untreated ISO10642

Article no: 610611

Position58

Antal i ritning2

€1,00

exkl. moms

I lager

Screw MF6S 8x35 10.9 untreated ISO10642

Article no: 610611

€1,00

I lager

Shim kit centre ring - EC05B/EC206

Article no: 1027074

Position5

Antal i ritning1

€193,00

exkl. moms

Få i lager (1)

Shim kit centre ring - EC05B/EC206

Article no: 1027074

(POS. 6, 7, 8, 9, 10 & 11 included)

€193,00

Få i lager (1)

Screw MC6S 6x70 12.9 untreated ISO4762

Article no: 610496

Position20

Antal i ritning2

€1,40

exkl. moms

I lager

Screw MC6S 6x70 12.9 untreated ISO4762

Article no: 610496

12.9 Untreated ISO 4762

€1,40

I lager

Shim kit End lock - EC05/EC05B/EC206

Article no: 1006356

Position29

Antal i ritning1

€180,20

exkl. moms

Få i lager (2)

Shim kit End lock - EC05/EC05B/EC206

Article no: 1006356

(POS. 30, 31, 32, 33, 34, 35, 36 & 37 included)

€180,20

Få i lager (2)

Shim End lock EC05,EC05B,EC206 0,5mm

Article no: 405125

Position31

Antal i ritning1

€12,40

exkl. moms

Få i lager (3)

Shim End lock EC05,EC05B,EC206 0,5mm

Article no: 405125

€12,40

Få i lager (3)

Cylinder axle EC05, EC10, EC15 hardened

Article no: 404276

Position66

Antal i ritning1

€96,50

exkl. moms

I lager

Cylinder axle EC05, EC10, EC15 hardened

Article no: 404276

€96,50

I lager

Shim centre ring - EC05B/EC206 - 0,6mm

Article no: 1009602

Position7

Antal i ritning1

€21,90

exkl. moms

Få i lager (1)

Shim centre ring - EC05B/EC206 - 0,6mm

Article no: 1009602

€21,90

Få i lager (1)

Shim End lock EC05,EC05B,EC206 0,4mm

Article no: 405124

Position30

Antal i ritning1

€13,10

exkl. moms

Få i lager (5)

Shim End lock EC05,EC05B,EC206 0,4mm

Article no: 405124

€13,10

Få i lager (5)

Wiper seal Quick hitch EC05B, EC206

Article no: 710957

Position14

Antal i ritning1

€111,60

exkl. moms

Få i lager (2)

Wiper seal Quick hitch EC05B, EC206

Article no: 710957

€111,60

Få i lager (2)

Shim centre ring - EC05B/EC206 - 1mm

Article no: 1009604

Position11

Antal i ritning1

€43,00

exkl. moms

Få i lager (5)

Shim centre ring - EC05B/EC206 - 1mm

Article no: 1009604

€43,00

Få i lager (5)

Screw cover M10

Article no: 611305

Position43

Antal i ritning6

€1,00

exkl. moms

I lager

Screw cover M10

Article no: 611305

€1,00

I lager

Shim tilt axle - EC05B - 60x41x0.5

Article no: 1010819

Position63

Antal i ritning2

€10,10

exkl. moms

I lager

Shim tilt axle - EC05B - 60x41x0.5

Article no: 1010819

Used if required

€10,10

I lager

Worm wheel EC05B, EC206

Article no: 1000751

Position12

Antal i ritning1

€3 430,00

exkl. moms

Ej i lager

Worm wheel EC05B, EC206

Article no: 1000751

€3 430,00

Ej i lager

Hydraulic motor EC05B, EC206, EC206B CL80cc

Article no: 720128

Position46

Antal i ritning1

€1 163,00

exkl. moms

Få i lager (1)

Hydraulic motor EC05B, EC206, EC206B CL80cc

Article no: 720128

€1 163,00

Få i lager (1)

Tilt axle EC05 hardened

Article no: 404376

Position65

Antal i ritning2

€170,90

exkl. moms

I lager

Tilt axle EC05 hardened

Article no: 404376

€170,90

I lager

Support ring 60/75 x3 ss

Article no: 650303

Position26

Antal i ritning1

€16,90

exkl. moms

Få i lager (2)

Support ring 60/75 x3 ss

Article no: 650303

€16,90

Få i lager (2)

Shim centre ring - EC05B/EC206 - 0,7mm

Article no: 1001664

Position8

Antal i ritning1

€26,70

exkl. moms

Få i lager (1)

Shim centre ring - EC05B/EC206 - 0,7mm

Article no: 1001664

€26,70

Få i lager (1)

Shim centre ring - EC05B/EC206 - 0,5mm

Article no: 1001665

Position6

Antal i ritning1

€24,40

exkl. moms

Få i lager (1)

Shim centre ring - EC05B/EC206 - 0,5mm

Article no: 1001665

€24,40

Få i lager (1)

Shim centre ring - EC05B/EC206 - 0,8mm

Article no: 1001666

Position9

Antal i ritning1

€23,30

exkl. moms

Ej i lager

Shim centre ring - EC05B/EC206 - 0,8mm

Article no: 1001666

€23,30

Ej i lager

Guide belt centre ring EC05B,EC206

Article no: 710958

Position17

Antal i ritning1

€66,30

exkl. moms

I lager

Guide belt centre ring EC05B,EC206

Article no: 710958

€66,30

I lager

Bushing tilt EC05 WB802 40/44x30

Article no: 630307

Position69

Antal i ritning2

€16,90

exkl. moms

I lager

Bushing tilt EC05 WB802 40/44x30

Article no: 630307

Part of top part assembly

€16,90

I lager

Wear ring EC05B, EC206

Article no: 1000772

Position16

Antal i ritning1

€231,40

exkl. moms

I lager

Wear ring EC05B, EC206

Article no: 1000772

€231,40

I lager

Screw MF6S 4x10 10.9 untreated ISO10642

Article no: 610605

Position4

Antal i ritning4

€1,00

exkl. moms

I lager

Screw MF6S 4x10 10.9 untreated ISO10642

Article no: 610605

€1,00

I lager

Screw cover M12

Article no: 611301

Position49

Antal i ritning2

€1,00

exkl. moms

I lager

Screw cover M12

Article no: 611301

€1,00

I lager

Wear washer EC05B, EC206

Article no: 1000774

Position3

Antal i ritning1

€346,50

exkl. moms

I lager

Wear washer EC05B, EC206

Article no: 1000774

€346,50

I lager

Cylindrical pin CPK Ø3x12 m6

Article no: 650201

Position24

Antal i ritning2

€1,20

exkl. moms

I lager

Cylindrical pin CPK Ø3x12 m6

Article no: 650201

€1,20

I lager

Axial washer EC05

Article no: 400394

Position27

Antal i ritning2

€48,80

exkl. moms

I lager

Axial washer EC05

Article no: 400394

€48,80

I lager

Shim tilt axle - EC05B - 60x41x1,0

Article no: 1010820

Position64

Antal i ritning2

€10,10

exkl. moms

I lager

Shim tilt axle - EC05B - 60x41x1,0

Article no: 1010820

Used if required

€10,10

I lager

Hose motor - EC05B KL270 Termo 2040H

Article no: 740550

Position57

Antal i ritning2

€64,00

exkl. moms

Få i lager (2)

Hose motor - EC05B KL270 Termo 2040H

Article no: 740550

€64,00

Få i lager (2)

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

Position52

Antal i ritning2

€1,00

exkl. moms

I lager

O-ring 12,37x2,62 NBR 70 shore EC05B hydraulic pipes/motor

Article no: 710961

€1,00

I lager

Plug VSTIR18ED 1/8"

Article no: 711503

Position39

Antal i ritning2

€6,50

exkl. moms

I lager

Plug VSTIR18ED 1/8"

Article no: 711503

€6,50

I lager

Screw M6S 8x14 8.8 FZB ISO4017

Article no: 610188

Position62

Antal i ritning7

€1,00

exkl. moms

Ej i lager

Screw M6S 8x14 8.8 FZB ISO4017

Article no: 610188

€1,00

Ej i lager

Wiper seal Quick hitch EC02, centre ring EC05B, EC206

Article no: 710952

Position18

Antal i ritning1

€67,40

exkl. moms

Få i lager (2)

Wiper seal Quick hitch EC02, centre ring EC05B, EC206

Article no: 710952

€67,40

Få i lager (2)

Bushing WB802 60/65x30

Article no: 630305

Position25

Antal i ritning1

€33,70

exkl. moms

Få i lager (4)

Bushing WB802 60/65x30

Article no: 630305

€33,70

Få i lager (4)

Bushing WB802 35/39x30

Article no: 630315

Position45

Antal i ritning1

€20,90

exkl. moms

I lager

Bushing WB802 35/39x30

Article no: 630315

€20,90

I lager

Lubrication nipple 1/8 straight

Article no: 711403

Position44

Antal i ritning4

€1,20

exkl. moms

I lager

Lubrication nipple 1/8 straight

Article no: 711403

€1,20

I lager

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Position13

Antal i ritning6

€3,00

exkl. moms

I lager

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

€3,00

I lager

Slotted pin 5x20 S5 Brass

Article no: 640407

Position15

Antal i ritning4

€1,60

exkl. moms

Ej i lager

Slotted pin 5x20 S5 Brass

Article no: 640407

€1,60

Ej i lager

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position60

Antal i ritning2

€1,00

exkl. moms

I lager

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

€1,00

I lager

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

Position67

Antal i ritning3

€1,20

exkl. moms

I lager

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

12.9 Dacromet ISO 4762

€1,20

I lager

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position47

Antal i ritning2

€3,80

exkl. moms

I lager

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

€3,80

I lager

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position40

Antal i ritning4

€2,30

exkl. moms

I lager

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

€2,30

I lager

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position54

Antal i ritning11

€2,20

exkl. moms

I lager

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

€2,20

I lager
