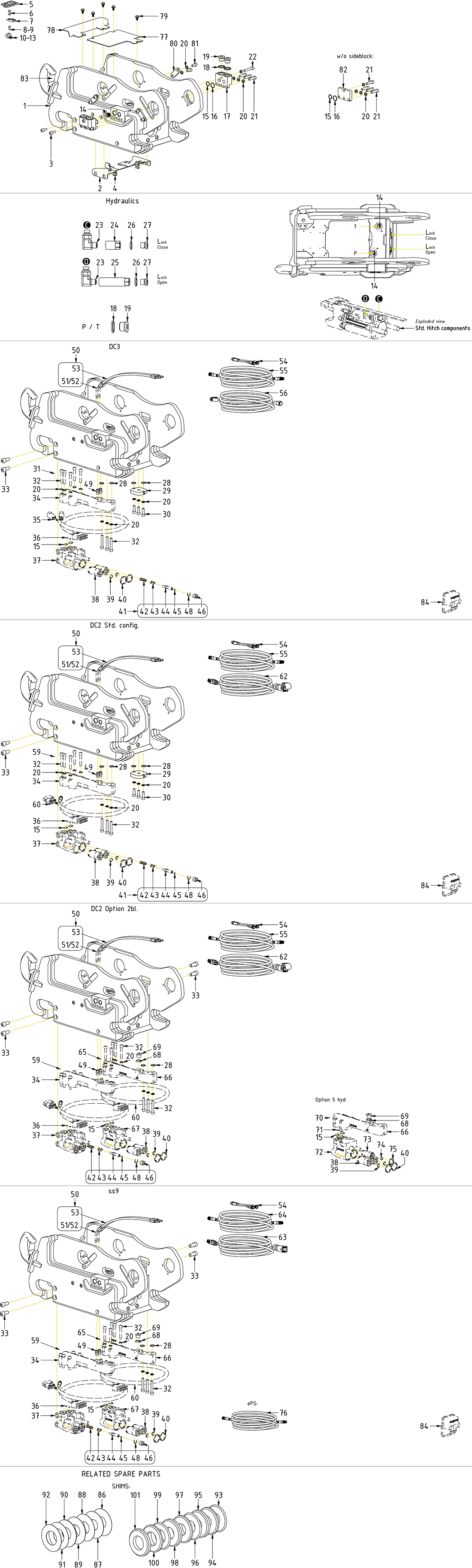

S45 (from 2024)

Interact to see more

Pos

Artikel

Extra Info

Antal i ritning

Pris (exkl. moms)

Shim chamfered Ø116/46 x 5

Article no: 1073452

Position93

Antal i ritning1

€34,90

exkl. moms

Ej i lager

Shim chamfered Ø116/46 x 5

Article no: 1073452

€34,90

Ej i lager

Shim Ø116/61 x 1

Article no: 1074252

Position92

Antal i ritning1

€38,40

exkl. moms

Ej i lager

Shim Ø116/61 x 1

Article no: 1074252

€38,40

Ej i lager

Pipe Plug DIN 906 3/8" 180154

Article no: 711522

Position14

Antal i ritning2

€2,90

exkl. moms

Få i lager (4)

Pipe Plug DIN 906 3/8" 180154

Article no: 711522

For EC-Oil 2bl. See position on p.3

€2,90

Få i lager (4)

Screw MC6S 8x45 12.9 Geomet ISO4762

Article no: 6000399

Position22

Antal i ritning2

€1,70

exkl. moms

Ej i lager

Screw MC6S 8x45 12.9 Geomet ISO4762

Article no: 6000399

Torque: 40Nm

€1,70

Ej i lager

Screw MC6S 8x50H 12.9 Geomet ISO4762

Article no: 611597

Position32

Antal i ritning8

€11,20

exkl. moms

Ej i lager

Screw MC6S 8x50H 12.9 Geomet ISO4762

Article no: 611597

Torque: 40Nm

€11,20

Ej i lager

Connection plate S45 bolted

Article no: 1074147

Position2

Antal i ritning1

€41,90

exkl. moms

Ej i lager

Connection plate S45 bolted

Article no: 1074147

€41,90

Ej i lager

Shim Ø116/51 x 1

Article no: 1073448

Position89

Antal i ritning1

€38,40

exkl. moms

Ej i lager

Shim Ø116/51 x 1

Article no: 1073448

€38,40

Ej i lager

Block ECO45 W-S45-quick hitch -2hy 1cl 1el left (assembly)

Article no: 1078272

Position59

Antal i ritning1

€2 709,00

exkl. moms

Ej i lager

Block ECO45 W-S45-quick hitch -2hy 1cl 1el left (assembly)

Article no: 1078272

(POS.15,20,32,34, 36-38,40-41, 49,60)

€2 709,00

Ej i lager

Unit cable ss9-2 ECO W (Q)S45-QS50-2,5m

Article no: 1036844

Position63

Antal i ritning1

€441,90

exkl. moms

Ej i lager

Unit cable ss9-2 ECO W (Q)S45-QS50-2,5m

Article no: 1036844

Attach to Left 12P

€441,90

Ej i lager

Block ECO45 W-S45-quick hitch -3hy right (assembly)

Article no: 1078279

Position70

Antal i ritning1

€2 395,00

exkl. moms

Ej i lager

Block ECO45 W-S45-quick hitch -3hy right (assembly)

Article no: 1078279

(POS.15,20,32,38,40,66,71-73,75 incl.)

€2 395,00

Ej i lager

Lock plate-UNI axle-S40/S45

Article no: 1073400

Position80

Antal i ritning4

€8,40

exkl. moms

Ej i lager

Lock plate-UNI axle-S40/S45

Article no: 1073400

Assemble with slight play

€8,40

Ej i lager

Shim Ø116/51 x 0,5

Article no: 1073447

Position88

Antal i ritning1

€19,50

exkl. moms

Ej i lager

Shim Ø116/51 x 0,5

Article no: 1073447

€19,50

Ej i lager

Shim chamfered Ø116/46 x 10

Article no: 1073453

Position94

Antal i ritning1

€39,50

exkl. moms

Ej i lager

Shim chamfered Ø116/46 x 10

Article no: 1073453

€39,50

Ej i lager

Cover plate small S45

Article no: 1078383

Position78

Antal i ritning1

€17,90

exkl. moms

Ej i lager

Cover plate small S45

Article no: 1078383

€17,90

Ej i lager

Shim chamfered Ø116/46 x 15

Article no: 1073455

Position95

Antal i ritning1

€47,70

exkl. moms

Ej i lager

Shim chamfered Ø116/46 x 15

Article no: 1073455

€47,70

Ej i lager

Power plug ECO45 W S-quick hitch -DTM

Article no: 8002375

Position60

Antal i ritning1

€311,60

exkl. moms

Ej i lager

Power plug ECO45 W S-quick hitch -DTM

Article no: 8002375

Cable gland torque: 6Nm

€311,60

Ej i lager

Deutsch Dust protection to DT04-4P

Article no: 8002372

Position57

Antal i ritning1

€7,80

exkl. moms

Ej i lager

Deutsch Dust protection to DT04-4P

Article no: 8002372

€7,80

Ej i lager

Shim chamfered Ø116/61 x 5

Article no: 1074249

Position99

Antal i ritning1

€31,40

exkl. moms

Ej i lager

Shim chamfered Ø116/61 x 5

Article no: 1074249

€31,40

Ej i lager

Power plug 12P ECO45 W S-QH - DC3

Article no: 8002452

Position35

Antal i ritning1

€241,90

exkl. moms

Ej i lager

Power plug 12P ECO45 W S-QH - DC3

Article no: 8002452

€241,90

Ej i lager

Cover plate large S45

Article no: 1078384

Position77

Antal i ritning1

€31,40

exkl. moms

Ej i lager

Cover plate large S45

Article no: 1078384

€31,40

Ej i lager

Shim chamfered Ø116/61 x 15

Article no: 1079271

Position101

Antal i ritning1

€40,70

exkl. moms

Ej i lager

101

Shim chamfered Ø116/61 x 15

Article no: 1079271

€40,70

Ej i lager

Block ECO45 W-S45-QH with dowelpin - for 2hy Right lower

Article no: 1074334

Position67

Antal i ritning1

€1 047,00

exkl. moms

Ej i lager

Block ECO45 W-S45-QH with dowelpin - for 2hy Right lower

Article no: 1074334

€1 047,00

Ej i lager

Cover plate S45 - without side-block

Article no: 1074128

Position82

Antal i ritning2

€77,90

exkl. moms

Ej i lager

Cover plate S45 - without side-block

Article no: 1074128

€77,90

Ej i lager

Side block S45 - for hose connection

Article no: 1074129

Position17

Antal i ritning2

€257,00

exkl. moms

Ej i lager

Side block S45 - for hose connection

Article no: 1074129

€257,00

Ej i lager

Shim Ø116/46 x 0,5

Article no: 1073444

Position86

Antal i ritning1

€19,40

exkl. moms

Ej i lager

Shim Ø116/46 x 0,5

Article no: 1073444

€19,40

Ej i lager

Block ECO45 W-S45-QH-2hy 1cl 1el left (assembly) DC3

Article no: 1078881

Position31

Antal i ritning1

€2 616,00

exkl. moms

Ej i lager

Block ECO45 W-S45-QH-2hy 1cl 1el left (assembly) DC3

Article no: 1078881

(POS.15, 20, 32, 34-38, 40-41, 49)

€2 616,00

Ej i lager

Extension cable 6/8-pole M12-3,4m Robo hose

Article no: 8002250

Position64

Antal i ritning2

€173,30

exkl. moms

Ej i lager

Extension cable 6/8-pole M12-3,4m Robo hose

Article no: 8002250

Attach 1 to Y-split, 1 to powerplug

€173,30

Ej i lager

Shim chamfered Ø116/61 x 10

Article no: 1074250

Position100

Antal i ritning1

€39,50

exkl. moms

Ej i lager

100

Shim chamfered Ø116/61 x 10

Article no: 1074250

€39,50

Ej i lager

Shim Ø116/51 x 2

Article no: 1073449

Position90

Antal i ritning1

€68,60

exkl. moms

Ej i lager

Shim Ø116/51 x 2

Article no: 1073449

€68,60

Ej i lager

Shim chamfered Ø116/51 x 15

Article no: 1073458

Position98

Antal i ritning1

€47,70

exkl. moms

Ej i lager

Shim chamfered Ø116/51 x 15

Article no: 1073458

€47,70

Ej i lager

Shim chamfered Ø116/51 x 10

Article no: 1073457

Position97

Antal i ritning1

€39,50

exkl. moms

Ej i lager

Shim chamfered Ø116/51 x 10

Article no: 1073457

€39,50

Ej i lager

Block ECO45 W-S45-quick hitch -2hy1el right (assembly)

Article no: 1078359

Position65

Antal i ritning1

€2 709,00

exkl. moms

Ej i lager

Block ECO45 W-S45-quick hitch -2hy1el right (assembly)

Article no: 1078359

(POS.15,20,32,38,40,60,66-67 incl.)

€2 709,00

Ej i lager

Coupling ECO 1/4" female V3

Article no: 1053683

Position73

Antal i ritning1

€616,30

exkl. moms

Ej i lager

Coupling ECO 1/4" female V3

Article no: 1053683

Torque: 60Nm. (POS.74 incl.)

€616,30

Ej i lager

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Position71

Antal i ritning2

€1,70

exkl. moms

I lager

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

€1,70

I lager

O-ring 4,48x1,78 NBR 90 shore

Article no: 7001849

Position36

Antal i ritning2

€1,00

exkl. moms

Ej i lager

O-ring 4,48x1,78 NBR 90 shore

Article no: 7001849

€1,00

Ej i lager

Cover plate S45 - without ECO-block

Article no: 1073648

Position29

Antal i ritning1

€29,10

exkl. moms

Ej i lager

Cover plate S45 - without ECO-block

Article no: 1073648

€29,10

Ej i lager

Dirt protection ECO 1/4"

Article no: 1054419

Position75

Antal i ritning1

€20,90

exkl. moms

Ej i lager

Dirt protection ECO 1/4"

Article no: 1054419

€20,90

Ej i lager

Cage nut M8

Article no: 6000400

Position4

Antal i ritning4

€3,50

exkl. moms

Ej i lager

Cage nut M8

Article no: 6000400

€3,50

Ej i lager

Strain relief plate ZL60 4x

Article no: 8000703

Position5

Antal i ritning1

€33,70

exkl. moms

Ej i lager

Strain relief plate ZL60 4x

Article no: 8000703

QTY: 2 for DC2, ss9

€33,70

Ej i lager

Screw MC6S 5x10 8.8 FZB ISO4762

Article no: 6000312

Position8

Antal i ritning1

€1,00

exkl. moms

Ej i lager

Screw MC6S 5x10 8.8 FZB ISO4762

Article no: 6000312

QTY: 2 for ss9

€1,00

Ej i lager

Rubber Steel Clamp Ø10

Article no: 6000003

Position11

Antal i ritning2

€1,20

exkl. moms

Ej i lager

Rubber Steel Clamp Ø10

Article no: 6000003

QTY: 1 for DC2

€1,20

Ej i lager

Block ECO45 W-S45-QH with dowelpin - for 2hy Left lower

Article no: 1073642

Position37

Antal i ritning1

€1 000,00

exkl. moms

Ej i lager

Block ECO45 W-S45-QH with dowelpin - for 2hy Left lower

Article no: 1073642

€1 000,00

Ej i lager

Rubber Steel Clamp Ø16

Article no: 6000009

Position13

Antal i ritning1

€1,40

exkl. moms

Få i lager (2)

Rubber Steel Clamp Ø16

Article no: 6000009

€1,40

Få i lager (2)

O-ring 9,25 x 1,78 NBR 70 shore

Article no: 712429

Position47

Antal i ritning1

€1,00

exkl. moms

I lager

O-ring 9,25 x 1,78 NBR 70 shore

Article no: 712429

Located inside nut

€1,00

I lager

Unit cable DC3 EC206B-EC233-3,5m

Article no: 8002371

Position56

Antal i ritning1

€253,50

exkl. moms

Ej i lager

Unit cable DC3 EC206B-EC233-3,5m

Article no: 8002371

Attach to 4P

€253,50

Ej i lager

Grease piston for ECO block

Article no: 1024111

Position44

Antal i ritning1

€165,10

exkl. moms

Ej i lager

Grease piston for ECO block

Article no: 1024111

€165,10

Ej i lager

Nut greasepiston V2

Article no: 1047688

Position46

Antal i ritning1

€74,40

exkl. moms

Ej i lager

Nut greasepiston V2

Article no: 1047688

Wrap with thread sealing tape

€74,40

Ej i lager

Piston sealing KPOR130 12x7,1x2,2

Article no: 1024112

Position43

Antal i ritning2

€12,00

exkl. moms

Ej i lager

Piston sealing KPOR130 12x7,1x2,2

Article no: 1024112

(O-ring incl. with seal ring)

€12,00

Ej i lager

Protection Plug DTM06-6S

Article no: 8000620

Position58

Antal i ritning1

€26,70

exkl. moms

Ej i lager

Protection Plug DTM06-6S

Article no: 8000620

€26,70

Ej i lager

Adapter cable M12 8P-2xM12 5S

Article no: 8002139

Position54

Antal i ritning1

€132,60

exkl. moms

Ej i lager

Adapter cable M12 8P-2xM12 5S

Article no: 8002139

Attach to QS sensors

€132,60

Ej i lager

Unit cable ePS ss9, ss10, DC2 ECO W S45-S80-3m

Article no: 8002458

Position76

Antal i ritning1

€159,30

exkl. moms

Ej i lager

Unit cable ePS ss9, ss10, DC2 ECO W S45-S80-3m

Article no: 8002458

€159,30

Ej i lager

Holder Deutsch DT/DTM connector

Article no: 810662

Position7

Antal i ritning2

€6,40

exkl. moms

Ej i lager

Holder Deutsch DT/DTM connector

Article no: 810662

For DC2, ss9

€6,40

Ej i lager

Tube sleeve 45° Push-In 15mm

Article no: 7001980

Position51

Antal i ritning2

€15,40

exkl. moms

Ej i lager

Tube sleeve 45° Push-In 15mm

Article no: 7001980

Depends on the specific hitch model

€15,40

Ej i lager

O-ring 14x2 70 shore

Article no: 7000767

Position48

Antal i ritning1

€1,00

exkl. moms

I lager

O-ring 14x2 70 shore

Article no: 7000767

€1,00

I lager

Adapter tube-lock long S45/S60/S70/S80

Article no: 1071216

Position25

Antal i ritning1

€53,50

exkl. moms

Ej i lager

Adapter tube-lock long S45/S60/S70/S80

Article no: 1071216

Loxeal 83-52

€53,50

Ej i lager

Spring 6058

Article no: 1024113

Position42

Antal i ritning1

€38,40

exkl. moms

Ej i lager

Spring 6058

Article no: 1024113

€38,40

Ej i lager

Adapter ORFS 067005-04-04

Article no: 7000247

Position23

Antal i ritning2

€30,20

exkl. moms

Ej i lager

Adapter ORFS 067005-04-04

Article no: 7000247

€30,20

Ej i lager

Hose - 3m - For hose kit - lubricant ECO

Article no: 790176

Position53

Antal i ritning2

€90,70

exkl. moms

Ej i lager

Hose - 3m - For hose kit - lubricant ECO

Article no: 790176

€90,70

Ej i lager

Blind rivet 4,0x12,3 DIN7337 alu/steel

Article no: 6000294

Position6

Antal i ritning2

€1,00

exkl. moms

Ej i lager

Blind rivet 4,0x12,3 DIN7337 alu/steel

Article no: 6000294

QTY: 6 for DC2, ss9

€1,00

Ej i lager

Hose kit - Machine hitch - Lubrication ECO W

Article no: 7000514

Position50

Antal i ritning1

€223,30

exkl. moms

Få i lager (1)

Hose kit - Machine hitch - Lubrication ECO W

Article no: 7000514

(POS.51-53 incl.)

€223,30

Få i lager (1)

Tube sleeve straight Push-In - 20mm

Article no: 7001521

Position52

Antal i ritning2

€9,90

exkl. moms

Ej i lager

Tube sleeve straight Push-In - 20mm

Article no: 7001521

Depends on the specific hitch model

€9,90

Ej i lager

Adapter tube-lock short S40/S45/S60/S70/S80

Article no: 1071217

Position24

Antal i ritning1

€44,20

exkl. moms

Ej i lager

Adapter tube-lock short S40/S45/S60/S70/S80

Article no: 1071217

Loxeal 83-52

€44,20

Ej i lager

Protection Plug DTM06-12SA

Article no: 8002058

Position61

Antal i ritning1

€26,70

exkl. moms

Ej i lager

Protection Plug DTM06-12SA

Article no: 8002058

€26,70

Ej i lager

Shim chamfered Ø116/51 x 5

Article no: 1073456

Position96

Antal i ritning1

€34,90

exkl. moms

Ej i lager

Shim chamfered Ø116/51 x 5

Article no: 1073456

€34,90

Ej i lager

Shim Ø116/46 x 1

Article no: 1073445

Position87

Antal i ritning1

€37,20

exkl. moms

Ej i lager

Shim Ø116/46 x 1

Article no: 1073445

€37,20

Ej i lager

Shim Ø116/61 x 0,5

Article no: 1074251

Position91

Antal i ritning1

€19,40

exkl. moms

Ej i lager

Shim Ø116/61 x 0,5

Article no: 1074251

€19,40

Ej i lager

Screw K6S 5x10 10.9 FZB ISO7380

Article no: 6000408

Position9

Antal i ritning3

€1,30

exkl. moms

Ej i lager

Screw K6S 5x10 10.9 FZB ISO7380

Article no: 6000408

QTY: 2 for DC2, ss9

€1,30

Ej i lager

Plug DIN 908 1/2"

Article no: 7000800

Position19

Antal i ritning6

€4,20

exkl. moms

Ej i lager

Plug DIN 908 1/2"

Article no: 7000800

€4,20

Ej i lager

Dirt protection block/coupling ECO 3/8"

Article no: 1028274

Position40

Antal i ritning2

€16,70

exkl. moms

I lager

Dirt protection block/coupling ECO 3/8"

Article no: 1028274

€16,70

I lager

O-ring 15,6x1,78 NBR 90 shore

Article no: 7001934

Position15

Antal i ritning4

€1,00

exkl. moms

Ej i lager

O-ring 15,6x1,78 NBR 90 shore

Article no: 7001934

€1,00

Ej i lager

Coupling ECO 3/8" female V3

Article no: 1053029

Position38

Antal i ritning2

€347,70

exkl. moms

Få i lager (5)

Coupling ECO 3/8" female V3

Article no: 1053029

Torque: 60Nm. (POS.39 incl.)

€347,70

Få i lager (5)

Screw M6SF 8x12H 8.8 FZB(A2K) DIN6921 Ribbed flange

Article no: 6000120

Position79

Antal i ritning5

€1,00

exkl. moms

Ej i lager

Screw M6SF 8x12H 8.8 FZB(A2K) DIN6921 Ribbed flange

Article no: 6000120

€1,00

Ej i lager

Extension cable 6/8-pole M12-4,4m Robo hose

Article no: 8002249

Position55

Antal i ritning1

€174,40

exkl. moms

Ej i lager

Extension cable 6/8-pole M12-4,4m Robo hose

Article no: 8002249

Attach to Y-split

€174,40

Ej i lager

Screw MC6S 8x30 12.9 ZFSHL ISO4762

Article no: 611519

Position21

Antal i ritning6

€1,00

exkl. moms

Ej i lager

Screw MC6S 8x30 12.9 ZFSHL ISO4762

Article no: 611519

QTY: 8 w/o sideblock Torque: 40Nm

€1,00

Ej i lager

Central lubrication kit ECO W V2

Article no: 1050794

Position41

Antal i ritning1

€341,90

exkl. moms

Ej i lager

Central lubrication kit ECO W V2

Article no: 1050794

(POS.42-48 incl.)

€341,90

Ej i lager

O-ring 3,69x1,78 NBR 90 shore

Article no: 1024115

Position45

Antal i ritning1

€1,00

exkl. moms

Få i lager (4)

O-ring 3,69x1,78 NBR 90 shore

Article no: 1024115

€1,00

Få i lager (4)

Flat seal for ECO 1/4" V3

Article no: 1053936

Position74

Antal i ritning1

€3,70

exkl. moms

I lager

Flat seal for ECO 1/4" V3

Article no: 1053936

€3,70

I lager

Rubber Steel Clamp Ø6

Article no: 6000027

Position10

Antal i ritning2

€5,00

exkl. moms

Ej i lager

Rubber Steel Clamp Ø6

Article no: 6000027

€5,00

Ej i lager

Rubber Steel Clamp Ø14

Article no: 613009

Position12

Antal i ritning2

€1,40

exkl. moms

Ej i lager

Rubber Steel Clamp Ø14

Article no: 613009

€1,40

Ej i lager

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

Position81

Antal i ritning8

€1,20

exkl. moms

I lager

Screw MC6S 8x16H 12.9 ZFSHL ISO4762

Article no: 610432

€1,20

I lager

Push-in Coupling R1/8" PGE06KR lubrication kit

Article no: 790172

Position49

Antal i ritning2

€12,70

exkl. moms

I lager

Push-in Coupling R1/8" PGE06KR lubrication kit

Article no: 790172

€12,70

I lager

O-ring 18,77x1,78 NBR 90 shore

Article no: 710981

Position16

Antal i ritning2

€1,00

exkl. moms

I lager

O-ring 18,77x1,78 NBR 90 shore

Article no: 710981

€1,00

I lager

Unit cable DC2 ECO W (Q)S45-QS60-2,5m

Article no: 1048527

Position62

Antal i ritning1

€323,30

exkl. moms

Få i lager (1)

Unit cable DC2 ECO W (Q)S45-QS60-2,5m

Article no: 1048527

Attach to Left 12P

€323,30

Få i lager (1)

Flat seal for ECO 3/8" V3

Article no: 1052976

Position39

Antal i ritning2

€3,50

exkl. moms

I lager

Flat seal for ECO 3/8" V3

Article no: 1052976

€3,50

I lager

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Position3

Antal i ritning4

€1,60

exkl. moms

I lager

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

€1,60

I lager

Protection-ECO45 W-Quick hitch

Article no: 1047812

Position84

Antal i ritning1

€66,30

exkl. moms

Få i lager (1)

Protection-ECO45 W-Quick hitch

Article no: 1047812

Part of make up

€66,30

Få i lager (1)

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position20

Antal i ritning27

€2,20

exkl. moms

I lager

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

€2,20

I lager

Seal washer GBR06 3/8"

Article no: 710703

Position68

Antal i ritning1

€1,00

exkl. moms

I lager

Seal washer GBR06 3/8"

Article no: 710703

€1,00

I lager

Seal washer GBR08 1/2"

Article no: 710704

Position18

Antal i ritning6

€1,20

exkl. moms

I lager

Seal washer GBR08 1/2"

Article no: 710704

€1,20

I lager

Plug Din 908 1/4"

Article no: 711505

Position27

Antal i ritning2

€2,90

exkl. moms

I lager

Plug Din 908 1/4"

Article no: 711505

€2,90

I lager

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

Position33

Antal i ritning2

€1,60

exkl. moms

I lager

Screw MC6S 12x25H 12.9 ZFSHL ISO4762

Article no: 6000164

Torque: 136Nm

€1,60

I lager

Seal washer GBR04 1/4"

Article no: 710702

Position26

Antal i ritning2

€1,00

exkl. moms

I lager

Seal washer GBR04 1/4"

Article no: 710702

€1,00

I lager

Locktab kit Pejo 202-3

Article no: 404250

Position83

Antal i ritning1

€93,00

exkl. moms

Få i lager (5)

Locktab kit Pejo 202-3

Article no: 404250

Lifting hook spare part

€93,00

Få i lager (5)

Screw MC6S 8x25 12.9 ZFSHL ISO4762

Article no: 6000143

Position30

Antal i ritning3

€1,00

exkl. moms

I lager

Screw MC6S 8x25 12.9 ZFSHL ISO4762

Article no: 6000143

Torque: 40Nm

€1,00

I lager

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

Position28

Antal i ritning4

€1,70

exkl. moms

I lager

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

€1,70

I lager
