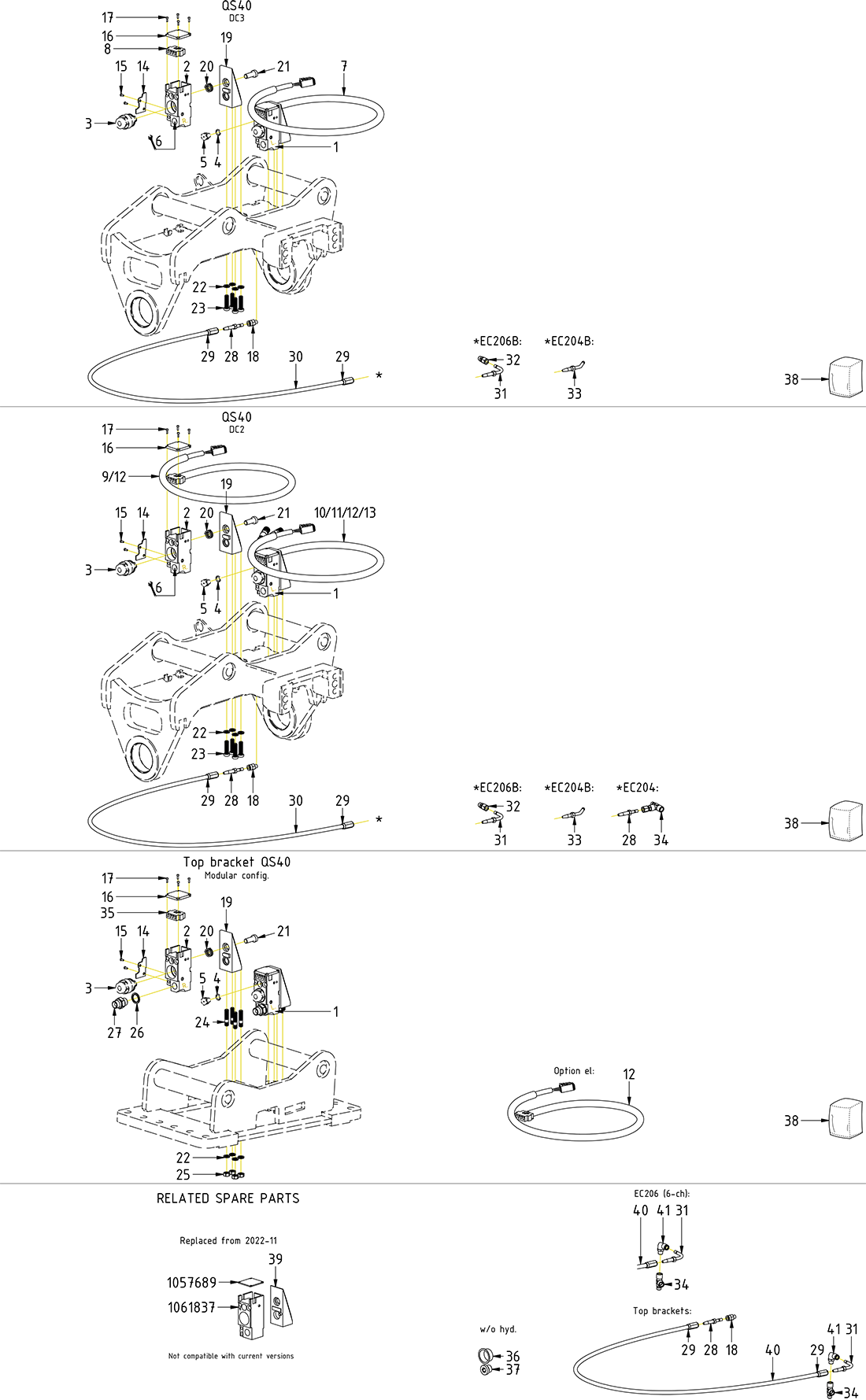

Top ECO40 W

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Power plug ECO40 W Top QS40 Right

Article no: 8002288

Position9

Aantal in tekening1

Power plug ECO40 W Top QS40 Right

Article no: 8002288

(R.)

Block ECO40 W-top bracket 1hy V3

Article no: 1081402

Position2

Aantal in tekening1

Block ECO40 W-top bracket 1hy V3

Article no: 1081402

(POS.3 incl.)

Adapter coupling straight R1/8"

Article no: 7001721

Position32

Aantal in tekening1

Adapter coupling straight R1/8"

Article no: 7001721

(Replaces the plug on motor block)

Tube sleeve straight Push-In - 20mm

Article no: 7001521

Position28

Aantal in tekening2

Tube sleeve straight Push-In - 20mm

Article no: 7001521

Power plug ECO40 W Top QS40 Left

Article no: 8002699

Position10

Aantal in tekening1

Power plug ECO40 W Top QS40 Left

Article no: 8002699

(L.)

Screw sleeve HT-hose Ø8,6mm

Article no: 7000585

Position29

Aantal in tekening2

Screw sleeve HT-hose Ø8,6mm

Article no: 7000585

Power plug ECO40 W Top QS40-ePS-TS Left

Article no: 8002454

Position11

Aantal in tekening1

Power plug ECO40 W Top QS40-ePS-TS Left

Article no: 8002454

For EC204B ePS2 (L.)

Screw MF6S 3x8 A4

Article no: 6000445

Position15

Aantal in tekening4

Screw MF6S 3x8 A4

Article no: 6000445

Pressure spring Dy=18 Dt=2 L0=15 Lst max=8,5

Article no: 6000324

Position20

Aantal in tekening2

Pressure spring Dy=18 Dt=2 L0=15 Lst max=8,5

Article no: 6000324

Nut steel M8 10. untreated DIN 934

Article no: 611187

Position25

Aantal in tekening8

Nut steel M8 10. untreated DIN 934

Article no: 611187

Attachment block ECO40 W-top bracket-with pin V2

Article no: 1069400

Position19

Aantal in tekening2

Attachment block ECO40 W-top bracket-with pin V2

Article no: 1069400

Washer copper 14x10x0,9

Article no: 6000065

Position4

Aantal in tekening1

Washer copper 14x10x0,9

Article no: 6000065

Power plug ECO40 W Top QS40-ePS-TS

Article no: 8001885

Position13

Aantal in tekening1

Power plug ECO40 W Top QS40-ePS-TS

Article no: 8001885

For EC206B ePS2 (L.)

Screw TX45 8x30 10.9 FZB ISO7380

Article no: 612201

Position23

Aantal in tekening8

Screw TX45 8x30 10.9 FZB ISO7380

Article no: 612201

Torque: 34Nm

Push-in Coupling 90° R1/8" SPWE06KR lubrication kit

Article no: 790184

Position41

Aantal in tekening1

Push-in Coupling 90° R1/8" SPWE06KR lubrication kit

Article no: 790184

Block ECO40 W-top bracket 1hy 1cl V3

Article no: 1081403

Position1

Aantal in tekening1

Block ECO40 W-top bracket 1hy 1cl V3

Article no: 1081403

(POS.3-5 incl.)

Transport Protection ECO40 TECO

Article no: 1062517

Position38

Aantal in tekening1

Transport Protection ECO40 TECO

Article no: 1062517

Part of make up

Adapter 136-06-06

Article no: 710106

Position27

Aantal in tekening2

Adapter 136-06-06

Article no: 710106

Tube sleeve 45° Push-In 15mm

Article no: 7001980

Position33

Aantal in tekening1

Tube sleeve 45° Push-In 15mm

Article no: 7001980

Attachment block ECO40 W-top bracket-with pin

Article no: 1061832

Position39

Aantal in tekening1

Attachment block ECO40 W-top bracket-with pin

Article no: 1061832

Replaced by POS.19 from 2022-11

Power plug ECO40 W Top QS40

Article no: 1057841

Position12

Aantal in tekening2

Power plug ECO40 W Top QS40

Article no: 1057841

QTY: 1 for EC206B ePS2 (R.)

Coupling ECO45/50 3/8" male - top bracket V2

Article no: 1028873

Position3

Aantal in tekening2

Coupling ECO45/50 3/8" male - top bracket V2

Article no: 1028873

Torque: 60Nm

Push-In coupling straight Ø6mm M8x1

Article no: 790185

Position18

Aantal in tekening1

Push-In coupling straight Ø6mm M8x1

Article no: 790185

Loxeal 83-52

Tractor lubrication nipple 1/8" stainless

Article no: 810505

Position5

Aantal in tekening1

Tractor lubrication nipple 1/8" stainless

Article no: 810505

Loxeal 58-12. Torque: 30Nm

Protection Plug TECO 45/50 hydraulic

Article no: 7000152

Position36

Aantal in tekening2

Protection Plug TECO 45/50 hydraulic

Article no: 7000152

Side plate ECO40W-top bracket

Article no: 1079427

Position14

Aantal in tekening2

Side plate ECO40W-top bracket

Article no: 1079427

Cover plate Power plug-ECO40W-top bracket V2

Article no: 1069398

Position16

Aantal in tekening2

Cover plate Power plug-ECO40W-top bracket V2

Article no: 1069398

Stud bolt M8x30 10.9 DIN939

Article no: 611185

Position24

Aantal in tekening8

Stud bolt M8x30 10.9 DIN939

Article no: 611185

Loxeal 83-52

Power plug 12P ECO40 W - Top - DC3

Article no: 8002540

Position7

Aantal in tekening1

Power plug 12P ECO40 W - Top - DC3

Article no: 8002540

Screw MC6S 2.5x8 8.8 FZB ISO4762

Article no: 6000325

Position17

Aantal in tekening8

Screw MC6S 2.5x8 8.8 FZB ISO4762

Article no: 6000325

Hose Bulk - HT 8,3x4

Article no: 7001303

Position30

Aantal in tekening1

Hose Bulk - HT 8,3x4

Article no: 7001303

EC206B: 1030mm. EC204B: 420mm. EC204: 380mm

Adapter L 1/8" 1x ext / 2x int lubrication

Article no: 7001309

Position34

Aantal in tekening1

Adapter L 1/8" 1x ext / 2x int lubrication

Article no: 7001309

Power plug ECO40W-Plug top bracket

Article no: 1063916

Position8

Aantal in tekening1

Power plug ECO40W-Plug top bracket

Article no: 1063916

Tube sleeve 90° Push-In

Article no: 7000318

Position31

Aantal in tekening1

Tube sleeve 90° Push-In

Article no: 7000318

Screw MLC6S 10x25 8.8 FZB

Article no: 6000323

Position21

Aantal in tekening2

Screw MLC6S 10x25 8.8 FZB

Article no: 6000323

Loxeal 83-52

Seal washer GBR06 3/8"

Article no: 710703

Position26

Aantal in tekening2

Seal washer GBR06 3/8"

Article no: 710703

Plug VSTIR38ED 3/8"

Article no: 711504

Position37

Aantal in tekening2

Plug VSTIR38ED 3/8"

Article no: 711504

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position22

Aantal in tekening8

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040
