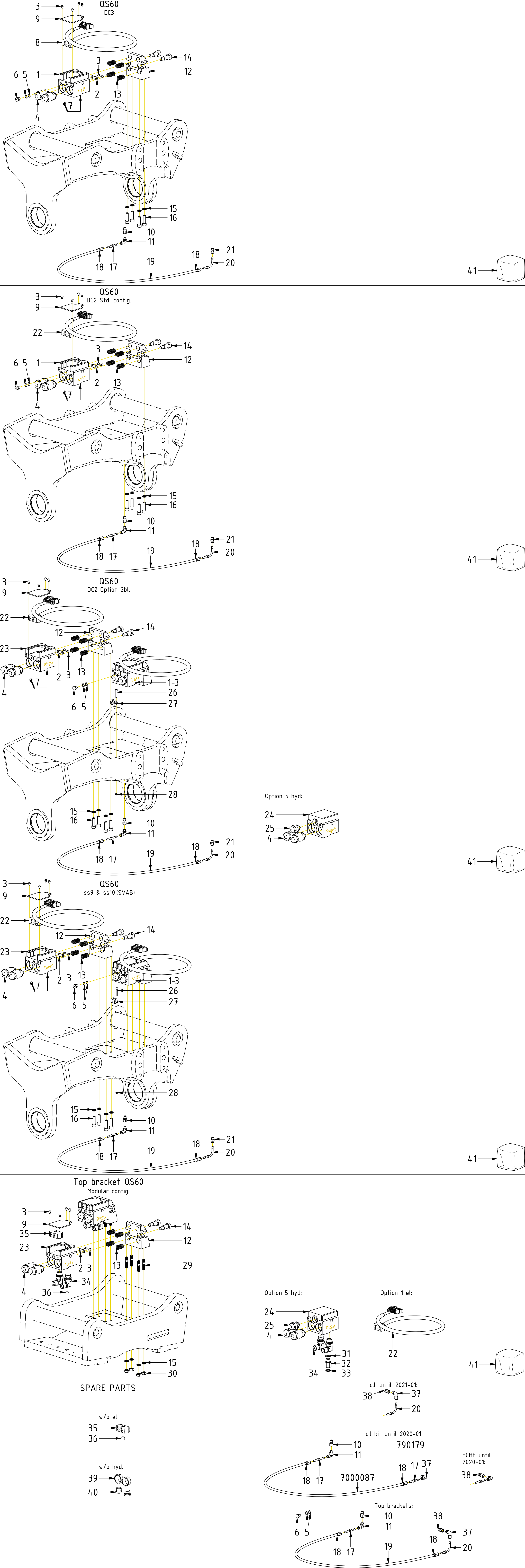

Top ECO60 W

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Washer copper 14x10x0,9

Article no: 6000065

Position5

Aantal in tekening2

Washer copper 14x10x0,9

Article no: 6000065

Push-in Coupling 90° R1/8" SPWE06KR lubrication kit

Article no: 790184

Position37

Aantal in tekening1

Push-in Coupling 90° R1/8" SPWE06KR lubrication kit

Article no: 790184

Loxeal 58-12

Stud bolt M10x35 10,9 DIN939

Article no: 611164

Position29

Aantal in tekening4

Stud bolt M10x35 10,9 DIN939

Article no: 611164

Screw MC6S 10x35 12.9 ZFSHL ISO4762

Article no: 612019

Position16

Aantal in tekening4

Screw MC6S 10x35 12.9 ZFSHL ISO4762

Article no: 612019

Torque: 79Nm

Screw K6S 5x8H 10.9 FZB ISO7380

Article no: 611801

Position3

Aantal in tekening6

Screw K6S 5x8H 10.9 FZB ISO7380

Article no: 611801

Screw-Shoulder screw Ø16x25/M12 12.9 ISO7379

Article no: 611709

Position14

Aantal in tekening2

Screw-Shoulder screw Ø16x25/M12 12.9 ISO7379

Article no: 611709

Loxeal 83-52

Transport Protection ECO60 TECO

Article no: 1033412

Position41

Aantal in tekening1

Transport Protection ECO60 TECO

Article no: 1033412

Part of make up

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position26

Aantal in tekening1

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Nut M10 10. Untreated DIN934

Article no: 611104

Position30

Aantal in tekening4

Nut M10 10. Untreated DIN934

Article no: 611104

Torque: 67Nm

Block ECO60 W-top bracket-3hy

Article no: 1052826

Position24

Aantal in tekening1

Block ECO60 W-top bracket-3hy

Article no: 1052826

(POS.4, 25 incl.)

Adapter 401-08-08 90°

Article no: 710156

Position34

Aantal in tekening2

Adapter 401-08-08 90°

Article no: 710156

Screw sleeve HT-hose Ø8,6mm

Article no: 7000585

Position18

Aantal in tekening2

Screw sleeve HT-hose Ø8,6mm

Article no: 7000585

Rubber Steel Clamp Ø16

Article no: 6000009

Position27

Aantal in tekening1

Rubber Steel Clamp Ø16

Article no: 6000009

Protection Plug TECO60 hydraulic

Article no: 7000154

Position39

Aantal in tekening2

Protection Plug TECO60 hydraulic

Article no: 7000154

Extender 25/17mm KR1/8" - R1/8"

Article no: 7000578

Position38

Aantal in tekening1

Extender 25/17mm KR1/8" - R1/8"

Article no: 7000578

Loxeal 58-12

Pipe Plug DIN 906 M16x1,5

Article no: 711529

Position36

Aantal in tekening2

Pipe Plug DIN 906 M16x1,5

Article no: 711529

Power plug ECO60 W Top QS60 DC3 EC219

Article no: 8002101

Position8

Aantal in tekening1

Power plug ECO60 W Top QS60 DC3 EC219

Article no: 8002101

Cable gland torque: 6Nm

Block ECO60 W top bracket -2hy- V2

Article no: 1076517

Position23

Aantal in tekening1

Block ECO60 W top bracket -2hy- V2

Article no: 1076517

(POS.4 incl.)

Hose Bulk - HT 8,3x4

Article no: 7001303

Position19

Aantal in tekening1

Hose Bulk - HT 8,3x4

Article no: 7001303

EC214-EC219: 1075mm Top bracket: 2000mm

Push-in Coupling R1/8" PGE06KR lubrication kit

Article no: 790172

Position21

Aantal in tekening1

Push-in Coupling R1/8" PGE06KR lubrication kit

Article no: 790172

Loxeal 58-12

Extender 18mm M8x1

Article no: 7000688

Position10

Aantal in tekening1

Extender 18mm M8x1

Article no: 7000688

Loxeal 58-12

Adapter 235-06-04

Article no: 710133

Position32

Aantal in tekening1

Adapter 235-06-04

Article no: 710133

Power plug ECO W - Plug top bracket

Article no: 1042918

Position35

Aantal in tekening2

Power plug ECO W - Plug top bracket

Article no: 1042918

Tractor lubrication nipple 1/8" stainless

Article no: 810505

Position6

Aantal in tekening1

Tractor lubrication nipple 1/8" stainless

Article no: 810505

Loxeal 58-12. Torque: 30Nm

Nut M6M M5 lock 6. FZB DIN985

Article no: 610920

Position28

Aantal in tekening1

Nut M6M M5 lock 6. FZB DIN985

Article no: 610920

Tube sleeve straight Push-In-30mm

Article no: 790175

Position17

Aantal in tekening1

Tube sleeve straight Push-In-30mm

Article no: 790175

Block ECO60 W top bracket -2hy 1cl- V2

Article no: 1074025

Position1

Aantal in tekening1

Block ECO60 W top bracket -2hy 1cl- V2

Article no: 1074025

(POS.4-6 incl.)

Spring - 18x35 - Top ECO45-80

Article no: 1024794

Position13

Aantal in tekening4

Spring - 18x35 - Top ECO45-80

Article no: 1024794

Coupling ECO45/50 3/8" male - top bracket V2

Article no: 1028873

Position25

Aantal in tekening1

Coupling ECO45/50 3/8" male - top bracket V2

Article no: 1028873

Torque: 60Nm

Attachment block ECO60 W-top bracket

Article no: 1042255

Position12

Aantal in tekening1

Attachment block ECO60 W-top bracket

Article no: 1042255

Cover plate Power plug-ECO60 W-top bracket

Article no: 1041140

Position9

Aantal in tekening1

Cover plate Power plug-ECO60 W-top bracket

Article no: 1041140

Push-in swivel 90° M8x1 hose kit Quick hitch lubrication ECO

Article no: 790173

Position11

Aantal in tekening1

Push-in swivel 90° M8x1 hose kit Quick hitch lubrication ECO

Article no: 790173

Loxeal 58-12

Cable clamp ECO45/60/70/80 W-top bracket

Article no: 1074897

Position2

Aantal in tekening1

Cable clamp ECO45/60/70/80 W-top bracket

Article no: 1074897

Tube sleeve 90° Push-In

Article no: 7000318

Position20

Aantal in tekening1

Tube sleeve 90° Push-In

Article no: 7000318

Coupling ECO60 1/2" male - top bracket V2

Article no: 1027633

Position4

Aantal in tekening2

Coupling ECO60 1/2" male - top bracket V2

Article no: 1027633

Torque: 60Nm

Power plug ECO60 W Top QS60 QSM ECHF

Article no: 1042240

Position22

Aantal in tekening1

Power plug ECO60 W Top QS60 QSM ECHF

Article no: 1042240

Cable gland torque: 6Nm

Seal washer GBR04 1/4"

Article no: 710702

Position33

Aantal in tekening1

Seal washer GBR04 1/4"

Article no: 710702

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position15

Aantal in tekening4

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Seal washer GBR06 3/8"

Article no: 710703

Position31

Aantal in tekening1

Seal washer GBR06 3/8"

Article no: 710703

Plug VSTIR12ED 1/2"

Article no: 711500

Position40

Aantal in tekening2

Plug VSTIR12ED 1/2"

Article no: 711500
