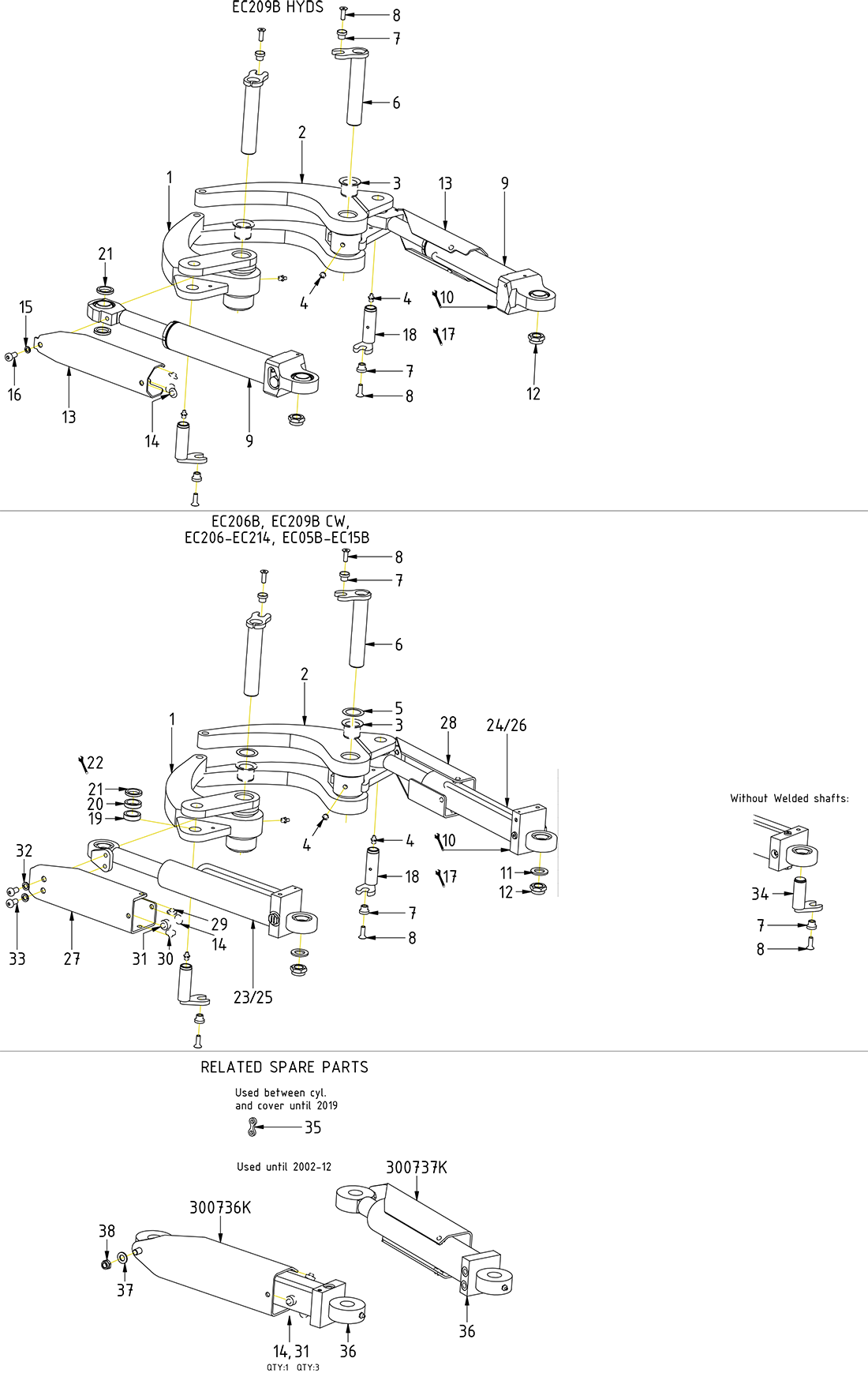

GR10 'Integrated grab'

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Grab cylinder 10-rotated block-left

Article no: 302427K

Position25

Aantal in tekening1

Grab cylinder 10-rotated block-left

Article no: 302427K

Attachment grab guard washer

Article no: 402628

Position35

Aantal in tekening2

Attachment grab guard washer

Article no: 402628

Used until 2019

Spacer 8mm Grab arm 10

Article no: 402170

Position20

Aantal in tekening2

Spacer 8mm Grab arm 10

Article no: 402170

Used if required

Nut M6LM 6. FZB M12

Article no: 610924

Position38

Aantal in tekening2

Nut M6LM 6. FZB M12

Article no: 610924

Grab cylinder 10-complete

Article no: 300733K

Position36

Aantal in tekening2

Grab cylinder 10-complete

Article no: 300733K

Replaced by POS.23-24 fr 2002-12

Axle grab cylinder GR10 - against quick hitch

Article no: 402541

Position34

Aantal in tekening2

Axle grab cylinder GR10 - against quick hitch

Article no: 402541

Without Welded shafts

Screw MLC6S 10x20H 8.8 FZB DIN7984

Article no: 610714

Position16

Aantal in tekening2

Screw MLC6S 10x20H 8.8 FZB DIN7984

Article no: 610714

Axle Grab arm GR10 / Grab support GR20/GR30

Article no: 400521

Position6

Aantal in tekening2

Axle Grab arm GR10 / Grab support GR20/GR30

Article no: 400521

Spacer 5mm Grab arm 10

Article no: 402615

Position21

Aantal in tekening2

Spacer 5mm Grab arm 10

Article no: 402615

QTY: 4 for HYDS

Lubrication nipple 1/8 straight

Article no: 711403

Position4

Aantal in tekening4

Lubrication nipple 1/8 straight

Article no: 711403

Spacer-Plastic 5mm

Article no: 400636

Position30

Aantal in tekening2

Spacer-Plastic 5mm

Article no: 400636

Washer BRB FZB 13x24x2,5 ISO7089

Article no: 611007

Position37

Aantal in tekening2

Washer BRB FZB 13x24x2,5 ISO7089

Article no: 611007

Grab guard 10-complete-GR10= left , GRD45/50= right

Article no: 1022975K

Position27

Aantal in tekening1

Grab guard 10-complete-GR10= left , GRD45/50= right

Article no: 1022975K

(POS.14, 29-31 incl.)

Spacer 10mm Grab arm 10

Article no: 402171

Position19

Aantal in tekening2

Spacer 10mm Grab arm 10

Article no: 402171

Used if required

Spacer-Plastic 1,2mm

Article no: 400635

Position14

Aantal in tekening2

Spacer-Plastic 1,2mm

Article no: 400635

QTY: 6 for HYDS

Cylinder cover GRD45/50B, GR10 HYDS

Article no: 1078390

Position13

Aantal in tekening2

Cylinder cover GRD45/50B, GR10 HYDS

Article no: 1078390

For HYDS (POS.14 incl.)

Grab cylinder 10-as of 030201-left

Article no: 301898K

Position23

Aantal in tekening1

Grab cylinder 10-as of 030201-left

Article no: 301898K

Nut M6LM low 8. FZB M20

Article no: 610928

Position12

Aantal in tekening2

Nut M6LM low 8. FZB M20

Article no: 610928

Spacer-Plastic 10mm

Article no: 400637

Position31

Aantal in tekening2

Spacer-Plastic 10mm

Article no: 400637

Grab arm 10-double-complete

Article no: 200423K

Position2

Aantal in tekening1

Grab arm 10-double-complete

Article no: 200423K

(POS.3-4 incl.)

Grab cylinder 10-rotated block-right

Article no: 302428K

Position26

Aantal in tekening1

Grab cylinder 10-rotated block-right

Article no: 302428K

Spacer-Plastic 3mm

Article no: 402215

Position29

Aantal in tekening2

Spacer-Plastic 3mm

Article no: 402215

Grab cylinder GRD45/50B, GR10 HYDS

Article no: 1076320

Position9

Aantal in tekening2

Grab cylinder GRD45/50B, GR10 HYDS

Article no: 1076320

For HYDS

Shim tilt axle - EC02 / GR10-32x45x0.5

Article no: 650525

Position5

Aantal in tekening2

Shim tilt axle - EC02 / GR10-32x45x0.5

Article no: 650525

Used if required

Grab cylinder 10-as of 030201-right

Article no: 301470K

Position24

Aantal in tekening1

Grab cylinder 10-as of 030201-right

Article no: 301470K

Grab arm 10-single-complete

Article no: 200422K

Position1

Aantal in tekening1

Grab arm 10-single-complete

Article no: 200422K

(POS.3-4 incl.)

Grab guard 10-complete-GR10= right , GRD45/50= left

Article no: 1022974K

Position28

Aantal in tekening1

Grab guard 10-complete-GR10= right , GRD45/50= left

Article no: 1022974K

(POS.14, 29-31 incl.)

Screw K6S 10x20H 10.9 FZB ISO7380

Article no: 611812

Position33

Aantal in tekening4

Screw K6S 10x20H 10.9 FZB ISO7380

Article no: 611812

Axle grab cylinder GR10 - against Grab arm

Article no: 400461

Position18

Aantal in tekening2

Axle grab cylinder GR10 - against Grab arm

Article no: 400461

(POS.4 incl.)

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position15

Aantal in tekening2

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position32

Aantal in tekening4

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Bushing WB802 30/34/45x30WF

Article no: 630401

Position3

Aantal in tekening4

Bushing WB802 30/34/45x30WF

Article no: 630401

Spacer countersunk for M8 screw MF6S

Article no: 400659

Position7

Aantal in tekening4

Spacer countersunk for M8 screw MF6S

Article no: 400659

QTY: 6 without Welded shafts

Screw MF6S 8x25 10.9 FZB ISO10642

Article no: 610608

Position8

Aantal in tekening4

Screw MF6S 8x25 10.9 FZB ISO10642

Article no: 610608

QTY: 6 without Welded shafts Loxeal 83-52

Washer BRB FZB 21x36x3 ISO7089

Article no: 611010

Position11

Aantal in tekening2

Washer BRB FZB 21x36x3 ISO7089

Article no: 611010
