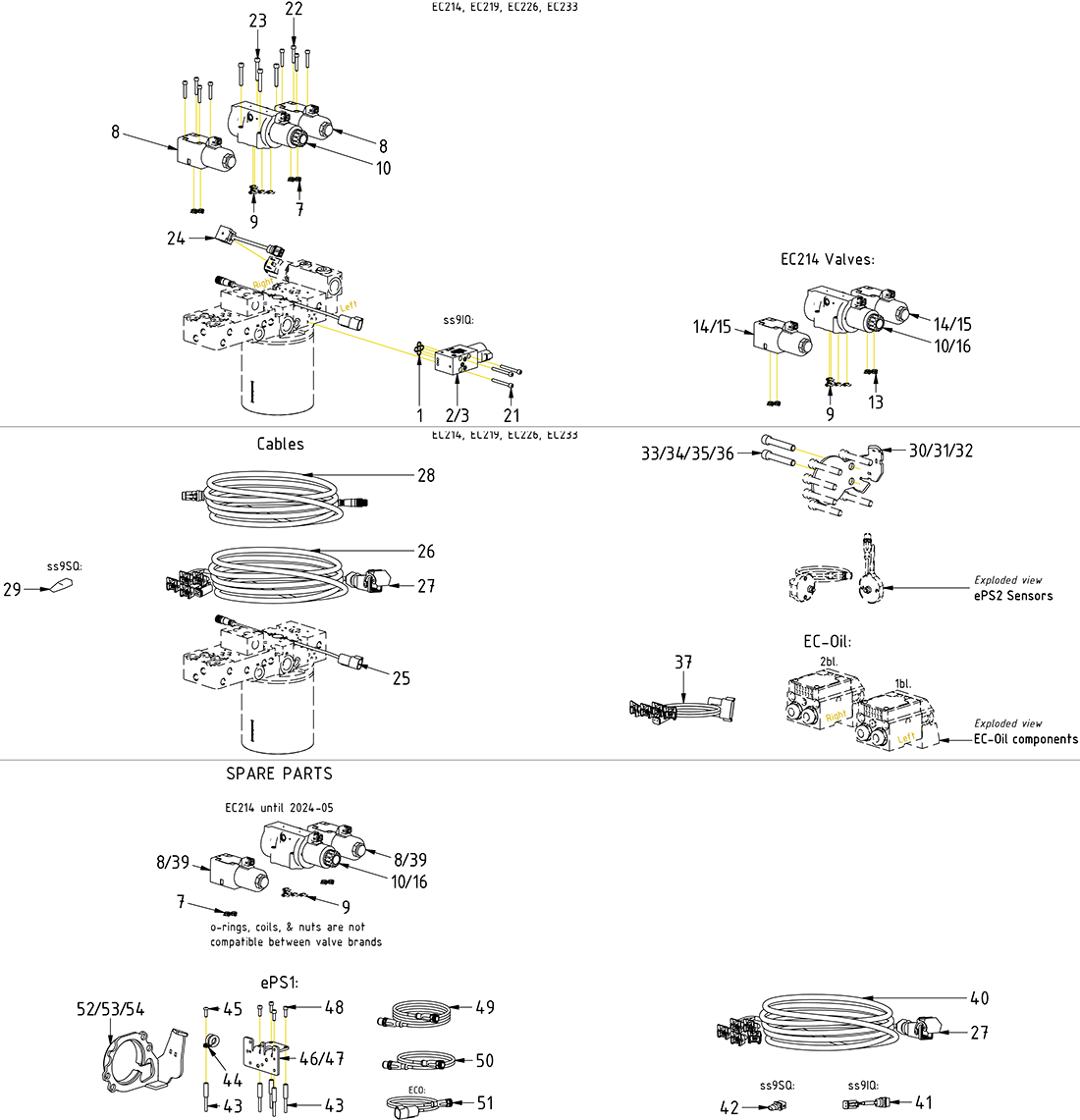

ss9 'QSM'

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Directional valve NG4 IQS lock 24V DT ss9 Coil A

Article no: 1042188

Position3

Aantal in tekening1

Directional valve NG4 IQS lock 24V DT ss9 Coil A

Article no: 1042188

(POS.1, 5, 6 incl.)

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Position43

Aantal in tekening5

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Coil 24V NG6 JT on/off ATOS

Article no: 7001736

Position18

Aantal in tekening2

Coil 24V NG6 JT on/off ATOS

Article no: 7001736

Coil 12V NG6 JT on/off ATOS

Article no: 7001735

Position19

Aantal in tekening2

Coil 12V NG6 JT on/off ATOS

Article no: 7001735

Directional valve closed NG6 12V JT ATOS

Article no: 7001619

Position15

Aantal in tekening2

Directional valve closed NG6 12V JT ATOS

Article no: 7001619

EC214 (POS.13, 19, 20 incl.)

Jumper DT 2P POS:1-2

Article no: 1034439

Position29

Aantal in tekening1

Jumper DT 2P POS:1-2

Article no: 1034439

Plug DT connector for ss9SQ

Directional valve closed NG10 12V

Article no: 730342

Position16

Aantal in tekening1

Directional valve closed NG10 12V

Article no: 730342

EC214 (POS.9, 17, 12 incl.)

Resistor cable 120ohm M12 5S-DTM 6P-0,4m

Article no: 8000825

Position51

Aantal in tekening1

Resistor cable 120ohm M12 5S-DTM 6P-0,4m

Article no: 8000825

For ECO w. ePS. Instead of POS.49

Directional valve closed NG6 24V JT ATOS

Article no: 7001618

Position14

Aantal in tekening2

Directional valve closed NG6 24V JT ATOS

Article no: 7001618

EC214 (POS.13, 18, 20 incl.)

Directional valve closed NG6 12V JT

Article no: 730112

Position39

Aantal in tekening2

Directional valve closed NG6 12V JT

Article no: 730112

(POS.7, 17, 12 incl.)

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Position48

Aantal in tekening4

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Torque: 9,7Nm

Protection sensor -ePS V2-EC226

Article no: 1055677

Position54

Aantal in tekening1

Protection sensor -ePS V2-EC226

Article no: 1055677

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position45

Aantal in tekening1

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Torque: 8,1Nm

Adapter cable JT 2P-SQR 4S

Article no: 302971

Position24

Aantal in tekening1

Adapter cable JT 2P-SQR 4S

Article no: 302971

Screw MC6S 12x90 12.9 ZFSHL ISO4762

Article no: 6000147

Position34

Aantal in tekening8

Screw MC6S 12x90 12.9 ZFSHL ISO4762

Article no: 6000147

For EC219. Torque: 136Nm

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Position30

Aantal in tekening1

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Screw MC6S 14x80 12.9 ZFSHL ISO4762

Article no: 6000354

Position35

Aantal in tekening8

Screw MC6S 14x80 12.9 ZFSHL ISO4762

Article no: 6000354

For EC226. Torque: 217Nm

End lock protection plate EC226S/EC326

Article no: 1063521

Position31

Aantal in tekening1

End lock protection plate EC226S/EC326

Article no: 1063521

Directional valve closed NG6 24V JT

Article no: 730110

Position8

Aantal in tekening2

Directional valve closed NG6 24V JT

Article no: 730110

EC219-233 (POS.7, 11, 12 incl.)

Unit cable ss9-2 DT EC206-EC233-3,5m

Article no: 8001823

Position26

Aantal in tekening1

Unit cable ss9-2 DT EC206-EC233-3,5m

Article no: 8001823

Directional valve closed NG10 24V

Article no: 730341

Position10

Aantal in tekening1

Directional valve closed NG10 24V

Article no: 730341

(POS.9, 11, 12 incl.)

Unit cable ss9-2 JT EC206-EC233-3,5m

Article no: 1032909

Position40

Aantal in tekening1

Unit cable ss9-2 JT EC206-EC233-3,5m

Article no: 1032909

Replaced by POS.26 from 2022-06

Directional valve NG4 IQS lock 12V DT ss9 Coil A

Article no: 1042045

Position2

Aantal in tekening1

Directional valve NG4 IQS lock 12V DT ss9 Coil A

Article no: 1042045

(POS.1, 4, 6 incl.)

Coil 12V NG6 JT on/off

Article no: 730117

Position17

Aantal in tekening1

Coil 12V NG6 JT on/off

Article no: 730117

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Position33

Aantal in tekening8

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

For EC214. Torque: 136Nm

Coil NG4 IQS lock 12V DT

Article no: 1042065

Position4

Aantal in tekening1

Coil NG4 IQS lock 12V DT

Article no: 1042065

Screw MC6S 5x50 12.9 untreated ISO4762

Article no: 610407

Position21

Aantal in tekening3

Screw MC6S 5x50 12.9 untreated ISO4762

Article no: 610407

Torque: 9,7Nm

Nut directional valve ATOS

Article no: 7001887

Position20

Aantal in tekening2

Nut directional valve ATOS

Article no: 7001887

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Position52

Aantal in tekening1

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Protection sensor -ePS,SVAB MACS-EC233

Article no: 1040940

Position53

Aantal in tekening1

Protection sensor -ePS,SVAB MACS-EC233

Article no: 1040940

End lock protection plate EC233/EC333

Article no: 1064168

Position32

Aantal in tekening1

End lock protection plate EC233/EC333

Article no: 1064168

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Position13

Aantal in tekening8

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position1

Aantal in tekening4

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Coil NG4 IQS lock 24V DT

Article no: 1042066

Position5

Aantal in tekening1

Coil NG4 IQS lock 24V DT

Article no: 1042066

Adapter cable JT 2P-DT 2S

Article no: 1017478

Position41

Aantal in tekening1

Adapter cable JT 2P-DT 2S

Article no: 1017478

Used with POS.40 for ss9IQ

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

Position50

Aantal in tekening1

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

Mounting plate-ePS-Tilt sensor except Trimble-ECHF

Article no: 1038119

Position46

Aantal in tekening1

Mounting plate-ePS-Tilt sensor except Trimble-ECHF

Article no: 1038119

For Topcon/LEICA/Novatron

Mounting plate-ePS-Tilt sensor Trimble AS455-ECHF

Article no: 1038117

Position47

Aantal in tekening1

Mounting plate-ePS-Tilt sensor Trimble AS455-ECHF

Article no: 1038117

For Trimble

Adapter cable M12 8P-DTM 6S

Article no: 842148

Position28

Aantal in tekening1

Adapter cable M12 8P-DTM 6S

Article no: 842148

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

Position37

Aantal in tekening1

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

For EC-Oil. Instead of POS.26 & 28

O-ring 12,42x1,68 square NBR 70 shore NG10

Article no: 750704

Position9

Aantal in tekening5

O-ring 12,42x1,68 square NBR 70 shore NG10

Article no: 750704

Coil 24V NG6 JT on/off

Article no: 730118

Position11

Aantal in tekening3

Coil 24V NG6 JT on/off

Article no: 730118

QTY: 1 for EC214

Nut directional valve Argo Hytos

Article no: 730135

Position12

Aantal in tekening3

Nut directional valve Argo Hytos

Article no: 730135

QTY: 1 for EC214

Jumper JT 2P POS:1-2

Article no: 1018662

Position42

Aantal in tekening1

Jumper JT 2P POS:1-2

Article no: 1018662

Used with POS.40 for ss9SQ

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

Position49

Aantal in tekening1

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

Nut bulkhead adapter 1270-04

Article no: 710250

Position6

Aantal in tekening1

Nut bulkhead adapter 1270-04

Article no: 710250

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position22

Aantal in tekening8

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

Rubber Steel Clamp Ø16

Article no: 6000009

Position44

Aantal in tekening1

Rubber Steel Clamp Ø16

Article no: 6000009

Screw MC6S 6x40 12.9 untreated ISO4762

Article no: 610418

Position23

Aantal in tekening4

Screw MC6S 6x40 12.9 untreated ISO4762

Article no: 610418

Torque: 17Nm

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Position36

Aantal in tekening12

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

For EC233. Torque: 136Nm

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position27

Aantal in tekening1

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

(Incl. with agg.cable)

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position7

Aantal in tekening8

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901
