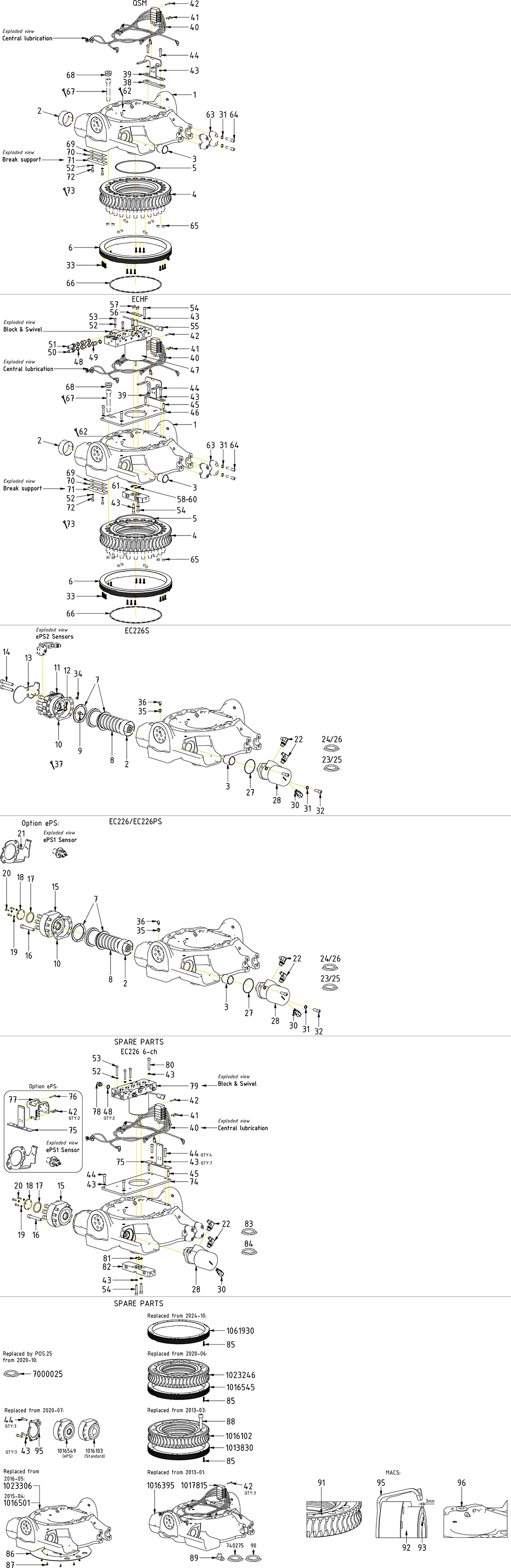

Main components

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Cover plate Slip ring ECHF V2

Article no: 1026200

Position56

Aantal in tekening1

Cover plate Slip ring ECHF V2

Article no: 1026200

Screw MC6S 6x20 A4 stainless ISO4762

Article no: 611513

Position20

Aantal in tekening3

Screw MC6S 6x20 A4 stainless ISO4762

Article no: 611513

Attachment central lubrication & TM DC2 -ECHF/QSM

Article no: 1031517

Position39

Aantal in tekening1

Attachment central lubrication & TM DC2 -ECHF/QSM

Article no: 1031517

Magnet Neodym35 8x5x3mm SVAB MACS

Article no: 6000047

Position91

Aantal in tekening1

Magnet Neodym35 8x5x3mm SVAB MACS

Article no: 6000047

Loctite 415. Harden 1 minute

Hose

Article no: 7001404

Position25

Aantal in tekening1

Hose

Article no: 7001404

Screw MC6S 14x80 12.9 ZFSHL ISO4762

Article no: 6000354

Position14

Aantal in tekening8

Screw MC6S 14x80 12.9 ZFSHL ISO4762

Article no: 6000354

Torque: 217Nm

Adapter DSVW-15 LR HFX banjo

Article no: 710510

Position89

Aantal in tekening1

Adapter DSVW-15 LR HFX banjo

Article no: 710510

Used until 2013-03

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position31

Aantal in tekening10

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

QTY: 8 part of top part assembly

Valve plate -EC219/EC26/EC226

Article no: 1011515

Position74

Aantal in tekening1

Valve plate -EC219/EC26/EC226

Article no: 1011515

Seal R09-F 20x27.5x3.2

Article no: 1063616

Position12

Aantal in tekening1

Seal R09-F 20x27.5x3.2

Article no: 1063616

Hose motor

Article no: 742331

Position84

Aantal in tekening1

Hose motor

Article no: 742331

Pipe Plug RP M36x2 Din 908 FZB M8x1 SVAB MACS

Article no: 650411

Position96

Aantal in tekening1

Pipe Plug RP M36x2 Din 908 FZB M8x1 SVAB MACS

Article no: 650411

Cover End lock None ePS

Article no: 1041613

Position18

Aantal in tekening1

Cover End lock None ePS

Article no: 1041613

Hose

Article no: 7000957

Position23

Aantal in tekening1

Hose

Article no: 7000957

Part of quick hitch

Adapter bulkhead 1260-06-32

Article no: 710242

Position50

Aantal in tekening1

Adapter bulkhead 1260-06-32

Article no: 710242

End lock EC226 V2

Article no: 1056095

Position15

Aantal in tekening1

End lock EC226 V2

Article no: 1056095

Screw TX45 8x30 10.9 FZB ISO7380

Article no: 612201

Position85

Aantal in tekening18

Screw TX45 8x30 10.9 FZB ISO7380

Article no: 612201

Torque: 34Nm. Used until 2024-10

End lock protection plate EC226S/EC326

Article no: 1063521

Position13

Aantal in tekening1

End lock protection plate EC226S/EC326

Article no: 1063521

Hydraulic motor White 200cc

Article no: 1022288

Position28

Aantal in tekening1

Hydraulic motor White 200cc

Article no: 1022288

(POS.29-30 incl.)

Adapter bulkhead extended 1260-06-43

Article no: 710262

Position51

Aantal in tekening1

Adapter bulkhead extended 1260-06-43

Article no: 710262

Extender 18mm R1/8" lubrication kit

Article no: 712216

Position35

Aantal in tekening1

Extender 18mm R1/8" lubrication kit

Article no: 712216

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Position32

Aantal in tekening2

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Torque: 136Nm

Protection sensor -ePS V2-EC226

Article no: 1055677

Position21

Aantal in tekening1

Protection sensor -ePS V2-EC226

Article no: 1055677

For ePS1

Valve block-swivel 5v & 6-ch Slip ring-DTM

Article no: 1030297

Position79

Aantal in tekening1

Valve block-swivel 5v & 6-ch Slip ring-DTM

Article no: 1030297

Hose

Article no: 7000958

Position24

Aantal in tekening1

Hose

Article no: 7000958

Part of quick hitch

Shim kit End lock - EC226

Article no: 1043983

Position10

Aantal in tekening1

Shim kit End lock - EC226

Article no: 1043983

Hose motor - EC219/EC226 - ECHF short

Article no: 7000026

Position26

Aantal in tekening1

Hose motor - EC219/EC226 - ECHF short

Article no: 7000026

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position41

Aantal in tekening2

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Attachment central lubrication EC219-EC226

Article no: 1018052

Position75

Aantal in tekening1

Attachment central lubrication EC219-EC226

Article no: 1018052

End lock EC226S/EC326 Cast

Article no: 1065859

Position11

Aantal in tekening1

End lock EC226S/EC326 Cast

Article no: 1065859

(POS.12 incl.)

Adapter 136-06-06

Article no: 710106

Position78

Aantal in tekening2

Adapter 136-06-06

Article no: 710106

Hose motor - EC26/226 - short

Article no: 740274

Position90

Aantal in tekening1

Hose motor - EC26/226 - short

Article no: 740274

Replaced by POS.84 from 2013-03

Screw MC6S 10x60 12.9 untreated ISO4762

Article no: 610460

Position80

Aantal in tekening1

Screw MC6S 10x60 12.9 untreated ISO4762

Article no: 610460

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

Position87

Aantal in tekening8

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

Used until 2016-05

Inductive sensor M8 PNP NO 4mm - SVAB MACS

Article no: 1043698

Position93

Aantal in tekening1

Inductive sensor M8 PNP NO 4mm - SVAB MACS

Article no: 1043698

Distance 3mm. Nut torque: 3Nm

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position76

Aantal in tekening1

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Hose motor - EC226 - long - V3 Rotated motor

Article no: 742332

Position83

Aantal in tekening1

Hose motor - EC226 - long - V3 Rotated motor

Article no: 742332

Wear washer EC26/EC226

Article no: 1011242

Position86

Aantal in tekening1

Wear washer EC26/EC226

Article no: 1011242

Used until 2016-05

Lubrication kit EC226 V3/EC326

Article no: 1021136

Position40

Aantal in tekening1

Lubrication kit EC226 V3/EC326

Article no: 1021136

Hydraulic motor White 200cc

Article no: 7001807

Position29

Aantal in tekening1

Hydraulic motor White 200cc

Article no: 7001807

Magnet Spacer Worm Screw

Article no: 1062693

Position9

Aantal in tekening1

Magnet Spacer Worm Screw

Article no: 1062693

Loxeal 83-52. Torque: 20Nm

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

Position57

Aantal in tekening4

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

Adapter 401-06-08 90°

Article no: 710157

Position22

Aantal in tekening2

Adapter 401-06-08 90°

Article no: 710157

Connection block 6-ch EC15,EC226-for Slip ring

Article no: 1024045

Position82

Aantal in tekening1

Connection block 6-ch EC15,EC226-for Slip ring

Article no: 1024045

"1" on swivel against "X" on block

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Position53

Aantal in tekening3

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position42

Aantal in tekening1

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Clamping half EC219/226/326 EngconYellow complete

Article no: 1016393

Position63

Aantal in tekening4

Clamping half EC219/226/326 EngconYellow complete

Article no: 1016393

Part of top part

Valve block-swivel 7-channel ECHF

Article no: 1027386

Position47

Aantal in tekening1

Valve block-swivel 7-channel ECHF

Article no: 1027386

O-ring 27x5 NBR 70 shore End lock ePS

Article no: 7000485

Position17

Aantal in tekening1

O-ring 27x5 NBR 70 shore End lock ePS

Article no: 7000485

End lock EC226 MACS

Article no: 1028331

Position92

Aantal in tekening1

End lock EC226 MACS

Article no: 1028331

Relief valve HydraSpecma White 160/200cc fixed 200bar

Article no: 7001647

Position30

Aantal in tekening1

Relief valve HydraSpecma White 160/200cc fixed 200bar

Article no: 7001647

Torque: 77Nm. Assy. before motor

Valve plate -ECHF-EC219, EC226

Article no: 1024824

Position46

Aantal in tekening1

Valve plate -ECHF-EC219, EC226

Article no: 1024824

Lubrication nipple 1/8" 90°

Article no: 711409

Position36

Aantal in tekening1

Lubrication nipple 1/8" 90°

Article no: 711409

Bearing ring EC226/326 V2

Article no: 1077002

Position6

Aantal in tekening1

Bearing ring EC226/326 V2

Article no: 1077002

(Only compatible with 8x25)

Worm wheel EC226/EC326 24 bolt

Article no: 1057021

Position4

Aantal in tekening1

Worm wheel EC226/EC326 24 bolt

Article no: 1057021

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

Position27

Aantal in tekening1

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

Spacer central lubrication QSM EC214,EC219,EC226

Article no: 1047832

Position38

Aantal in tekening1

Spacer central lubrication QSM EC214,EC219,EC226

Article no: 1047832

Cylindrical pin CPK Ø10x35 m6

Article no: 1015672

Position45

Aantal in tekening2

Cylindrical pin CPK Ø10x35 m6

Article no: 1015672

Screw TX45 8x25 10,9 FZB

Article no: 1078840

Position33

Aantal in tekening18

Screw TX45 8x25 10,9 FZB

Article no: 1078840

Torque: 34Nm Tighten in cross pattern

Worm screw EC26/EC226

Article no: 1016101

Position8

Aantal in tekening1

Worm screw EC26/EC226

Article no: 1016101

Rotator frame 226/326 V4 EngconYellow complete

Article no: 1023732

Position1

Aantal in tekening1

Rotator frame 226/326 V4 EngconYellow complete

Article no: 1023732

(POS.2-3 incl.)

Screw MC6S 10x40 12.9 ZFSHL ISO4762

Article no: 612020

Position44

Aantal in tekening2

Screw MC6S 10x40 12.9 ZFSHL ISO4762

Article no: 612020

QTY: 4 for ECHF. Torque: 79Nm

Slip ring-ECHF-DTM/ Plug

Article no: 1030298

Position55

Aantal in tekening1

Slip ring-ECHF-DTM/ Plug

Article no: 1030298

For QS. See "Slip rings"

Axial washer EC26/EC226/EC326

Article no: 1016104

Position7

Aantal in tekening2

Axial washer EC26/EC226/EC326

Article no: 1016104

Face grooves toward worm screw

Plug VSTIR18ED 1/8"

Article no: 711503

Position34

Aantal in tekening1

Plug VSTIR18ED 1/8"

Article no: 711503

Shim break support - EC226, EC233 - 0,1mm

Article no: 1023344

Position69

Aantal in tekening1

Shim break support - EC226, EC233 - 0,1mm

Article no: 1023344

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Position72

Aantal in tekening2

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position81

Aantal in tekening6

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position19

Aantal in tekening3

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Screw MC6S 12x55 12.9 ZFSHL ISO4762

Article no: 6000155

Position64

Aantal in tekening8

Screw MC6S 12x55 12.9 ZFSHL ISO4762

Article no: 6000155

Part of top part. Torque: 136Nm

Screw MC6S 20x90 12.9 untreated ISO4762

Article no: 610556

Position88

Aantal in tekening12

Screw MC6S 20x90 12.9 untreated ISO4762

Article no: 610556

Used until 2013-10

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

Position59

Aantal in tekening4

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position54

Aantal in tekening3

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

Position58

Aantal in tekening2

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Position65

Aantal in tekening6

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Part of quick hitch

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Position66

Aantal in tekening1

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Part of quick hitch

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position43

Aantal in tekening2

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

QTY: 7 for ECHF

Seal washer GBR06 3/8"

Article no: 710703

Position48

Aantal in tekening5

Seal washer GBR06 3/8"

Article no: 710703

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

Position60

Aantal in tekening1

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

Adapter 236-06-06

Article no: 710131

Position49

Aantal in tekening3

Adapter 236-06-06

Article no: 710131

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

Position68

Aantal in tekening6

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

Connection block under ECHF V3

Article no: 1028391

Position61

Aantal in tekening1

Connection block under ECHF V3

Article no: 1028391

Guide with spring pin from swivel

Plate break support - EC226/EC326, EC233/EC333

Article no: 1023292

Position71

Aantal in tekening1

Plate break support - EC226/EC326, EC233/EC333

Article no: 1023292

Shim break support - EC226, EC233 - 0,3mm

Article no: 1023447

Position70

Aantal in tekening1

Shim break support - EC226, EC233 - 0,3mm

Article no: 1023447

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position52

Aantal in tekening2

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

QTY: 5 for ECHF

Protection sensor -ePS, SVAB MACS - EC226

Article no: 1016554

Position95

Aantal in tekening1

Protection sensor -ePS, SVAB MACS - EC226

Article no: 1016554

(Also for ePS until 2020-07)

Attachment angle sensor EC219,EC226-5V/6CH-swivel

Article no: 1029973

Position77

Aantal in tekening1

Attachment angle sensor EC219,EC226-5V/6CH-swivel

Article no: 1029973

Bushing WB802 45/50x50

Article no: 630102

Position3

Aantal in tekening1

Bushing WB802 45/50x50

Article no: 630102

Screw MC6S 14x90 12.9 ZFSHL ISO4762

Article no: 6000158

Position16

Aantal in tekening8

Screw MC6S 14x90 12.9 ZFSHL ISO4762

Article no: 6000158

Torque: 217Nm

O-ring 242x5 NBR 90 shore EC226 worm wheel / EC209 QH

Article no: 7001663

Position5

Aantal in tekening1

O-ring 242x5 NBR 90 shore EC226 worm wheel / EC209 QH

Article no: 7001663

Bushing WB802 85/90x40

Article no: 630319

Position2

Aantal in tekening1

Bushing WB802 85/90x40

Article no: 630319
