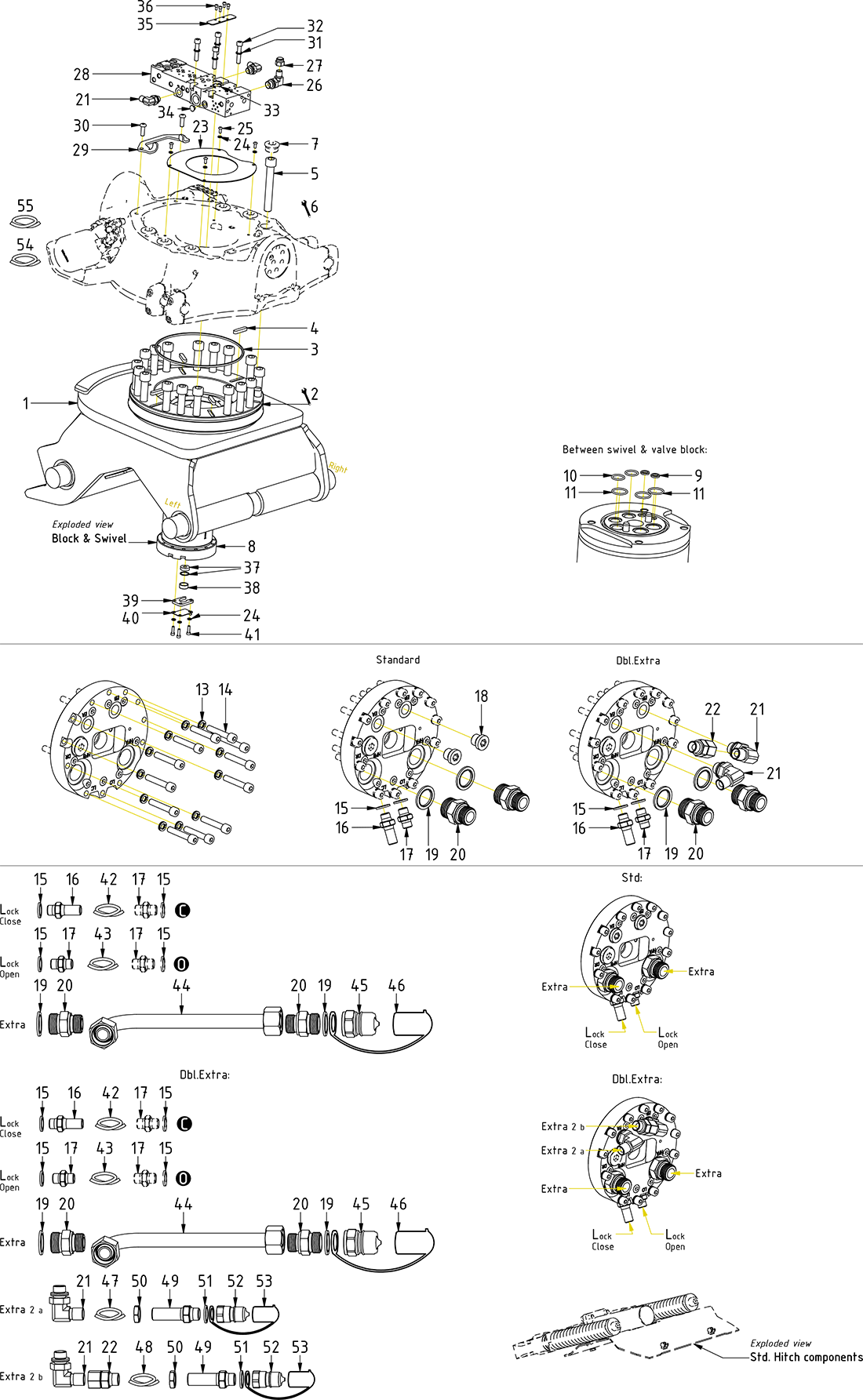

QSM CW30

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Cover Swivel EC226/326 QSM

Article no: 1052680

Position23

Aantal in tekening1

Cover Swivel EC226/326 QSM

Article no: 1052680

Hose

Article no: 7000957

Position55

Aantal in tekening1

Hose

Article no: 7000957

O-ring 249,3x5,7 NBR 70 shore Quick hitch EC214

Article no: 712424

Position3

Aantal in tekening1

O-ring 249,3x5,7 NBR 70 shore Quick hitch EC214

Article no: 712424

Quick hitch CW30 0° EC226 QSM

Article no: 1073590

Position1

Aantal in tekening1

Quick hitch CW30 0° EC226 QSM

Article no: 1073590

Swivel stop QSM EC219-EC226

Article no: 1045935

Position29

Aantal in tekening1

Swivel stop QSM EC219-EC226

Article no: 1045935

Hose

Article no: 7000958

Position54

Aantal in tekening1

Hose

Article no: 7000958

Adapter 830-08-08

Article no: 710148

Position57

Aantal in tekening1

Adapter 830-08-08

Article no: 710148

Drain

Swivel 7-channel QSM with connection block QS80/CW30/40

Article no: 1072872

Position8

Aantal in tekening1

Swivel 7-channel QSM with connection block QS80/CW30/40

Article no: 1072872

O-ring 7,66x1,68 square NBR 70 shore NG4

Article no: 7000579

Position9

Aantal in tekening2

O-ring 7,66x1,68 square NBR 70 shore NG4

Article no: 7000579

O-ring 14x1,78 NBR 70 shore

Article no: 710975

Position10

Aantal in tekening2

O-ring 14x1,78 NBR 70 shore

Article no: 710975

O-ring 17,17x1,78 NBR 70 shore

Article no: 710977

Position11

Aantal in tekening3

O-ring 17,17x1,78 NBR 70 shore

Article no: 710977

Screw MC6S 8x45 12.9 Geomet ISO4762

Article no: 6000399

Position14

Aantal in tekening12

Screw MC6S 8x45 12.9 Geomet ISO4762

Article no: 6000399

Screw K6S 10x30H 10.9 FZB ISO7380

Article no: 6000193

Position30

Aantal in tekening2

Screw K6S 10x30H 10.9 FZB ISO7380

Article no: 6000193

Loxeal 83-52

Valve block QSM-steel

Article no: 1049297

Position28

Aantal in tekening1

Valve block QSM-steel

Article no: 1049297

Protective cover 0301550600

Article no: 711626

Position27

Aantal in tekening1

Protective cover 0301550600

Article no: 711626

Adapter - cutting ring M30x2 - G3/4

Article no: 7001855

Position20

Aantal in tekening4

Adapter - cutting ring M30x2 - G3/4

Article no: 7001855

Screw MC6S 10x55 12.9 ZFSHL ISO4762

Article no: 612022

Position32

Aantal in tekening4

Screw MC6S 10x55 12.9 ZFSHL ISO4762

Article no: 612022

Torque: 79Nm Tighten in cross pattern

Plastic plug KS 15 G 1/4"

Article no: 7001983

Position34

Aantal in tekening1

Plastic plug KS 15 G 1/4"

Article no: 7001983

(Incl. with valve block)

Cover plate Slip ring QSM

Article no: 1050384

Position35

Aantal in tekening1

Cover plate Slip ring QSM

Article no: 1050384

Rubber buffer Ø25,5/10 L7,5 Slip ring QSM

Article no: 1046691

Position37

Aantal in tekening1

Rubber buffer Ø25,5/10 L7,5 Slip ring QSM

Article no: 1046691

Use the outer ring. Washer down

Spacer ring-Slip ring QSM

Article no: 1046692

Position38

Aantal in tekening1

Spacer ring-Slip ring QSM

Article no: 1046692

Plate Slip ring QSM

Article no: 1046689

Position39

Aantal in tekening1

Plate Slip ring QSM

Article no: 1046689

Plate Steering cable Slip ring QSM

Article no: 1046694

Position40

Aantal in tekening1

Plate Steering cable Slip ring QSM

Article no: 1046694

Pipe extra QS80 QSM/CW30,40 QSM

Article no: 1072343

Position44

Aantal in tekening2

Pipe extra QS80 QSM/CW30,40 QSM

Article no: 1072343

Screw K6S 6x14 10.9 FZB ISO7380

Article no: 6000242

Position25

Aantal in tekening4

Screw K6S 6x14 10.9 FZB ISO7380

Article no: 6000242

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

Position7

Aantal in tekening6

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

Part of rotator frame

Quick coupling 1/2" male 5020

Article no: 790115

Position62

Aantal in tekening1

Quick coupling 1/2" male 5020

Article no: 790115

Drain

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Position4

Aantal in tekening6

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Adapter 401-06-08 90°

Article no: 710157

Position26

Aantal in tekening1

Adapter 401-06-08 90°

Article no: 710157

Assemble before valve block

Screw MC6S 6x20 8.8 FZB ISO4762

Article no: 610310

Position41

Aantal in tekening3

Screw MC6S 6x20 8.8 FZB ISO4762

Article no: 610310

Dust protection 1/2" male 5026

Article no: 790121

Position63

Aantal in tekening1

Dust protection 1/2" male 5026

Article no: 790121

Drain

Dust protection 3/8" male 3826

Article no: 790120

Position53

Aantal in tekening2

Dust protection 3/8" male 3826

Article no: 790120

Adapter bulkhead 1260-04-04

Article no: 710240

Position16

Aantal in tekening1

Adapter bulkhead 1260-04-04

Article no: 710240

Quick coupling 3/4" male 7520

Article no: 790193

Position45

Aantal in tekening2

Quick coupling 3/4" male 7520

Article no: 790193

Dust protection 3/4" Coupling-male 7526

Article no: 790195

Position46

Aantal in tekening2

Dust protection 3/4" Coupling-male 7526

Article no: 790195

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position24

Aantal in tekening7

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

Position36

Aantal in tekening4

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

Adapter 703-06-06

Article no: 712221

Position22

Aantal in tekening1

Adapter 703-06-06

Article no: 712221

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position31

Aantal in tekening4

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position17

Aantal in tekening3

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Adapter bulkhead extended 1260-08-45

Article no: 710263

Position61

Aantal in tekening1

Adapter bulkhead extended 1260-08-45

Article no: 710263

Drain

Banjo bolt 4451-08

Article no: 710274

Position58

Aantal in tekening1

Banjo bolt 4451-08

Article no: 710274

Drain

Seal washer GBR08 1/2"

Article no: 710704

Position56

Aantal in tekening3

Seal washer GBR08 1/2"

Article no: 710704

Drain. Remove plug fr. connectionbl.

Adapter bulkhead extended 1260-06-43

Article no: 710262

Position49

Aantal in tekening2

Adapter bulkhead extended 1260-06-43

Article no: 710262

Seal washer GBR12 3/4"

Article no: 710706

Position19

Aantal in tekening4

Seal washer GBR12 3/4"

Article no: 710706

Plug VSTIR38ED 3/8"

Article no: 711504

Position18

Aantal in tekening2

Plug VSTIR38ED 3/8"

Article no: 711504

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position13

Aantal in tekening12

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

O-ring 21,95x1,78 NBR 70 shore

Article no: 710983

Position33

Aantal in tekening2

O-ring 21,95x1,78 NBR 70 shore

Article no: 710983

(Incl. with valve block)

Adapter 401-06-06 90°

Article no: 710152

Position21

Aantal in tekening4

Adapter 401-06-06 90°

Article no: 710152

Assemble before valve block

Screw MC6S 20x140 12.9 untreated ISO4762

Article no: 610561

Position5

Aantal in tekening18

Screw MC6S 20x140 12.9 untreated ISO4762

Article no: 610561

Torque: 649Nm

Nut bulkhead adapter 1270-06

Article no: 710252

Position50

Aantal in tekening2

Nut bulkhead adapter 1270-06

Article no: 710252

Quick coupling 3/8" male 3820

Article no: 790113

Position52

Aantal in tekening2

Quick coupling 3/8" male 3820

Article no: 790113

Seal washer GBR06 3/8"

Article no: 710703

Position51

Aantal in tekening2

Seal washer GBR06 3/8"

Article no: 710703

Seal washer GBR04 1/4"

Article no: 710702

Position15

Aantal in tekening4

Seal washer GBR04 1/4"

Article no: 710702
