ss9SQ 'ECHF'

Pos

Artikel

Extra Info

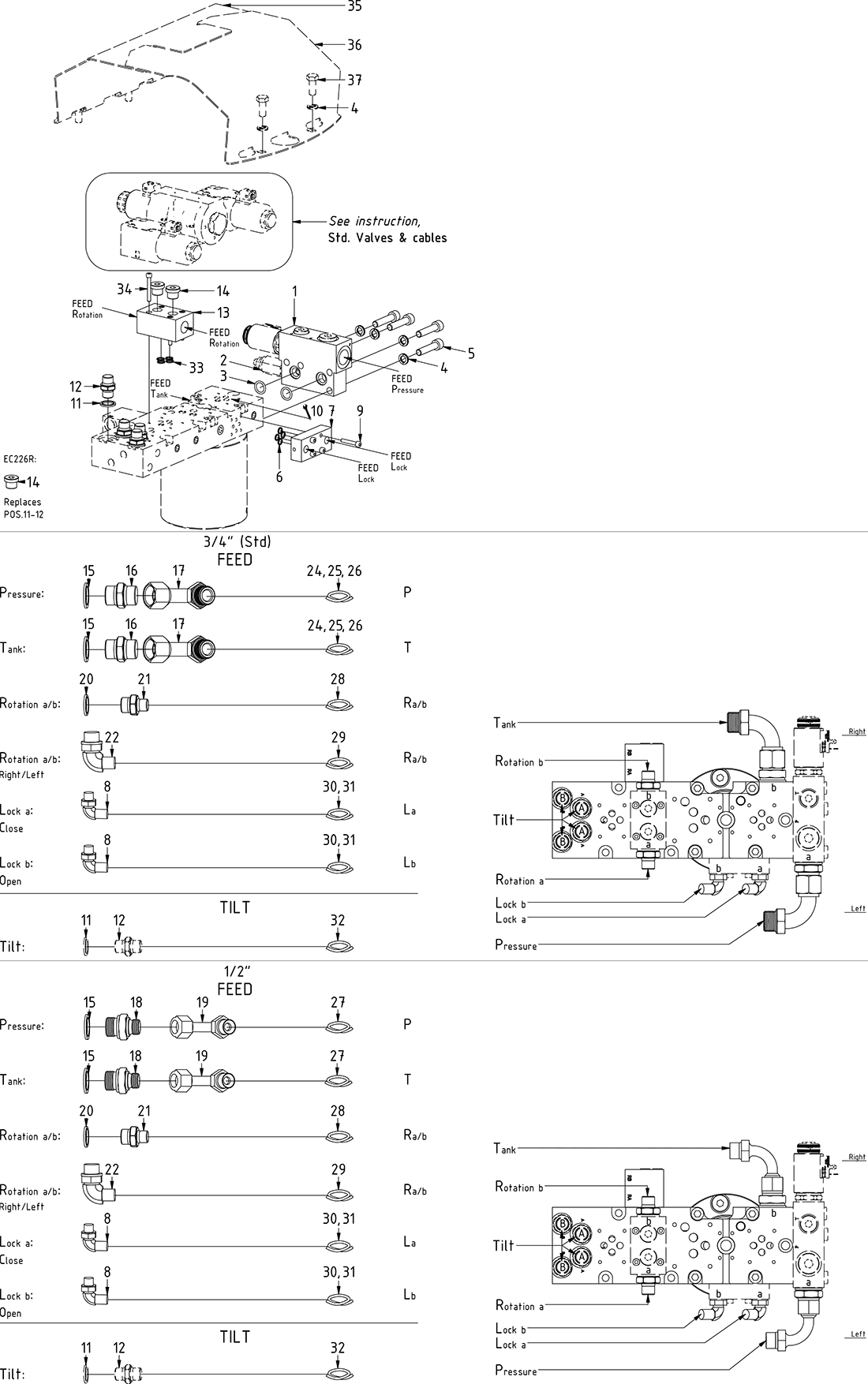

Aantal in tekening

Prijs (excl. BTW)

Adapter 135-08-12

Article no: 710109

Position18

Aantal in tekening2

Adapter 135-08-12

Article no: 710109

Hose

Article no: 7000065

Position26

Aantal in tekening1

Hose

Article no: 7000065

Feed Right: Mount on left side Feed Left: Mount on right side

Hose Tilt Long - EC226 - ECHF/QSM EC219W/EC226W

Article no: 7000031

Position32

Aantal in tekening4

Hose Tilt Long - EC226 - ECHF/QSM EC219W/EC226W

Article no: 7000031

Adapter 401-04-04 90°

Article no: 710151

Position8

Aantal in tekening2

Adapter 401-04-04 90°

Article no: 710151

Connection block 2x 1/2" / 2x 3/8" NG6

Article no: 405670

Position13

Aantal in tekening1

Connection block 2x 1/2" / 2x 3/8" NG6

Article no: 405670

Adapter 488-08-08 90°

Article no: 712209

Position19

Aantal in tekening2

Adapter 488-08-08 90°

Article no: 712209

Hose feed - EC226 - valve block ECHF-S1,S2,QS70 Top part

Article no: 7000063

Position25

Aantal in tekening2

Hose feed - EC226 - valve block ECHF-S1,S2,QS70 Top part

Article no: 7000063

QTY: 1 for Feed Right/Left

Valve-Double pressure relief EC206,209&ECHF

Article no: 730287

Position2

Aantal in tekening1

Valve-Double pressure relief EC206,209&ECHF

Article no: 730287

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position9

Aantal in tekening4

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

Adapter 136-06-06

Article no: 710106

Position12

Aantal in tekening4

Adapter 136-06-06

Article no: 710106

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position34

Aantal in tekening4

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Torque: 9,7Nm

Adapter 488-12-12 90°

Article no: 7000059

Position17

Aantal in tekening2

Adapter 488-12-12 90°

Article no: 7000059

Hose feed - EC226 - rotation ECHF

Article no: 7000050

Position28

Aantal in tekening2

Hose feed - EC226 - rotation ECHF

Article no: 7000050

QTY: 1 for Rot. Right/Left

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

Position37

Aantal in tekening4

Screw M6S 10x25 8.8 FZB ISO4017

Article no: 610142

Connection block 2x 1/4" NG4

Article no: 1009586

Position7

Aantal in tekening1

Connection block 2x 1/4" NG4

Article no: 1009586

Mount before adapters and feed hoses

Connection block P ss9 ECHF/QSM 24V

Article no: 1027707

Position1

Aantal in tekening1

Connection block P ss9 ECHF/QSM 24V

Article no: 1027707

(Dump & POS.2 included)

Hose

Article no: 7000032

Position31

Aantal in tekening1

Hose

Article no: 7000032

QTY: 2 for Lock Left

Screw MC6S 10x45 12.9 untreated ISO4762

Article no: 610589

Position5

Aantal in tekening4

Screw MC6S 10x45 12.9 untreated ISO4762

Article no: 610589

Adapter 401-06-08 90°

Article no: 710157

Position22

Aantal in tekening1

Adapter 401-06-08 90°

Article no: 710157

Replaces POS.20-21 for Right/Left

Hose

Article no: 7000062

Position29

Aantal in tekening1

Hose

Article no: 7000062

Replaces "a" for Rot. Left Replaces "b" for Rot. Right

Hose feed - EC226 - valve block ECHF UNI Top part

Article no: 7000030

Position24

Aantal in tekening2

Hose feed - EC226 - valve block ECHF UNI Top part

Article no: 7000030

Hose

Article no: 7000051

Position30

Aantal in tekening1

Hose

Article no: 7000051

QTY: 2 for Lock Right

Adapter 135-06-08

Article no: 710122

Position21

Aantal in tekening2

Adapter 135-06-08

Article no: 710122

Hose

Article no: 742621

Position27

Aantal in tekening2

Hose

Article no: 742621

O-ring 15,54 x 2,62 NBR 70 shore

Article no: 712423

Position3

Aantal in tekening2

O-ring 15,54 x 2,62 NBR 70 shore

Article no: 712423

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position6

Aantal in tekening4

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Protective cover valve block EC226 ECHF/QSM - lip

Article no: 1031185

Position35

Aantal in tekening1

Protective cover valve block EC226 ECHF/QSM - lip

Article no: 1031185

Seal washer GBR12 3/4"

Article no: 710706

Position15

Aantal in tekening2

Seal washer GBR12 3/4"

Article no: 710706

Adapter 136-12-12

Article no: 710126

Position16

Aantal in tekening2

Adapter 136-12-12

Article no: 710126

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position33

Aantal in tekening4

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Seal washer GBR08 1/2"

Article no: 710704

Position20

Aantal in tekening2

Seal washer GBR08 1/2"

Article no: 710704

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position4

Aantal in tekening8

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

QTY: 4 part of make up

Seal washer GBR06 3/8"

Article no: 710703

Position11

Aantal in tekening4

Seal washer GBR06 3/8"

Article no: 710703

Plug VSTIR38ED 3/8"

Article no: 711504

Position14

Aantal in tekening2

Plug VSTIR38ED 3/8"

Article no: 711504

QTY: 6 for EC266R

Protective cover valve block EC226 ECHF/QSM

Article no: 1031186

Position36

Aantal in tekening1

Protective cover valve block EC226 ECHF/QSM

Article no: 1031186
