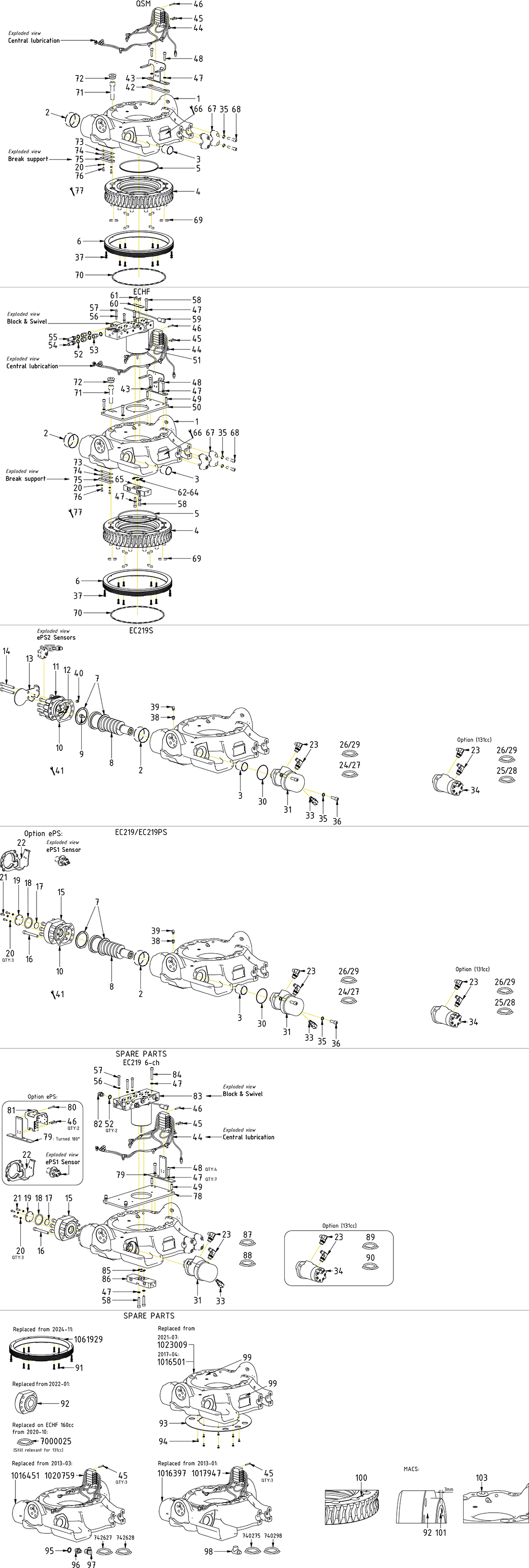

Main components

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Adapter bulkhead 1260-06-32

Article no: 710242

Position54

Aantal in tekening1

Adapter bulkhead 1260-06-32

Article no: 710242

Screw MC6S 12x90 12.9 ZFSHL ISO4762

Article no: 6000147

Position14

Aantal in tekening8

Screw MC6S 12x90 12.9 ZFSHL ISO4762

Article no: 6000147

Torque: 136Nm

Cover plate Slip ring ECHF V2

Article no: 1026200

Position60

Aantal in tekening1

Cover plate Slip ring ECHF V2

Article no: 1026200

Lubrication kit EC219 V3

Article no: 1021135

Position44

Aantal in tekening1

Lubrication kit EC219 V3

Article no: 1021135

Adapter 030090-06-06 90°

Article no: 710216

Position97

Aantal in tekening1

Adapter 030090-06-06 90°

Article no: 710216

Used until 2013-03

Cover End lock None ePS

Article no: 1041613

Position19

Aantal in tekening1

Cover End lock None ePS

Article no: 1041613

hose motor

Article no: 7000025

Position28

Aantal in tekening1

hose motor

Article no: 7000025

Screw TX45 8x30 10.9 FZB ISO7380

Article no: 612201

Position91

Aantal in tekening13

Screw TX45 8x30 10.9 FZB ISO7380

Article no: 612201

Torque: 34Nm. Used with 1061929

Hose

Article no: 7000789

Position25

Aantal in tekening1

Hose

Article no: 7000789

Part of quick hitch

Screw MC6S 6x20 A4 stainless ISO4762

Article no: 611513

Position21

Aantal in tekening3

Screw MC6S 6x20 A4 stainless ISO4762

Article no: 611513

Shim break support - EC209, EC214, EC219 - 0,3mm

Article no: 1055260

Position74

Aantal in tekening1

Shim break support - EC209, EC214, EC219 - 0,3mm

Article no: 1055260

Worm screw EC214 , EC219

Article no: 1016408

Position8

Aantal in tekening1

Worm screw EC214 , EC219

Article no: 1016408

Adapter bulkhead extended 1260-06-43

Article no: 710262

Position55

Aantal in tekening1

Adapter bulkhead extended 1260-06-43

Article no: 710262

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Position13

Aantal in tekening1

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Rotator frame 219 V5 EngconYellow complete

Article no: 1062295

Position1

Aantal in tekening1

Rotator frame 219 V5 EngconYellow complete

Article no: 1062295

(POS.2-3 incl.)

Hose

Article no: 7000724

Position26

Aantal in tekening1

Hose

Article no: 7000724

Part of quick hitch

Shim break support - EC209, EC214, EC219 - 0,1mm

Article no: 1055262

Position73

Aantal in tekening1

Shim break support - EC209, EC214, EC219 - 0,1mm

Article no: 1055262

Hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15

Article no: 720112

Position34

Aantal in tekening1

Hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15

Article no: 720112

Option

Extender 18mm R1/8" lubrication kit

Article no: 712216

Position38

Aantal in tekening1

Extender 18mm R1/8" lubrication kit

Article no: 712216

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Position36

Aantal in tekening2

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Torque: 136Nm

Valve block-swivel 5v & 6-ch Slip ring-DTM

Article no: 1030297

Position83

Aantal in tekening1

Valve block-swivel 5v & 6-ch Slip ring-DTM

Article no: 1030297

O-ring 225x5 NBR 90 shore EC219 worm wheel

Article no: 7001662

Position5

Aantal in tekening1

O-ring 225x5 NBR 90 shore EC219 worm wheel

Article no: 7001662

End lock EC209/EC214/EC219

Article no: 1016415

Position92

Aantal in tekening1

End lock EC209/EC214/EC219

Article no: 1016415

Replaced by POS.15 from 2022-01 MACS: Replaces 1028628 from 16-10

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position45

Aantal in tekening2

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Attachment central lubrication EC219-EC226

Article no: 1018052

Position79

Aantal in tekening1

Attachment central lubrication EC219-EC226

Article no: 1018052

Hose motor - EC219 - long - V3 Rotated motor

Article no: 742635

Position87

Aantal in tekening1

Hose motor - EC219 - long - V3 Rotated motor

Article no: 742635

Magnet Neodym35 8x5x3mm SVAB MACS

Article no: 6000047

Position100

Aantal in tekening1

100

Magnet Neodym35 8x5x3mm SVAB MACS

Article no: 6000047

Loctite 415. Harden 1 minute

Adapter DSVW-15 LR HFX banjo

Article no: 710510

Position98

Aantal in tekening1

Adapter DSVW-15 LR HFX banjo

Article no: 710510

Used until 2013-01

Attachment central lubrication & TM DC2 -ECHF/QSM

Article no: 1031517

Position43

Aantal in tekening1

Attachment central lubrication & TM DC2 -ECHF/QSM

Article no: 1031517

Pipe Plug RP M36x2 Din 908 FZB M8x1 SVAB MACS

Article no: 650411

Position103

Aantal in tekening1

103

Pipe Plug RP M36x2 Din 908 FZB M8x1 SVAB MACS

Article no: 650411

Hydraulic motor White 160cc

Article no: 1022290

Position31

Aantal in tekening1

Hydraulic motor White 160cc

Article no: 1022290

(POS.32-33 incl.)

Hose

Article no: 7001404

Position27

Aantal in tekening1

Hose

Article no: 7001404

Hose

Article no: 7000790

Position24

Aantal in tekening1

Hose

Article no: 7000790

Part of quick hitch

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position35

Aantal in tekening10

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

QTY: 8 part of top part

Valve plate -EC219/EC26/EC226

Article no: 1011515

Position78

Aantal in tekening1

Valve plate -EC219/EC26/EC226

Article no: 1011515

Seal R09-F 20x27.5x3.2

Article no: 1063616

Position12

Aantal in tekening1

Seal R09-F 20x27.5x3.2

Article no: 1063616

Hose motor - EC219/EC226 - ECHF short

Article no: 7000026

Position29

Aantal in tekening1

Hose motor - EC219/EC226 - ECHF short

Article no: 7000026

Hydraulic motor White 160cc

Article no: 7001806

Position32

Aantal in tekening1

Hydraulic motor White 160cc

Article no: 7001806

Wear washer EC219

Article no: 1016414

Position93

Aantal in tekening1

Wear washer EC219

Article no: 1016414

Used until 2017-04

Adapter 136-06-06

Article no: 710106

Position82

Aantal in tekening2

Adapter 136-06-06

Article no: 710106

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Position57

Aantal in tekening3

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position46

Aantal in tekening1

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Screw MC6S 12x100 12.9 ZFSHL ISO4762

Article no: 611514

Position16

Aantal in tekening8

Screw MC6S 12x100 12.9 ZFSHL ISO4762

Article no: 611514

Torque: 136Nm

Clamping half EC219/226/326 EngconYellow complete

Article no: 1016393

Position67

Aantal in tekening4

Clamping half EC219/226/326 EngconYellow complete

Article no: 1016393

Part of top part

Valve block-swivel 7-channel ECHF

Article no: 1027386

Position51

Aantal in tekening1

Valve block-swivel 7-channel ECHF

Article no: 1027386

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

Position61

Aantal in tekening4

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position80

Aantal in tekening1

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

Position94

Aantal in tekening8

Screw M6S 6x12 8.8 FZB ISO4017

Article no: 610108

Used until 2017-04

Inductive sensor M8 PNP NO 4mm - SVAB MACS

Article no: 1043698

Position101

Aantal in tekening1

101

Inductive sensor M8 PNP NO 4mm - SVAB MACS

Article no: 1043698

Distance 3mm. Nut torque: 3Nm

Bearing ring EC219 V2

Article no: 1077005

Position6

Aantal in tekening1

Bearing ring EC219 V2

Article no: 1077005

(Only compatible with 8x25)

Axial washer with ear EC209/214/219

Article no: 1079941

Position7

Aantal in tekening2

Axial washer with ear EC209/214/219

Article no: 1079941

Face grooves toward worm screw

Screw MC6S 10x60 12.9 untreated ISO4762

Article no: 610460

Position84

Aantal in tekening1

Screw MC6S 10x60 12.9 untreated ISO4762

Article no: 610460

Hose motor - EC219 - short - V3 Rotated motor

Article no: 742634

Position88

Aantal in tekening1

Hose motor - EC219 - short - V3 Rotated motor

Article no: 742634

Worm wheel EC219

Article no: 1016409

Position4

Aantal in tekening1

Worm wheel EC219

Article no: 1016409

Spacer-end lock EC209/EC214/EC219

Article no: 1065370

Position17

Aantal in tekening1

Spacer-end lock EC209/EC214/EC219

Article no: 1065370

Magnet Spacer Worm Screw

Article no: 1062693

Position9

Aantal in tekening1

Magnet Spacer Worm Screw

Article no: 1062693

Loxeal 83-52. Torque: 20Nm

Plate break support - EC209/214/219

Article no: 1055258

Position75

Aantal in tekening1

Plate break support - EC209/214/219

Article no: 1055258

Adapter 401-06-08 90°

Article no: 710157

Position23

Aantal in tekening2

Adapter 401-06-08 90°

Article no: 710157

End lock EC209S/EC214S/EC219S Cast

Article no: 1065789

Position11

Aantal in tekening1

End lock EC209S/EC214S/EC219S Cast

Article no: 1065789

(POS.12 incl.)

O-ring 27x5 NBR 70 shore End lock ePS

Article no: 7000485

Position18

Aantal in tekening1

O-ring 27x5 NBR 70 shore End lock ePS

Article no: 7000485

Relief valve HydraSpecma White 160/200cc fixed 200bar

Article no: 7001647

Position33

Aantal in tekening1

Relief valve HydraSpecma White 160/200cc fixed 200bar

Article no: 7001647

Torque: 77Nm. Assy. before motor

Lubrication nipple 1/8" 90°

Article no: 711409

Position39

Aantal in tekening1

Lubrication nipple 1/8" 90°

Article no: 711409

Adapter 135-06-08

Article no: 710122

Position96

Aantal in tekening1

Adapter 135-06-08

Article no: 710122

Used until 2013-03

Shim kit End lock - EC209/EC214/EC219

Article no: 1034434

Position10

Aantal in tekening1

Shim kit End lock - EC209/EC214/EC219

Article no: 1034434

Valve plate -ECHF-EC219, EC226

Article no: 1024824

Position50

Aantal in tekening1

Valve plate -ECHF-EC219, EC226

Article no: 1024824

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

Position30

Aantal in tekening1

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

Spacer central lubrication QSM EC214,EC219,EC226

Article no: 1047832

Position42

Aantal in tekening1

Spacer central lubrication QSM EC214,EC219,EC226

Article no: 1047832

Cylindrical pin CPK Ø10x35 m6

Article no: 1015672

Position49

Aantal in tekening2

Cylindrical pin CPK Ø10x35 m6

Article no: 1015672

Screw TX45 8x25 10,9 FZB

Article no: 1078840

Position37

Aantal in tekening12

Screw TX45 8x25 10,9 FZB

Article no: 1078840

Torque: 34Nm Tighten in cross pattern

Screw MC6S 10x40 12.9 ZFSHL ISO4762

Article no: 612020

Position48

Aantal in tekening4

Screw MC6S 10x40 12.9 ZFSHL ISO4762

Article no: 612020

QTY: 4 for ECHF. Torque: 79Nm

Slip ring-ECHF-DTM/ Plug

Article no: 1030298

Position59

Aantal in tekening1

Slip ring-ECHF-DTM/ Plug

Article no: 1030298

For QS. See "Slip rings"

Seal washer GBR08 1/2"

Article no: 710704

Position95

Aantal in tekening1

Seal washer GBR08 1/2"

Article no: 710704

Used until 2013-03

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Position69

Aantal in tekening6

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Part of quick hitch

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position20

Aantal in tekening2

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Adapter 236-06-06

Article no: 710131

Position53

Aantal in tekening3

Adapter 236-06-06

Article no: 710131

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

Position72

Aantal in tekening6

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

Connection block under ECHF V3

Article no: 1028391

Position65

Aantal in tekening1

Connection block under ECHF V3

Article no: 1028391

Guide with spring pin from swivel

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position56

Aantal in tekening3

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Position76

Aantal in tekening2

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position85

Aantal in tekening6

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Plug VSTIR18ED 1/8"

Article no: 711503

Position40

Aantal in tekening1

Plug VSTIR18ED 1/8"

Article no: 711503

QTY: 2 for EC219S

Screw MC6S 12x55 12.9 ZFSHL ISO4762

Article no: 6000155

Position68

Aantal in tekening8

Screw MC6S 12x55 12.9 ZFSHL ISO4762

Article no: 6000155

Part of top part. Torque: 136Nm

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position47

Aantal in tekening2

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

QTY: 7 for ECHF

Seal washer GBR06 3/8"

Article no: 710703

Position52

Aantal in tekening5

Seal washer GBR06 3/8"

Article no: 710703

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

Position64

Aantal in tekening1

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

Screw MC6S 20x90 12.9 untreated ISO4762

Article no: 610556

Position71

Aantal in tekening12

Screw MC6S 20x90 12.9 untreated ISO4762

Article no: 610556

Part of quick hitch. Torque: 649Nm

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

Position63

Aantal in tekening4

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position58

Aantal in tekening3

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

Position62

Aantal in tekening2

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Position70

Aantal in tekening1

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Part of quick hitch

Attachment angle sensor EC219,EC226-5V/6CH-swivel

Article no: 1029973

Position81

Aantal in tekening1

Attachment angle sensor EC219,EC226-5V/6CH-swivel

Article no: 1029973

End lock EC209/EC214/EC219 ePS

Article no: 1016557

Position15

Aantal in tekening1

End lock EC209/EC214/EC219 ePS

Article no: 1016557

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Position22

Aantal in tekening1

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

For ePS1

Bushing WB802 45/50x50

Article no: 630102

Position3

Aantal in tekening1

Bushing WB802 45/50x50

Article no: 630102

Bushing WB802 80/85x40

Article no: 630103

Position2

Aantal in tekening1

Bushing WB802 80/85x40

Article no: 630103
