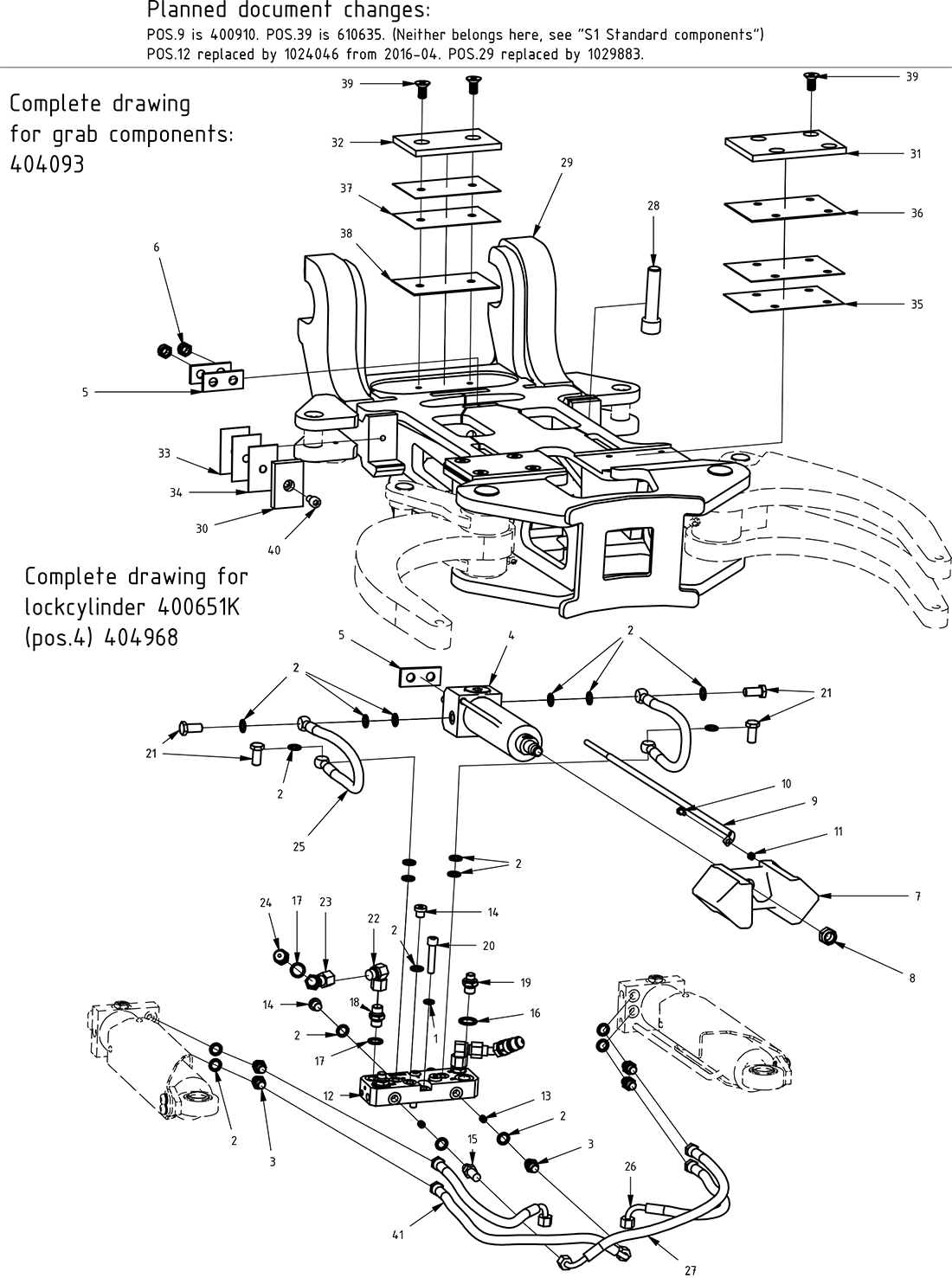

S1 GR20 '6-ch'

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Nut M6M M6 lock 8. FZB DIN985

Article no: 610921

Position11

Aantal in tekening1

Nut M6M M6 lock 8. FZB DIN985

Article no: 610921

Shim Quick hitch - S1 - supporting heel, 1mm [hook]

Article no: 400528

Position33

Aantal in tekening4

Shim Quick hitch - S1 - supporting heel, 1mm [hook]

Article no: 400528

Adapter 030090-06-06 90°

Article no: 710216

Position22

Aantal in tekening2

Adapter 030090-06-06 90°

Article no: 710216

704-06

Washer-Locking cylinder 20, 30

Article no: 400155

Position5

Aantal in tekening3

Washer-Locking cylinder 20, 30

Article no: 400155

Nut M6LM 6. FZB M12

Article no: 610924

Position6

Aantal in tekening2

Nut M6LM 6. FZB M12

Article no: 610924

Plug 1/8" BSPT

Article no: 711523

Position13

Aantal in tekening2

Plug 1/8" BSPT

Article no: 711523

Shim Quick hitch - S1 - supporting heel [hook]

Article no: 400511

Position30

Aantal in tekening2

Shim Quick hitch - S1 - supporting heel [hook]

Article no: 400511

Shim Quick hitch - S1 - supporting heel, 2mm [hook]

Article no: 400529

Position34

Aantal in tekening2

Shim Quick hitch - S1 - supporting heel, 2mm [hook]

Article no: 400529

Nut M6M M16 NYLOC 8. FZB (A2K) DIN 985 NV24

Article no: 610926

Position8

Aantal in tekening1

Nut M6M M16 NYLOC 8. FZB (A2K) DIN 985 NV24

Article no: 610926

Adapter 136-06-06

Article no: 710106

Position18

Aantal in tekening2

Adapter 136-06-06

Article no: 710106

Adapter bulkhead 1260-04-04

Article no: 710240

Position15

Aantal in tekening1

Adapter bulkhead 1260-04-04

Article no: 710240

Lock wedge S1 cast

Article no: 1015047

Position7

Aantal in tekening1

Lock wedge S1 cast

Article no: 1015047

Shim Quick hitch - S1, S2, S3, 27 - small, 1mm

Article no: 400532

Position37

Aantal in tekening2

Shim Quick hitch - S1, S2, S3, 27 - small, 1mm

Article no: 400532

Screw MC6S 10x20 12.9 untreated ISO4762

Article no: 610451

Position40

Aantal in tekening2

Screw MC6S 10x20 12.9 untreated ISO4762

Article no: 610451

Hose lock - S1, S2

Article no: 740235

Position25

Aantal in tekening2

Hose lock - S1, S2

Article no: 740235

Adapter 135-04-08

Article no: 710120

Position19

Aantal in tekening2

Adapter 135-04-08

Article no: 710120

Locking cylinder S1,18, 27

Article no: 400651K

Position4

Aantal in tekening1

Locking cylinder S1,18, 27

Article no: 400651K

Adapter 489-06-06

Article no: 710164

Position23

Aantal in tekening2

Adapter 489-06-06

Article no: 710164

489-06-06

Shim Quick hitch - S1, S2, S3, 27 - small, 2mm

Article no: 400533

Position38

Aantal in tekening1

Shim Quick hitch - S1, S2, S3, 27 - small, 2mm

Article no: 400533

Shim Quick hitch - S1, S2, S3, 27 - small

Article no: 400513

Position32

Aantal in tekening1

Shim Quick hitch - S1, S2, S3, 27 - small

Article no: 400513

Seal washer GBR08 1/2"

Article no: 710704

Position16

Aantal in tekening2

Seal washer GBR08 1/2"

Article no: 710704

Screw M6S 6x16 10.9 FZB

Article no: 610109

Position10

Aantal in tekening1

Screw M6S 6x16 10.9 FZB

Article no: 610109

Quick coupling 3/8" male 3820

Article no: 790113

Position24

Aantal in tekening2

Quick coupling 3/8" male 3820

Article no: 790113

Plug Din 908 1/4"

Article no: 711505

Position14

Aantal in tekening4

Plug Din 908 1/4"

Article no: 711505

Shim Quick hitch - S1, S2, S3, 27 - large, 2mm

Article no: 400531

Position36

Aantal in tekening2

Shim Quick hitch - S1, S2, S3, 27 - large, 2mm

Article no: 400531

Seal washer GBR04 1/4"

Article no: 710702

Position2

Aantal in tekening22

Seal washer GBR04 1/4"

Article no: 710702

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position3

Aantal in tekening5

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

138-04-29

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position1

Aantal in tekening2

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Seal washer GBR06 3/8"

Article no: 710703

Position17

Aantal in tekening4

Seal washer GBR06 3/8"

Article no: 710703

Banjo bolt 4451-04

Article no: 710271

Position21

Aantal in tekening4

Banjo bolt 4451-04

Article no: 710271

Screw MC6S 20x90 12.9 untreated ISO4762

Article no: 610556

Position28

Aantal in tekening12

Screw MC6S 20x90 12.9 untreated ISO4762

Article no: 610556

12.9 Untreated ISO 4762

Shim Quick hitch - S1, S2, S3, 27 - large, 1mm

Article no: 400530

Position35

Aantal in tekening4

Shim Quick hitch - S1, S2, S3, 27 - large, 1mm

Article no: 400530

Shim Quick hitch - S1, S2, S3, 27 - large

Article no: 400512

Position31

Aantal in tekening2

Shim Quick hitch - S1, S2, S3, 27 - large

Article no: 400512
