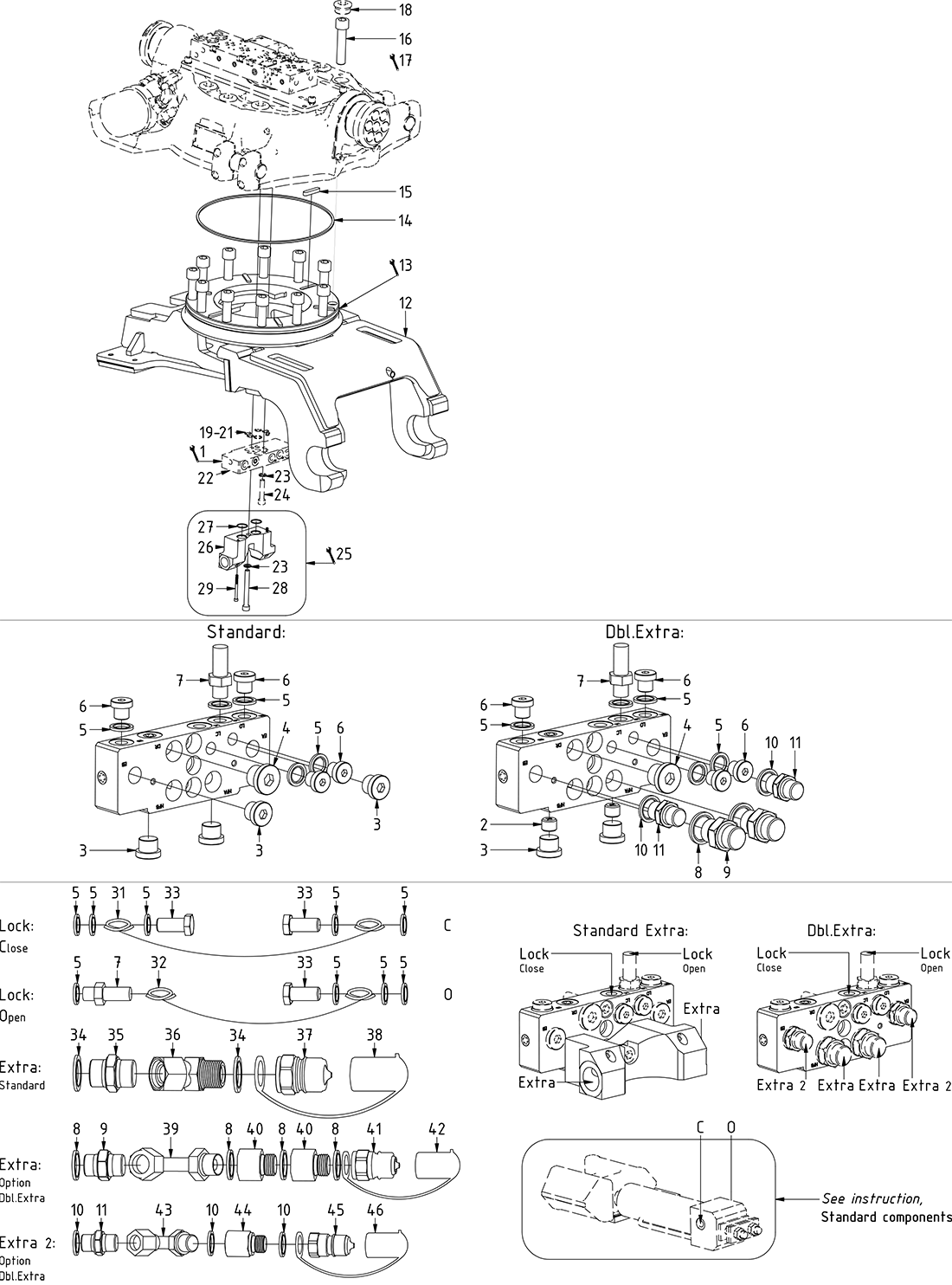

S1 'ECHF'

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Screw MC6S 10x90 12.9 ZFSHL ISO4762

Article no: 6000153

Position28

Aantal in tekening1

Screw MC6S 10x90 12.9 ZFSHL ISO4762

Article no: 6000153

Adapter 488-08-08 90°

Article no: 712209

Position39

Aantal in tekening2

Adapter 488-08-08 90°

Article no: 712209

Connection block extra HF 3/4 under ECHF S1

Article no: 1031024

Position26

Aantal in tekening1

Connection block extra HF 3/4 under ECHF S1

Article no: 1031024

Adapter 136-06-06

Article no: 710106

Position11

Aantal in tekening2

Adapter 136-06-06

Article no: 710106

Adapter bulkhead 1260-04-04

Article no: 710240

Position7

Aantal in tekening1

Adapter bulkhead 1260-04-04

Article no: 710240

Plug Din 908 3/8"

Article no: 7001657

Position3

Aantal in tekening4

Plug Din 908 3/8"

Article no: 7001657

Hose lock - S1 ECHF

Article no: 7000056

Position31

Aantal in tekening1

Hose lock - S1 ECHF

Article no: 7000056

Adapter 236-08-08

Article no: 710132

Position40

Aantal in tekening4

Adapter 236-08-08

Article no: 710132

Adapter 136-08-08

Article no: 710108

Position9

Aantal in tekening2

Adapter 136-08-08

Article no: 710108

Adapter 488-06-06 90°

Article no: 710165

Position43

Aantal in tekening2

Adapter 488-06-06 90°

Article no: 710165

Adapter 030045-12-12

Article no: 712217

Position36

Aantal in tekening2

Adapter 030045-12-12

Article no: 712217

Screw MC6S 5x60 12.9 untreated ISO4762

Article no: 610409

Position29

Aantal in tekening2

Screw MC6S 5x60 12.9 untreated ISO4762

Article no: 610409

Torque: 9,7Nm

Quick hitch S1 HD EC219

Article no: 1017555

Position12

Aantal in tekening1

Quick hitch S1 HD EC219

Article no: 1017555

Hose

Article no: 7000096

Position32

Aantal in tekening1

Hose

Article no: 7000096

Dust protection 1/2" male 5026

Article no: 790121

Position42

Aantal in tekening2

Dust protection 1/2" male 5026

Article no: 790121

Quick coupling 1/2" male 5020

Article no: 790115

Position41

Aantal in tekening2

Quick coupling 1/2" male 5020

Article no: 790115

Seal washer GBR12 3/4"

Article no: 710706

Position34

Aantal in tekening4

Seal washer GBR12 3/4"

Article no: 710706

Adapter 136-12-12

Article no: 710126

Position35

Aantal in tekening2

Adapter 136-12-12

Article no: 710126

Plug VSTIR34ED 3/4"

Article no: 711532

Position30

Aantal in tekening2

Plug VSTIR34ED 3/4"

Article no: 711532

To POS.26 for EC226 Without Extra

Seal washer GBR08 1/2"

Article no: 710704

Position8

Aantal in tekening8

Seal washer GBR08 1/2"

Article no: 710704

Banjo bolt 4451-04

Article no: 710271

Position33

Aantal in tekening3

Banjo bolt 4451-04

Article no: 710271

Screw MC6S 20x90 12.9 untreated ISO4762

Article no: 610556

Position16

Aantal in tekening12

Screw MC6S 20x90 12.9 untreated ISO4762

Article no: 610556

Torque: 649Nm

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

Position20

Aantal in tekening4

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

Part of rotator frame assembly

Pipe Plug DIN 906 1/4" 180152

Article no: 711508

Position2

Aantal in tekening4

Pipe Plug DIN 906 1/4" 180152

Article no: 711508

Loctite 5400

Plug VSTIR12ED 1/2"

Article no: 711500

Position4

Aantal in tekening1

Plug VSTIR12ED 1/2"

Article no: 711500

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

Position19

Aantal in tekening2

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

Part of rotator frame assembly

O-ring 20,35x1,78 NBR 70 shore

Article no: 710974

Position27

Aantal in tekening2

O-ring 20,35x1,78 NBR 70 shore

Article no: 710974

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Position15

Aantal in tekening6

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Position14

Aantal in tekening1

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position23

Aantal in tekening2

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Part of rotator frame assembly

Dust protection 3/8" male 3826

Article no: 790120

Position46

Aantal in tekening2

Dust protection 3/8" male 3826

Article no: 790120

Seal washer GBR06 3/8"

Article no: 710703

Position10

Aantal in tekening6

Seal washer GBR06 3/8"

Article no: 710703

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

Position21

Aantal in tekening1

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

Part of rotator frame assembly

Quick coupling 3/8" male 3820

Article no: 790113

Position45

Aantal in tekening2

Quick coupling 3/8" male 3820

Article no: 790113

Adapter 236-06-06

Article no: 710131

Position44

Aantal in tekening2

Adapter 236-06-06

Article no: 710131

Plug Din 908 1/4"

Article no: 711505

Position6

Aantal in tekening4

Plug Din 908 1/4"

Article no: 711505

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

Position18

Aantal in tekening6

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

Part of rotator frame assembly

Connection block under ECHF V3

Article no: 1028391

Position22

Aantal in tekening1

Connection block under ECHF V3

Article no: 1028391

Part of rotator frame assembly

Seal washer GBR04 1/4"

Article no: 710702

Position5

Aantal in tekening14

Seal washer GBR04 1/4"

Article no: 710702

Dust protection 3/4" Coupling-male 7526

Article no: 790195

Position38

Aantal in tekening2

Dust protection 3/4" Coupling-male 7526

Article no: 790195

Quick coupling 3/4" male 7520

Article no: 790193

Position37

Aantal in tekening2

Quick coupling 3/4" male 7520

Article no: 790193
