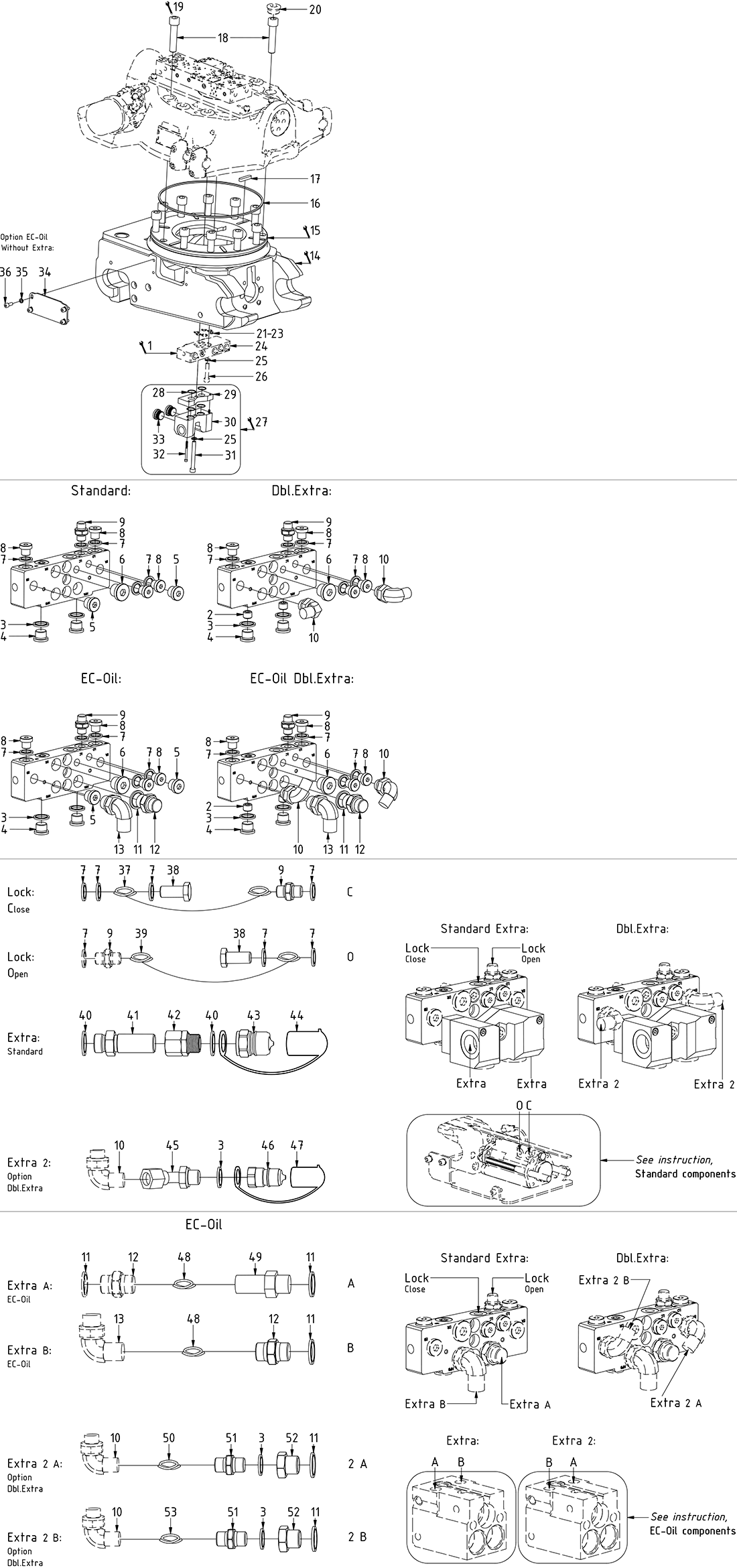

QS60 'ECHF'

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Hose extra - EC226 - QS70 HECO7 short

Article no: 742350

Position48

Aantal in tekening2

Hose extra - EC226 - QS70 HECO7 short

Article no: 742350

Adapter 401-08-08 90°

Article no: 710156

Position13

Aantal in tekening1

Adapter 401-08-08 90°

Article no: 710156

Screw MC6S 10x90 12.9 ZFSHL ISO4762

Article no: 6000153

Position31

Aantal in tekening1

Screw MC6S 10x90 12.9 ZFSHL ISO4762

Article no: 6000153

Adapter 136-06-06

Article no: 710106

Position51

Aantal in tekening2

Adapter 136-06-06

Article no: 710106

Plug Din 908 3/8"

Article no: 7001657

Position4

Aantal in tekening2

Plug Din 908 3/8"

Article no: 7001657

Adapter bulkhead extended 1260-12-57

Article no: 712227

Position41

Aantal in tekening2

Adapter bulkhead extended 1260-12-57

Article no: 712227

Adapter bulkhead 1260-08-08

Article no: 710244

Position49

Aantal in tekening1

Adapter bulkhead 1260-08-08

Article no: 710244

Adapter 234-08-06

Article no: 710233

Position52

Aantal in tekening2

Adapter 234-08-06

Article no: 710233

Cover plate Side-QS45-QS60

Article no: 1025118

Position34

Aantal in tekening2

Cover plate Side-QS45-QS60

Article no: 1025118

Adapter 136-08-08

Article no: 710108

Position12

Aantal in tekening2

Adapter 136-08-08

Article no: 710108

Adapter 489-06-06

Article no: 710164

Position45

Aantal in tekening2

Adapter 489-06-06

Article no: 710164

Hose

Article no: 742802

Position39

Aantal in tekening1

Hose

Article no: 742802

Screw MC6S 5x60 12.9 untreated ISO4762

Article no: 610409

Position32

Aantal in tekening2

Screw MC6S 5x60 12.9 untreated ISO4762

Article no: 610409

Torque: 9,7Nm

Hose

Article no: 7000224

Position50

Aantal in tekening1

Hose

Article no: 7000224

Hose

Article no: 7000223

Position53

Aantal in tekening1

Hose

Article no: 7000223

Hose

Article no: 742801

Position37

Aantal in tekening1

Hose

Article no: 742801

Seal washer GBR12 3/4"

Article no: 710706

Position40

Aantal in tekening4

Seal washer GBR12 3/4"

Article no: 710706

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position9

Aantal in tekening2

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Position36

Aantal in tekening8

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Plug VSTIR34ED 3/4"

Article no: 711532

Position33

Aantal in tekening2

Plug VSTIR34ED 3/4"

Article no: 711532

QTY: 4 for EC219 Without Extra

Connection block extra HF 3/4" under ECHF V2

Article no: 1031934

Position30

Aantal in tekening1

Connection block extra HF 3/4" under ECHF V2

Article no: 1031934

Adapter 703-12-12

Article no: 710218

Position42

Aantal in tekening2

Adapter 703-12-12

Article no: 710218

Seal washer GBR08 1/2"

Article no: 710704

Position11

Aantal in tekening3

Seal washer GBR08 1/2"

Article no: 710704

QTY: 2 for EC-Oil Dbl.Extra

Banjo bolt 4451-04

Article no: 710271

Position38

Aantal in tekening2

Banjo bolt 4451-04

Article no: 710271

Screw MC6S 20x90 12.9 untreated ISO4762

Article no: 610556

Position18

Aantal in tekening12

Screw MC6S 20x90 12.9 untreated ISO4762

Article no: 610556

Torque: 649Nm

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

Position22

Aantal in tekening4

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

Part of rotator frame assembly

Pipe Plug DIN 906 1/4" 180152

Article no: 711508

Position2

Aantal in tekening2

Pipe Plug DIN 906 1/4" 180152

Article no: 711508

Loctite 5400

Plug VSTIR12ED 1/2"

Article no: 711500

Position6

Aantal in tekening1

Plug VSTIR12ED 1/2"

Article no: 711500

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position26

Aantal in tekening1

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Part of rotator frame assembly QTY: 2 for EC-Oil & Without Extra

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

Position21

Aantal in tekening2

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

Part of rotator frame assembly

O-ring 20,35x1,78 NBR 70 shore

Article no: 710974

Position28

Aantal in tekening4

O-ring 20,35x1,78 NBR 70 shore

Article no: 710974

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Position17

Aantal in tekening6

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Adapter 401-06-06 90°

Article no: 710152

Position10

Aantal in tekening2

Adapter 401-06-06 90°

Article no: 710152

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Position16

Aantal in tekening1

O-ring 319,3x5,7 - Quick hitch EC10/EC219/EC226

Article no: 710908

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position25

Aantal in tekening2

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Part of rotator frame assembly

Dust protection 3/8" male 3826

Article no: 790120

Position47

Aantal in tekening2

Dust protection 3/8" male 3826

Article no: 790120

Seal washer GBR06 3/8"

Article no: 710703

Position3

Aantal in tekening2

Seal washer GBR06 3/8"

Article no: 710703

QTY: 4 for Dbl.Extra

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

Position23

Aantal in tekening1

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

Part of rotator frame assembly

Plug VSTIR38ED 3/8"

Article no: 711504

Position5

Aantal in tekening2

Plug VSTIR38ED 3/8"

Article no: 711504

QTY: 2 for Dbl.Extra

Quick coupling 3/8" male 3820

Article no: 790113

Position46

Aantal in tekening2

Quick coupling 3/8" male 3820

Article no: 790113

Shim-extra HF under ECHF-16mm

Article no: 1032834

Position29

Aantal in tekening1

Shim-extra HF under ECHF-16mm

Article no: 1032834

Plug Din 908 1/4"

Article no: 711505

Position8

Aantal in tekening4

Plug Din 908 1/4"

Article no: 711505

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

Position20

Aantal in tekening6

Plug-RP M36x2 DIN 908 FZB

Article no: 650408

Part of rotator frame assembly

Connection block under ECHF V3

Article no: 1028391

Position24

Aantal in tekening1

Connection block under ECHF V3

Article no: 1028391

Part of rotator frame assembly

Seal washer GBR04 1/4"

Article no: 710702

Position7

Aantal in tekening11

Seal washer GBR04 1/4"

Article no: 710702

Dust protection 3/4" Coupling-male 7526

Article no: 790195

Position44

Aantal in tekening2

Dust protection 3/4" Coupling-male 7526

Article no: 790195

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position35

Aantal in tekening8

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Quick coupling 3/4" male 7520

Article no: 790193

Position43

Aantal in tekening2

Quick coupling 3/4" male 7520

Article no: 790193
