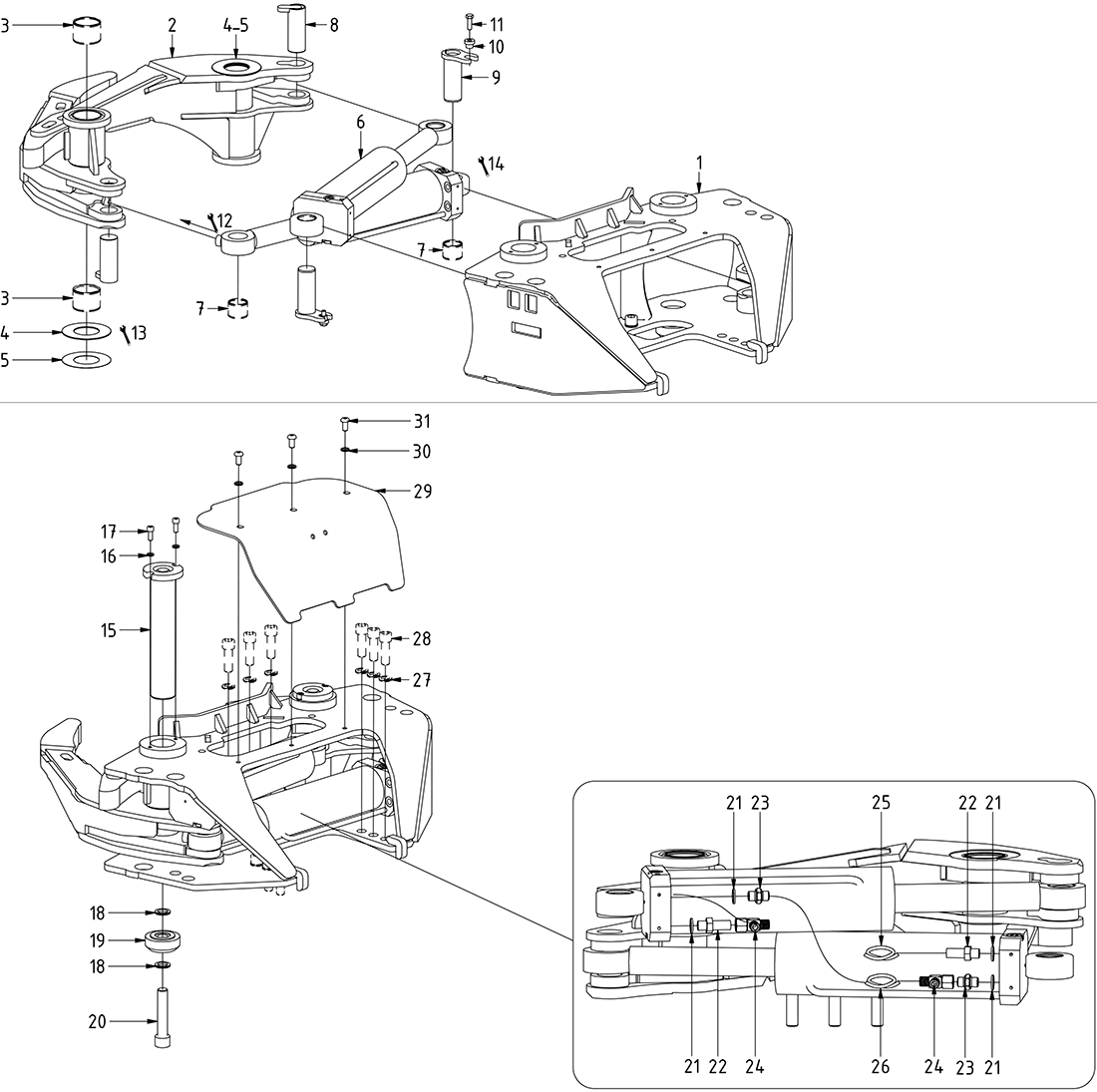

GR20R2 'Railroad grab'

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Grab arm Grab20R2-Rail

Article no: 1033765

Position2

Aantal in tekening2

Grab arm Grab20R2-Rail

Article no: 1033765

(POS.3 included)

Hose

Article no: 7000263

Position26

Aantal in tekening1

Hose

Article no: 7000263

Hose

Article no: 7000262

Position25

Aantal in tekening1

Hose

Article no: 7000262

Shim Grab arm - GR20 Rail - 98,8x51,8x2,0

Article no: 1033780

Position4

Aantal in tekening2

Shim Grab arm - GR20 Rail - 98,8x51,8x2,0

Article no: 1033780

Grab cylinder Grab20R2-Rail-90/70/40

Article no: 1032503

Position6

Aantal in tekening2

Grab cylinder Grab20R2-Rail-90/70/40

Article no: 1032503

See "Grab cylinders" (POS.7 included)

Axle Ø50 Grab20R2-Rail-M20 for washer

Article no: 1030543

Position15

Aantal in tekening2

Axle Ø50 Grab20R2-Rail-M20 for washer

Article no: 1030543

Washer for axle Ø50 Grab20 Rail M20

Article no: 1024257

Position19

Aantal in tekening2

Washer for axle Ø50 Grab20 Rail M20

Article no: 1024257

Adapter bulkhead 1260-04-04

Article no: 710240

Position22

Aantal in tekening2

Adapter bulkhead 1260-04-04

Article no: 710240

Frame Grab20-R2-Rail -Black

Article no: 1065061

Position1

Aantal in tekening1

Frame Grab20-R2-Rail -Black

Article no: 1065061

Screw MC6s 16x50 12.9 untreated ISO4762

Article no: 610316

Position28

Aantal in tekening9

Screw MC6s 16x50 12.9 untreated ISO4762

Article no: 610316

Torque: 333Nm (tighten during quick hitch assembly)

Adapter 855-04-99

Article no: 710280

Position24

Aantal in tekening1

Adapter 855-04-99

Article no: 710280

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position27

Aantal in tekening9

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Shim Grab arm - GR20 Rail - 98,8x51,8x0,5

Article no: 1034752

Position5

Aantal in tekening2

Shim Grab arm - GR20 Rail - 98,8x51,8x0,5

Article no: 1034752

Axle grab cylinder GR20R2-Rail - against frame

Article no: 1032520

Position9

Aantal in tekening2

Axle grab cylinder GR20R2-Rail - against frame

Article no: 1032520

Spacer M8 small

Article no: 400127

Position10

Aantal in tekening2

Spacer M8 small

Article no: 400127

Axle grab cylinder GR20R2-Rail - against Grab arm

Article no: 1033783

Position8

Aantal in tekening2

Axle grab cylinder GR20R2-Rail - against Grab arm

Article no: 1033783

Screw M6S 8x25 8.8 FZB ISO4017

Article no: 610124

Position11

Aantal in tekening2

Screw M6S 8x25 8.8 FZB ISO4017

Article no: 610124

Loctite 2700

Cover Grab20R2-Rail

Article no: 1030542

Position29

Aantal in tekening1

Cover Grab20R2-Rail

Article no: 1030542

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

Position18

Aantal in tekening4

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

Screw MC6S 20x100 12.9 ZFSHL ISO4762

Article no: 6000161

Position20

Aantal in tekening2

Screw MC6S 20x100 12.9 ZFSHL ISO4762

Article no: 6000161

Torque: 649Nm (tighten during quick hitch assembly)

Screw K6S 10x20H 10.9 FZB ISO7380

Article no: 611812

Position31

Aantal in tekening3

Screw K6S 10x20H 10.9 FZB ISO7380

Article no: 611812

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position16

Aantal in tekening4

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Seal washer GBR04 1/4"

Article no: 710702

Position21

Aantal in tekening4

Seal washer GBR04 1/4"

Article no: 710702

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position23

Aantal in tekening2

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position30

Aantal in tekening3

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Bushing WB802 35/39x30

Article no: 630315

Position7

Aantal in tekening4

Bushing WB802 35/39x30

Article no: 630315

Bushing WB802 50/55x40

Article no: 630316

Position3

Aantal in tekening4

Bushing WB802 50/55x40

Article no: 630316
