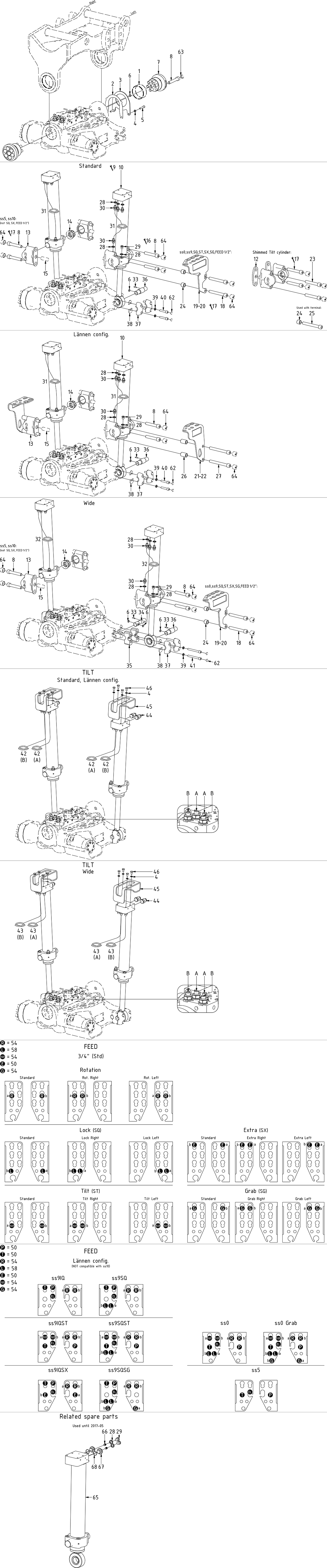

Std. Top components 'ECHF'

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Adapter bulkhead 1260-06-32

Article no: 710242

Position56

Aantal in tekening2

Adapter bulkhead 1260-06-32

Article no: 710242

Tilt axial washer EC214, EC219

Article no: 1016417

Position3

Aantal in tekening1

Tilt axial washer EC214, EC219

Article no: 1016417

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position46

Aantal in tekening8

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Hose tilt - EC214 - short wide

Article no: 7000166

Position32

Aantal in tekening2

Hose tilt - EC214 - short wide

Article no: 7000166

Hose tilt - EC214 - long wide

Article no: 7000167

Position43

Aantal in tekening4

Hose tilt - EC214 - long wide

Article no: 7000167

Screw MC6S 10x90 12.9 ZFSHL ISO4762

Article no: 6000153

Position41

Aantal in tekening8

Screw MC6S 10x90 12.9 ZFSHL ISO4762

Article no: 6000153

Torque: 79Nm

Nut bulkhead adapter 1270-08

Article no: 710254

Position53

Aantal in tekening2

Nut bulkhead adapter 1270-08

Article no: 710254

Screw cover M10 - clamping half EC206,209,214

Article no: 1021468

Position62

Aantal in tekening8

Screw cover M10 - clamping half EC206,209,214

Article no: 1021468

Part of make up

Screw cover M16

Article no: 611302

Position64

Aantal in tekening8

Screw cover M16

Article no: 611302

Part of make up

Screw cover M16 - cast yoke & tilt axle

Article no: 1004801

Position63

Aantal in tekening14

Screw cover M16 - cast yoke & tilt axle

Article no: 1004801

Part of make up

Hose bracket Lännen right

Article no: 1045619

Position22

Aantal in tekening1

Hose bracket Lännen right

Article no: 1045619

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

Position37

Aantal in tekening4

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

(POS.38 included)

Spacer tilt cylinder EC209W, EC214W

Article no: 1030069

Position35

Aantal in tekening4

Spacer tilt cylinder EC209W, EC214W

Article no: 1030069

Plug 1/8" BSPT

Article no: 711523

Position66

Aantal in tekening4

Plug 1/8" BSPT

Article no: 711523

Only for ss0, ss3 R-X, ss5, ss10

Hose Tilt Short - EC214

Article no: 743002

Position31

Aantal in tekening2

Hose Tilt Short - EC214

Article no: 743002

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Position44

Aantal in tekening4

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Torque: 45Nm

Nut bulkhead adapter 1270-06

Article no: 710252

Position57

Aantal in tekening2

Nut bulkhead adapter 1270-06

Article no: 710252

Tilt cylinder EC214W

Article no: 1030380

Position11

Aantal in tekening2

Tilt cylinder EC214W

Article no: 1030380

See "Tilt cylinders"

Adapter bulkhead 1260-04-04

Article no: 710240

Position60

Aantal in tekening2

Adapter bulkhead 1260-04-04

Article no: 710240

Spacer clamping half rubber EC206,209,214

Article no: 1016465

Position38

Aantal in tekening4

Spacer clamping half rubber EC206,209,214

Article no: 1016465

Shim yoke bracket - EC209-EC226 - 10mm (cast yoke)

Article no: 1007041

Position12

Aantal in tekening4

Shim yoke bracket - EC209-EC226 - 10mm (cast yoke)

Article no: 1007041

For option Shimmed Tilt cylinder

Screw MC6S 16x120 12.9 ZFSHL ISO4762

Article no: 6000162

Position18

Aantal in tekening4

Screw MC6S 16x120 12.9 ZFSHL ISO4762

Article no: 6000162

Torque: 333Nm

Spacer Hose Bracket 39mm

Article no: 1005911

Position26

Aantal in tekening8

Spacer Hose Bracket 39mm

Article no: 1005911

Spacer Hose Bracket 20mm

Article no: 1023777

Position24

Aantal in tekening4

Spacer Hose Bracket 20mm

Article no: 1023777

Hose bracket Lännen left

Article no: 1045618

Position21

Aantal in tekening1

Hose bracket Lännen left

Article no: 1045618

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position55

Aantal in tekening2

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Screw MC6S 16x140 12.9 ZFSHL ISO4762

Article no: 6000152

Position27

Aantal in tekening8

Screw MC6S 16x140 12.9 ZFSHL ISO4762

Article no: 6000152

Torque: 333Nm

Adapter bulkhead 1260-08-08

Article no: 710244

Position52

Aantal in tekening2

Adapter bulkhead 1260-08-08

Article no: 710244

Axle for spacer EC209W, EC214W

Article no: 1030070

Position34

Aantal in tekening2

Axle for spacer EC209W, EC214W

Article no: 1030070

O-ring 18x2 NBR 70 shore EC05 motor

Article no: 710955

Position68

Aantal in tekening4

O-ring 18x2 NBR 70 shore EC05 motor

Article no: 710955

Plug M20x1,5 tilt cylinder EC206, EC209 (overcenter 730269)

Article no: 1022297

Position67

Aantal in tekening4

Plug M20x1,5 tilt cylinder EC206, EC209 (overcenter 730269)

Article no: 1022297

Only for ss0, ss3 R-X, ss5, ss10 (POS.68 included)

Tilt cylinder EC214 for overcenter 730269

Article no: 1041414

Position10

Aantal in tekening2

Tilt cylinder EC214 for overcenter 730269

Article no: 1041414

See "Tilt cylinders"

Yoke Bracket tilt cylinder EC209, EC214 cast grease-free

Article no: 1023212

Position13

Aantal in tekening4

Yoke Bracket tilt cylinder EC209, EC214 cast grease-free

Article no: 1023212

(POS.14-15 included)

Tilt cylinder EC214

Article no: 1024186

Position65

Aantal in tekening2

Tilt cylinder EC214

Article no: 1024186

Replaced by POS.10 from 2017-05

Hose Tilt Long - EC214

Article no: 743001

Position42

Aantal in tekening4

Hose Tilt Long - EC214

Article no: 743001

Screw MC6S 16x130 12.9 ZFSHL ISO4762

Article no: 6000154

Position25

Aantal in tekening4

Screw MC6S 16x130 12.9 ZFSHL ISO4762

Article no: 6000154

Torque: 333Nm

Tilt axle EC214, EC219

Article no: 1016416

Position7

Aantal in tekening2

Tilt axle EC214, EC219

Article no: 1016416

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

Position51

Aantal in tekening2

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Position8

Aantal in tekening18

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Torque: 333Nm. QTY: 24-26 for Wide

Nut bulkhead adapter 1270-04

Article no: 710250

Position61

Aantal in tekening2

Nut bulkhead adapter 1270-04

Article no: 710250

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Position59

Aantal in tekening2

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Position45

Aantal in tekening2

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Shim tilt axle - EC214/EC219 0,5mm

Article no: 1016420

Position2

Aantal in tekening4

Shim tilt axle - EC214/EC219 0,5mm

Article no: 1016420

Use if required

Screw MC6S 16x100 12.9 ZFSHL ISO4762

Article no: 6000156

Position23

Aantal in tekening4

Screw MC6S 16x100 12.9 ZFSHL ISO4762

Article no: 6000156

Torque: 333Nm

Plug Din 908 1/4"

Article no: 711505

Position29

Aantal in tekening6

Plug Din 908 1/4"

Article no: 711505

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position4

Aantal in tekening10

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Cylindrical pin CPK Ø20x50 m6

Article no: 650211

Position15

Aantal in tekening4

Cylindrical pin CPK Ø20x50 m6

Article no: 650211

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

Position5

Aantal in tekening2

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

Seal washer GBR04 1/4"

Article no: 710702

Position28

Aantal in tekening10

Seal washer GBR04 1/4"

Article no: 710702

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position30

Aantal in tekening8

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Hose bracket 8 Hoses right V2

Article no: 1047138

Position20

Aantal in tekening1

Hose bracket 8 Hoses right V2

Article no: 1047138

Hose bracket 8 Hoses left V2

Article no: 1047137

Position19

Aantal in tekening1

Hose bracket 8 Hoses left V2

Article no: 1047137

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position39

Aantal in tekening8

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position40

Aantal in tekening8

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Torque: 79Nm

Bushing tilt EC214/EC219 WB802 85/90x35

Article no: 630321

Position1

Aantal in tekening2

Bushing tilt EC214/EC219 WB802 85/90x35

Article no: 630321

(Included in Top part)

Bushing BWG-F 35/45/55/5x30

Article no: 631003

Position14

Aantal in tekening4

Bushing BWG-F 35/45/55/5x30

Article no: 631003

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

Position6

Aantal in tekening4

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

QTY: 8 for option Wide

Slotted pin RPE5x20

Article no: 640413

Position33

Aantal in tekening2

Slotted pin RPE5x20

Article no: 640413

QTY: 4 for option Wide

Cylinder axle EC206, EC206B, EC209, EC209B, EC214

Article no: 1016458

Position36

Aantal in tekening2

Cylinder axle EC206, EC206B, EC209, EC209B, EC214

Article no: 1016458
