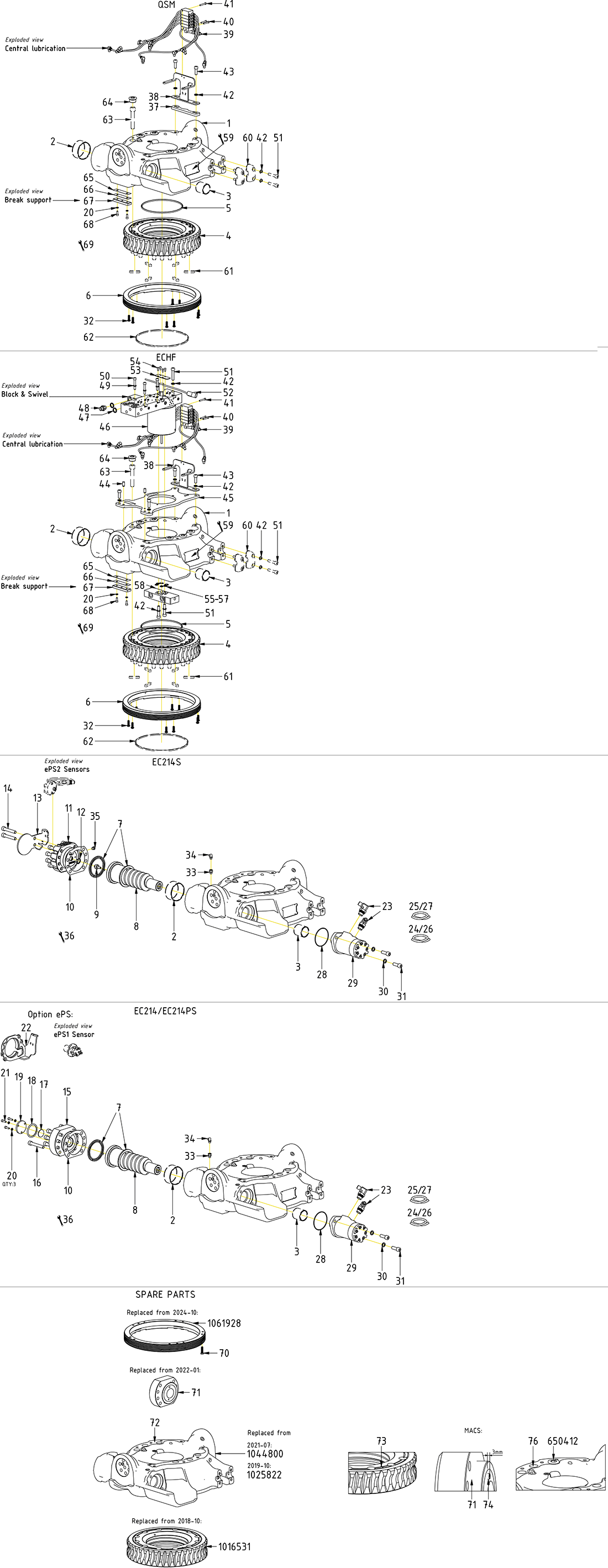

Main components

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Cover plate Slip ring ECHF V2

Article no: 1026200

Position53

Aantal in tekening1

Cover plate Slip ring ECHF V2

Article no: 1026200

Cover End lock None ePS

Article no: 1041613

Position19

Aantal in tekening1

Cover End lock None ePS

Article no: 1041613

O-ring 195x5 NBR 90 shore EC214 worm wheel

Article no: 7001661

Position5

Aantal in tekening1

O-ring 195x5 NBR 90 shore EC214 worm wheel

Article no: 7001661

Screw TX45 8x30 10.9 FZB ISO7380

Article no: 612201

Position70

Aantal in tekening10

Screw TX45 8x30 10.9 FZB ISO7380

Article no: 612201

Torque: 34Nm. Used with 1061928

Hose

Article no: 7000789

Position24

Aantal in tekening1

Hose

Article no: 7000789

Part of quick hitch

Screw MC6S 6x20 A4 stainless ISO4762

Article no: 611513

Position21

Aantal in tekening3

Screw MC6S 6x20 A4 stainless ISO4762

Article no: 611513

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

Position43

Aantal in tekening2

Screw MC6S 10x30 12.9 ZFSHL ISO4762

Article no: 612018

QTY: 4 for ECHF. Torque: 79Nm

Shim break support - EC209, EC214, EC219 - 0,3mm

Article no: 1055260

Position66

Aantal in tekening1

Shim break support - EC209, EC214, EC219 - 0,3mm

Article no: 1055260

Worm screw EC214 , EC219

Article no: 1016408

Position8

Aantal in tekening1

Worm screw EC214 , EC219

Article no: 1016408

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Position13

Aantal in tekening1

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Shim break support - EC209, EC214, EC219 - 0,1mm

Article no: 1055262

Position65

Aantal in tekening1

Shim break support - EC209, EC214, EC219 - 0,1mm

Article no: 1055262

Hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15

Article no: 720112

Position29

Aantal in tekening1

Hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15

Article no: 720112

Extender 18mm R1/8" lubrication kit

Article no: 712216

Position33

Aantal in tekening1

Extender 18mm R1/8" lubrication kit

Article no: 712216

Cylindrical pin CPK Ø10x28 m6

Article no: 6000002

Position44

Aantal in tekening2

Cylindrical pin CPK Ø10x28 m6

Article no: 6000002

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Position31

Aantal in tekening2

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Torque: 136Nm

End lock EC209/EC214/EC219

Article no: 1016415

Position71

Aantal in tekening1

End lock EC209/EC214/EC219

Article no: 1016415

Replaced by POS.15 from 2022-01 MACS: Replaces 1028628 from 16-10

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position40

Aantal in tekening2

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

Position60

Aantal in tekening4

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

Part of top part

Magnet Neodym35 8x5x3mm SVAB MACS

Article no: 6000047

Position73

Aantal in tekening1

Magnet Neodym35 8x5x3mm SVAB MACS

Article no: 6000047

Attachment central lubrication & TM DC2 -ECHF/QSM

Article no: 1031517

Position38

Aantal in tekening1

Attachment central lubrication & TM DC2 -ECHF/QSM

Article no: 1031517

Bearing ring EC214 V2

Article no: 1077008

Position6

Aantal in tekening1

Bearing ring EC214 V2

Article no: 1077008

(Only compatible with 8x25)

Hose motor - EC214 - long

Article no: 743005

Position26

Aantal in tekening1

Hose motor - EC214 - long

Article no: 743005

Hose

Article no: 7000790

Position25

Aantal in tekening1

Hose

Article no: 7000790

Part of quick hitch

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position30

Aantal in tekening2

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Seal R09-F 20x27.5x3.2

Article no: 1063616

Position12

Aantal in tekening1

Seal R09-F 20x27.5x3.2

Article no: 1063616

Adapter 136-06-06

Article no: 710106

Position48

Aantal in tekening1

Adapter 136-06-06

Article no: 710106

Lubrication kit EC214

Article no: 1026699

Position39

Aantal in tekening1

Lubrication kit EC214

Article no: 1026699

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Position50

Aantal in tekening5

Screw MC6S 8x50H 12.9 ISO4762

Article no: 610439

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position41

Aantal in tekening1

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Valve block-swivel 7-channel ECHF

Article no: 1027386

Position46

Aantal in tekening1

Valve block-swivel 7-channel ECHF

Article no: 1027386

Worm wheel EC214 18 bolt

Article no: 1046396

Position4

Aantal in tekening1

Worm wheel EC214 18 bolt

Article no: 1046396

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

Position54

Aantal in tekening4

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

Inductive sensor M8 PNP NO 4mm - SVAB MACS

Article no: 1043698

Position74

Aantal in tekening1

Inductive sensor M8 PNP NO 4mm - SVAB MACS

Article no: 1043698

Distance 3mm. Nut torque: 3Nm

Axial washer with ear EC209/214/219

Article no: 1079941

Position7

Aantal in tekening2

Axial washer with ear EC209/214/219

Article no: 1079941

Face groove toward worm screw

Valve plate -ECHF-EC214

Article no: 1026199

Position45

Aantal in tekening1

Valve plate -ECHF-EC214

Article no: 1026199

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Position16

Aantal in tekening8

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Torque: 136Nm

Spacer-end lock EC209/EC214/EC219

Article no: 1065370

Position17

Aantal in tekening1

Spacer-end lock EC209/EC214/EC219

Article no: 1065370

Magnet Spacer Worm Screw

Article no: 1062693

Position9

Aantal in tekening1

Magnet Spacer Worm Screw

Article no: 1062693

Loxeal 83-52. Torque: 20Nm

Plate break support - EC209/214/219

Article no: 1055258

Position67

Aantal in tekening1

Plate break support - EC209/214/219

Article no: 1055258

O-ring 249,3x5,7 NBR 70 shore Quick hitch EC214

Article no: 712424

Position62

Aantal in tekening1

O-ring 249,3x5,7 NBR 70 shore Quick hitch EC214

Article no: 712424

Part of quick hitch

Adapter 401-06-08 90°

Article no: 710157

Position23

Aantal in tekening2

Adapter 401-06-08 90°

Article no: 710157

End lock EC209S/EC214S/EC219S Cast

Article no: 1065789

Position11

Aantal in tekening1

End lock EC209S/EC214S/EC219S Cast

Article no: 1065789

(POS.12 incl.)

Rotator frame 214 V3 EngconYellow complete

Article no: 1062446

Position1

Aantal in tekening1

Rotator frame 214 V3 EngconYellow complete

Article no: 1062446

(POS.2-3 incl.)

Hose motor - EC214 - short

Article no: 743006

Position27

Aantal in tekening1

Hose motor - EC214 - short

Article no: 743006

Pipe Plug RP M30x1,5 DIN908 FZB

Article no: 650410

Position64

Aantal in tekening6

Pipe Plug RP M30x1,5 DIN908 FZB

Article no: 650410

O-ring 27x5 NBR 70 shore End lock ePS

Article no: 7000485

Position18

Aantal in tekening1

O-ring 27x5 NBR 70 shore End lock ePS

Article no: 7000485

Lubrication nipple 1/8" 90°

Article no: 711409

Position34

Aantal in tekening1

Lubrication nipple 1/8" 90°

Article no: 711409

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Position63

Aantal in tekening18

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Part of quick hitch. Torque: 333Nm

Shim kit End lock - EC209/EC214/EC219

Article no: 1034434

Position10

Aantal in tekening1

Shim kit End lock - EC209/EC214/EC219

Article no: 1034434

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

Position28

Aantal in tekening1

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

Spacer central lubrication QSM EC214,EC219,EC226

Article no: 1047832

Position37

Aantal in tekening1

Spacer central lubrication QSM EC214,EC219,EC226

Article no: 1047832

Screw TX45 8x25 10,9 FZB

Article no: 1078840

Position32

Aantal in tekening10

Screw TX45 8x25 10,9 FZB

Article no: 1078840

Torque: 34Nm Tighten in cross pattern

Slip ring-ECHF-DTM/ Plug

Article no: 1030298

Position52

Aantal in tekening1

Slip ring-ECHF-DTM/ Plug

Article no: 1030298

For QS. See "Slip rings"

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Position61

Aantal in tekening6

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Part of quick hitch

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position20

Aantal in tekening2

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Connection block under ECHF V3

Article no: 1028391

Position58

Aantal in tekening1

Connection block under ECHF V3

Article no: 1028391

Guide with spring pin from swivel

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position49

Aantal in tekening5

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Position68

Aantal in tekening2

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Plug VSTIR18ED 1/8"

Article no: 711503

Position35

Aantal in tekening1

Plug VSTIR18ED 1/8"

Article no: 711503

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Position14

Aantal in tekening8

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Torque: 136Nm

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position42

Aantal in tekening15

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

QTY: 8 part of top part

Seal washer GBR06 3/8"

Article no: 710703

Position47

Aantal in tekening2

Seal washer GBR06 3/8"

Article no: 710703

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

Position57

Aantal in tekening1

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

Position56

Aantal in tekening4

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position51

Aantal in tekening11

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

QTY: 8 part of top part Torque: 79Nm

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

Position55

Aantal in tekening2

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

End lock EC209/EC214/EC219 ePS

Article no: 1016557

Position15

Aantal in tekening1

End lock EC209/EC214/EC219 ePS

Article no: 1016557

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Position22

Aantal in tekening1

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

For ePS1

Bushing WB802 45/50x50

Article no: 630102

Position3

Aantal in tekening1

Bushing WB802 45/50x50

Article no: 630102

Bushing WB802 80/85x40

Article no: 630103

Position2

Aantal in tekening1

Bushing WB802 80/85x40

Article no: 630103
