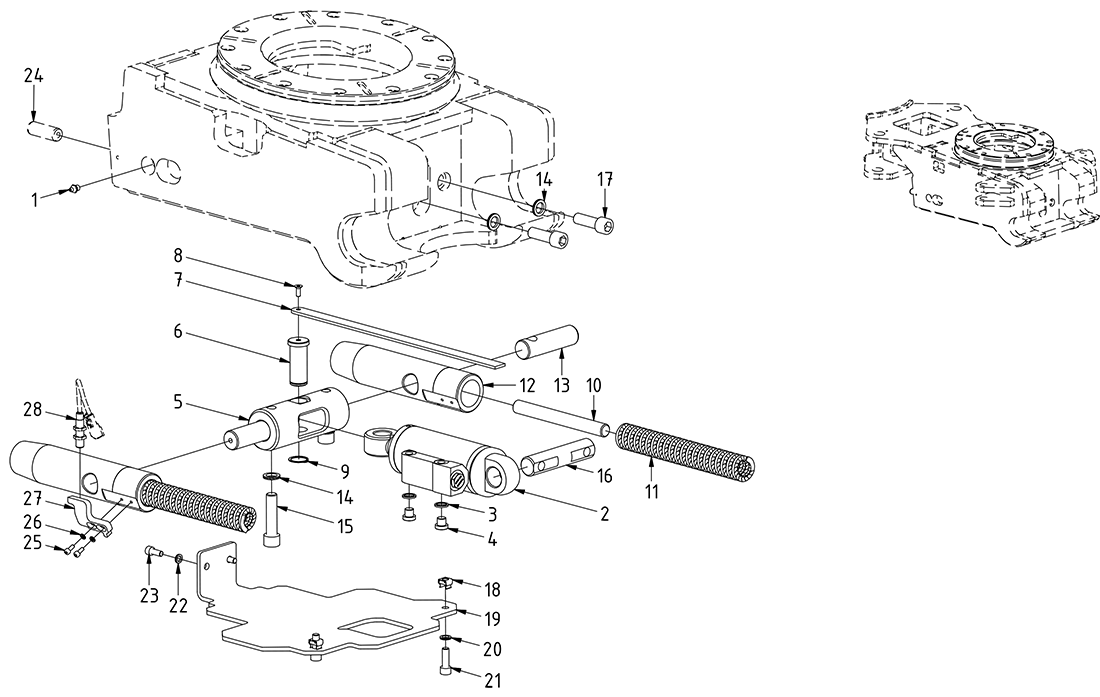

Std comp. HS10EC/HS10ECS

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Locking yoke Lehnhoff HS10ec

Article no: 1033371

Position5

Aantal in tekening1

Locking yoke Lehnhoff HS10ec

Article no: 1033371

Locking axle Lehnhoff HS10ec

Article no: 1033422

Position16

Aantal in tekening1

Locking axle Lehnhoff HS10ec

Article no: 1033422

Lock wedge Lehnhoff HS10ec hardened

Article no: 1033050

Position12

Aantal in tekening2

Lock wedge Lehnhoff HS10ec hardened

Article no: 1033050

Mount POS.10-11 before inserting wedge in hitch

Cable tie 7,8x360

Article no: 1021587

Position30

Aantal in tekening1

Cable tie 7,8x360

Article no: 1021587

Circlip SgA 26

Article no: 6000018

Position9

Aantal in tekening1

Circlip SgA 26

Article no: 6000018

Inductive sensor M12 DTM04-3P - HSXXecS - 380mm

Article no: 8001316

Position28

Aantal in tekening1

Inductive sensor M12 DTM04-3P - HSXXecS - 380mm

Article no: 8001316

For HS10ECS (Deutsch DTM04-3P & nut included)

Screw MC6S 16x65 12.9 ZFSHL

Article no: 6000170

Position15

Aantal in tekening2

Screw MC6S 16x65 12.9 ZFSHL

Article no: 6000170

Cylinder axle locking yoke Lehnhoff HS10ec

Article no: 1033376

Position6

Aantal in tekening1

Cylinder axle locking yoke Lehnhoff HS10ec

Article no: 1033376

Pin spring Lehnhoff HS10ec

Article no: 1036473

Position10

Aantal in tekening2

Pin spring Lehnhoff HS10ec

Article no: 1036473

Locking cylinder HS10ec non-return valve

Article no: 1037386

Position2

Aantal in tekening1

Locking cylinder HS10ec non-return valve

Article no: 1037386

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Position23

Aantal in tekening2

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Axle Locking yoke Lehnhoff HS10ec

Article no: 1032757

Position13

Aantal in tekening2

Axle Locking yoke Lehnhoff HS10ec

Article no: 1032757

Cable tie 4,8x371

Article no: 1021586

Position29

Aantal in tekening1

Cable tie 4,8x371

Article no: 1021586

Cover plate HS10ec

Article no: 1033054

Position19

Aantal in tekening1

Cover plate HS10ec

Article no: 1033054

Tool spring blue 40x254

Article no: 6000036

Position11

Aantal in tekening2

Tool spring blue 40x254

Article no: 6000036

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Position7

Aantal in tekening1

Indicator pin S40S/QS/QSM/S/HYDS 610mm

Article no: 1036201

Cut to fit

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Position25

Aantal in tekening2

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

For HS10ECS

Cage nuts M10 C

Article no: 610957

Position18

Aantal in tekening2

Cage nuts M10 C

Article no: 610957

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Position8

Aantal in tekening1

Screw MF6S 6x16 10.9 untreated ISO10642

Article no: 610604

Loctite

Screw MC6s 16x50 12.9 untreated ISO4762

Article no: 610316

Position17

Aantal in tekening2

Screw MC6s 16x50 12.9 untreated ISO4762

Article no: 610316

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

Position26

Aantal in tekening2

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

For HS10ECS

Plug Din 908 1/4"

Article no: 711505

Position4

Aantal in tekening2

Plug Din 908 1/4"

Article no: 711505

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position14

Aantal in tekening4

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position20

Aantal in tekening2

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Lubrication nipple 1/8 straight

Article no: 711403

Position1

Aantal in tekening2

Lubrication nipple 1/8 straight

Article no: 711403

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position22

Aantal in tekening2

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Seal washer GBR04 1/4"

Article no: 710702

Position3

Aantal in tekening2

Seal washer GBR04 1/4"

Article no: 710702
