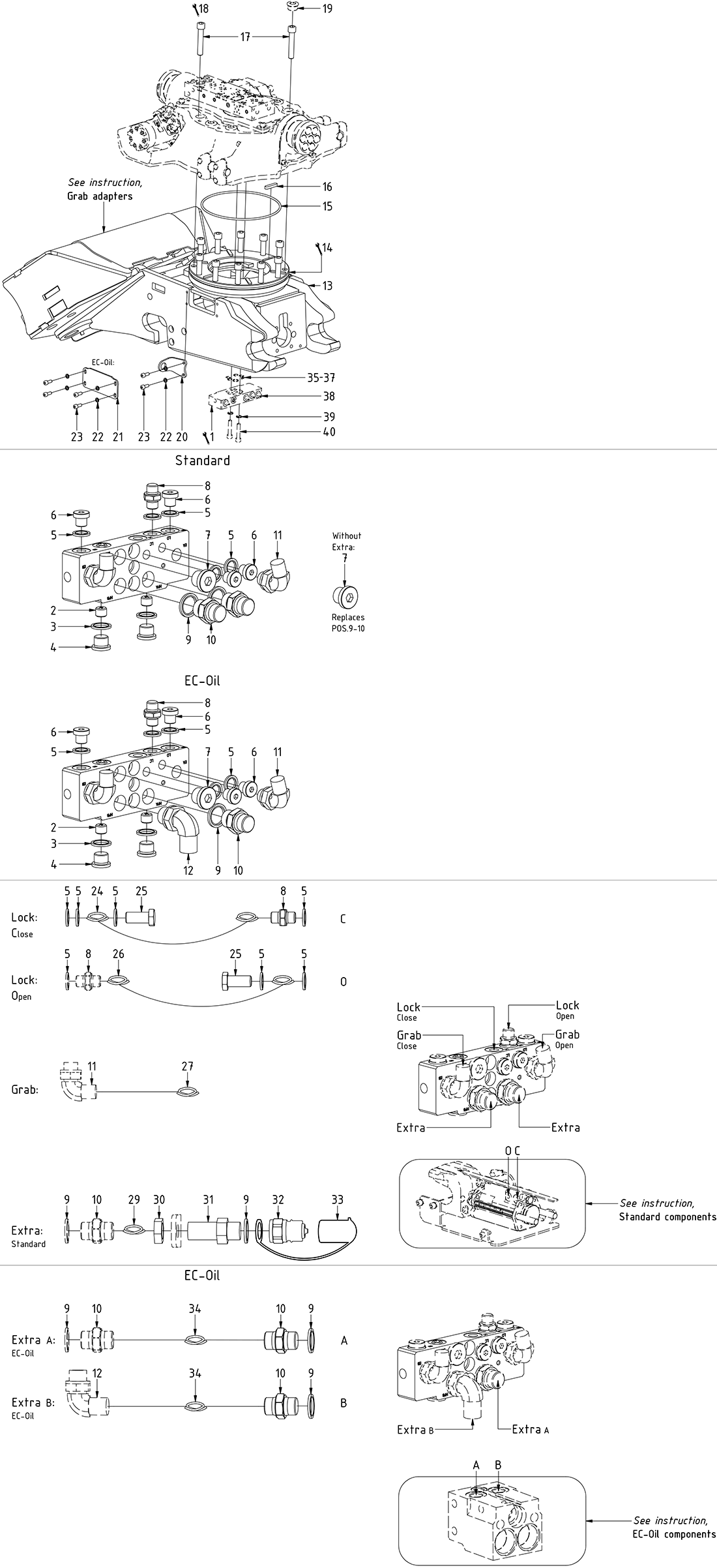

QS60 GR20RR/GR20R2

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Hose extra - EC214 - QS60

Article no: 743008

Position29

Aantal in tekening2

Hose extra - EC214 - QS60

Article no: 743008

Nut bulkhead adapter 1270-08

Article no: 710254

Position30

Aantal in tekening2

Nut bulkhead adapter 1270-08

Article no: 710254

Hose extra - EC226 - QS70 HECO7 short

Article no: 742350

Position34

Aantal in tekening2

Hose extra - EC226 - QS70 HECO7 short

Article no: 742350

Adapter 401-08-08 90°

Article no: 710156

Position12

Aantal in tekening1

Adapter 401-08-08 90°

Article no: 710156

Holder extra QS60

Article no: 1025119

Position20

Aantal in tekening2

Holder extra QS60

Article no: 1025119

Hose

Article no: 742802

Position26

Aantal in tekening1

Hose

Article no: 742802

Adapter bulkhead 1260-08-08

Article no: 710244

Position31

Aantal in tekening2

Adapter bulkhead 1260-08-08

Article no: 710244

Plug Din 908 3/8"

Article no: 7001657

Position4

Aantal in tekening2

Plug Din 908 3/8"

Article no: 7001657

Cover plate Side-QS45-QS60

Article no: 1025118

Position21

Aantal in tekening2

Cover plate Side-QS45-QS60

Article no: 1025118

For EC-Oil

Quick hitch QS60 GR20R2 V3 EC214

Article no: 1043015

Position13

Aantal in tekening1

Quick hitch QS60 GR20R2 V3 EC214

Article no: 1043015

Replaces 1030799 from 2017-05

O-ring 249,3x5,7 NBR 70 shore Quick hitch EC214

Article no: 712424

Position15

Aantal in tekening1

O-ring 249,3x5,7 NBR 70 shore Quick hitch EC214

Article no: 712424

Adapter 136-08-08

Article no: 710108

Position10

Aantal in tekening2

Adapter 136-08-08

Article no: 710108

QTY: 3 for EC-Oil

Pipe Plug RP M30x1,5 DIN908 FZB

Article no: 650410

Position19

Aantal in tekening6

Pipe Plug RP M30x1,5 DIN908 FZB

Article no: 650410

Part of rotator frame assembly

Hose protection Black 32mm 1,0m

Article no: 540194

Position28

Aantal in tekening1

Hose protection Black 32mm 1,0m

Article no: 540194

Cut to length: approx. 100mm

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Position17

Aantal in tekening12

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Torque: 333Nm

Hose

Article no: 742801

Position24

Aantal in tekening1

Hose

Article no: 742801

Hose

Article no: 742681

Position27

Aantal in tekening2

Hose

Article no: 742681

Dust protection 1/2" male 5026

Article no: 790121

Position33

Aantal in tekening2

Dust protection 1/2" male 5026

Article no: 790121

Quick coupling 1/2" male 5020

Article no: 790115

Position32

Aantal in tekening2

Quick coupling 1/2" male 5020

Article no: 790115

Seal washer GBR08 1/2"

Article no: 710704

Position9

Aantal in tekening4

Seal washer GBR08 1/2"

Article no: 710704

QTY: 3 for EC-Oil

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Position16

Aantal in tekening6

Feather key 10x8x50 C45 EC05B,EC15,EC20,EC214,EC219,EC226

Article no: 650102

Adapter 401-06-06 90°

Article no: 710152

Position11

Aantal in tekening2

Adapter 401-06-06 90°

Article no: 710152

Plug Din 908 1/4"

Article no: 711505

Position6

Aantal in tekening4

Plug Din 908 1/4"

Article no: 711505

Connection block under ECHF V3

Article no: 1028391

Position38

Aantal in tekening1

Connection block under ECHF V3

Article no: 1028391

Part of rotator frame assembly

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position22

Aantal in tekening4

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

QTY: 8 for EC-Oil

Seal washer GBR04 1/4"

Article no: 710702

Position5

Aantal in tekening11

Seal washer GBR04 1/4"

Article no: 710702

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Position23

Aantal in tekening4

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

QTY: 8 for EC-Oil

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position8

Aantal in tekening2

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position39

Aantal in tekening2

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Part of rotator frame assembly

Seal washer GBR06 3/8"

Article no: 710703

Position3

Aantal in tekening2

Seal washer GBR06 3/8"

Article no: 710703

QTY: 4 for EC-Oil

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

Position37

Aantal in tekening1

O-ring 15,6x1,78 NBR 70 shore

Article no: 710912

Part of rotator frame assembly

Banjo bolt 4451-04

Article no: 710271

Position25

Aantal in tekening2

Banjo bolt 4451-04

Article no: 710271

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

Position36

Aantal in tekening4

O-ring 12,42x1,78 NBR 70 shore

Article no: 710973

Part of rotator frame assembly

Pipe Plug DIN 906 1/4" 180152

Article no: 711508

Position2

Aantal in tekening2

Pipe Plug DIN 906 1/4" 180152

Article no: 711508

Loctite 5400

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position40

Aantal in tekening2

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Part of rotator frame assembly

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

Position35

Aantal in tekening2

O-ring 6,07x1,78 NBR 70 shore

Article no: 712422

Part of rotator frame assembly

Plug VSTIR12ED 1/2"

Article no: 711500

Position7

Aantal in tekening1

Plug VSTIR12ED 1/2"

Article no: 711500

QTY: 3 for EC214 Without Extra
