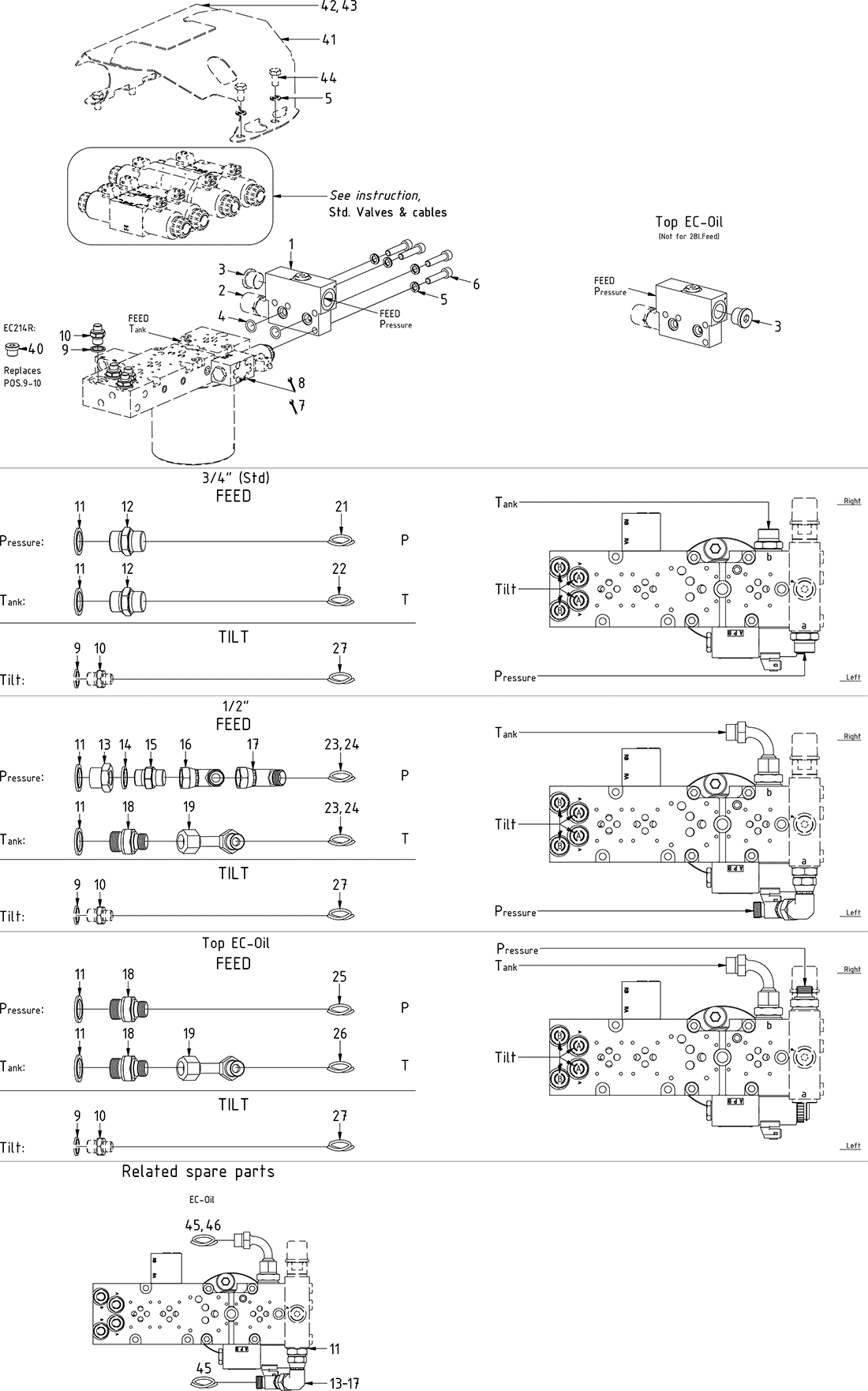

ss10 (DC2/SVAB) 'ECHF'

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Adapter 488-08-08 90°

Article no: 712209

Position19

Aantal in tekening1

Adapter 488-08-08 90°

Article no: 712209

Hose

Article no: 7000033

Position33

Aantal in tekening1

Hose

Article no: 7000033

Hose

Article no: 742335

Position46

Aantal in tekening1

Hose

Article no: 742335

Replaced by POS.26 from 2020-01

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Position44

Aantal in tekening4

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Screw MC6S 6x40 12.9 untreated ISO4762

Article no: 610418

Position37

Aantal in tekening4

Screw MC6S 6x40 12.9 untreated ISO4762

Article no: 610418

Torque: 17Nm

Adapter 234-12-08

Article no: 712219

Position13

Aantal in tekening1

Adapter 234-12-08

Article no: 712219

QTY: 2 for SX

Adapter 407-08-08 90°

Article no: 7000021

Position16

Aantal in tekening1

Adapter 407-08-08 90°

Article no: 7000021

Hose feed T - EC214 - valve block

Article no: 743007

Position22

Aantal in tekening1

Hose feed T - EC214 - valve block

Article no: 743007

Adapter 408-08-08 45°

Article no: 7000074

Position17

Aantal in tekening1

Adapter 408-08-08 45°

Article no: 7000074

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position31

Aantal in tekening4

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

Protective cover valve block EC214 - right MACS

Article no: 1030154

Position43

Aantal in tekening1

Protective cover valve block EC214 - right MACS

Article no: 1030154

For MACS

Hose

Article no: 7001300

Position26

Aantal in tekening1

Hose

Article no: 7001300

Hose

Article no: 742653

Position45

Aantal in tekening1

Hose

Article no: 742653

Replaced by POS.25 from 2020-01 QTY: 2 for option 2Bl.Feed

Protective cover valve block EC214 - left

Article no: 1016548

Position41

Aantal in tekening1

Protective cover valve block EC214 - left

Article no: 1016548

Adapter 401-04-04 90°

Article no: 710151

Position30

Aantal in tekening2

Adapter 401-04-04 90°

Article no: 710151

Adapter 135-08-12

Article no: 710109

Position18

Aantal in tekening1

Adapter 135-08-12

Article no: 710109

QTY: 2 for EC-Oil

Adapter 135-04-06

Article no: 710118

Position10

Aantal in tekening4

Adapter 135-04-06

Article no: 710118

Connection block 2x 1/2" / 2x 3/4" NG10

Article no: 1027520

Position36

Aantal in tekening1

Connection block 2x 1/2" / 2x 3/4" NG10

Article no: 1027520

Hose feed P - EC214 - valve block

Article no: 743010

Position21

Aantal in tekening1

Hose feed P - EC214 - valve block

Article no: 743010

Hose

Article no: 7000524

Position24

Aantal in tekening1

Hose

Article no: 7000524

Feed Right: Mount on left side Feed Left: Mount on right side

Valve-Pressure reduction-VRN2-10/S-21 - 150 liter

Article no: 730326

Position2

Aantal in tekening1

Valve-Pressure reduction-VRN2-10/S-21 - 150 liter

Article no: 730326

Connection block 2x 1/4" NG4

Article no: 1009586

Position29

Aantal in tekening1

Connection block 2x 1/4" NG4

Article no: 1009586

Adapter 136-08-08

Article no: 710108

Position15

Aantal in tekening1

Adapter 136-08-08

Article no: 710108

Hose

Article no: 7000032

Position32

Aantal in tekening2

Hose

Article no: 7000032

QTY: 1 for Feed Left & for XP

Connection block P with pressure reducer ECHF/QSM

Article no: 1027363

Position1

Aantal in tekening1

Connection block P with pressure reducer ECHF/QSM

Article no: 1027363

(POS.2-3 included)

Screw MC6S 10x45 12.9 untreated ISO4762

Article no: 610589

Position6

Aantal in tekening4

Screw MC6S 10x45 12.9 untreated ISO4762

Article no: 610589

Hose feed - EC219 - valve block UNI top part

Article no: 742620

Position23

Aantal in tekening2

Hose feed - EC219 - valve block UNI top part

Article no: 742620

QTY: 1 for Feed Right/Left

Hose Tilt Long - EC214

Article no: 743001

Position27

Aantal in tekening4

Hose Tilt Long - EC214

Article no: 743001

Hose

Article no: 7001299

Position25

Aantal in tekening1

Hose

Article no: 7001299

O-ring 15,54 x 2,62 NBR 70 shore

Article no: 712423

Position4

Aantal in tekening2

O-ring 15,54 x 2,62 NBR 70 shore

Article no: 712423

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position28

Aantal in tekening4

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Seal washer GBR08 1/2"

Article no: 710704

Position14

Aantal in tekening1

Seal washer GBR08 1/2"

Article no: 710704

Plug VSTIR38ED 3/8"

Article no: 711504

Position40

Aantal in tekening4

Plug VSTIR38ED 3/8"

Article no: 711504

For EC214R

Plug VSTIR34ED 3/4"

Article no: 711532

Position3

Aantal in tekening1

Plug VSTIR34ED 3/4"

Article no: 711532

Protective cover valve block EC214 - right

Article no: 1016547

Position42

Aantal in tekening1

Protective cover valve block EC214 - right

Article no: 1016547

Adapter 136-12-12

Article no: 710126

Position12

Aantal in tekening2

Adapter 136-12-12

Article no: 710126

Seal washer GBR12 3/4"

Article no: 710706

Position11

Aantal in tekening2

Seal washer GBR12 3/4"

Article no: 710706

QTY:4 for SX (double against block)

Adapter 402-04-04 45°

Article no: 7000104

Position34

Aantal in tekening1

Adapter 402-04-04 45°

Article no: 7000104

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position5

Aantal in tekening8

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

QTY: 4 part of make up

Seal washer GBR06 3/8"

Article no: 710703

Position9

Aantal in tekening4

Seal washer GBR06 3/8"

Article no: 710703

Plug VSTIR12ED 1/2"

Article no: 711500

Position38

Aantal in tekening2

Plug VSTIR12ED 1/2"

Article no: 711500

O-ring 12,42x1,68 square NBR 70 shore NG10

Article no: 750704

Position35

Aantal in tekening4

O-ring 12,42x1,68 square NBR 70 shore NG10

Article no: 750704
