ss9IQ

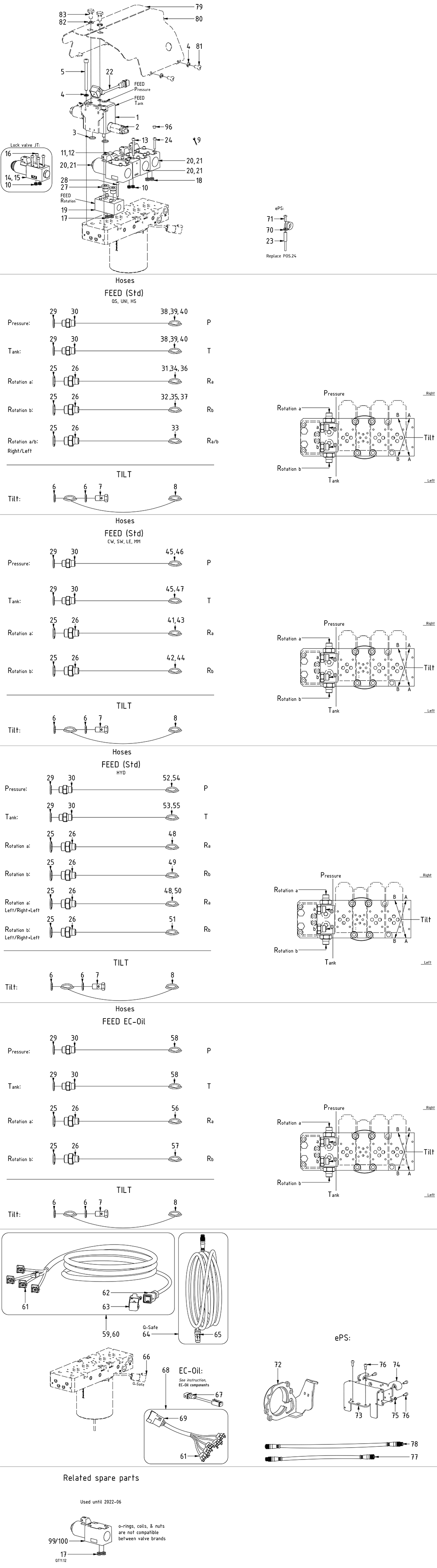

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Directional valve closed NG6 12V JT

Article no: 730112

Position99

Aantal in tekening1

Directional valve closed NG6 12V JT

Article no: 730112

Replaced by POS.20 (ATOS)

Dumper block 12V EC209 complete

Article no: 1019709

Position1

Aantal in tekening1

Dumper block 12V EC209 complete

Article no: 1019709

(Dump & POS.2 included)

Adapter cable M12 8P-DTM 6S

Article no: 842148

Position64

Aantal in tekening1

Adapter cable M12 8P-DTM 6S

Article no: 842148

For Q-Safe

Hose

Article no: 7000608

Position55

Aantal in tekening1

Hose

Article no: 7000608

Feed Right & Feed Right+Left: Replace POS.53

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

Position68

Aantal in tekening2

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

For EC-Oil. Replace POS.59 & 64

Directional valve NG4 lock 24V JT

Article no: 730310

Position15

Aantal in tekening1

Directional valve NG4 lock 24V JT

Article no: 730310

(POS.10 included)

Hose

Article no: 7001526

Position56

Aantal in tekening1

Hose

Article no: 7001526

Protective cover valve block EC209 right

Article no: 1016515

Position79

Aantal in tekening1

Protective cover valve block EC209 right

Article no: 1016515

ILME 21.21 12P MKA V20 connector device

Article no: 841192

Position62

Aantal in tekening1

ILME 21.21 12P MKA V20 connector device

Article no: 841192

Cable tie 4,8x371

Article no: 1021586

Position98

Aantal in tekening1

Cable tie 4,8x371

Article no: 1021586

AMP Junior Timer (JT) 2S connector device

Article no: 810218

Position61

Aantal in tekening5

AMP Junior Timer (JT) 2S connector device

Article no: 810218

Deutsch DTM04-12PA connector device

Article no: 8000177

Position69

Aantal in tekening1

Deutsch DTM04-12PA connector device

Article no: 8000177

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

Position75

Aantal in tekening4

Washer NL5-DPE 5,4x9,0x1,7

Article no: 611038

Unit cable ss9-2 JT EC206-EC233-3,5m

Article no: 1032909

Position60

Aantal in tekening1

Unit cable ss9-2 JT EC206-EC233-3,5m

Article no: 1032909

For Lock valve JT. Replace POS.59

Hose

Article no: 7001527

Position57

Aantal in tekening1

Hose

Article no: 7001527

Hose

Article no: 7000489

Position91

Aantal in tekening1

Hose

Article no: 7000489

For other top parts

Screw K6S 8x16H 10.9 FZB ISO7380

Article no: 611810

Position81

Aantal in tekening4

Screw K6S 8x16H 10.9 FZB ISO7380

Article no: 611810

Directional valve closed NG6 24V JT

Article no: 730110

Position100

Aantal in tekening1

100

Directional valve closed NG6 24V JT

Article no: 730110

Replaced by POS.21 (ATOS)

Rubber Steel Clamp Ø16

Article no: 6000009

Position70

Aantal in tekening1

Rubber Steel Clamp Ø16

Article no: 6000009

Unit cable ss9-2 DT EC206-EC233-3,5m

Article no: 8001823

Position59

Aantal in tekening1

Unit cable ss9-2 DT EC206-EC233-3,5m

Article no: 8001823

Connection block 2x 1/2" / 2x 3/8" NG6

Article no: 405670

Position19

Aantal in tekening1

Connection block 2x 1/2" / 2x 3/8" NG6

Article no: 405670

Hose

Article no: 7000406

Position45

Aantal in tekening2

Hose

Article no: 7000406

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Position84

Aantal in tekening1

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Nut (POS.87) and o-ring with chokenozzle included. Assemble with POS.85/86

Adapter cable JT 2P-SQR 4S

Article no: 302971

Position22

Aantal in tekening1

Adapter cable JT 2P-SQR 4S

Article no: 302971

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

Position83

Aantal in tekening2

Screw M6S 10x20 8.8 FZB ISO4017

Article no: 610141

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position63

Aantal in tekening1

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Hose feed - EC209 - QS45 TECO14 short

Article no: 742851

Position58

Aantal in tekening2

Hose feed - EC209 - QS45 TECO14 short

Article no: 742851

Hose

Article no: 7000609

Position51

Aantal in tekening1

Hose

Article no: 7000609

Rot. Left & Rot. Right+Left: Replace POS.49

Directional valve NG4 lock 12V JT

Article no: 730312

Position14

Aantal in tekening1

Directional valve NG4 lock 12V JT

Article no: 730312

(POS.10 included)

Valve-Double pressure relief EC206,209&ECHF

Article no: 730287

Position2

Aantal in tekening1

Valve-Double pressure relief EC206,209&ECHF

Article no: 730287

Plug plastic - valve screw hole

Article no: 790156

Position96

Aantal in tekening12

Plug plastic - valve screw hole

Article no: 790156

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position71

Aantal in tekening1

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Torque: 8,1Nm

Hose feed - EC209 - valve block UNI/HS08

Article no: 742855

Position40

Aantal in tekening2

Hose feed - EC209 - valve block UNI/HS08

Article no: 742855

(Same for Feed Right/Left)

Hose feed - EC209 - valve block

Article no: 742814

Position39

Aantal in tekening1

Hose feed - EC209 - valve block

Article no: 742814

Feed Right: Mount on a-side Feed Left: Mount on b-side

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position24

Aantal in tekening12

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

Hose

Article no: 7000040

Position35

Aantal in tekening1

Hose

Article no: 7000040

Adapter 136-06-06

Article no: 710106

Position30

Aantal in tekening2

Adapter 136-06-06

Article no: 710106

Hose

Article no: 7000488

Position33

Aantal in tekening1

Hose

Article no: 7000488

Replaces "a" for Rot. Left Replaces "b" for Rot. Right

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position28

Aantal in tekening4

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Protective cover valve block EC209 left

Article no: 1016516

Position80

Aantal in tekening1

Protective cover valve block EC209 left

Article no: 1016516

Adapter cable JT 2P-DT 2S

Article no: 1017478

Position67

Aantal in tekening1

Adapter cable JT 2P-DT 2S

Article no: 1017478

For EC-Oil

Directional valve closed NG6 12V JT ATOS

Article no: 7001619

Position20

Aantal in tekening3

Directional valve closed NG6 12V JT ATOS

Article no: 7001619

(POS.18 included)

Directional valve closed NG6 24V JT ATOS

Article no: 7001618

Position21

Aantal in tekening3

Directional valve closed NG6 24V JT ATOS

Article no: 7001618

(POS.18 included)

Hose

Article no: 7000041

Position90

Aantal in tekening1

Hose

Article no: 7000041

For UNI top parts

Hose

Article no: 7000707

Position42

Aantal in tekening1

Hose

Article no: 7000707

Nut directional valve NG4

Article no: 1006785

Position87

Aantal in tekening1

Nut directional valve NG4

Article no: 1006785

Hose

Article no: 7000650

Position54

Aantal in tekening1

Hose

Article no: 7000650

Feed Right: Replace POS.52

Cable tie 7,8x360

Article no: 1021587

Position97

Aantal in tekening1

Cable tie 7,8x360

Article no: 1021587

Directional valve NG4 IQS lock 24V DT ss9 Coil A

Article no: 1042188

Position12

Aantal in tekening1

Directional valve NG4 IQS lock 24V DT ss9 Coil A

Article no: 1042188

QS, CW, ECPUP, ss SIQ (POS.10 included)

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Position23

Aantal in tekening1

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Torque: 9,7Nm

Hose

Article no: 7000496

Position32

Aantal in tekening1

Hose

Article no: 7000496

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Position76

Aantal in tekening6

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position16

Aantal in tekening4

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Torque: 9,7Nm

Hose

Article no: 7000600

Position48

Aantal in tekening1

Hose

Article no: 7000600

(same for Rot. Right+Left)

O-ring 15,3x2,4 NBR 70 shore EC209

Article no: 712402

Position3

Aantal in tekening2

O-ring 15,3x2,4 NBR 70 shore EC209

Article no: 712402

Coil NG4 12V JT

Article no: 730313

Position85

Aantal in tekening1

Coil NG4 12V JT

Article no: 730313

Hose

Article no: 7000039

Position34

Aantal in tekening1

Hose

Article no: 7000039

Coil NG4 24V JT

Article no: 730311

Position86

Aantal in tekening1

Coil NG4 24V JT

Article no: 730311

Hose

Article no: 7000487

Position31

Aantal in tekening1

Hose

Article no: 7000487

Hose

Article no: 7000407

Position41

Aantal in tekening1

Hose

Article no: 7000407

Hose feed - EC209 - Top part QS45/50

Article no: 7000012

Position38

Aantal in tekening2

Hose feed - EC209 - Top part QS45/50

Article no: 7000012

QTY: 1 for Feed Right/Left

Directional valve NG4 IQS lock 12V DT ss9 Coil A

Article no: 1042045

Position11

Aantal in tekening1

Directional valve NG4 IQS lock 12V DT ss9 Coil A

Article no: 1042045

QS, CW, ECPUP, ss SIQ (POS.10 included)

Deutsch DTM06-6S connector device

Article no: 8000053

Position65

Aantal in tekening1

Deutsch DTM06-6S connector device

Article no: 8000053

Adapter 135-06-08

Article no: 710122

Position26

Aantal in tekening2

Adapter 135-06-08

Article no: 710122

Hose Tilt Long

Article no: 7000791

Position8

Aantal in tekening4

Hose Tilt Long

Article no: 7000791

Screw MC6S 5x50 12.9 untreated ISO4762

Article no: 610407

Position13

Aantal in tekening3

Screw MC6S 5x50 12.9 untreated ISO4762

Article no: 610407

Torque: 9,7Nm

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

Position88

Aantal in tekening1

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

Not for HS08 O-ring included

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position10

Aantal in tekening4

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position89

Aantal in tekening1

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position17

Aantal in tekening4

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Seal washer GBR08 1/2"

Article no: 710704

Position25

Aantal in tekening2

Seal washer GBR08 1/2"

Article no: 710704

Banjo bolt 4451-04

Article no: 710271

Position7

Aantal in tekening4

Banjo bolt 4451-04

Article no: 710271

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position82

Aantal in tekening6

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Seal washer GBR06 3/8"

Article no: 710703

Position29

Aantal in tekening2

Seal washer GBR06 3/8"

Article no: 710703

Plug VSTIR38ED 3/8"

Article no: 711504

Position27

Aantal in tekening2

Plug VSTIR38ED 3/8"

Article no: 711504

Adapter 236-06-06

Article no: 710131

Position92

Aantal in tekening1

Adapter 236-06-06

Article no: 710131

Seal washer GBR04 1/4"

Article no: 710702

Position6

Aantal in tekening8

Seal washer GBR04 1/4"

Article no: 710702

Mounting plate-ePS-Tilt sensor except Trimble-EC209

Article no: 1039019

Position74

Aantal in tekening1

Mounting plate-ePS-Tilt sensor except Trimble-EC209

Article no: 1039019

(Trimble directly on POS.73)

Attachment Tiltrotator module DC2 & ePS EC209

Article no: 1038301

Position73

Aantal in tekening1

Attachment Tiltrotator module DC2 & ePS EC209

Article no: 1038301

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position4

Aantal in tekening8

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

QTY: 4 part of make up

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Position72

Aantal in tekening1

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

Position78

Aantal in tekening1

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

Position77

Aantal in tekening1

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

Cut cable protection: 130mm

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Position18

Aantal in tekening12

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959
