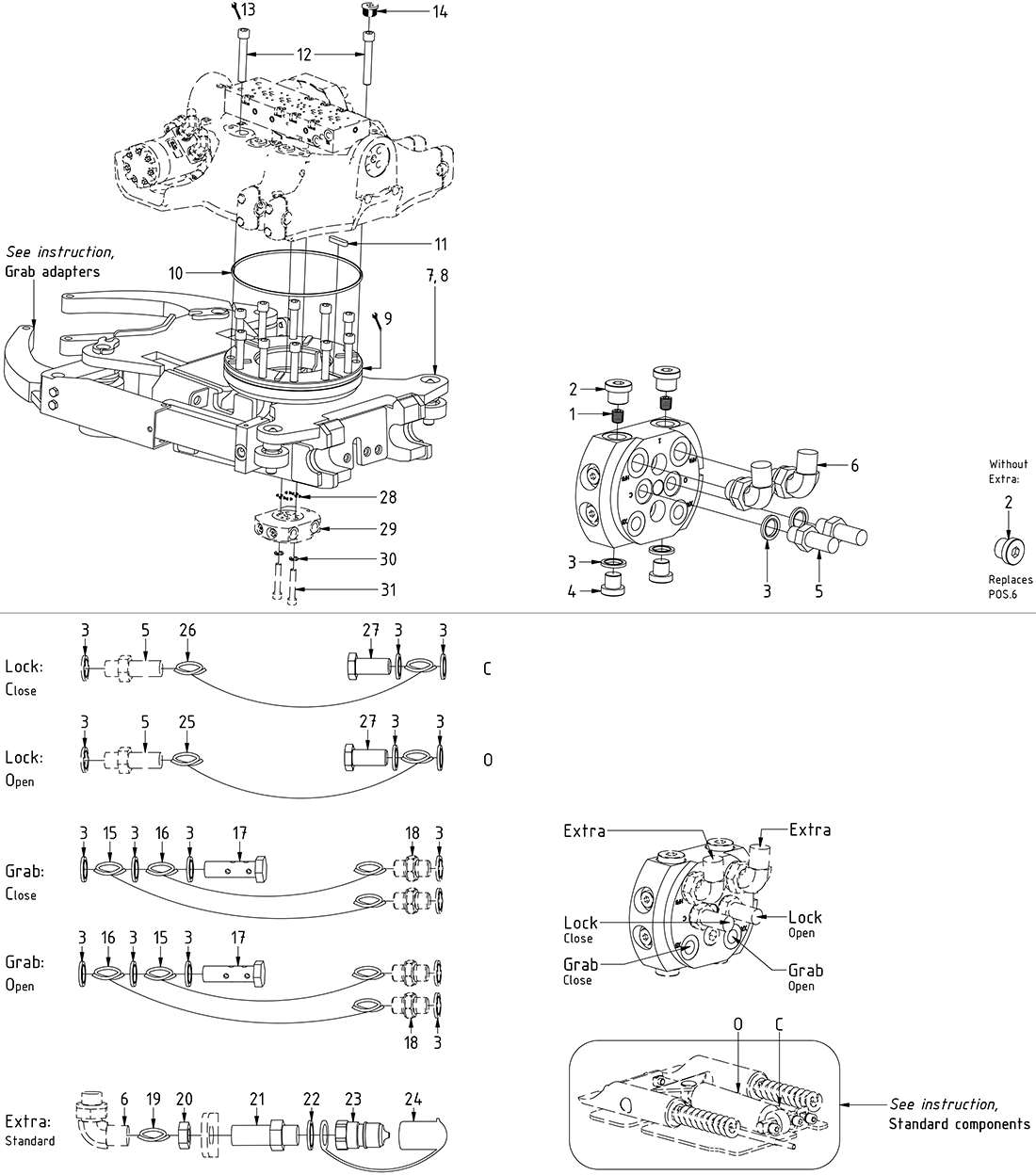

S45/50 GR10

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Pipe Plug RP M26x1,5 DIN908 FZB

Article no: 650409

Position14

Aantal in tekening6

Pipe Plug RP M26x1,5 DIN908 FZB

Article no: 650409

Part of rotator frame assembly

Nut bulkhead adapter 1270-06

Article no: 710252

Position20

Aantal in tekening2

Nut bulkhead adapter 1270-06

Article no: 710252

Adapter bulkhead 1260-06-32

Article no: 710242

Position21

Aantal in tekening2

Adapter bulkhead 1260-06-32

Article no: 710242

Hose

Article no: 7000304

Position25

Aantal in tekening1

Hose

Article no: 7000304

Banjo bolt 4450-04-00 extended

Article no: 712214

Position17

Aantal in tekening2

Banjo bolt 4450-04-00 extended

Article no: 712214

Hose Grab - EC209 - S45/S50 GR10 long

Article no: 742856

Position16

Aantal in tekening2

Hose Grab - EC209 - S45/S50 GR10 long

Article no: 742856

Replaces 742810 from 2015-04

Connection block 6-ch EC209-for Slip ring

Article no: 1025502

Position29

Aantal in tekening1

Connection block 6-ch EC209-for Slip ring

Article no: 1025502

Part of rotator frame assembly

Hose lock - EC209 - S45/S50 long

Article no: 7000305

Position26

Aantal in tekening1

Hose lock - EC209 - S45/S50 long

Article no: 7000305

Plug 1/8" BSPT

Article no: 711523

Position1

Aantal in tekening2

Plug 1/8" BSPT

Article no: 711523

Loctite

Adapter bulkhead 1260-04-04

Article no: 710240

Position5

Aantal in tekening2

Adapter bulkhead 1260-04-04

Article no: 710240

Screw MC6S 10x60 12.9 untreated ISO4762

Article no: 610460

Position31

Aantal in tekening2

Screw MC6S 10x60 12.9 untreated ISO4762

Article no: 610460

Part of rotator frame assembly

Hose

Article no: 742809

Position15

Aantal in tekening2

Hose

Article no: 742809

Hose extra - EC209 - S45/S50

Article no: 742803

Position19

Aantal in tekening2

Hose extra - EC209 - S45/S50

Article no: 742803

Feather key 10x8x45 C45 EC10, EC02, EC209 550475

Article no: 650101

Position11

Aantal in tekening6

Feather key 10x8x45 C45 EC10, EC02, EC209 550475

Article no: 650101

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position18

Aantal in tekening4

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Part of Grab adapter assembly

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position28

Aantal in tekening6

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Part of rotator frame assembly

Banjo bolt 4451-04

Article no: 710271

Position27

Aantal in tekening2

Banjo bolt 4451-04

Article no: 710271

Adapter 401-06-06 90°

Article no: 710152

Position6

Aantal in tekening2

Adapter 401-06-06 90°

Article no: 710152

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position30

Aantal in tekening2

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Part of rotator frame assembly

Dust protection 3/8" male 3826

Article no: 790120

Position24

Aantal in tekening2

Dust protection 3/8" male 3826

Article no: 790120

Seal washer GBR06 3/8"

Article no: 710703

Position22

Aantal in tekening2

Seal washer GBR06 3/8"

Article no: 710703

Plug VSTIR38ED 3/8"

Article no: 711504

Position2

Aantal in tekening2

Plug VSTIR38ED 3/8"

Article no: 711504

QTY: 4 for EC209 Without extra

Quick coupling 3/8" male 3820

Article no: 790113

Position23

Aantal in tekening2

Quick coupling 3/8" male 3820

Article no: 790113

Plug Din 908 1/4"

Article no: 711505

Position4

Aantal in tekening2

Plug Din 908 1/4"

Article no: 711505

Seal washer GBR04 1/4"

Article no: 710702

Position3

Aantal in tekening18

Seal washer GBR04 1/4"

Article no: 710702

QTY: 4 part of Grab adapter

Screw MC6S 14x90 12.9 ZFSHL ISO4762

Article no: 6000158

Position12

Aantal in tekening12

Screw MC6S 14x90 12.9 ZFSHL ISO4762

Article no: 6000158

Torque: 217Nm

O-ring 242x5 NBR 90 shore EC226 worm wheel / EC209 QH

Article no: 7001663

Position10

Aantal in tekening1

O-ring 242x5 NBR 90 shore EC226 worm wheel / EC209 QH

Article no: 7001663
