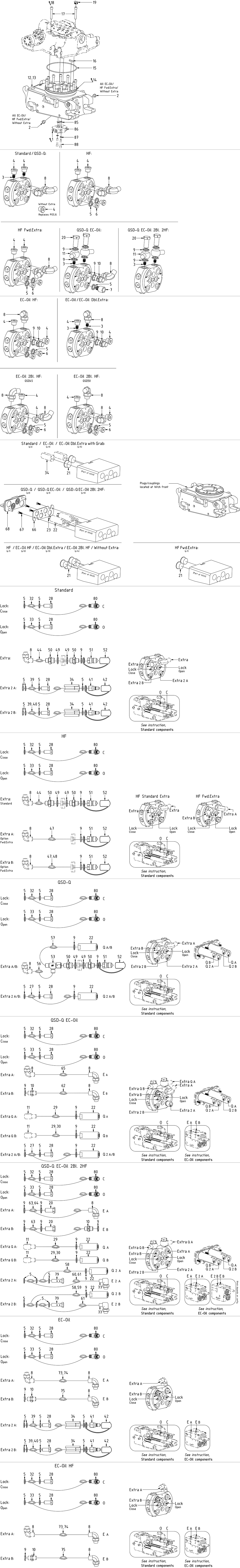

QSD45/50

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Hose

Article no: 7000445

Position61

Aantal in tekening2

Hose

Article no: 7000445

QTY: 1 for QSD50 & EC-Oil Dbl.Extra

Hose

Article no: 7000444

Position63

Aantal in tekening1

Hose

Article no: 7000444

Hose

Article no: 7000447

Position75

Aantal in tekening1

Hose

Article no: 7000447

Hose

Article no: 7000541

Position48

Aantal in tekening1

Hose

Article no: 7000541

For QSD50

Cover plate ECO QSD45/50

Article no: 1037465

Position89

Aantal in tekening1

Cover plate ECO QSD45/50

Article no: 1037465

Replaced by POS.68 from 2018-09

Hose kit - EC209 QSD45 - QSD-Q EC-Oil

Article no: 7000549

Position25

Aantal in tekening1

Hose kit - EC209 QSD45 - QSD-Q EC-Oil

Article no: 7000549

(POS.27, 29, 62, 65 included)

Flat seal for ECO 3/8" V3

Article no: 1052976

Position23

Aantal in tekening4

Flat seal for ECO 3/8" V3

Article no: 1052976

Quick coupling 1/4" male 2520

Article no: 790111

Position41

Aantal in tekening2

Quick coupling 1/4" male 2520

Article no: 790111

Hose

Article no: 7000461

Position64

Aantal in tekening1

Hose

Article no: 7000461

Cable tie 4,8x371

Article no: 1021586

Position83

Aantal in tekening-

Cable tie 4,8x371

Article no: 1021586

Adapter 135-04-06

Article no: 710118

Position78

Aantal in tekening1

Adapter 135-04-06

Article no: 710118

Hose

Article no: 7000462

Position60

Aantal in tekening1

Hose

Article no: 7000462

For QSD50

Hose

Article no: 7000442

Position57

Aantal in tekening2

Hose

Article no: 7000442

Pipe Plug RP M26x1,5 DIN908 FZB

Article no: 650409

Position19

Aantal in tekening6

Pipe Plug RP M26x1,5 DIN908 FZB

Article no: 650409

Part of rotator frame assembly

Hose

Article no: 7000441

Position56

Aantal in tekening2

Hose

Article no: 7000441

Hose

Article no: 7000460

Position59

Aantal in tekening1

Hose

Article no: 7000460

For QSD50

Hose

Article no: 7000450

Position70

Aantal in tekening1

Hose

Article no: 7000450

For QSD50

Hose kit - EC209 QSD50 - standard

Article no: 7000544

Position36

Aantal in tekening1

Hose kit - EC209 QSD50 - standard

Article no: 7000544

(POS.39, 40, 44 included)

Screw MF6S 6x20 10.9 FZB ISO10642

Article no: 6000113

Position67

Aantal in tekening4

Screw MF6S 6x20 10.9 FZB ISO10642

Article no: 6000113

Banjo bolt 4450-04-00 extended

Article no: 712214

Position79

Aantal in tekening2

Banjo bolt 4450-04-00 extended

Article no: 712214

Quick hitch QSD45 EC209

Article no: 1036400

Position12

Aantal in tekening1

Quick hitch QSD45 EC209

Article no: 1036400

Connection block 6-ch EC209-for Slip ring

Article no: 1025502

Position86

Aantal in tekening1

Connection block 6-ch EC209-for Slip ring

Article no: 1025502

Part of rotator frame assembly

Hose

Article no: 7000437

Position27

Aantal in tekening2

Hose

Article no: 7000437

Hose

Article no: 7000449

Position40

Aantal in tekening1

Hose

Article no: 7000449

For QSD50

Plug 1/8" BSPT

Article no: 711523

Position3

Aantal in tekening2

Plug 1/8" BSPT

Article no: 711523

Loctite 5400

Hose kit - EC209 QSD45/50 - lock

Article no: 7000542

Position31

Aantal in tekening1

Hose kit - EC209 QSD45/50 - lock

Article no: 7000542

(POS.32, 33 included)

Adapter 136-06-06

Article no: 710106

Position10

Aantal in tekening1

Adapter 136-06-06

Article no: 710106

Screw MC6S 10x60 12.9 untreated ISO4762

Article no: 610460

Position88

Aantal in tekening2

Screw MC6S 10x60 12.9 untreated ISO4762

Article no: 610460

Part of rotator frame assembly

Protection Plug HECO 45/50 hydraulic

Article no: 7000153

Position21

Aantal in tekening2

Protection Plug HECO 45/50 hydraulic

Article no: 7000153

QTY depends on config (2-4)

Hose

Article no: 7000540

Position47

Aantal in tekening2

Hose

Article no: 7000540

For HF Fwd.Extra QTY: 1 for QSD50

Hose

Article no: 740197

Position73

Aantal in tekening1

Hose

Article no: 740197

For QSD45

Hose

Article no: 7000436

Position44

Aantal in tekening2

Hose

Article no: 7000436

Adapter 236-04-04

Article no: 1013885

Position7

Aantal in tekening1

Adapter 236-04-04

Article no: 1013885

Hose kit - EC209 QSD45/50 - QSD-Q

Article no: 7000548

Position24

Aantal in tekening1

Hose kit - EC209 QSD45/50 - QSD-Q

Article no: 7000548

(POS.27, 56, 57 included)

Hose

Article no: 7000435

Position39

Aantal in tekening2

Hose

Article no: 7000435

QTY: 1 for QSD50

Adapter 830-06-06

Article no: 710147

Position11

Aantal in tekening2

Adapter 830-06-06

Article no: 710147

Cable tie 7,8x360

Article no: 1021587

Position84

Aantal in tekening2

Cable tie 7,8x360

Article no: 1021587

Hose Holder QSD45

Article no: 1038800

Position34

Aantal in tekening2

Hose Holder QSD45

Article no: 1038800

Adapter 855-06-06

Article no: 710281

Position53

Aantal in tekening2

Adapter 855-06-06

Article no: 710281

Hose

Article no: 7000448

Position69

Aantal in tekening2

Hose

Article no: 7000448

QTY: 1 for QSD50 & QSD45 EC-Oil Dbl.Extra

Cover plate GRD/SWD Coupling - QSD45/50/QSM45 magnet

Article no: 1056107

Position68

Aantal in tekening1

Cover plate GRD/SWD Coupling - QSD45/50/QSM45 magnet

Article no: 1056107

Dust protection 1/4" male 2526

Article no: 790119

Position42

Aantal in tekening2

Dust protection 1/4" male 2526

Article no: 790119

Hose

Article no: 7000463

Position74

Aantal in tekening1

Hose

Article no: 7000463

For QSD50

Hose

Article no: 7000443

Position58

Aantal in tekening2

Hose

Article no: 7000443

QTY: 1 for QSD50

Mounting plate-ECO QSD45/50 V2

Article no: 1055295

Position66

Aantal in tekening1

Mounting plate-ECO QSD45/50 V2

Article no: 1055295

Coupling ECO QSD 3/8" female V3

Article no: 1053128

Position22

Aantal in tekening4

Coupling ECO QSD 3/8" female V3

Article no: 1053128

(POS.23 included)

Adapter 401-04-06 90°

Article no: 710154

Position77

Aantal in tekening2

Adapter 401-04-06 90°

Article no: 710154

QTY depends on config (1-2)

Hose

Article no: 7000433

Position33

Aantal in tekening1

Hose

Article no: 7000433

Hose

Article no: 7000446

Position76

Aantal in tekening2

Hose

Article no: 7000446

QTY: 1 for QSD50 & EC-Oil 2Bl. HF

Hose

Article no: 7000434

Position32

Aantal in tekening1

Hose

Article no: 7000434

Quick hitch QSD50 EC209

Article no: 1039288

Position13

Aantal in tekening1

Quick hitch QSD50 EC209

Article no: 1039288

Adapter 135-06-08

Article no: 710122

Position50

Aantal in tekening4

Adapter 135-06-08

Article no: 710122

Feather key 10x8x45 C45 EC10, EC02, EC209 550475

Article no: 650101

Position16

Aantal in tekening6

Feather key 10x8x45 C45 EC10, EC02, EC209 550475

Article no: 650101

Banjo bolt 4451-06

Article no: 710272

Position20

Aantal in tekening4

Banjo bolt 4451-06

Article no: 710272

QTY depends on config (2-4)

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position85

Aantal in tekening6

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Part of rotator frame assembly

Seal washer GBR08 1/2"

Article no: 710704

Position49

Aantal in tekening4

Seal washer GBR08 1/2"

Article no: 710704

Banjo bolt 4451-04

Article no: 710271

Position28

Aantal in tekening4

Banjo bolt 4451-04

Article no: 710271

QTY depends on config (2-4)

Plug VSTIR12ED 1/2"

Article no: 711500

Position2

Aantal in tekening4

Plug VSTIR12ED 1/2"

Article no: 711500

For option EC-Oil, HF Fwd.Extra

Adapter 401-06-06 90°

Article no: 710152

Position8

Aantal in tekening2

Adapter 401-06-06 90°

Article no: 710152

QTY depends on config (1-3)

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position87

Aantal in tekening2

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Part of rotator frame assembly

Dust protection 3/8" male 3826

Article no: 790120

Position52

Aantal in tekening2

Dust protection 3/8" male 3826

Article no: 790120

Seal washer GBR06 3/8"

Article no: 710703

Position9

Aantal in tekening2

Seal washer GBR06 3/8"

Article no: 710703

QTY depends on config (1-13)

Plug VSTIR38ED 3/8"

Article no: 711504

Position4

Aantal in tekening2

Plug VSTIR38ED 3/8"

Article no: 711504

QTY: 4 for Without Extra

Quick coupling 3/8" male 3820

Article no: 790113

Position51

Aantal in tekening2

Quick coupling 3/8" male 3820

Article no: 790113

Plug Din 908 1/4"

Article no: 711505

Position6

Aantal in tekening2

Plug Din 908 1/4"

Article no: 711505

Seal washer GBR04 1/4"

Article no: 710702

Position5

Aantal in tekening12

Seal washer GBR04 1/4"

Article no: 710702

QTY depends on config (6-14)

Adapter 402-04-04 45°

Article no: 7000104

Position80

Aantal in tekening2

Adapter 402-04-04 45°

Article no: 7000104

Screw MC6S 14x90 12.9 ZFSHL ISO4762

Article no: 6000158

Position17

Aantal in tekening12

Screw MC6S 14x90 12.9 ZFSHL ISO4762

Article no: 6000158

Torque: 217Nm

O-ring 242x5 NBR 90 shore EC226 worm wheel / EC209 QH

Article no: 7001663

Position15

Aantal in tekening1

O-ring 242x5 NBR 90 shore EC226 worm wheel / EC209 QH

Article no: 7001663

O-ring 12,42x1,78 PU - ECO45 3/8"

Article no: 712417

Position91

Aantal in tekening4

O-ring 12,42x1,78 PU - ECO45 3/8"

Article no: 712417

Replaced by POS.23 from 2020-01
