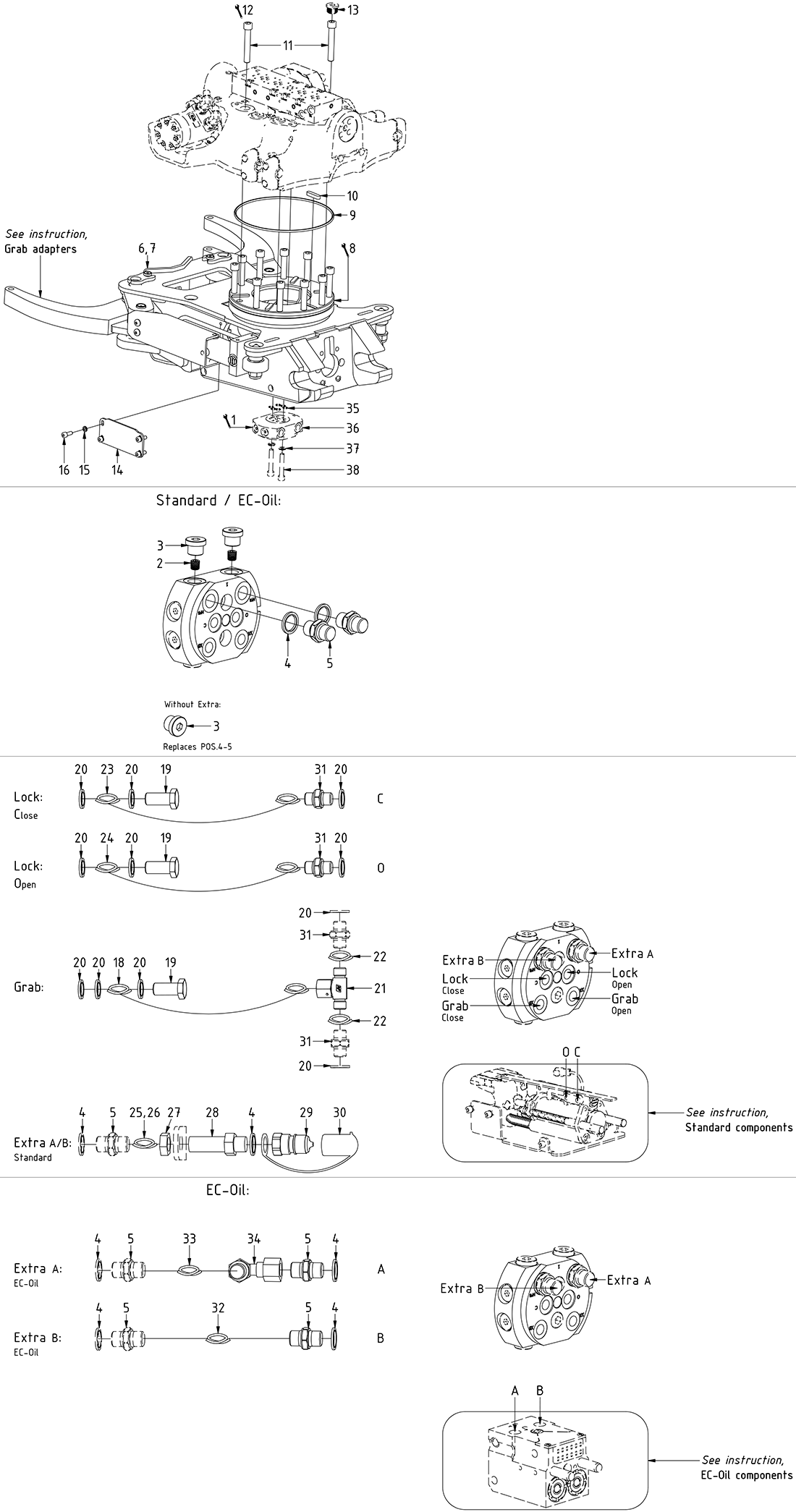

QS45/50 GR10

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Hose Grab - EC209 - QS45GR10 inside

Article no: 742845

Position18

Aantal in tekening2

Hose Grab - EC209 - QS45GR10 inside

Article no: 742845

Pipe Plug RP M26x1,5 DIN908 FZB

Article no: 650409

Position13

Aantal in tekening6

Pipe Plug RP M26x1,5 DIN908 FZB

Article no: 650409

Part of rotator frame assembly

Nut bulkhead adapter 1270-06

Article no: 710252

Position27

Aantal in tekening2

Nut bulkhead adapter 1270-06

Article no: 710252

Hose

Article no: 7000053

Position25

Aantal in tekening1

Hose

Article no: 7000053

Adapter bulkhead extended 1260-06-43

Article no: 710262

Position28

Aantal in tekening2

Adapter bulkhead extended 1260-06-43

Article no: 710262

Connection block 6-ch EC209-for Slip ring

Article no: 1025502

Position36

Aantal in tekening1

Connection block 6-ch EC209-for Slip ring

Article no: 1025502

Part of rotator frame assembly

Hose lock - EC209 - QS45 Open

Article no: 742843

Position24

Aantal in tekening1

Hose lock - EC209 - QS45 Open

Article no: 742843

Plug 1/8" BSPT

Article no: 711523

Position2

Aantal in tekening2

Plug 1/8" BSPT

Article no: 711523

Loctite 5400

Adapter 136-06-06

Article no: 710106

Position5

Aantal in tekening2

Adapter 136-06-06

Article no: 710106

QTY: 4 for EC-Oil

Screw MC6S 10x60 12.9 untreated ISO4762

Article no: 610460

Position38

Aantal in tekening2

Screw MC6S 10x60 12.9 untreated ISO4762

Article no: 610460

Part of rotator frame assembly

Hose lock - EC209 - QS45 Close

Article no: 742844

Position23

Aantal in tekening1

Hose lock - EC209 - QS45 Close

Article no: 742844

Cover plate Side-QS45-QS60

Article no: 1025118

Position14

Aantal in tekening2

Cover plate Side-QS45-QS60

Article no: 1025118

Adapter 853-04-99

Article no: 710184

Position21

Aantal in tekening2

Adapter 853-04-99

Article no: 710184

Adapter 488-06-06 90°

Article no: 710165

Position34

Aantal in tekening1

Adapter 488-06-06 90°

Article no: 710165

Hose Grab - EC206-EC214 - QS45gr10/QS50gr10

Article no: 742847

Position22

Aantal in tekening4

Hose Grab - EC206-EC214 - QS45gr10/QS50gr10

Article no: 742847

Hose

Article no: 7000714

Position26

Aantal in tekening1

Hose

Article no: 7000714

Hose

Article no: 742848

Position32

Aantal in tekening1

Hose

Article no: 742848

Hose

Article no: 742849

Position33

Aantal in tekening1

Hose

Article no: 742849

Feather key 10x8x45 C45 EC10, EC02, EC209 550475

Article no: 650101

Position10

Aantal in tekening6

Feather key 10x8x45 C45 EC10, EC02, EC209 550475

Article no: 650101

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

Position31

Aantal in tekening6

Adapter 138-04-29 ( compact 136-04-04 )

Article no: 710135

QTY: 4 part of Grab adapter

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position35

Aantal in tekening6

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Part of rotator frame assembly

Banjo bolt 4451-04

Article no: 710271

Position19

Aantal in tekening4

Banjo bolt 4451-04

Article no: 710271

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position37

Aantal in tekening2

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Part of rotator frame assembly

Dust protection 3/8" male 3826

Article no: 790120

Position30

Aantal in tekening2

Dust protection 3/8" male 3826

Article no: 790120

Seal washer GBR06 3/8"

Article no: 710703

Position4

Aantal in tekening4

Seal washer GBR06 3/8"

Article no: 710703

Plug VSTIR38ED 3/8"

Article no: 711504

Position3

Aantal in tekening2

Plug VSTIR38ED 3/8"

Article no: 711504

QTY: 4 for EC209 Without Extra

Quick coupling 3/8" male 3820

Article no: 790113

Position29

Aantal in tekening2

Quick coupling 3/8" male 3820

Article no: 790113

Seal washer GBR04 1/4"

Article no: 710702

Position20

Aantal in tekening16

Seal washer GBR04 1/4"

Article no: 710702

QTY: 4 part of Grab adapter

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position15

Aantal in tekening8

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Screw MC6S 14x90 12.9 ZFSHL ISO4762

Article no: 6000158

Position11

Aantal in tekening12

Screw MC6S 14x90 12.9 ZFSHL ISO4762

Article no: 6000158

Torque: 217Nm

O-ring 242x5 NBR 90 shore EC226 worm wheel / EC209 QH

Article no: 7001663

Position9

Aantal in tekening1

O-ring 242x5 NBR 90 shore EC226 worm wheel / EC209 QH

Article no: 7001663
