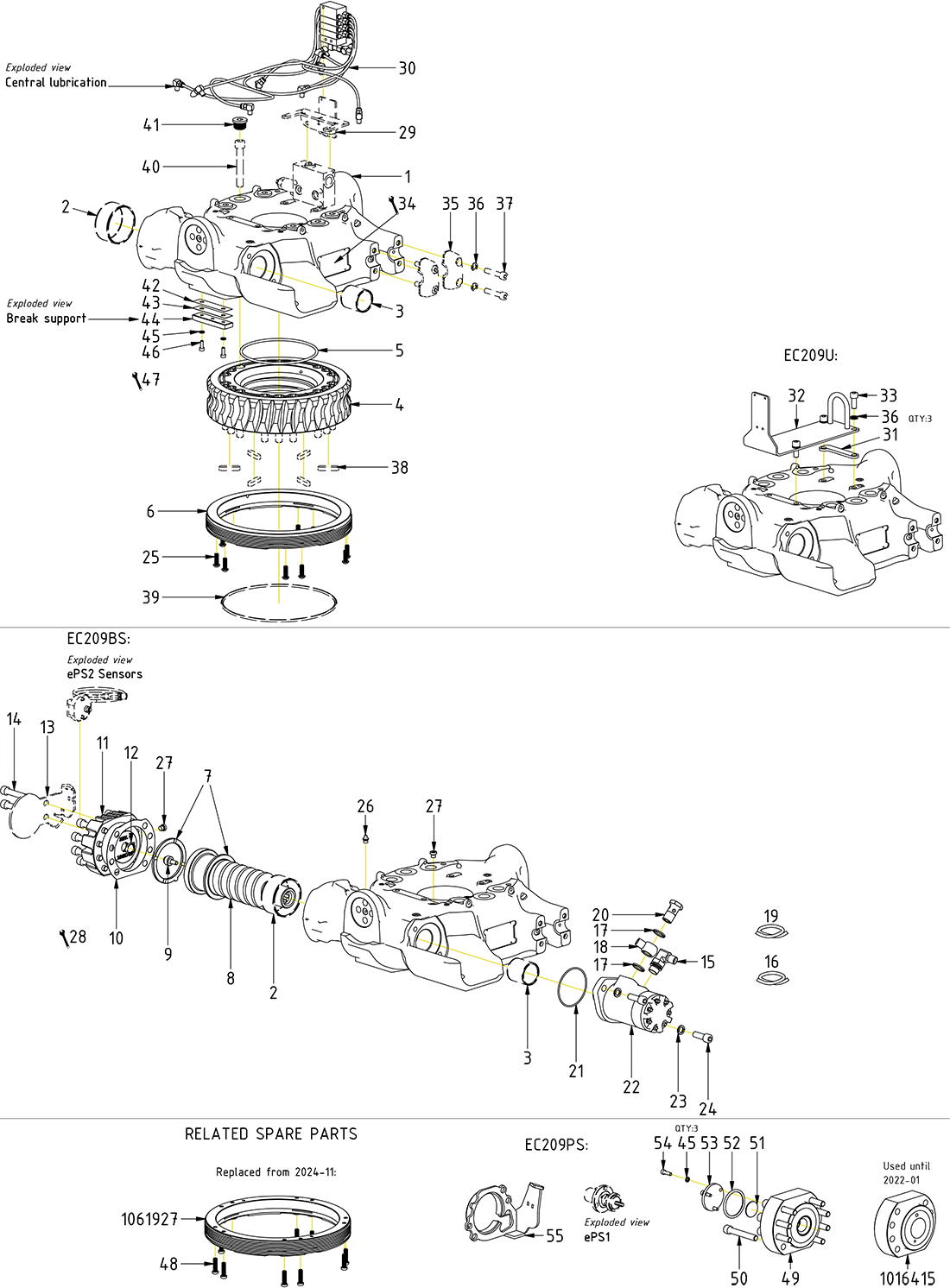

Main components

Pos

Artikel

Extra Info

Aantal in tekening

Prijs (excl. BTW)

Cover End lock None ePS

Article no: 1041613

Position53

Aantal in tekening1

Cover End lock None ePS

Article no: 1041613

Screw TX45 8x30 10.9 FZB ISO7380

Article no: 612201

Position48

Aantal in tekening10

Screw TX45 8x30 10.9 FZB ISO7380

Article no: 612201

Torque: 34Nm. Used with 1061927

Spacer 5mm valve block EC209 V2 frame

Article no: 1058993

Position31

Aantal in tekening1

Spacer 5mm valve block EC209 V2 frame

Article no: 1058993

Banjo bolt 4451-08

Article no: 710274

Position20

Aantal in tekening1

Banjo bolt 4451-08

Article no: 710274

Screw MC6S 6x20 A4 stainless ISO4762

Article no: 611513

Position54

Aantal in tekening3

Screw MC6S 6x20 A4 stainless ISO4762

Article no: 611513

Attachment central lubrication & DC2-QSM45/50

Article no: 1055574

Position29

Aantal in tekening1

Attachment central lubrication & DC2-QSM45/50

Article no: 1055574

Part of control system

Shim break support - EC209, EC214, EC219 - 0,3mm

Article no: 1055260

Position43

Aantal in tekening1

Shim break support - EC209, EC214, EC219 - 0,3mm

Article no: 1055260

Worm wheel EC209 18 bolt

Article no: 1054242

Position4

Aantal in tekening1

Worm wheel EC209 18 bolt

Article no: 1054242

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Position13

Aantal in tekening1

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Part of control system

Rotator frame 209 V2 EngconYellow complete

Article no: 1056657

Position1

Aantal in tekening1

Rotator frame 209 V2 EngconYellow complete

Article no: 1056657

(POS.2-3 incl.)

Shim break support - EC209, EC214, EC219 - 0,1mm

Article no: 1055262

Position42

Aantal in tekening1

Shim break support - EC209, EC214, EC219 - 0,1mm

Article no: 1055262

Hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15

Article no: 720112

Position22

Aantal in tekening1

Hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15

Article no: 720112

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Position24

Aantal in tekening2

Screw MC6S 12x35 12.9 ZFSHL ISO4762

Article no: 6000150

Torque: 136Nm

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

Position35

Aantal in tekening4

Clamping half EC206,209,214 EngconYellow complete

Article no: 1022942

Part of top part

Bearing ring EC209 V2

Article no: 1077029

Position6

Aantal in tekening1

Bearing ring EC209 V2

Article no: 1077029

(Only compatible with 8x25)

Pipe Plug RP M26x1,5 DIN908 FZB

Article no: 650409

Position41

Aantal in tekening6

Pipe Plug RP M26x1,5 DIN908 FZB

Article no: 650409

Hose

Article no: 7001307

Position19

Aantal in tekening1

Hose

Article no: 7001307

Part of quick hitch

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position23

Aantal in tekening2

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

O-ring 160x5 NBR 90 shore EC209 worm wheel

Article no: 7001660

Position5

Aantal in tekening1

O-ring 160x5 NBR 90 shore EC209 worm wheel

Article no: 7001660

Seal R09-F 20x27.5x3.2

Article no: 1063616

Position12

Aantal in tekening1

Seal R09-F 20x27.5x3.2

Article no: 1063616

Lubrication nipple 1/8 straight

Article no: 711403

Position26

Aantal in tekening1

Lubrication nipple 1/8 straight

Article no: 711403

Lubrication kit EC209 QSM

Article no: 1056598

Position30

Aantal in tekening1

Lubrication kit EC209 QSM

Article no: 1056598

Worm screw EC209

Article no: 1016453

Position8

Aantal in tekening1

Worm screw EC209

Article no: 1016453

Hose

Article no: 7001306

Position16

Aantal in tekening1

Hose

Article no: 7001306

Part of quick hitch

Axial washer with ear EC209/214/219

Article no: 1079941

Position7

Aantal in tekening2

Axial washer with ear EC209/214/219

Article no: 1079941

Face grooves toward worm screw

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Position50

Aantal in tekening8

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Torque: 136Nm

Spacer-end lock EC209/EC214/EC219

Article no: 1065370

Position51

Aantal in tekening1

Spacer-end lock EC209/EC214/EC219

Article no: 1065370

Attachment central lubrication EC209 w/o valve block-swivel

Article no: 1039502

Position32

Aantal in tekening1

Attachment central lubrication EC209 w/o valve block-swivel

Article no: 1039502

Magnet Spacer Worm Screw

Article no: 1062693

Position9

Aantal in tekening1

Magnet Spacer Worm Screw

Article no: 1062693

Loxeal 83-52. Torque: 20Nm

Plate break support - EC209/214/219

Article no: 1055258

Position44

Aantal in tekening1

Plate break support - EC209/214/219

Article no: 1055258

Adapter 401-06-08 90°

Article no: 710157

Position15

Aantal in tekening1

Adapter 401-06-08 90°

Article no: 710157

End lock EC209S/EC214S/EC219S Cast

Article no: 1065789

Position11

Aantal in tekening1

End lock EC209S/EC214S/EC219S Cast

Article no: 1065789

(POS.12 incl.)

Screw MC6S 10x25 12.9 ZFSHL ISO4762

Article no: 6000195

Position33

Aantal in tekening3

Screw MC6S 10x25 12.9 ZFSHL ISO4762

Article no: 6000195

O-ring 27x5 NBR 70 shore End lock ePS

Article no: 7000485

Position52

Aantal in tekening1

O-ring 27x5 NBR 70 shore End lock ePS

Article no: 7000485

Adapter 830-08-06

Article no: 710193

Position18

Aantal in tekening1

Adapter 830-08-06

Article no: 710193

Feather key 10x8x45 C45 EC10, EC02, EC209 550475

Article no: 650101

Position38

Aantal in tekening6

Feather key 10x8x45 C45 EC10, EC02, EC209 550475

Article no: 650101

Part of quick hitch

Shim kit End lock - EC209/EC214/EC219

Article no: 1034434

Position10

Aantal in tekening1

Shim kit End lock - EC209/EC214/EC219

Article no: 1034434

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

Position21

Aantal in tekening1

O-ring 82,22x2,62 NBR 70 shore

Article no: 7000920

Screw TX45 8x25 10,9 FZB

Article no: 1078840

Position25

Aantal in tekening10

Screw TX45 8x25 10,9 FZB

Article no: 1078840

Torque: 34Nm Tighten in cross pattern

Seal washer GBR08 1/2"

Article no: 710704

Position17

Aantal in tekening2

Seal washer GBR08 1/2"

Article no: 710704

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Position45

Aantal in tekening2

Washer NL6-DPE 6,5x10,8x1,7

Article no: 611039

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Position46

Aantal in tekening2

Screw MC6S 6x16 12.9 ZFSHL ISO4762

Article no: 6000017

Plug VSTIR18ED 1/8"

Article no: 711503

Position27

Aantal in tekening2

Plug VSTIR18ED 1/8"

Article no: 711503

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Position14

Aantal in tekening8

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Torque: 136Nm

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position36

Aantal in tekening8

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Part of top part

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Position37

Aantal in tekening8

Screw MC6S 10x50 12.9 ZFSHL ISO4762

Article no: 611515

Part of top part. Torque: 79Nm

End lock EC209/EC214/EC219 ePS

Article no: 1016557

Position49

Aantal in tekening1

End lock EC209/EC214/EC219 ePS

Article no: 1016557

Replaced by POS.11 between 2022-05 - 2022-10

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Position55

Aantal in tekening1

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Bushing WB802 45/50x50

Article no: 630102

Position3

Aantal in tekening1

Bushing WB802 45/50x50

Article no: 630102

Bushing WB802 80/85x40

Article no: 630103

Position2

Aantal in tekening1

Bushing WB802 80/85x40

Article no: 630103

O-ring 242x5 NBR 90 shore EC226 worm wheel / EC209 QH

Article no: 7001663

Position39

Aantal in tekening1

O-ring 242x5 NBR 90 shore EC226 worm wheel / EC209 QH

Article no: 7001663

Part of quick hitch

Screw MC6S 14x90 12.9 ZFSHL ISO4762

Article no: 6000158

Position40

Aantal in tekening18

Screw MC6S 14x90 12.9 ZFSHL ISO4762

Article no: 6000158

Part of quick hitch. Torque: 217Nm
